Schematic and parts book for Miele S157 S 157. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

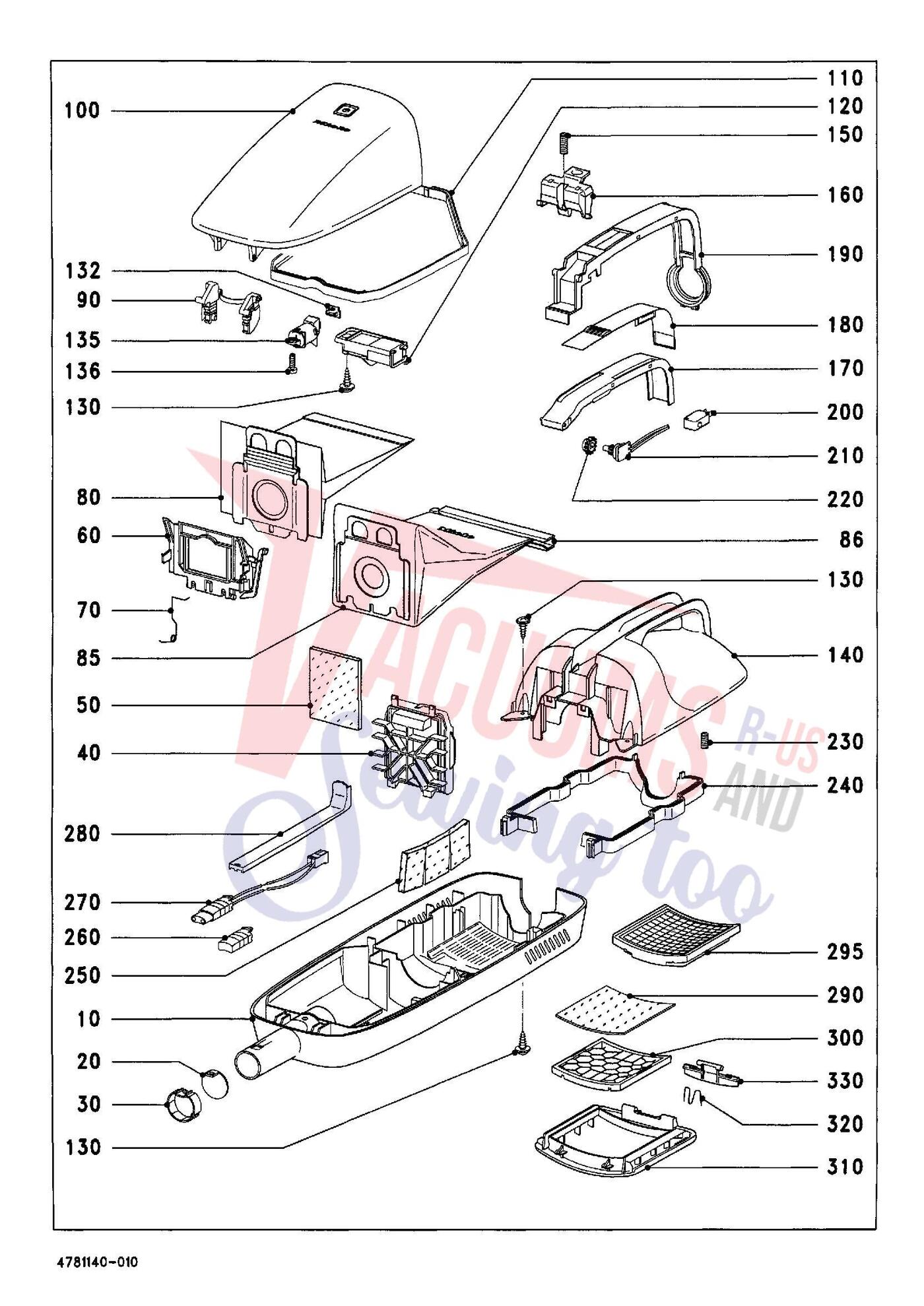

| # | Part image | Description | SKU | Price |
| (80) | No Image | Vacuum Cleaner Bag St-K/K S140 | 5588950 | $0.00Read more |
| XX |  | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| 10-30 | No Image | Casing Bottom Deep Black | 5476542 | $91.00Read more |
| 10-30 | No Image | Casing Bottom Light Blue | 5384032 | $91.00Read more |
| 20 | | Genuine Miele Flap | 1087860 | $13.50Read more |
| 30 | | Genuine Miele Bush anthracite | 4695090 | $3.60Read more |
| 40 | | Genuine Miele Filter frame S190er | 4695161 | $10.70Read more |
| 50 | | Genuine Miele Dust compart.filter 3 S140 | 4781420 | $15.00Read more |
| 60 | No Image | Bracket Anthracite | 4695082 | $15.53Read more |
| 70 | | Genuine Miele Torsion spring | 4774821 | $3.60Read more |
| 85+86 | Not Available | Cloth filter bag S140-S157 | 5227160 | Not Available |
| 86 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 90 | No Image | Hinge Anthracite | 4715900 | $7.59Read more |
| 100-132 | Not Available | Dust compart.lid Brilliant white | 4815393 | Not Available |
| 100-132 | Not Available | Dust compart.lid light blue | 5384023 | Not Available |
| 110 | | Genuine Miele Seal Dust compart.lid SA | 10706600 | $18.80Read more |
| 120 | | Genuine Miele Change filter ind. | 4715924 | $15.00Read more |
| 140 | Not Available | Casing top Brilliant white | 4759621 | Not Available |
| 140 | Not Available | Casing top light blue | 5367071 | Not Available |
| 150 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 160 | | Genuine Miele SA Lock | 4703783 | $24.70Read more |
| 170 | | Genuine Miele Cover strip anthracite | 4651950 | $18.80Read more |
| 180 | Not Available | Slide 0-max | 5856170 | Not Available |
| 190 | Not Available | Cover Brilliant white | 4759661 | Not Available |
| 190 | Not Available | Cover light blue | 5367081 | Not Available |
| 200 | | Genuine Miele Switch 250V | 4664140 | $27.90Read more |
| 210 | No Image | Potentiometer | 5481390 | $56.00Read more |
| 220 | No Image | Cogwheel Anthracite | 4715960 | $3.90Read more |
| 230 | No Image | Spring | 2924730 | $2.50Read more |
| 240 | | Genuine Miele Seal | 4988401 | $15.00Read more |
| 250 | No Image | Damping Plate | 4821850 | $7.00Read more |
| 270 | | Genuine Miele Flush socket outlet 2 pole | 4760692 | $62.00Read more |
| 280 | | Genuine Miele Strip anthracite | 4695100 | $9.70Read more |
| 290 | Not Available | Air-Clean filter 3 pcs. | 4781210 | Not Available |
| 295 | Not Available | Act.Air Cleanfilter SF-AAC10 | 7496330 | Not Available |
| 295 | | Genuine Miele Filter SF-H10 AirClean Plus | 7364560 | $52.45Add to cart Special order: ships in 2 to 4 weeks |
| 300 | | Genuine Miele Grille anthracite | 4695110 | $10.70Read more |
| 310-330 | Not Available | Filter cap Brilliant white | 4875752 | Not Available |
| 310-330 | No Image | Filter Cap Light Blue | 5384040 | $47.00Read more |
| 320 | Not Available | -Torsion spring | 4814940 | Not Available |
| 320 | | Genuine Miele Torsion spring | 5117270 | $4.90Read more |
| 320 | | Genuine Miele Torsion spring | 5117270 | $4.90Read more |
| 330 | | Genuine Miele Lock | 4814951 | $4.90Read more |
| 330 | Not Available | -Lock anthracite | 4814950 | Not Available |
| 330 | | Genuine Miele Lock | 4814951 | $4.90Read more |
| # | Part image | Description | SKU | Price |

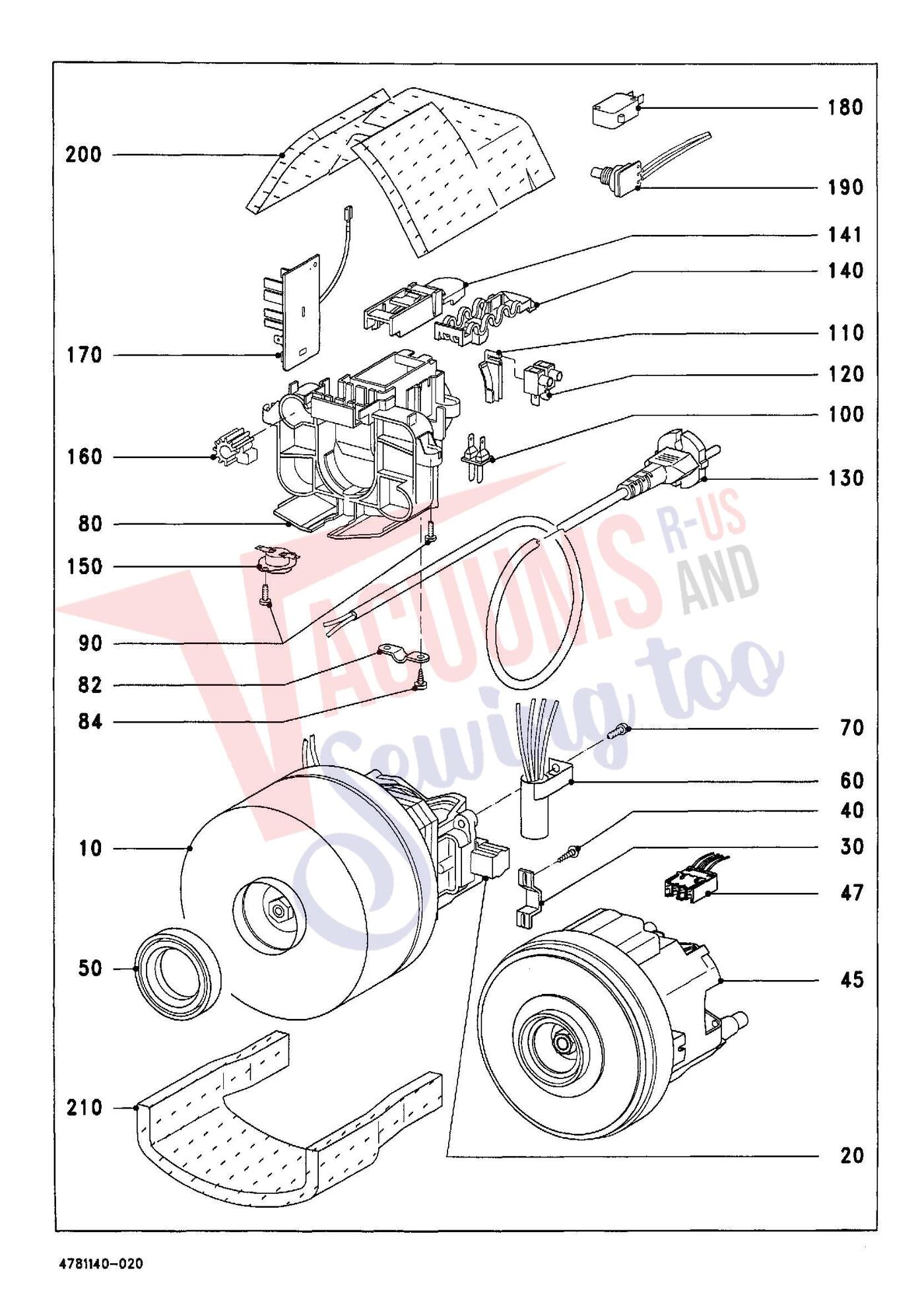

| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| XX | Not Available | --Raised head screw 4,8X10,5 | 4268011 | Not Available |
| XX | No Image | --Raised Head Screw 3,5X10 | 1816311 | $2.30Read more |
| XX | No Image | --Raised Head Screw 4,0X14 | 1599350 | $2.10Read more |
| XX | No Image | --Raised Head Screw 4,0X14 | 1599350 | $2.10Read more |
| 10-40 | Not Available | Fan 116127-50 120V 60HZ | 4900920 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 45 | No Image | Fan Mrg142/81-42/2 120V | 5420952 | $119.00Read more |
| 47 | No Image | Connecting Cable | 5576610 | $56.00Read more |
| 50 | | Genuine Miele Bearing ring | 4695150 | $24.70Read more |
| 80-84 | | Genuine Miele Motor bracket anthracite | 4880007 | $52.20Read more |
| 82 | | Genuine Miele Cable clamp | 5032020 | $15.00Read more |
| 100 | | Genuine Miele Plug housing | 4664131 | $10.70Read more |
| 110 | | Genuine Miele insulating piece | 4715970 | $4.90Read more |
| 120 | Not Available | Terminal block 2 POL. | 75448 | Not Available |
| 130 | No Image | Supply Cable 8M Usa | 4884943 | $68.00Read more |
| 141 | | Genuine Miele Lever | 5396811 | $15.00Read more |
| 150 | Not Available | Thermoswitch 10A 250V | 4853630 | Not Available |
| 160 | | Genuine Miele Rubber cushion black | 3928380 | $0.00Read more |
| 170 | No Image | Electronic Unit Edl150/81 120V 60Hz | 6715710 | $100.00Read more |
| 180 | | Genuine Miele Switch 250V | 4664140 | $27.90Read more |
| 200+210 | | Genuine Miele Damping plate | 4816470 | $27.90Read more |
| # | Part image | Description | SKU | Price |

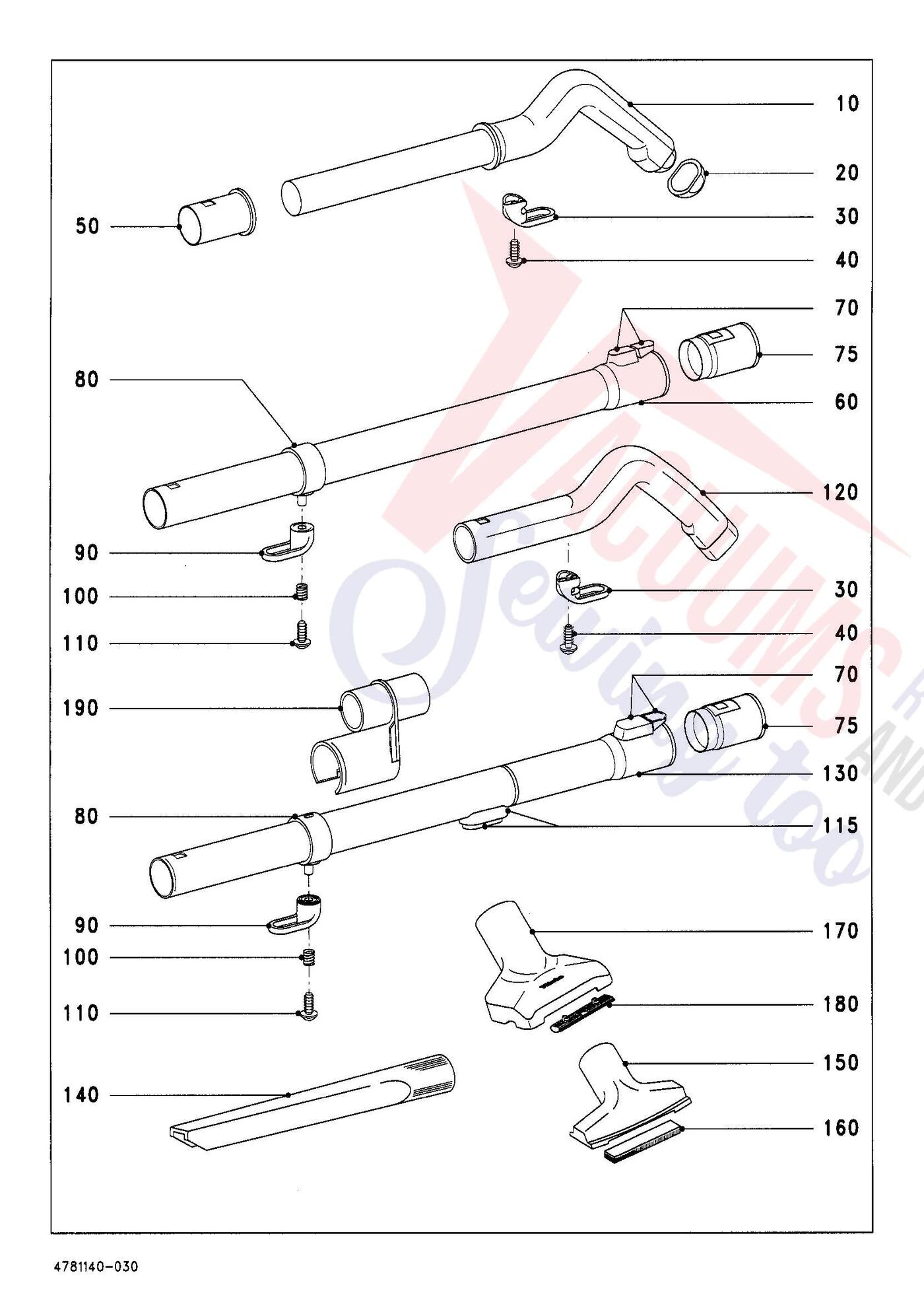

| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| 20 | Not Available | -End plug anthracite | 4718520 | Not Available |
| 30+40 | | Genuine Miele Tubular handle S163-S168 | 6527792 | $52.20Read more |
| 30 | | Genuine Miele Hook anthracite | 4718080 | $6.60Read more |
| 30+40 | | Genuine Miele Tubular handle S163-S168 | 6527792 | $52.20Read more |
| 30 | | Genuine Miele Hook anthracite | 4718080 | $6.60Read more |
| 50 | No Image | Sleeve Anthracite | 4718071 | $12.31Read more |
| 60-110 | No Image | Suction Pipe Stainless Steel | 5308412 | $66.00Read more |
| 70 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 70-115 | No Image | Telescopic Pipe Stainless Steel | 5803821 | $91.00Read more |
| 70 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 75+70 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 75+70 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Sleeve anthracite | 4718052 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Sleeve anthracite | 4718052 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Hook anthracite | 4718040 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Hook anthracite | 4718040 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele Spring | 29289 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele Spring | 29289 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 115 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Crevice nozzle anthracite | 3571671 | $12.10Read more |
| 140 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 140 | | Compatible alternateGenuine Miele Crevice nozzle 149mm More Product Details | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 170+180 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 190 | | Genuine Miele Bracket Accessory | 5455120 | $24.70Read more |
| # | Part image | Description | SKU | Price |

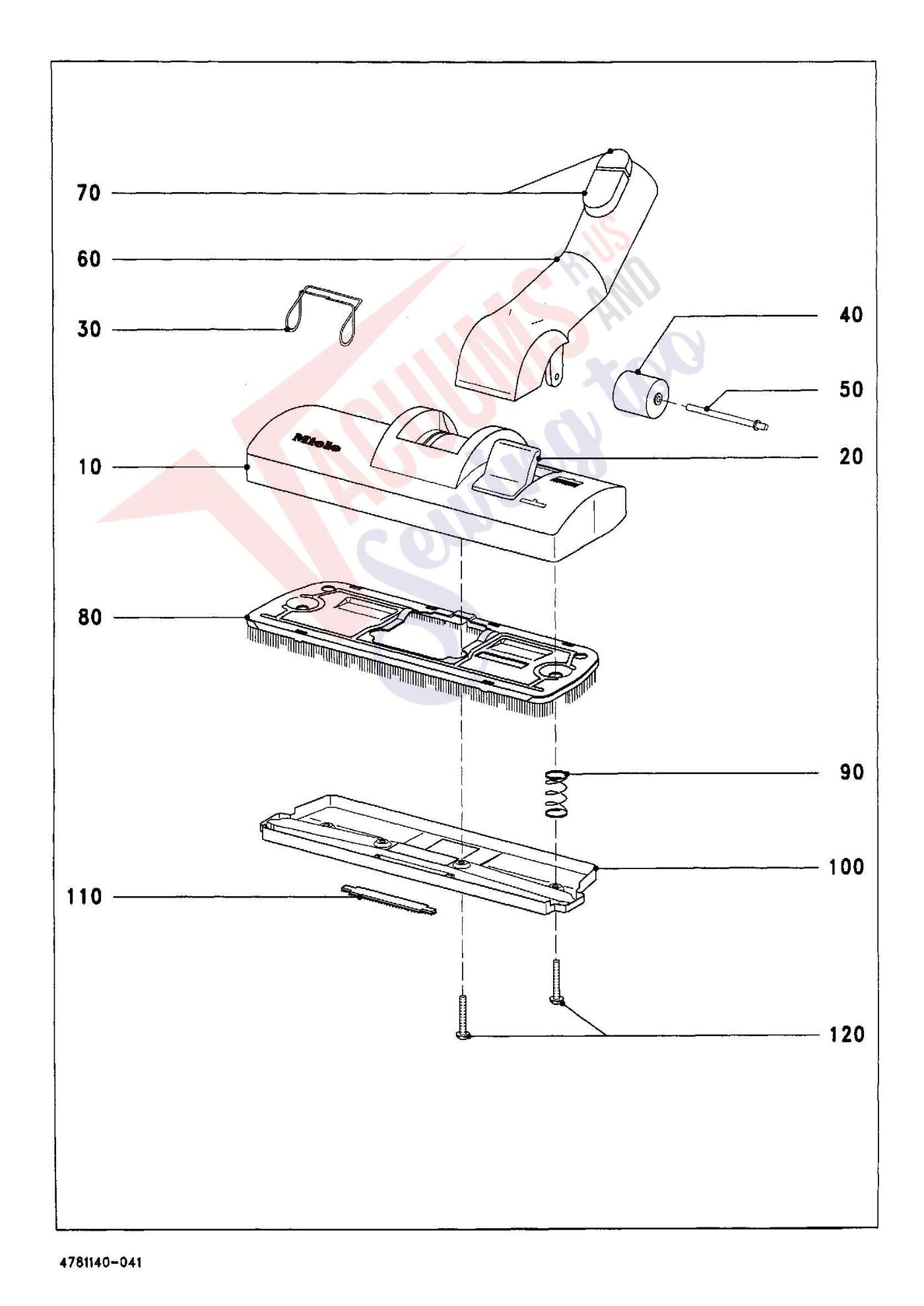

| w/o fig. | No Image | Floor Nozzle Sbd245 | 5462811 | $72.45Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz3,5X22 | 29020 | $2.50Read more |
| 10+20 | Not Available | -Top anthracite | 4876350 | Not Available |
| 20 | Not Available | -Foot switch anthracite | 4755820 | Not Available |
| 30 | No Image | -Torsion Spring | 2290300 | $4.14Read more |
| 40 | Not Available | -Roller anthracite | 4876880 | Not Available |
| 50 | Not Available | -Shaft | 4873870 | Not Available |
| 60+70 | Not Available | -Linkage anthracite | 4755840 | Not Available |
| 70 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | Not Available | -Bristle supp.plate | 1134871 | Not Available |
| 90 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 100+110 | Not Available | -Lower section | 1134880 | Not Available |
| 110 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| # | Part image | Description | SKU | Price |

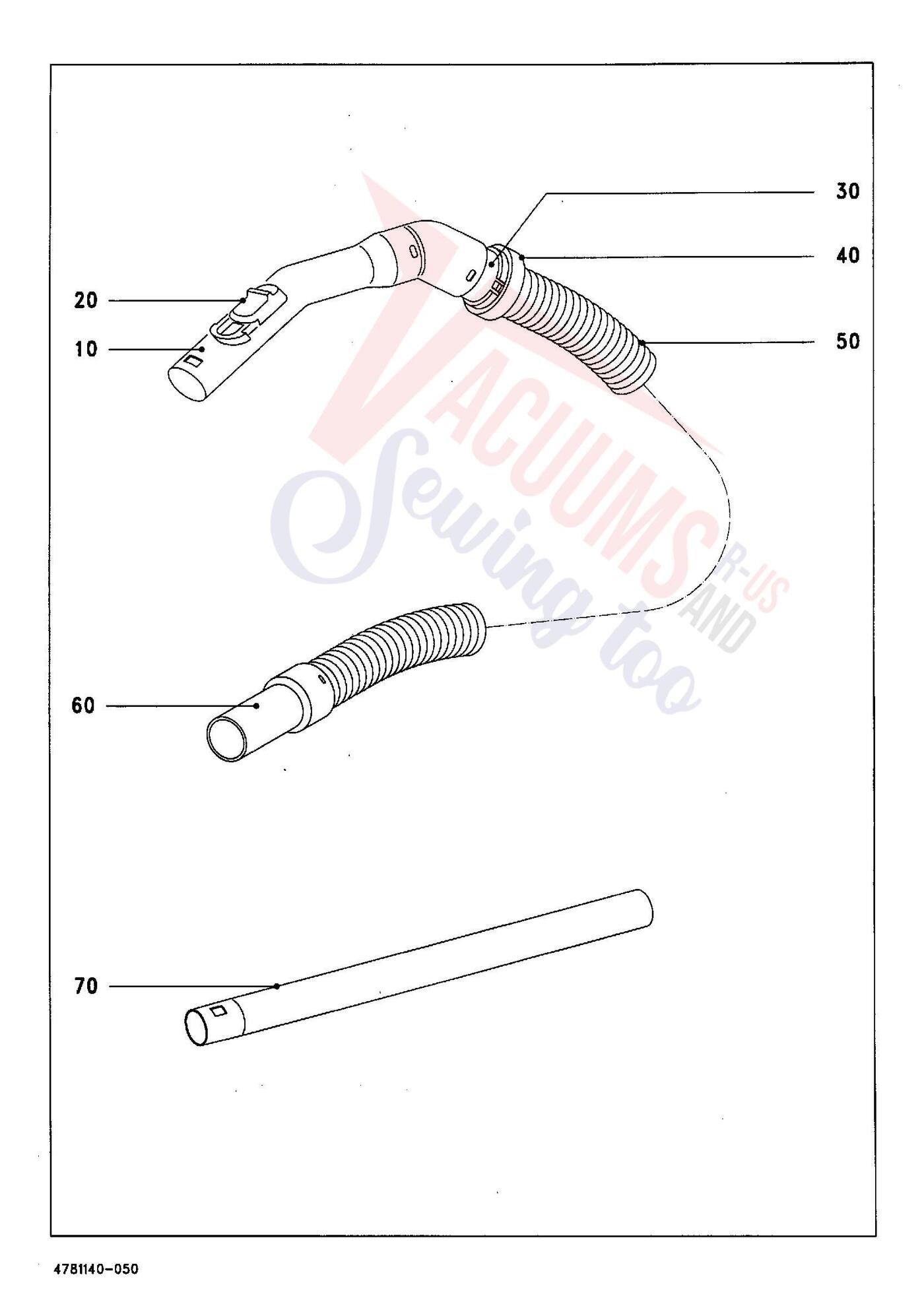

| 10-70 | No Image | Acc.Floor Cleaning S140-S195 | 4781271 | $129.00Read more |
| 10+20 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 10+20 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 30-50 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 60 | No Image | -Connecting Cone Anthracite | 3615020 | $30.00Read more |
| 70 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
