Schematic and parts book for Miele S147 S 147. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| (80) | No Image | Vacuum Cleaner Bag St-K/K S140 | 5588950 | $0.00Read more |
| XX | No Image | --Raised Head Screw 3,5X10 | 1816311 | $2.30Read more |
| 10-30 | No Image | Casing Bottom Deep Black | 5476542 | $91.00Read more |
| 20 |  | Genuine Miele Flap | 1087860 | $13.50Read more |
| 30 | | Genuine Miele Bush anthracite | 4695090 | $3.60Read more |
| 40 | | Genuine Miele Filter frame S190er | 4695161 | $10.70Read more |
| 50 | | Genuine Miele Dust compart.filter 3 S140 | 4781420 | $15.00Read more |
| 60 | No Image | Bracket Anthracite | 4695082 | $15.53Read more |
| 70 | | Genuine Miele Torsion spring | 4774821 | $3.60Read more |
| 85+86 | Not Available | Cloth filter bag S140-S157 | 5227160 | Not Available |
| 86 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 90 | No Image | Hinge Anthracite | 4715900 | $7.59Read more |
| 100-132 | No Image | Dust Compart.Lid Deep Black | 5476593 | $63.00Read more |
| 110 | | Genuine Miele Seal Dust compart.lid SA | 10706600 | $18.80Read more |
| 120 | | Genuine Miele Change filter ind. | 4715924 | $15.00Read more |
| 132 | No Image | -End Plug Staubraumdeckel | 5457300 | $2.50Read more |
| 135 | | Genuine Miele Suction control | 5607611 | $33.80Read more |
| 140 | No Image | Casing Top Deep Black | 5462561 | $109.00Read more |
| 150 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 160 | | Genuine Miele SA Lock | 4703783 | $24.70Read more |
| 170 | | Genuine Miele Cover strip anthracite | 4651950 | $18.80Read more |
| 180 | No Image | Slide 0-Min-Max | 4843431 | $17.25Read more |
| 190 | Not Available | Cover deep black | 5462591 | Not Available |
| 200 | | Genuine Miele Switch 250V | 4664140 | $27.90Read more |
| 230 | No Image | Spring | 2924730 | $2.50Read more |
| 240 | | Genuine Miele Seal | 4988401 | $15.00Read more |
| 250 | No Image | Damping Plate | 4821850 | $7.00Read more |
| 270 | | Genuine Miele Flush socket outlet 2 pole | 4760692 | $62.00Read more |
| 280 | | Genuine Miele Strip anthracite | 4695100 | $9.70Read more |
| 290 | Not Available | Air-Clean filter 3 pcs. | 4781210 | Not Available |
| 295 | Not Available | Act.Air Cleanfilter SF-AAC10 | 7496330 | Not Available |
| 295 | | Genuine Miele Filter SF-H10 AirClean Plus | 7364560 | $52.45Add to cart Special order: ships in 2 to 4 weeks |
| 300 | | Genuine Miele Grille anthracite | 4695110 | $10.70Read more |
| 310-330 | No Image | Filter Cap Deep Black | 5476632 | $47.00Read more |
| 320 | Not Available | -Torsion spring | 4814940 | Not Available |
| 320 | | Genuine Miele Torsion spring | 5117270 | $4.90Read more |
| 320 | | Genuine Miele Torsion spring | 5117270 | $4.90Read more |
| 330 | | Genuine Miele Lock | 4814951 | $4.90Read more |
| 330 | | Genuine Miele Lock | 4814951 | $4.90Read more |
| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 3,5X10 | 1816311 | $2.30Read more |
| XX | No Image | --Raised Head Screw 4,0X14 | 1599350 | $2.10Read more |
| 45 | No Image | Fan Mrg142/81-42/2 120V | 5420952 | $119.00Read more |
| 47 | No Image | Connecting Cable | 5576610 | $56.00Read more |
| 50 | | Genuine Miele Bearing ring | 4695150 | $24.70Read more |
| 80-84 | | Genuine Miele Motor bracket anthracite | 4880007 | $52.20Read more |
| 82 | | Genuine Miele Cable clamp | 5032020 | $15.00Read more |
| 100 | | Genuine Miele Plug housing | 4664131 | $10.70Read more |
| 110 | | Genuine Miele insulating piece | 4715970 | $4.90Read more |
| 130 | No Image | Supply Cable 8M Usa | 4884943 | $68.00Read more |
| 141 | | Genuine Miele Lever | 5396811 | $15.00Read more |
| 160 | | Genuine Miele Rubber cushion black | 3928380 | $0.00Read more |
| 170 | | Genuine Miele Electronic unit EDL140 230V 50HZ | 6715681 | $62.00Read more |
| 180 | | Genuine Miele Switch 250V | 4664140 | $27.90Read more |
| 200+210 | | Genuine Miele Damping plate | 4816470 | $27.90Read more |
| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| 30+40 | | Genuine Miele Tubular handle S163-S168 | 6527792 | $52.20Read more |
| 30 | | Genuine Miele Hook anthracite | 4718080 | $6.60Read more |
| 70-115 | No Image | Telescopic Pipe Stainless Steel | 5803821 | $91.00Read more |
| 70 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 75+70 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Sleeve anthracite | 4718052 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Hook anthracite | 4718040 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele Spring | 29289 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 115 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Crevice nozzle anthracite | 3571671 | $12.10Read more |
| 140 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 140 | | Compatible alternateGenuine Miele Crevice nozzle 149mm More Product Details | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 170+180 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 190 | | Genuine Miele Bracket Accessory | 5455120 | $24.70Read more |

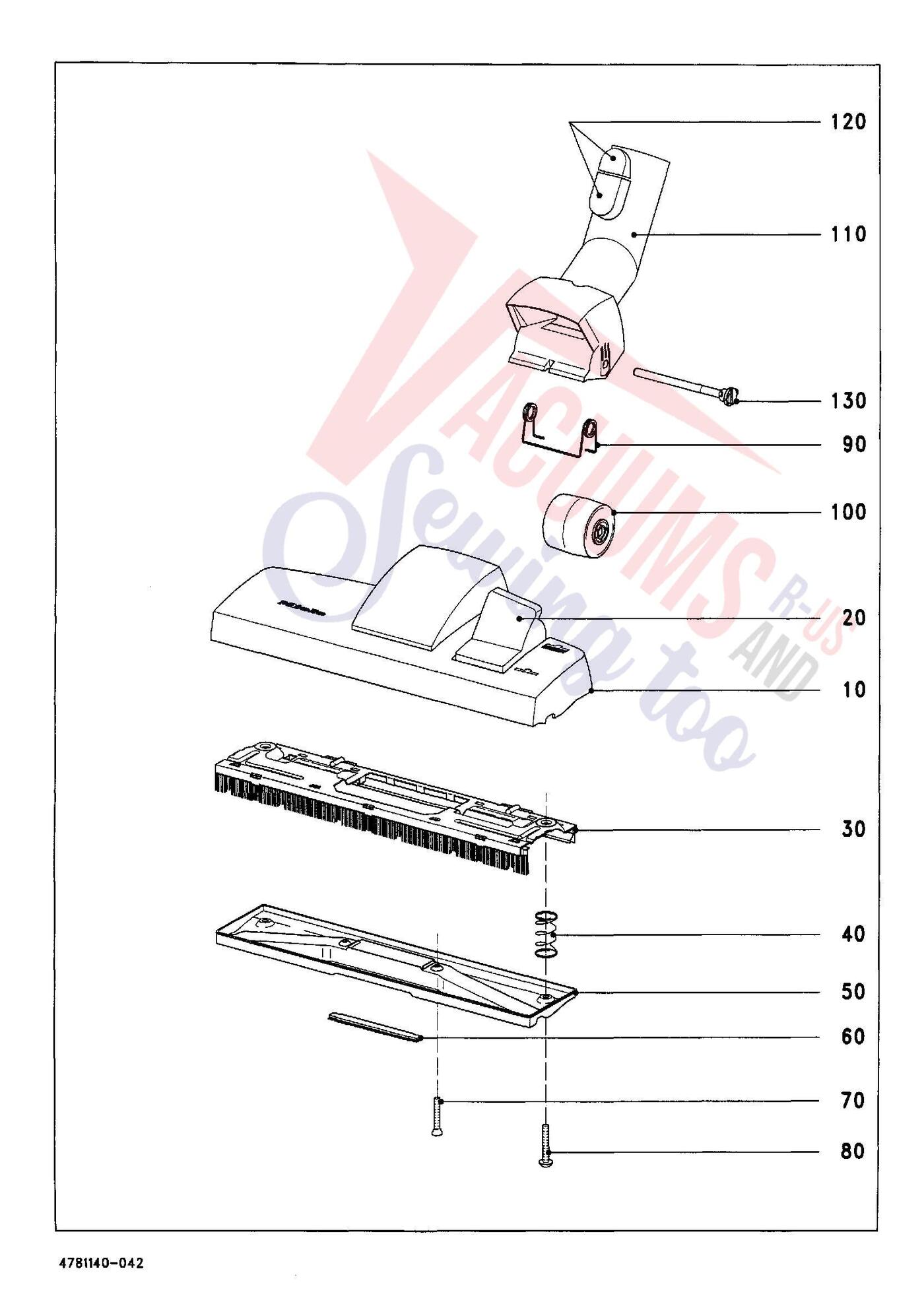

| # | Part image | Description | SKU | Price |
| 10-120 | No Image | Floor Nozzle Sbd245 | 5462810 | $72.45Read more |
| 10-120 | No Image | Floor Nozzle Sbd245 | 5462811 | $72.45Read more |
| 10 | No Image | -Top Anthracite | 5477810 | $30.00Read more |
| 20 | No Image | -Foot Switch Anthracite | 5477790 | $22.00Read more |
| 30 | No Image | -Bristle Supp.Plate | 5477780 | $42.00Read more |
| 40 | | Genuine Miele Coil spring 2 Pcs. | 5478660 | $20.60Read more |
| 50+60 | No Image | -Lower Section | 5477760 | $36.00Read more |
| 60 | No Image | -Thread Lifter Floor Nozzle | 5478650 | $20.00Read more |
| 90 | No Image | -Torsion Spring Floor Nozzle | 5477820 | $7.00Read more |
| 100 | | Genuine Miele Support roller Floor nozzle | 3607430 | $15.00Read more |
| 110+120 | No Image | -Linkage Sbd245 | 5477830 | $56.00Read more |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

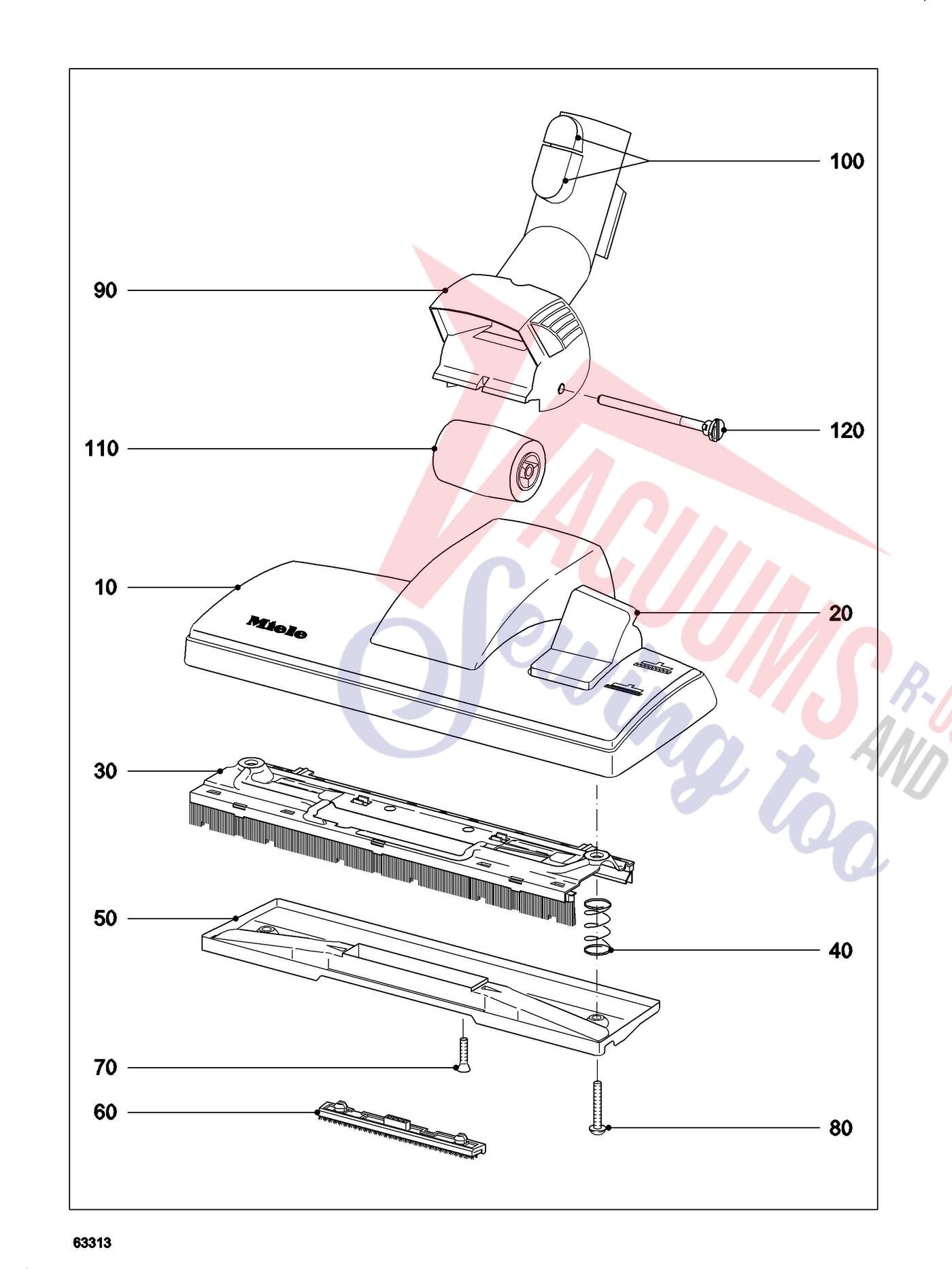

| # | Part image | Description | SKU | Price |
| 10-120 | Not Available | Floor nozzle SBD470-3 FiberTeQ | 9274750 | Not Available |
| 10-120 | Not Available | Floor nozzle SBD470-3 | 10484833 | Not Available |
| 10-120 | | Genuine Miele FiberTeQ Floor nozzle SBD 355-3 | 10367830 | $73.53Read more |
| 10 | | Genuine Miele Top | 6167160 | $39.50Read more |
| 20 | | Genuine Miele Foot switch | 6167170 | $20.60Read more |
| 30 | No Image | -Bristle Supp.Plate | 6167190 | $42.00Read more |
| 40 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 50+60 | | Genuine Miele Lower section | 6167251 | $43.60Read more |
| 60 | | Genuine Miele Thread lifter 2 Pcs. | 6440411 | $13.50Read more |
| 70 | No Image | --Coun.Self-Tap.Screw Spax 3 X 9,5Torx T10 | 6167230 | $2.50Read more |
| 80 | | Genuine Miele Raised head screw 3,5x16 TORX T10 | 6644310 | $2.30Read more |
| 90+100 | | Genuine Miele Linkage SBD450-3 | 6167150 | $33.80Read more |
| 100 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 120 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

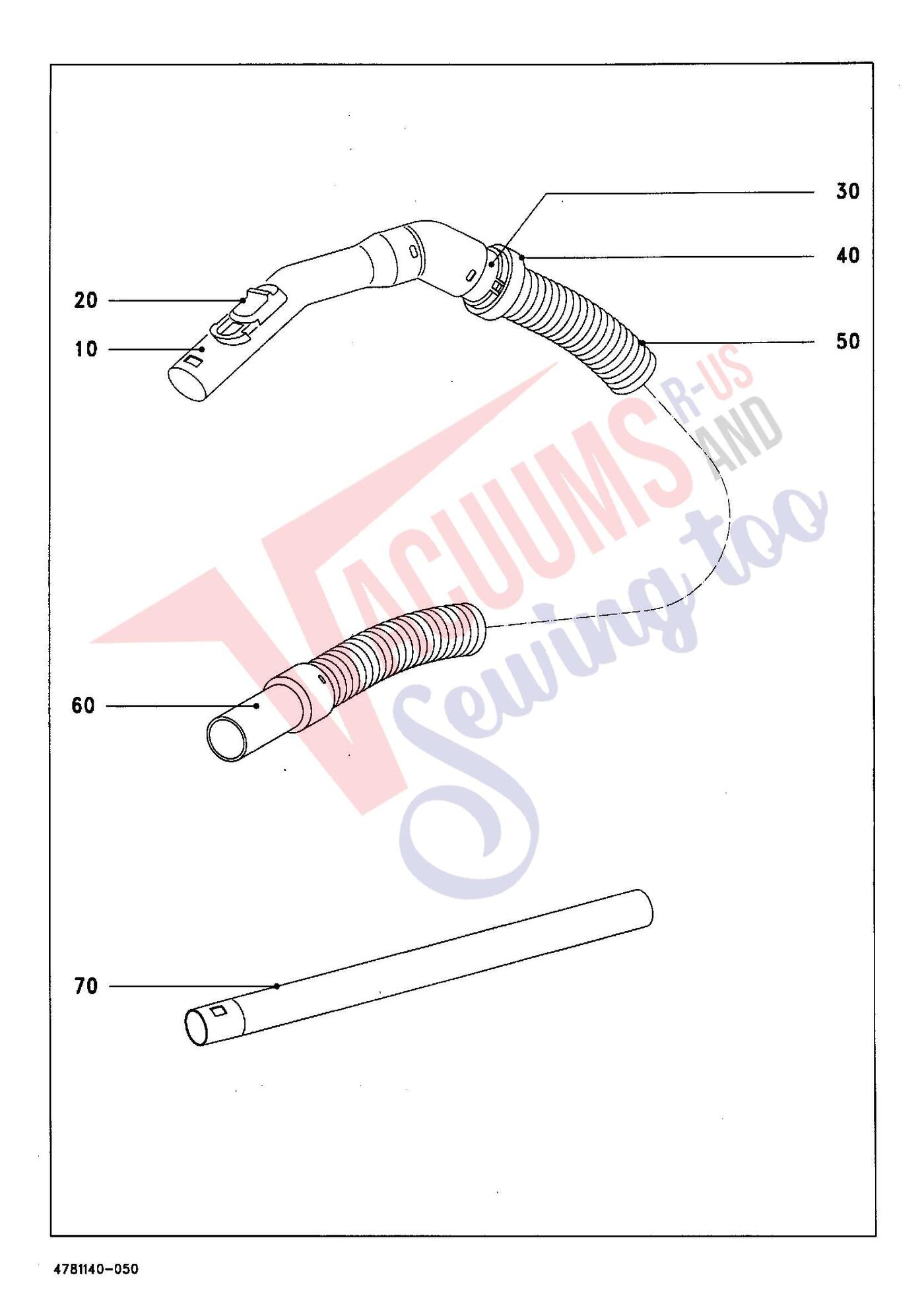

| # | Part image | Description | SKU | Price |
| 10-70 | No Image | Acc.Floor Cleaning S140-S195 | 4781271 | $129.00Read more |
| 10+20 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 10+20 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 30-50 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 60 | No Image | -Connecting Cone Anthracite | 3615020 | $30.00Read more |
| 70 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |

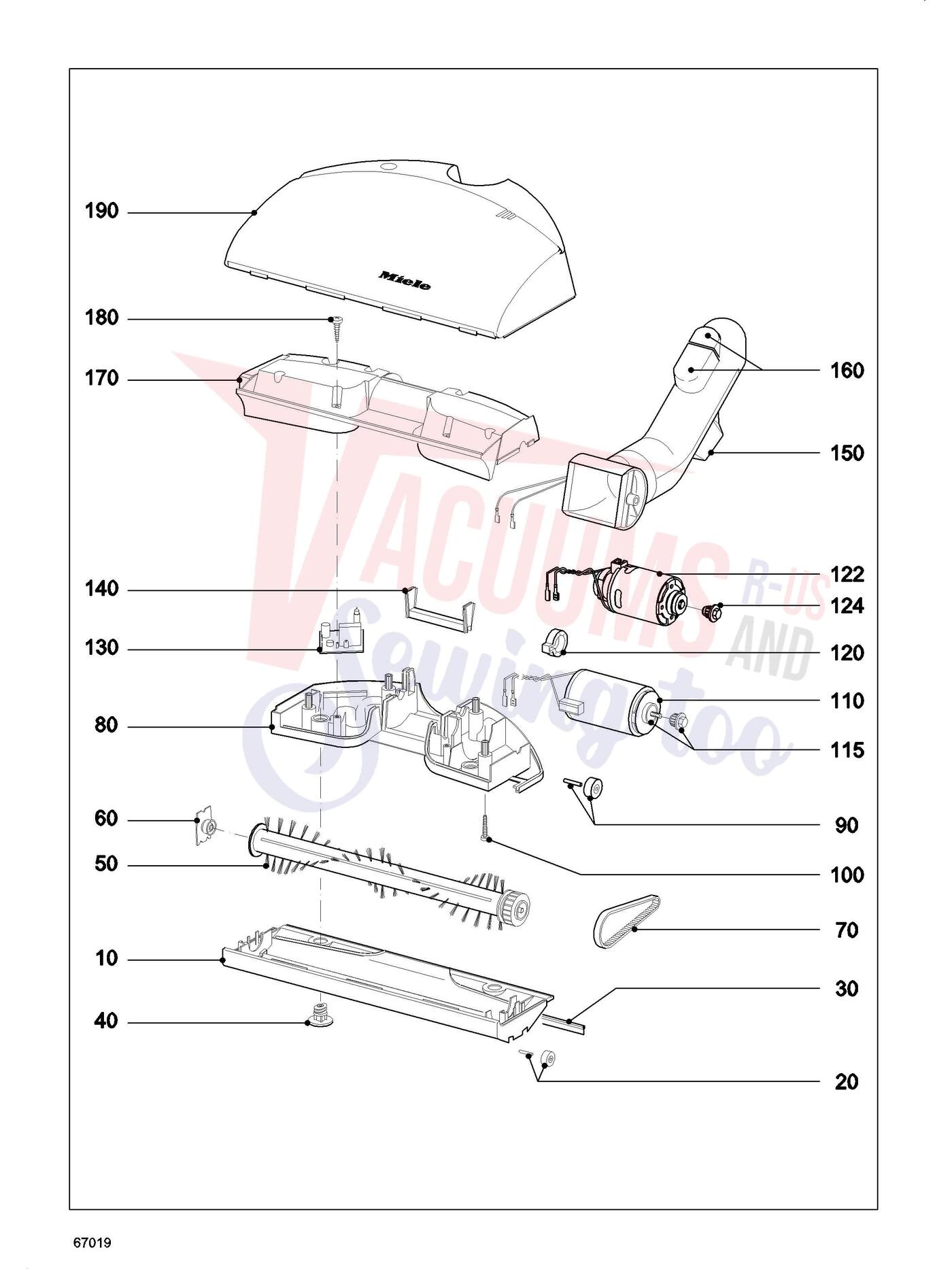

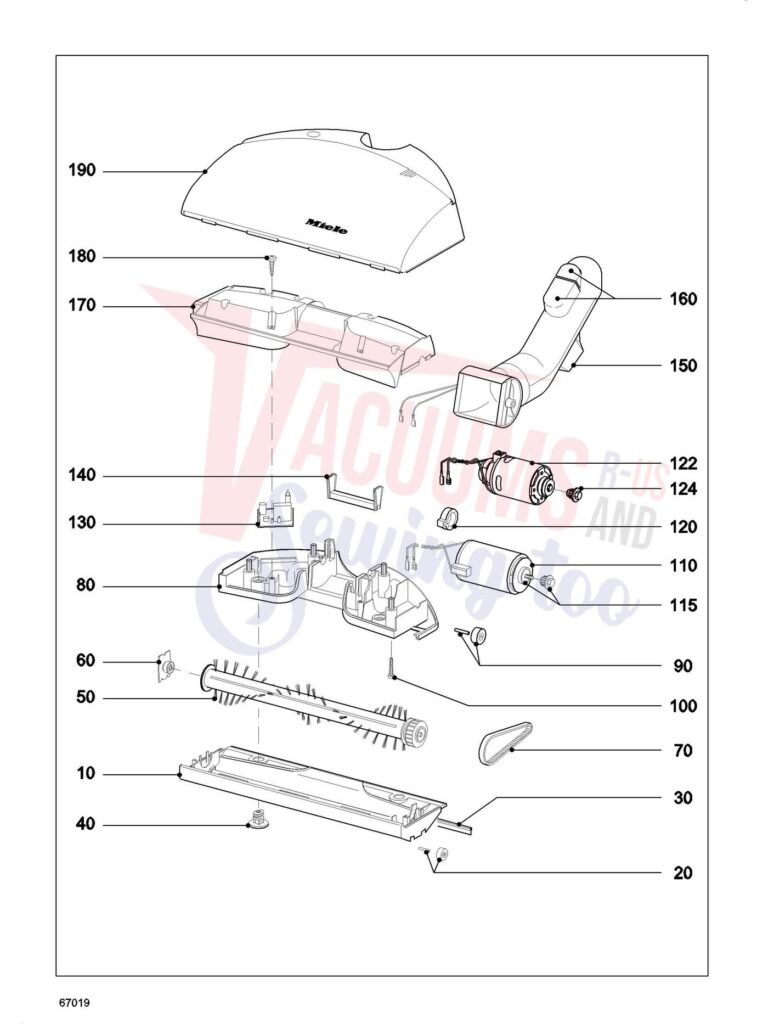

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| xx |  | Preowned reconditioned tested Miele SEB 217-3 power head | WP12121 | $114.99Read more |
| 10-40 | | Genuine Miele Floor plate SEB217 | 4929763 | $93.60Read more |
| 20 | | Genuine Miele Wheel 2 Pcs. | 4919170 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Miele Strip | 4929021 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Screw 2 Pcs. | 4919190 | $15.00Read more |
| 50+60 |  | Genuine Miele Brush roller | 4929740 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Bearing plate 2 Pcs. | 4941340 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele Tooth belt | 4897760 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Available ReconditionedReconditioned Genuine Miele Tooth belt More Product Details | 4897760R | $27.64Add to cart |
| 70 |  | Compatible alternateAftermarket Miele Geared Belt for SEB Powerheads More Product Details | 54330106 | $9.89Add to cart |
| 80+90 | | Genuine Miele Lower section SEB217 | 4929771 | $76.00Read more |
| 90 |  | Genuine Miele Wheel 2 Pcs. | 4919180 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+115 | | Genuine Miele AC motor 100-120V | 5011271 | $233.80Read more |
| 115 |  | Genuine Miele Pinion | 6808920 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Bearing | 4929730 | $11.00Read more |
| 120 |  | Available ReconditionedBearing More Product Details | 4929730R | $9.50Add to cart |
| 130 |  | Reconditioned Miele SEB213 PC Board 100-120v PN: 5604210 | 5604210 | $161.60Add to cart |
| 140 | | Genuine Miele Cable duct | 4841770 | $20.60Read more |
| 150+160 |  | Genuine Miele Linkage socket pivot neck | 4929071 | $120.70Add to cart |
| 160 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | | Genuine Miele Cover anthracite | 4841731 | $52.20Read more |
| 190 | | Genuine Miele Top anthracite | 5604200 | $71.70Read more |
