Schematic and parts book for Miele S126 S 126. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

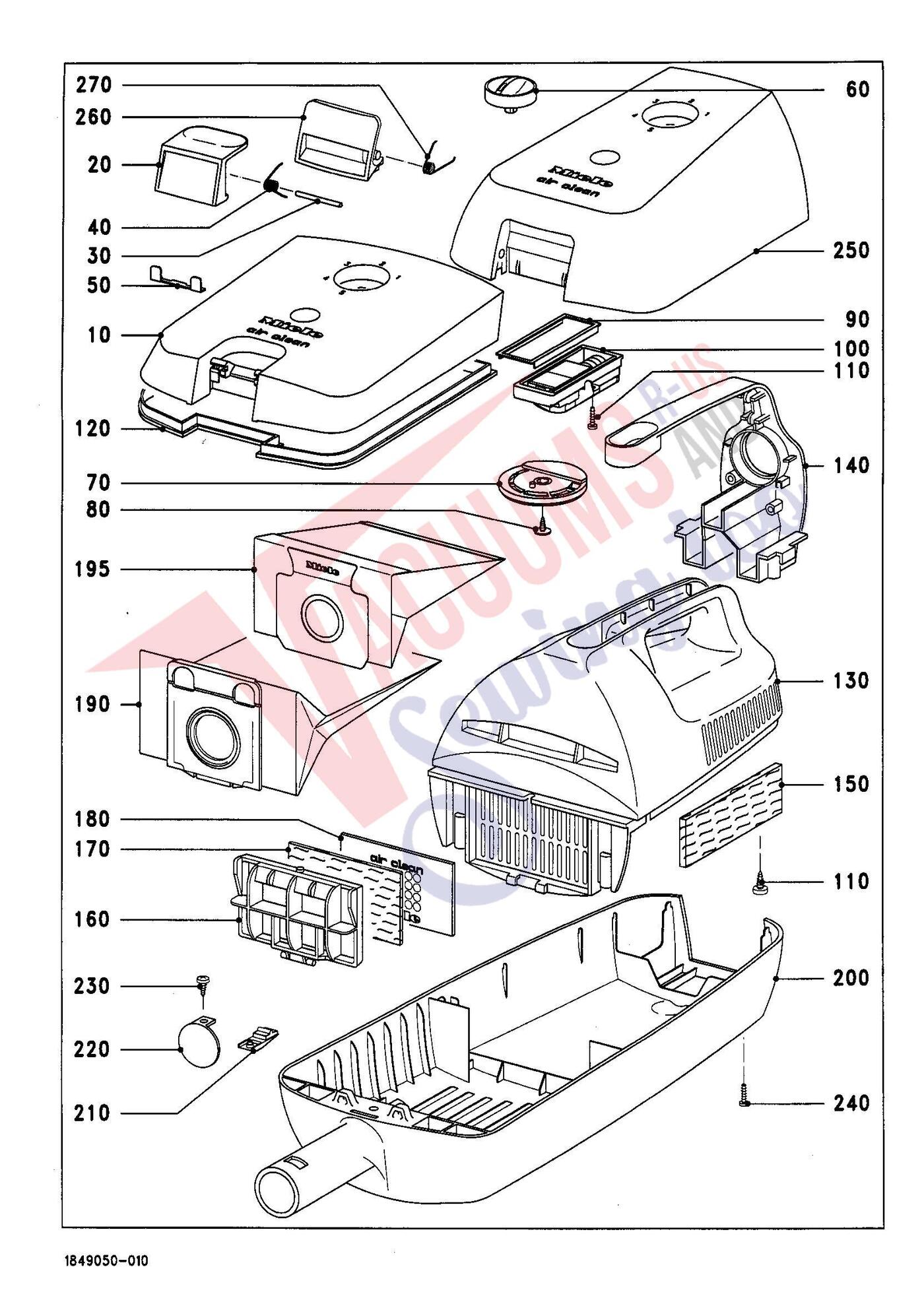

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | Not Available | --Raised head screw 4,2X16 | 3497840 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| (190) | Not Available | Cloth filter bag S125-S138 | 3181850 | Not Available |
| w/o fig. | | Genuine Miele Lock | 1058641 | $20.60Read more |
| XX | No Image | --Raised Head Screw 2,9X6,5 | 86820 | $4.14Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz3,9X19 | 1023060 | $2.50Read more |
| 10-120 | Not Available | Dust compart.lid Brilliant white | 4162660 | Not Available |
| 10-120 | No Image | Dust Compart.Lid Sand Beige | 3656270 | $159.00Read more |
| 10-120 | Not Available | Dust compart.lid lotos green | 4162690 | Not Available |
| 10-120 | Not Available | Dust compart.lid light grey | 3656300 | Not Available |
| 10-120 | Not Available | Dust compart.lid Aubergine | 3656350 | Not Available |
| 10-120 | Not Available | Dust compart.lid Emerald green | 3656360 | Not Available |
| 10-120 | Not Available | Dust compart.lid Brilliant white | 4167570 | Not Available |
| 10-120 | Not Available | Dust compart.lid Polar blue | 4425970 | Not Available |
| 20 | Not Available | -Lock anthracite | 3614450 | Not Available |
| 30 | Not Available | -Shaft | 75009 | Not Available |
| 40 | Not Available | -Torsion spring | 75413 | Not Available |
| 50 | No Image | Bracket, Support, Head | 75026 | $147.99Read more |
| 60 | Not Available | -Programme knob anthracite | 3614460 | Not Available |
| 70 | Not Available | -Resetting disc anthracite | 3650180 | Not Available |
| 90+100 | Not Available | -fill level indic. anthracite | 3614480 | Not Available |
| 90 | Not Available | -Seal | 1275780 | Not Available |
| 120 | Not Available | -Sealing ring anthracite | 3614500 | Not Available |
| 130 | Not Available | Casing top Colorado yellow | 1200420 | Not Available |
| 130 | Not Available | Casing top brick red | 4107850 | Not Available |
| 130 | Not Available | Casing top brick red | 4107850 | Not Available |
| 130 | Not Available | Casing top brick red | 4107850 | Not Available |
| 130 | Not Available | Casing top Aubergine | 3614590 | Not Available |
| 130 | No Image | Casing Top Emerald Green | 3614620 | $83.00Read more |
| 130 | Not Available | Casing top brick red | 4107850 | Not Available |
| 130 | Not Available | Casing top lotos green | 4107880 | Not Available |
| 130 | Not Available | Casing top Polar blue | 4407170 | Not Available |
| 140 | Not Available | Cover Brilliant white | 4165880 | Not Available |
| 140 | Not Available | Cover Brilliant white | 4165740 | Not Available |
| 140 | Not Available | Cover Brilliant white | 4165880 | Not Available |
| 140 | Not Available | Cover Brilliant white | 4165740 | Not Available |
| 140 | Not Available | Cover Brilliant white | 4165740 | Not Available |
| 140 | Not Available | Cover Aubergine | 3649260 | Not Available |
| 140 | Not Available | Cover Emerald green | 3649270 | Not Available |
| 140 | Not Available | Cover brick red | 4165720 | Not Available |
| 140 | Not Available | Cover Brilliant white | 4165740 | Not Available |
| 140 | Not Available | Cover azure blue | 4165750 | Not Available |
| 140 | Not Available | Cover lotos green | 4165770 | Not Available |
| 140 | Not Available | Cover Polar blue | 4425890 | Not Available |
| 150 | Not Available | Felt seal | 1144930 | Not Available |
| 160 | Not Available | Filter frame anthracite | 3614670 | Not Available |
| 180 | No Image | Air-Clean Filter 3 S125-S140 | 2517340 | $27.00Read more |
| 195 | Not Available | Dustbag TYP B 1/5 S125 | 1122199 | Not Available |
| 200-230 | Not Available | Casing bottom Sand beige | 2122291 | Not Available |
| 200-230 | Not Available | Casing bottom light grey | 2122321 | Not Available |
| 200-230 | Not Available | Casing bottom Sand beige | 2122291 | Not Available |
| 200-230 | Not Available | Casing bottom light grey | 2122321 | Not Available |
| 200-230 | Not Available | Casing bottom Aubergine | 3649221 | Not Available |
| 200-230 | Not Available | Casing bottom Emerald green | 3649230 | Not Available |
| 200-230 | Not Available | Casing bottom Brilliant white | 4165151 | Not Available |
| 200-230 | Not Available | Casing bottom lotos green | 4165171 | Not Available |
| 200-230 | Not Available | Casing bottom Polar blue | 4425770 | Not Available |
| 210 | Not Available | -Ridge anthracite | 3614370 | Not Available |
| 210 | Not Available | -Ridge anthracite | 3614370 | Not Available |
| 220 | | Genuine Miele Flap | 1087860 | $13.50Read more |
| 230 | Not Available | Casing bottom Brilliant white | 4165151 | Not Available |

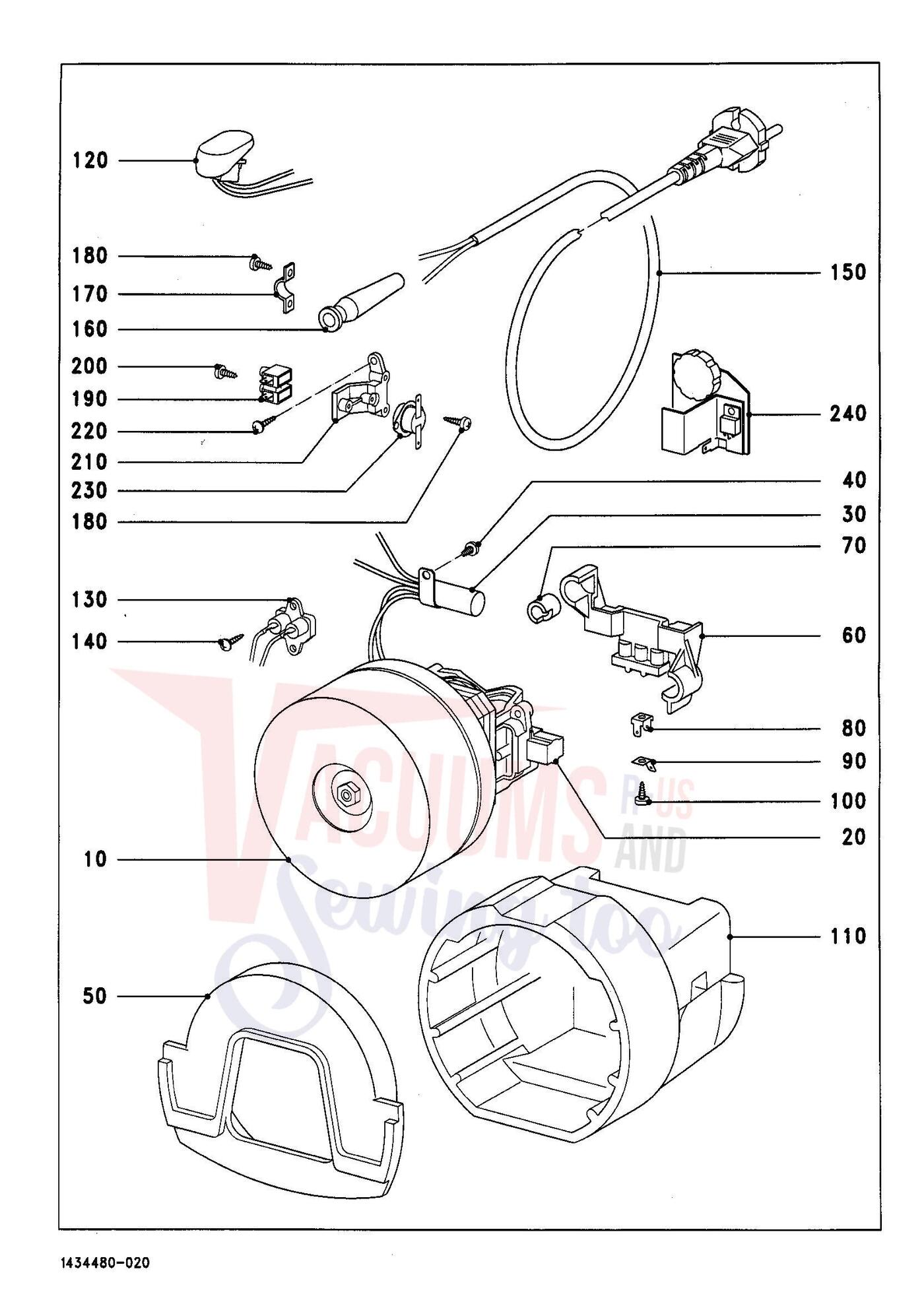

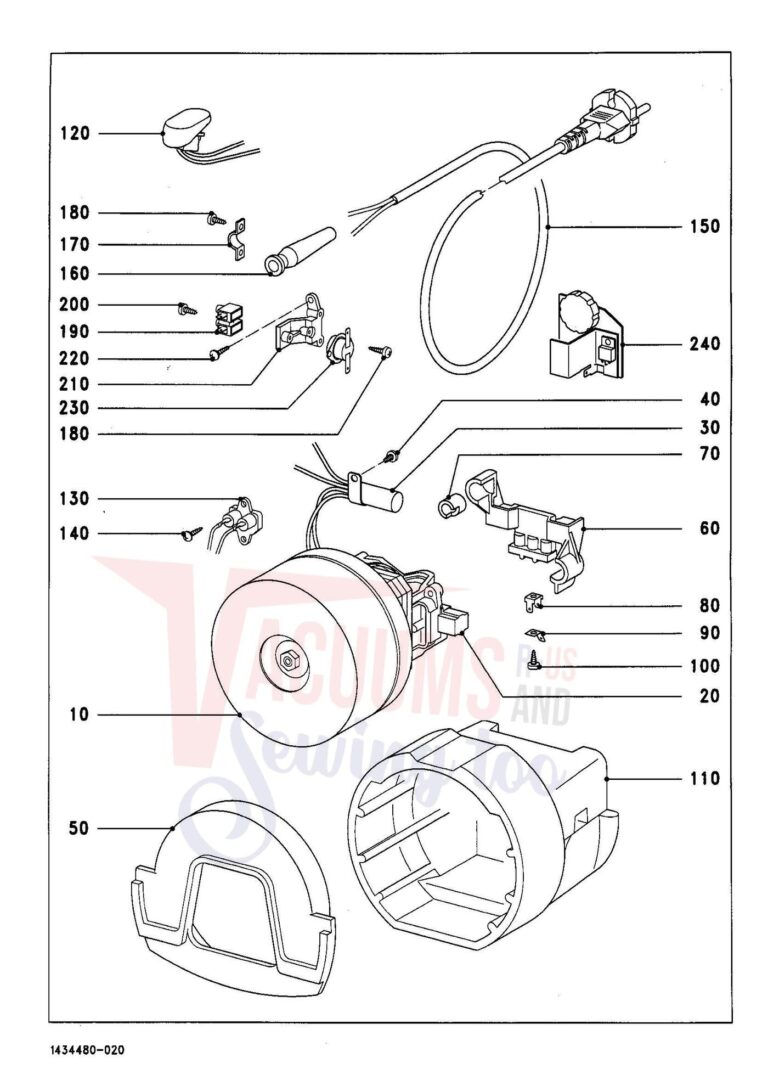

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,8X13 Din 7981 | 1084800 | $3.90Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| XX | Not Available | --Raised head screw 4,2X16 | 3497840 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| (180) | No Image | --Screw Kb35X10 Ejot-Pt | 1816310 | $2.30Read more |
| XX | Not Available | --Raised head screw 2,9X16 | 1023030 | Not Available |
| (210) | Not Available | Cable clamp | 2909660 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| 10-40 | Not Available | Fan 220V 50/60HZ | 1215180 | Not Available |
| 10-40 | Not Available | Fan 230V | 5082910 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | No Image | -Interf.Sup.Capacit. 0,068Uf2X2400Pf 250V | 1142801 | $47.00Read more |
| 50 | Not Available | Sealing ring | 1088020 | Not Available |
| 60 | Not Available | Motor bracket | 1088031 | Not Available |
| 70 | Not Available | Suspension buffer | 75412 | Not Available |
| 80 | Not Available | Amp terminal 05.557.0225 | 1104620 | Not Available |
| 110 | Not Available | insulating piece | 1126070 | Not Available |
| 120 | Not Available | Rocker switch anthracite | 4293320 | Not Available |
| 130 | Not Available | Socket | 1204590 | Not Available |
| 130 | Not Available | Flush socket outlet 2 pole | 1583040 | Not Available |
| 150 | No Image | Supply Cable 7000Mm | 2498581 | $68.00Read more |
| 160 | Not Available | cable guide | 87231 | Not Available |
| 170 | Not Available | Cable holder | 75446 | Not Available |
| 190 | Not Available | Terminal block 2 POL. | 75448 | Not Available |
| 230 | Not Available | Conv.kit switch | 1189091 | Not Available |

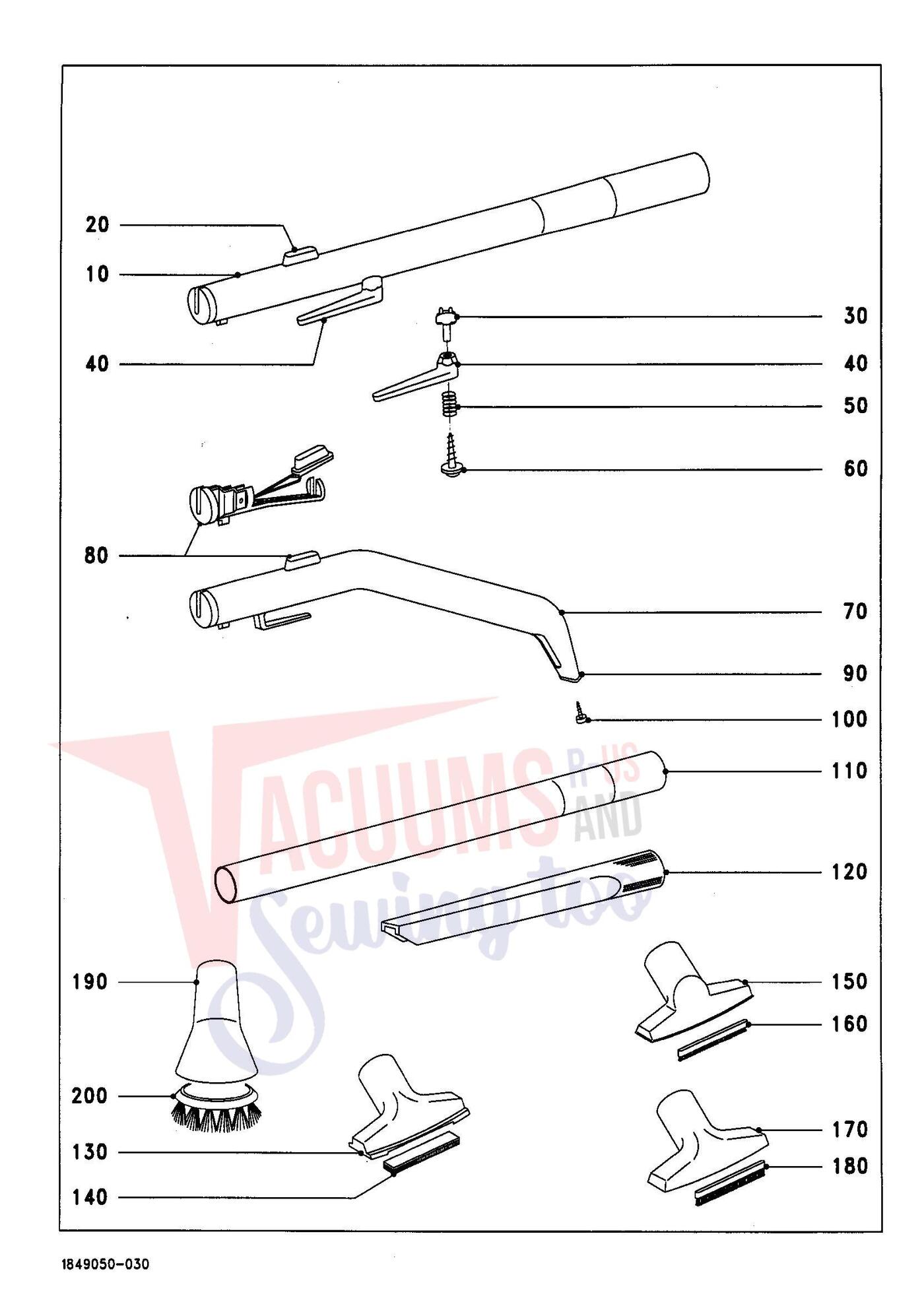

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 3,9X22 | 29293 | $2.50Read more |
| XX | No Image | --Raised Head Screw 2,9X6,5 | 86820 | $4.14Read more |
| XX | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| XX | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 10-60 | Not Available | Tubular handle anthracite | 3614870 | Not Available |
| 20 | Not Available | -Lever bracket anthracite | 3614880 | Not Available |
| 30+40 | Not Available | Hook anthracite | 5720550 | Not Available |
| 50 | | Genuine Miele Spring | 29289 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 70-100 | Not Available | Tubular handle anthracite | 3614690 | Not Available |
| 80 | Not Available | -Lever bracket Lava grey | 2117770 | Not Available |
| 80 | Not Available | -Lever bracket anthracite | 3614770 | Not Available |
| 90 | Not Available | -Slide protection anthracite | 3614750 | Not Available |
| 90 | Not Available | -Slide protection black/brown | 87278 | Not Available |
| 90 | Not Available | -Slide protection Lava grey | 2117640 | Not Available |
| 110 | Not Available | Pipe anthracite | 3614940 | Not Available |
| 120 | | Genuine Miele Crevice nozzle anthracite | 3571671 | $12.10Read more |
| 120 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 120 | | Compatible alternateGenuine Miele Crevice nozzle 149mm More Product Details | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 160 | Not Available | -Bristle strip | 1411510 | Not Available |
| 170+180 | Not Available | Upholstery nozzle anthracite | 1347982 | Not Available |
| 180 | Not Available | -Bristle strip | 1389730 | Not Available |
| 200 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |

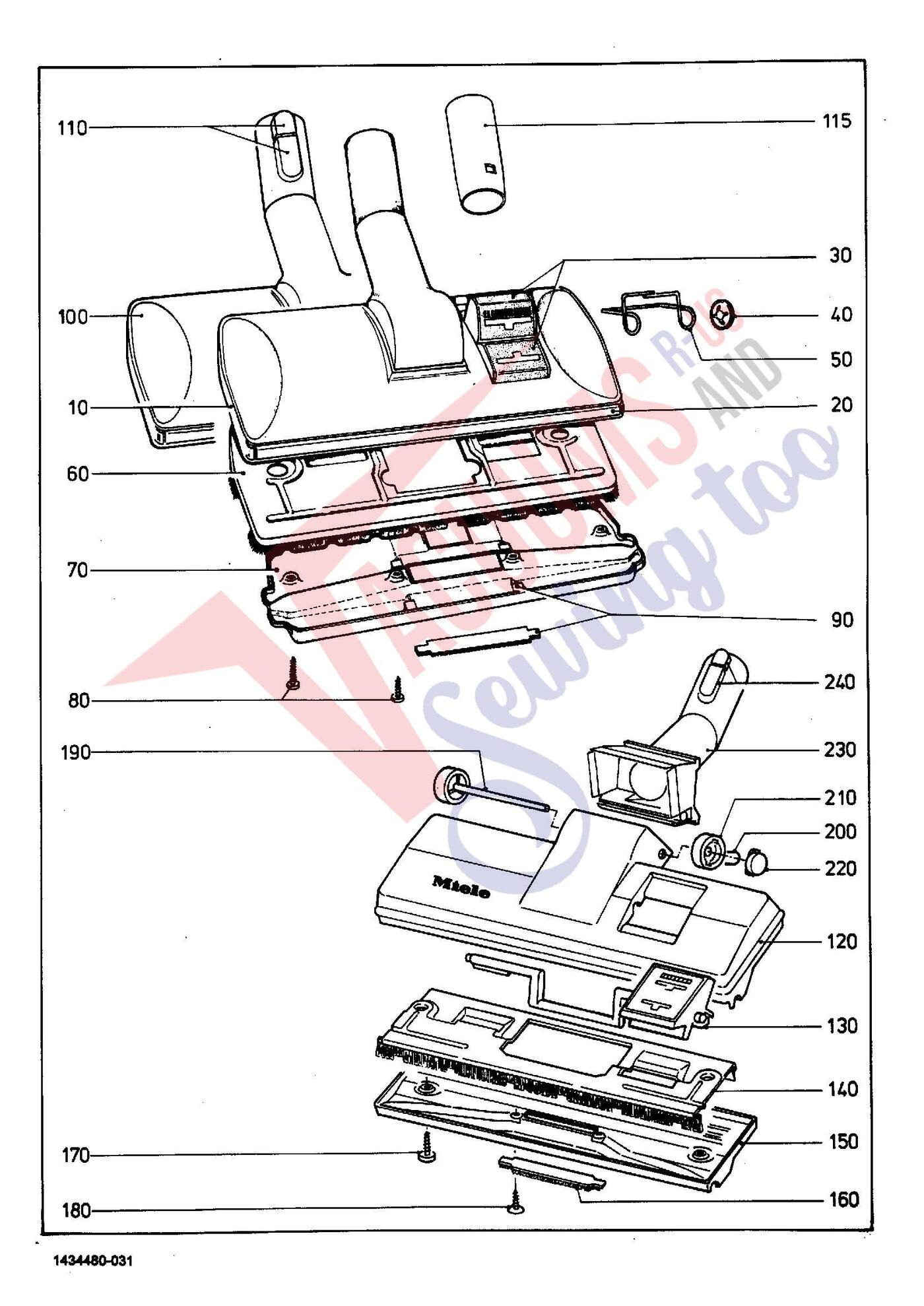

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Floor Nozzle Sbd245 | 5462810 | $72.45Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz3,5X22 | 29020 | $2.50Read more |
| XX | No Image | --Raised Head Screw 3,5X19 | 14137 | $3.90Read more |
| w/o fig. | No Image | Floor Nozzle Sbd265 | 4769121 | $98.70Read more |
| 20 | Not Available | -Buffer | 1599320 | Not Available |
| 30-50 | Not Available | -Top Lava grey | 2142271 | Not Available |
| 30+40 | Not Available | -Foot switch anthracite | 3660291 | Not Available |
| 40 | Not Available | -Fuse element | 3440080 | Not Available |
| 50 | No Image | -Torsion Spring | 2290300 | $4.14Read more |
| 60 | Not Available | -Bristle supp.plate | 1134871 | Not Available |
| 70+90 | Not Available | -Lower section | 1134880 | Not Available |
| 90 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 100+110 | Not Available | -Top Lava grey | 3065760 | Not Available |
| 100+110 | Not Available | -Top anthracite | 3657260 | Not Available |
| 110 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 115 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
| 120 | Not Available | -Top Lava grey | 3024850 | Not Available |
| 130 | Not Available | -Foot switch Lava grey | 3024860 | Not Available |
| 140 | Not Available | -Bristle supp.plate | 3024841 | Not Available |
| 150+160 | Not Available | -Lower section | 3024820 | Not Available |
| 160 | No Image | -Thread Lifter | 3039320 | $20.00Read more |
| 170 | No Image | --Raised Head Screw 3,5X19 | 14137 | $3.90Read more |
| 180 | No Image | --Countersunk Screw Ka35X16 Ejot-Pt | 2396150 | $2.50Read more |
| 190+200 | Not Available | -Shaft | 3039370 | Not Available |
| 200-220 | Not Available | -Support roller anthracite | 3642820 | Not Available |
| 230+240 | Not Available | -Linkage Lava grey | 3348890 | Not Available |
| 240 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

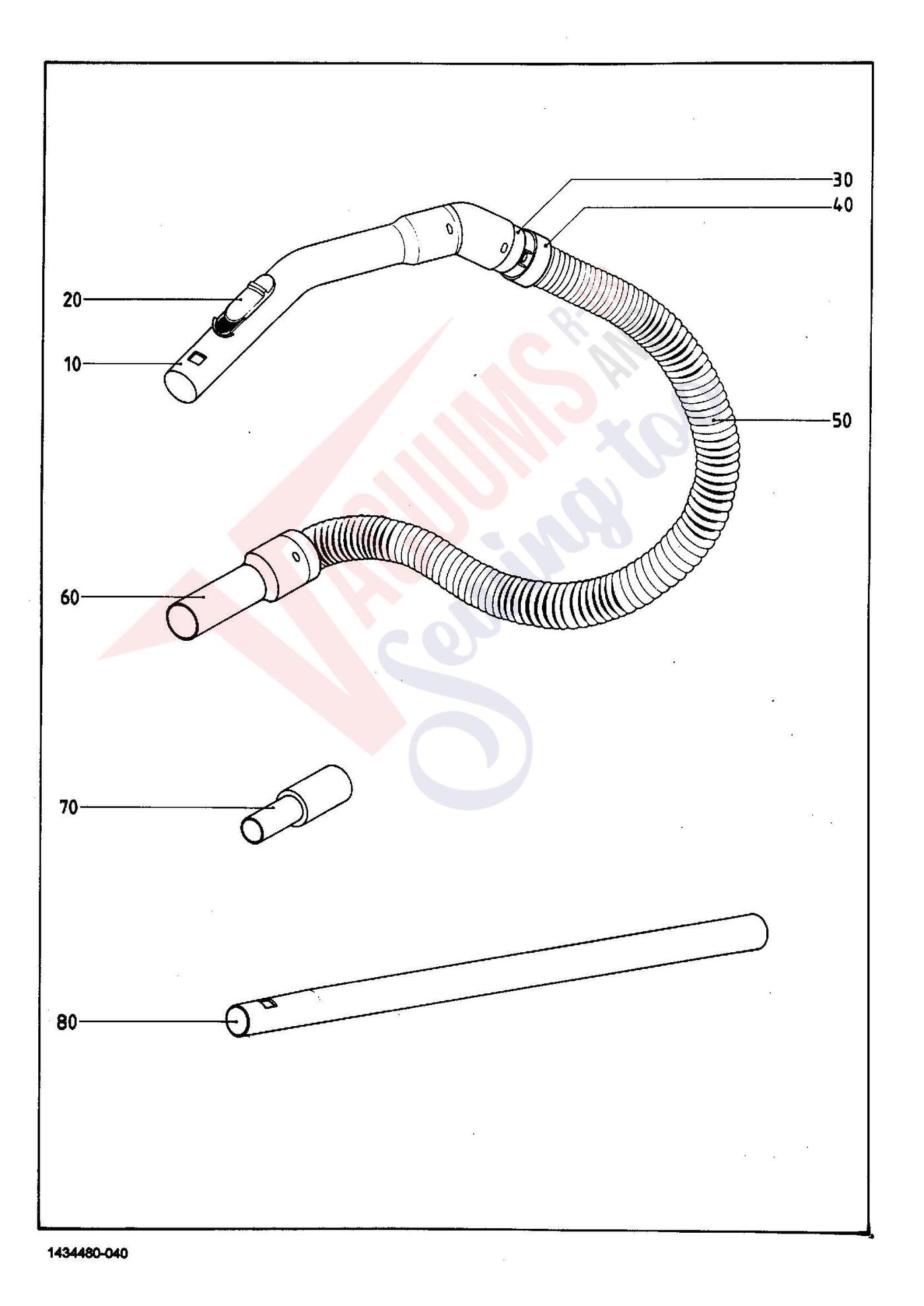

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Acc.Floor Cleaning S140-S195 | 4781271 | $129.00Read more |
| w/o fig. | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 10-80 | Not Available | Acc.floor cleaning anthracite | 3655680 | Not Available |
| 10-60 | Not Available | -Suction hose anthracite | 1138686 | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 10+20 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 30-50 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 60 | No Image | -Connecting Cone Anthracite | 3615020 | $30.00Read more |
| 70 | Not Available | -Reducing collar Lava grey | 2117980 | Not Available |
| 70 | Not Available | -Reducing collar anthracite | 3615030 | Not Available |
| 80 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | -Suction Pipe Bottom | 4703580 | $47.00Read more |
