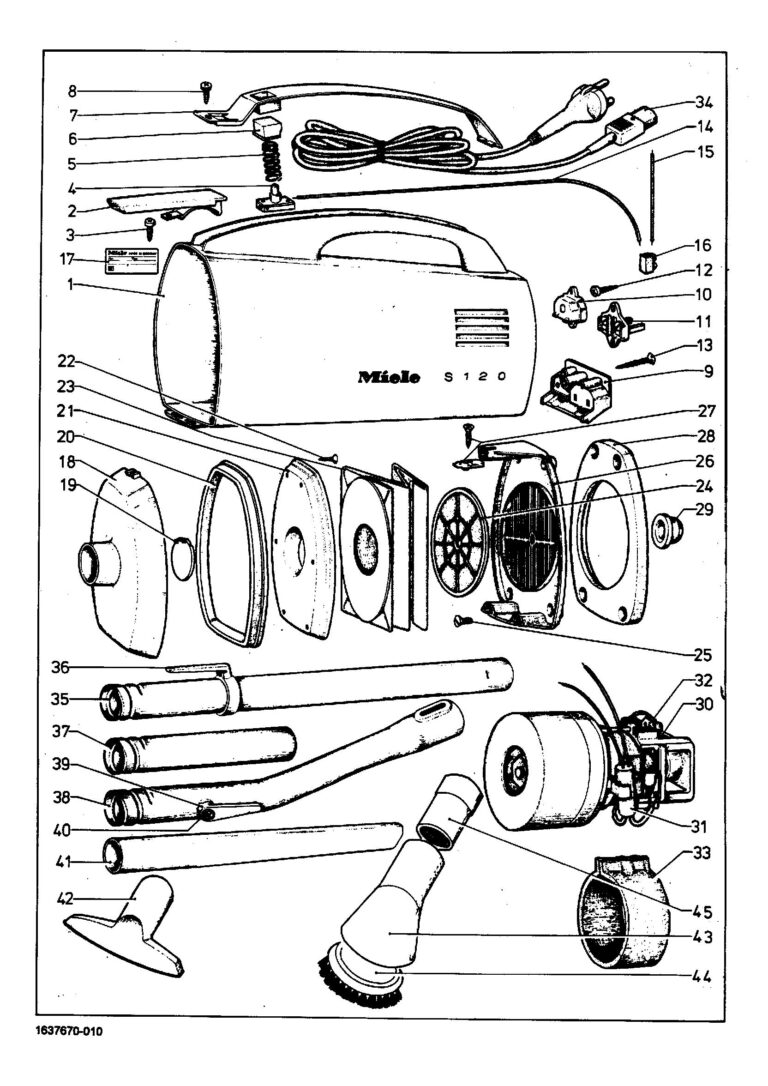

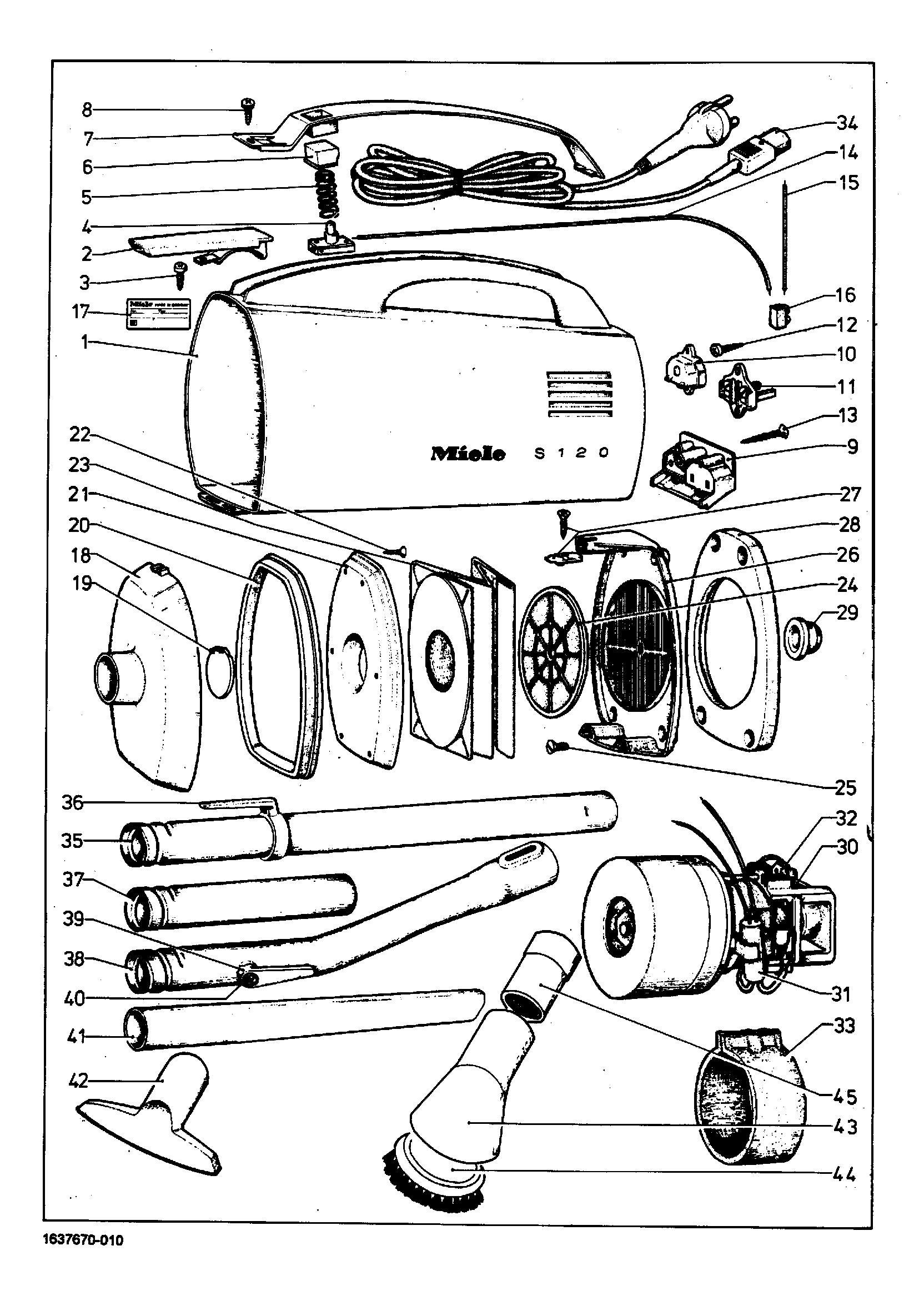

Schematic and parts book for Miele S110 S 110. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| (4) | Not Available | Push button switch 3006 4A 250V | 66694 | Not Available |
| XX | Not Available | Grip handle Gold/Orange | 87229 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| (10) | Not Available | Flush socket outlet 2 pole | 1583050 | Not Available |
| w/o fig. | Not Available | Fitment | 67903 | Not Available |
| w/o fig. | Not Available | Raised head screw DIN7985 M3,5X8 Z3 | 63371 | Not Available |
| w/o fig. | Not Available | Clamping bracket | 67904 | Not Available |
| XX | No Image | --Roundheaded Screw M3X12 | 684551 | $2.30Read more |
| (18) | No Image | Front Of Casing Gold/Orange | 91606 | $76.00Read more |
| (18) | Not Available | Front of casing red | 91605 | Not Available |
| XX | Not Available | --Coun.self-tap.screw DIN7982 BZ4,2X13 | 71279 | Not Available |
| (23) | No Image | Dustbag 1/10 S110,S120 | 433332 | $0.00Read more |
| w/o fig. | Not Available | Cloth filter bag | 46157 | Not Available |
| w/o fig. | Not Available | -Clip | 29317 | Not Available |
| XX | Not Available | --Knurled screw | 92298 | Not Available |
| XX | Not Available | --Raisedhead screw DIN7983 B4,2X16 | 34668 | Not Available |
| XX | No Image | --Nut | 25244 | $3.90Read more |
| (31) | Not Available | -Capacitor 0,12 UF 250V | 1143170 | Not Available |
| (31) | Not Available | -Interf.sup.capacit. 0,12UF+2X2500PF 250V | 1102280 | Not Available |
| XX | No Image | --Cyl.Headed Screw Din 84 M4X6 | 26922 | $2.30Read more |
| XX | Not Available | --Star washer DIN6798 J4,3 | 27441 | Not Available |
| XX | Not Available | -Clip brush holder | 40697 | Not Available |
| XX | No Image | -Carbon Brush | 36916 | $47.00Read more |
| XX | No Image | --Cyl.Headed Screw M4X8 | 26926 | $2.30Read more |
| XX | Not Available | --Star washer DIN6798 J4,3 | 27441 | Not Available |
| (34) | Not Available | Supply cable | 67905 | Not Available |
| (34) | Not Available | Supply cable | 82692 | Not Available |
| (34) | No Image | Supply Cable Lava Grey | 2498580 | $68.00Read more |
| w/o fig. | Not Available | Conv.kit mult.plug | 85745 | Not Available |
| XX | Not Available | --Disc | 94896 | Not Available |
| XX | Not Available | --Raised head screw DIN7985 M3,5X8 Z3 | 63371 | Not Available |
| w/o fig. | Not Available | cable guide | 87231 | Not Available |
| (39) | Not Available | -Hinge plate light grey | 34638 | Not Available |
| (39) | No Image | -Hinge Plate Black/Brown | 1197450 | $7.59Read more |
| (39) | No Image | -Hook Black/Brown | 1197460 | $7.00Read more |
| (39) | No Image | -Hook Black/Brown | 1197460 | $7.00Read more |
| (39) | No Image | -Hinge Plate Black/Brown | 1197450 | $7.59Read more |
| (39) |  | Genuine Miele Spring | 29289 | $2.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | --Raised Head Screw 3,9X22 | 29293 | $2.50Read more |
| w/o fig. | No Image | Dusting Brush Light Beige | 1083240 | $17.25Read more |
| 1 | Not Available | Casing Gold/Orange | 1053900 | Not Available |
| 2 | Not Available | Lock anthracite | 87302 | Not Available |
| 4 | Not Available | Push button switch 4A 250V 1POL. | 91356 | Not Available |
| 5 | Not Available | Spring | 27539 | Not Available |
| 6 | Not Available | Push button anthracite | 87230 | Not Available |
| 6 | Not Available | Push button anthracite | 87230 | Not Available |
| 7 | No Image | Grip Handle Light Grey | 38465 | $17.25Read more |
| 9 | Not Available | Socket grey | 44216 | Not Available |
| 14 | Not Available | Flexible wire | 53300 | Not Available |
| 15 | Not Available | Flexible wire | 53299 | Not Available |
| 17 | Not Available | Data plate | 39636 | Not Available |
| 19 | Not Available | Valve flap | 38895 | Not Available |
| 20 | Not Available | Sealing ring | 87226 | Not Available |
| 21 | Not Available | Lid | 38464 | Not Available |
| 24 | No Image | Dust Compart.Filter 1 S110,S200 | 38900 | $36.00Read more |
| 26 | Not Available | Partition | 38899 | Not Available |
| 28 | Not Available | Centering ring | 38897 | Not Available |
| 29 | Not Available | Suspension buffer | 53257 | Not Available |
| 30-32 | Not Available | Fan E28/2 | 67923 | Not Available |
| 32 | Not Available | -Brush holder | 36741 | Not Available |
| 33 | Not Available | Seal | 41128 | Not Available |
| 34 | Not Available | Supply cable | 45462 | Not Available |
| 35+36 | Not Available | Suction pipe | 38593 | Not Available |
| 36 | Not Available | -Fixing bracket | 40292 | Not Available |
| 37 | Not Available | Suction pipe | 41236 | Not Available |
| 38+39 | Not Available | Tubular handle | 38589 | Not Available |
| 39 | Not Available | -Hook light grey | 34639 | Not Available |
| 41 | No Image | Crevice Nozzle | 43030 | $13.92Read more |
| 42 | No Image | Upholstery Nozzle | 44838 | $22.00Read more |
| 43-45 | Not Available | Dusting brush | 1144992 | Not Available |
| 44 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 45 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| # | Part image | Description | SKU | Price |

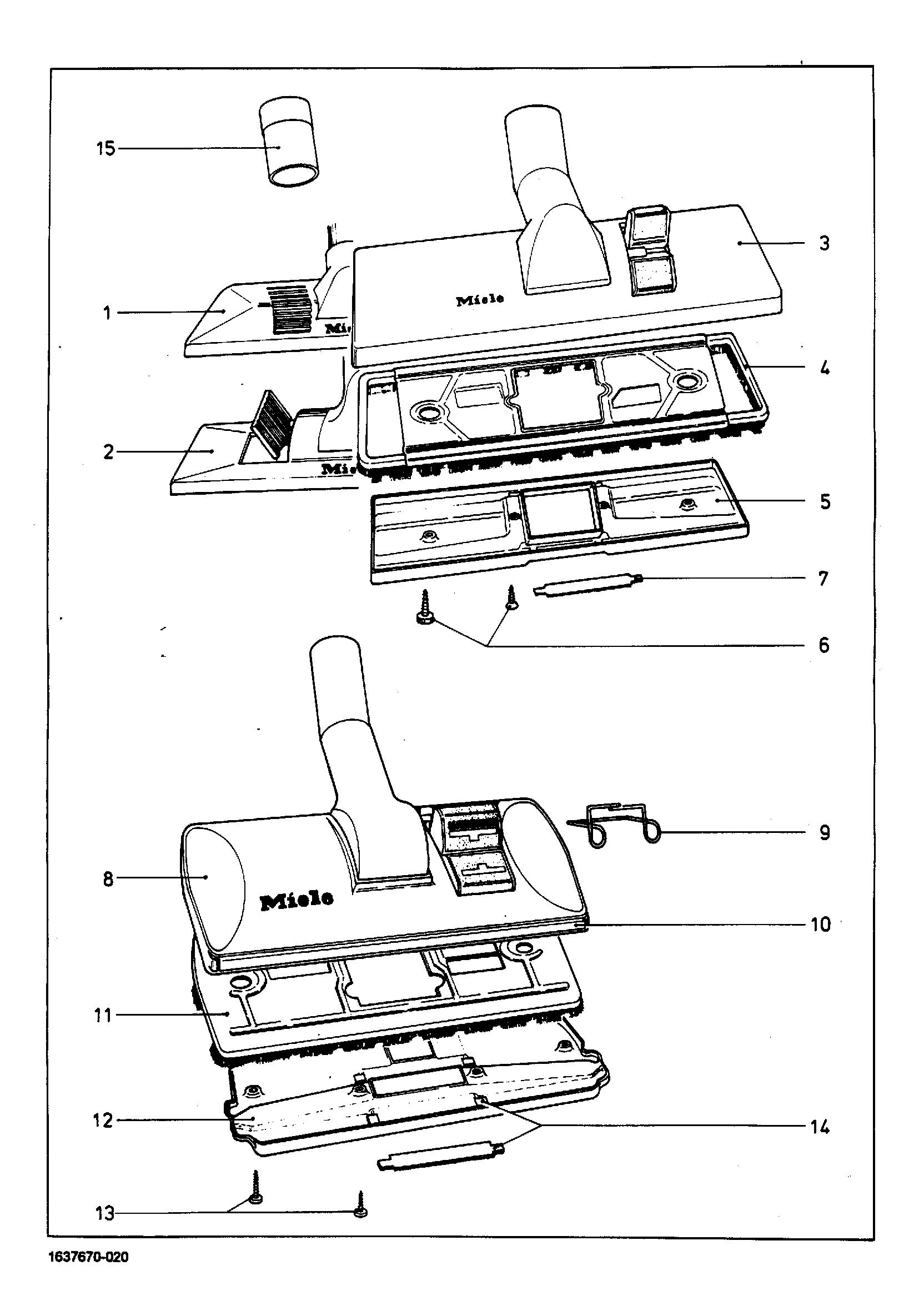

| (3-7) | No Image | Floor Nozzle Lava Grey | 2126680 | $98.70Read more |
| XX | Not Available | -Top | 64526 | Not Available |
| XX | Not Available | -Thread lifter | 64525 | Not Available |
| XX | Not Available | -Bristle insert | 38878 | Not Available |
| XX | Not Available | -Spring | 69889 | Not Available |
| XX | Not Available | -Seal | 38880 | Not Available |
| XX | Not Available | -Lower section | 38883 | Not Available |
| XX | Not Available | -Seal | 38877 | Not Available |
| (3-7) | No Image | Floor Nozzle Lava Grey | 2126680 | $98.70Read more |
| XX | Not Available | -Top | 83603 | Not Available |
| XX | Not Available | -Foot switch right | 71623 | Not Available |
| XX | Not Available | -Foot switch left | 71624 | Not Available |
| XX | Not Available | -Connection socket light grey | 83604 | Not Available |
| XX | Not Available | -Bristle plate | 83605 | Not Available |
| XX | Not Available | -Spring | 69889 | Not Available |
| XX | Not Available | -Lower section | 83606 | Not Available |
| XX | Not Available | --Raisedhead screw DIN7983 B4,2X16 | 34668 | Not Available |
| (3-7) | No Image | Floor Nozzle Lava Grey | 2126680 | $98.70Read more |
| (3) | Not Available | -Casing top Gold/Orange | 1065350 | Not Available |
| (3) | Not Available | -Top black/brown | 2054080 | Not Available |
| XX | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| XX | No Image | --Raisedhead Screw Din7983 B3,5X13 | 86831 | $2.30Read more |
| (8-14) | No Image | Floor Nozzle Lava Grey | 2142261 | $72.45Read more |
| (8+9) | Not Available | -Top Lava grey | 2142271 | Not Available |
| XX | No Image | --Raised Head Screw Din7981 Bz3,5X22 | 29020 | $2.50Read more |
| XX | No Image | --Raised Head Screw 3,5X19 | 14137 | $3.90Read more |
| 1 | No Image | CONTROL PANEL FOIL 96210 | 39103 | $85.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3-7 | Not Available | Floor nozzle light grey | 97023 | Not Available |
| 3-7 | Not Available | Floor nozzle light grey | 97023 | Not Available |
| 3 | Not Available | -Top light grey | 97026 | Not Available |
| 4 | No Image | -Bristle Supp.Plate | 97025 | $42.00Read more |
| 5 | Not Available | -Lower section | 2054070 | Not Available |
| 7 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 8-14 | No Image | Floor Nozzle Lava Grey | 2142261 | $72.45Read more |
| 8-14 | Not Available | Floor nozzle Gold/Orange | 1142120 | Not Available |
| 8-10 | Not Available | -Top Gold/Orange | 1144240 | Not Available |
| 9 | No Image | -Torsion Spring | 2290300 | $4.14Read more |
| 10 | Not Available | -Buffer | 1599320 | Not Available |
| 11 | No Image | -Bristle Supp.Plate | 1134870 | $30.00Read more |
| 12 | Not Available | -Lower section | 1134880 | Not Available |
| 14 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 15 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 15 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 15 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 15 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 15 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 15 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 15 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
