Schematic and parts book for Miele S025 S 025. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

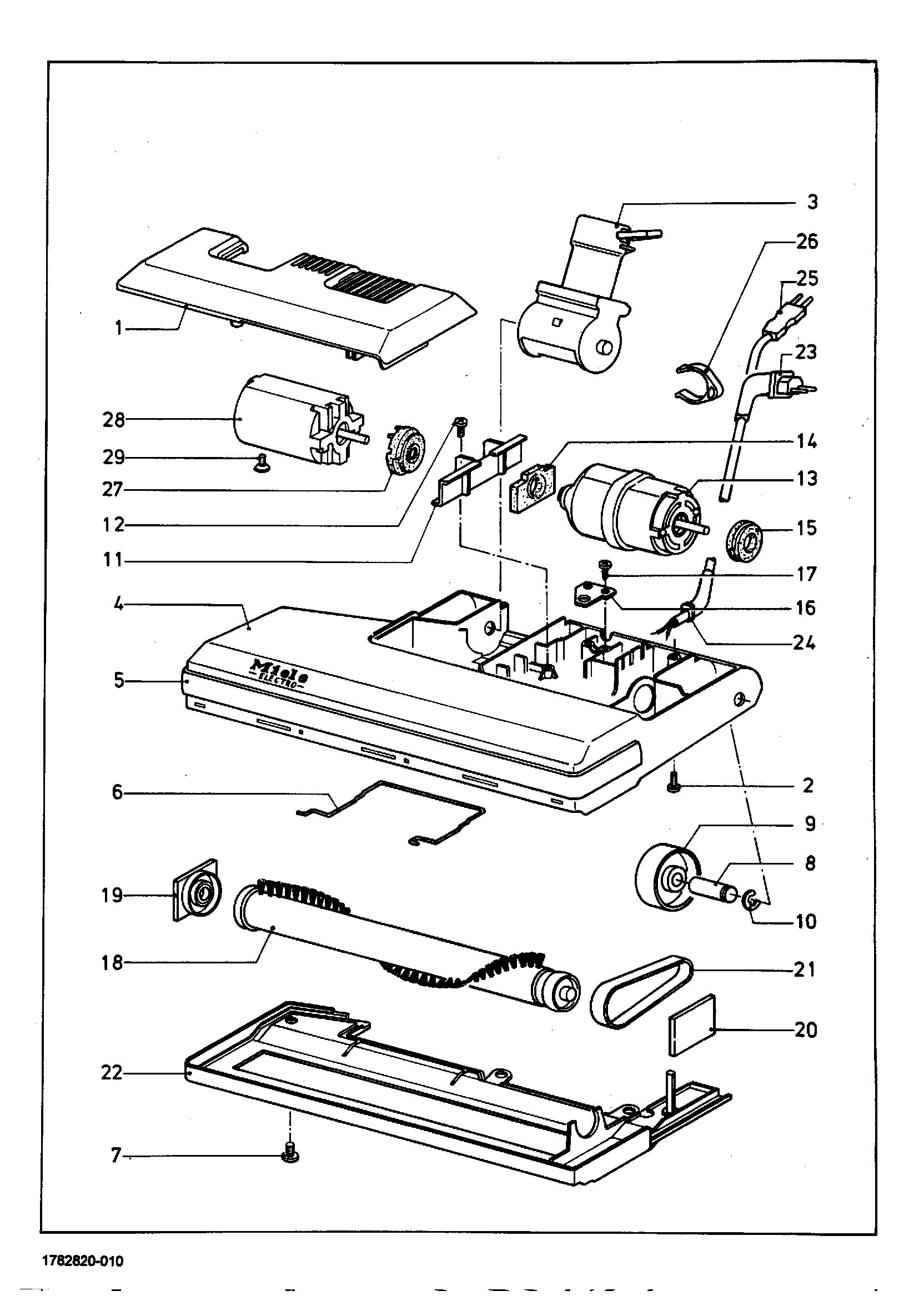

| # | Part image | Description | SKU | Price |
| XX | No Image | --Cyl.Headed Screw Din 84 Am4X10 | 30668 | $2.30Read more |
| (4-6) | Not Available | Casing bottom Lava grey | 2559440 | Not Available |
| XX | Not Available | --Raised head screw M6X9 | 1764250 | Not Available |
| (8) | Not Available | Shaft | 3139240 | Not Available |
| XX | Not Available | --Spring washer DIN6799 5 | 12695 | Not Available |
| XX | No Image | --Cyl.Headed Screw Din 84 Am4X10 | 30668 | $2.30Read more |
| XX | Not Available | --Screw BZ 4X16 | 1764240 | Not Available |
| XX | Not Available | --Raised head screw M4X8 | 2559430 | Not Available |
| 1 | Not Available | Lid Lava grey | 2301860 | Not Available |
| 3 | Not Available | Connection socket Lava grey | 2284260 | Not Available |
| 5 | Not Available | -Buffer | 1832680 | Not Available |
| 6 | Not Available | -Clamp | 1832690 | Not Available |
| 8 | Not Available | Shaft | 1764320 | Not Available |
| 9 | Not Available | Support roller | 1764310 | Not Available |
| 11 | Not Available | Suspension | 1816220 | Not Available |
| 13 | Not Available | AC motor 120V 60HZ | 1763680 | Not Available |
| 14 | Not Available | Motor bracket | 1816230 | Not Available |
| 15 | Not Available | Suspension | 1764280 | Not Available |
| 16 | Not Available | Cable holder | 1816240 | Not Available |
| 18-20 | Not Available | Roller brush | 1764300 | Not Available |
| 19 | Not Available | -Bearing | 1816250 | Not Available |
| 20 | Not Available | -Bearing | 1816260 | Not Available |
| 21 | Not Available | Flat belt | 1764290 | Not Available |
| 22 | Not Available | Floor plate | 1764330 | Not Available |
| 24 | Not Available | cable guide | 1832670 | Not Available |
| 25 | Not Available | Supply cable Lava grey | 2245620 | Not Available |
| 26 | No Image | Cable Holder Black | 1182310 | $11.16Read more |
| 26 |  | Genuine Miele Cable holder anthracite | 2245161 | $9.70Read more |
| 27 | Not Available | Suspension | 2559420 | Not Available |
| 28 | Not Available | AC motor 120V 60HZ TYP GS | 2559460 | Not Available |

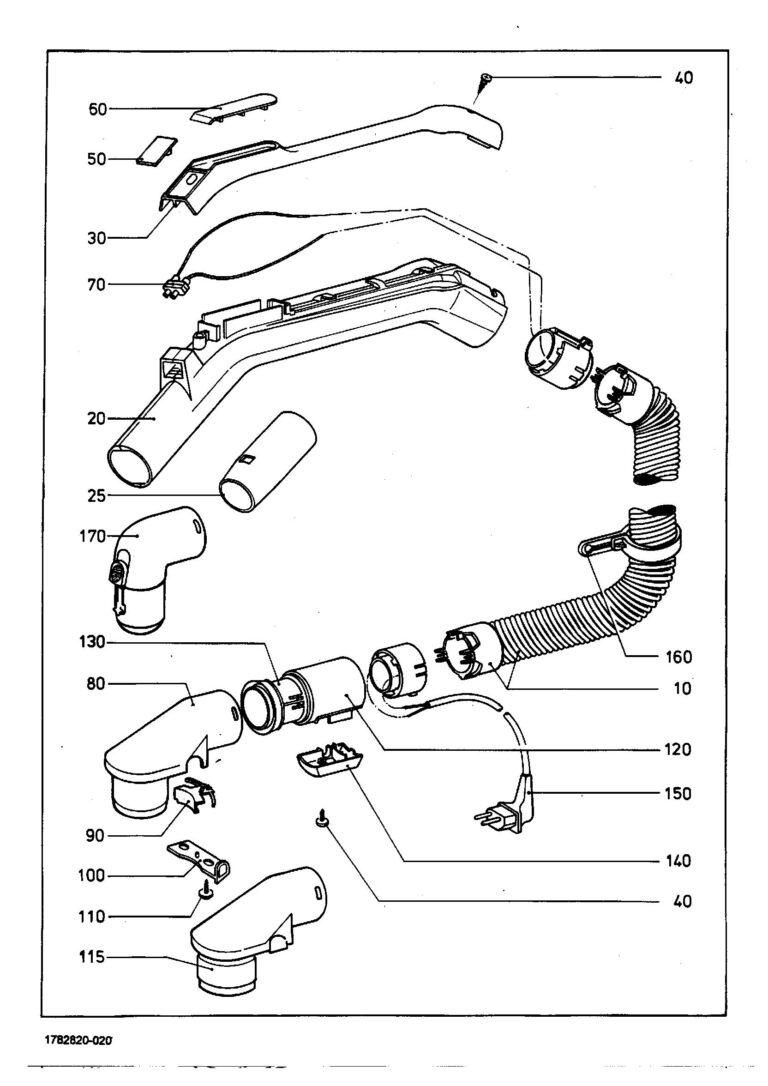

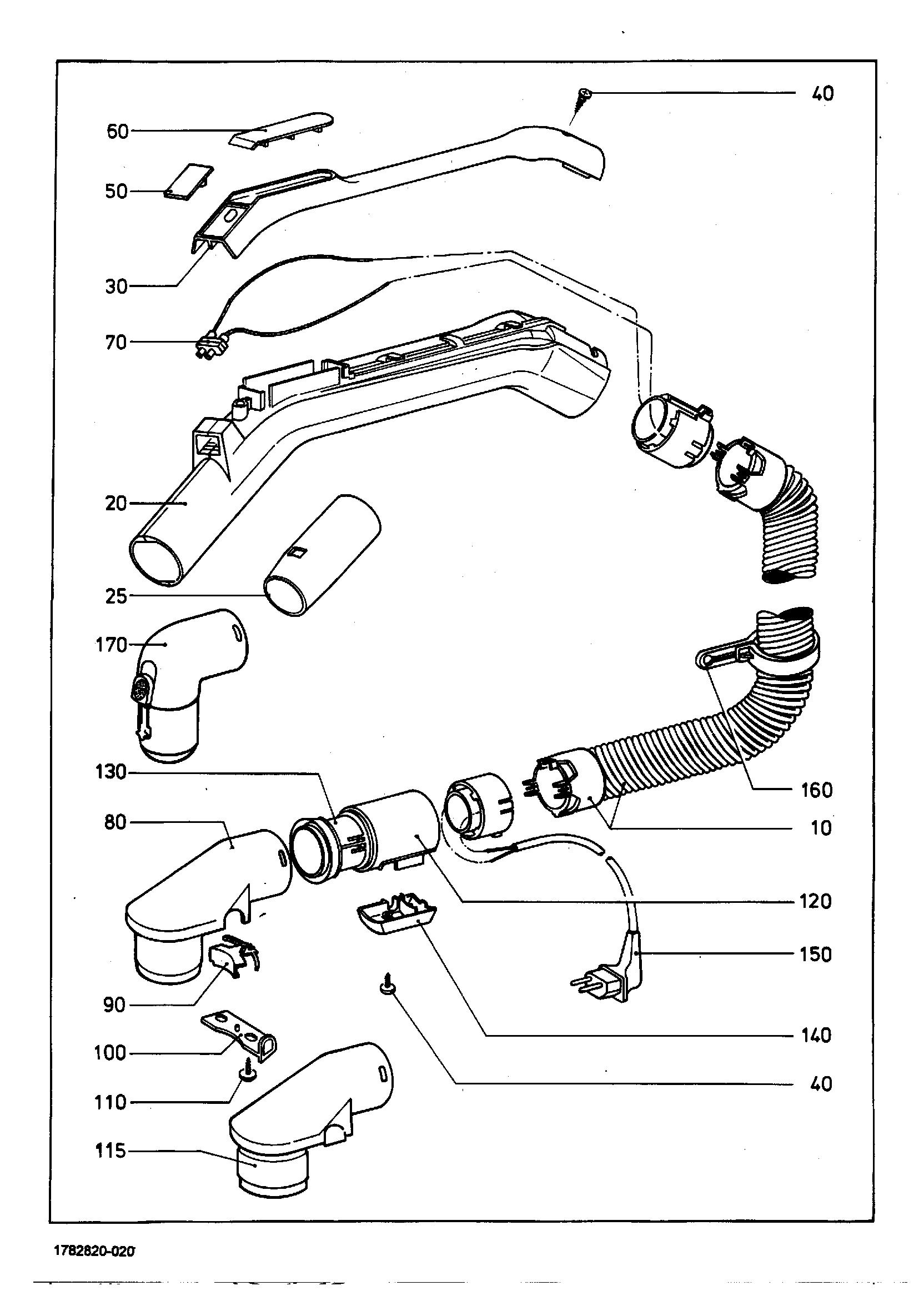

| # | Part image | Description | SKU | Price |
| XX | Not Available | Elec.suction hose anthracite | 3697290 | Not Available |
| XX | No Image | --Raised Head Screw 7981-St3,5X9,5-F-Z- | 2712350 | $2.50Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | No Image | --Raised Head Screw 7981-St3,5X9,5-F-Z- | 2712350 | $2.50Read more |
| 10 | Not Available | -Elec.suction hose anthracite | 3569720 | Not Available |
| 20 | No Image | -Tubular Handle Black/Brown | 1937900 | $66.00Read more |
| 20+25 | Not Available | -Tubular handle anthracite | 3623740 | Not Available |
| 25 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
| 30 | No Image | -Cover Black/Brown | 2156580 | $66.00Read more |
| 30 | No Image | -Cover Lava Grey | 2240370 | $66.00Read more |
| 50 | Not Available | -Cap anthracite | 3643700 | Not Available |
| 50 | No Image | -Cap Lava Grey | 2245790 | $11.16Read more |
| 60 | Not Available | -Lid Lava grey | 2319410 | Not Available |
| 70 | Not Available | -Flush socket outlet black | 1707671 | Not Available |
| 90 | Not Available | -interlock black/brown | 1348560 | Not Available |
| 90 | | Genuine Miele interlock Lava grey | 1963320 | $6.60Read more |
| 100 | | Genuine Miele Slide | 1348550 | $3.60Read more |
| 115 | No Image | -Elbow Anthracite | 3565390 | $47.00Read more |
| 115 | No Image | -Elbow Lava Grey | 2924550 | $47.00Read more |
| 120 | No Image | -Sleeve Anthracite | 3565850 | $36.00Read more |
| 130 | Not Available | -Ring anthracite | 3565860 | Not Available |
| 140 | Not Available | -Cover black/brown | 1389490 | Not Available |
| 140 | Not Available | -Cover Lava grey | 1998510 | Not Available |
| 150 | Not Available | -Supply cable black | 3934350 | Not Available |
| 160 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 170 | Not Available | Elbow | 1328140 | Not Available |

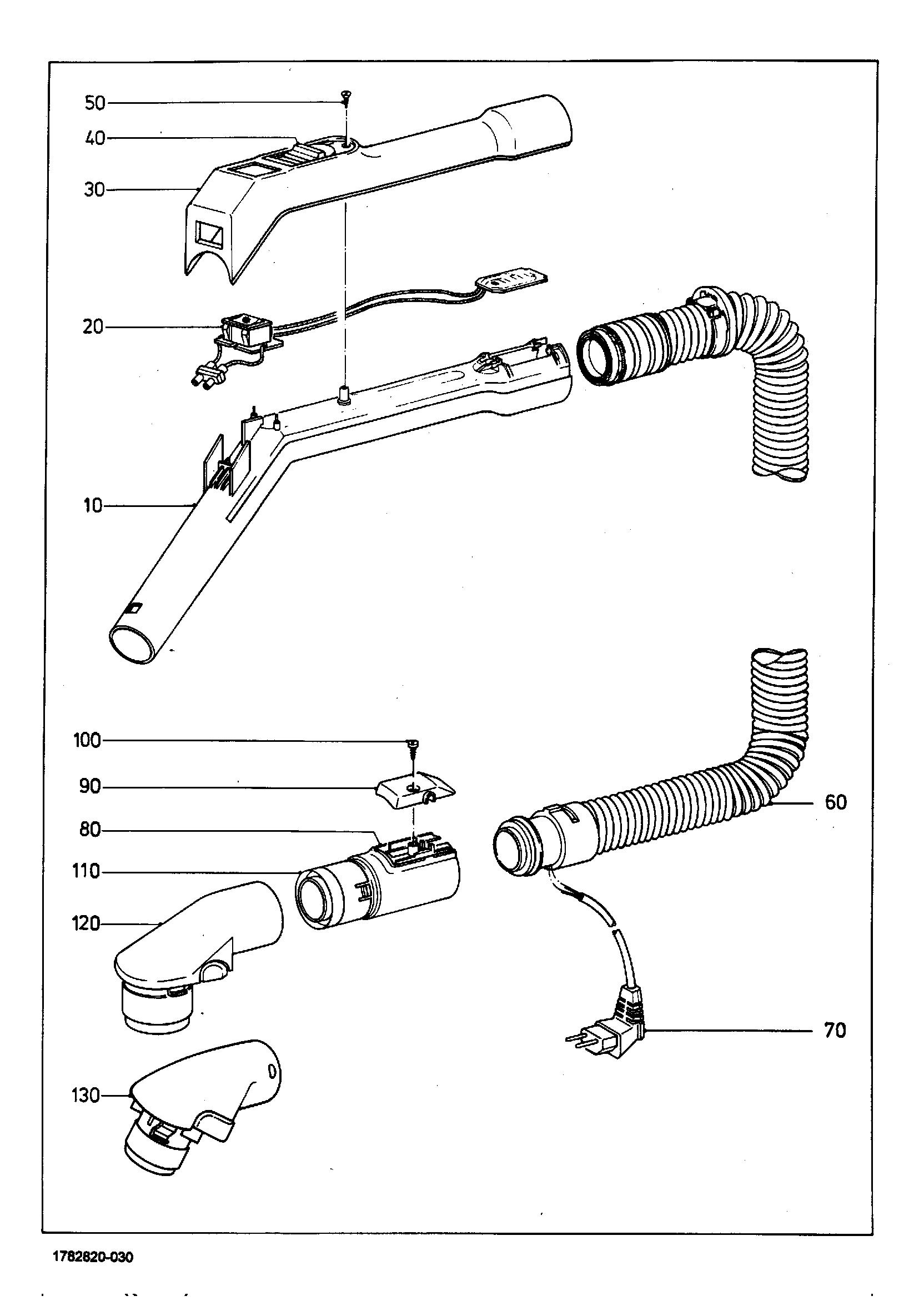

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 7981-St3,5X9,5-F-Z- | 2712350 | $2.50Read more |
| 10 | | Genuine Miele Tubular handle anthracite | 3697380 | $100.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | -Flush Socket Outlet Anthracite | 3682770 | $139.00Read more |
| 30+40 | Not Available | -Top anthracite | 3766500 | Not Available |
| 40 | Not Available | -Suction control anthracite | 3697400 | Not Available |
| 60 | No Image | -Elec.Suction Hose 2 Pole | 3629460 | $429.00Read more |
| 70 | | Genuine Miele Supply cable 2 pole black | 3629680 | $56.80Read more |
| 80 | Not Available | -Sleeve anthracite | 3661300 | Not Available |
| 90 | Not Available | -Cover anthracite | 3565980 | Not Available |
| 110 | Not Available | -Ring anthracite | 3565860 | Not Available |
| 120 | No Image | -Elbow Anthracite | 3565390 | $47.00Read more |
| 130 | No Image | Elbow Anthracite | 3982540 | $42.00Read more |
