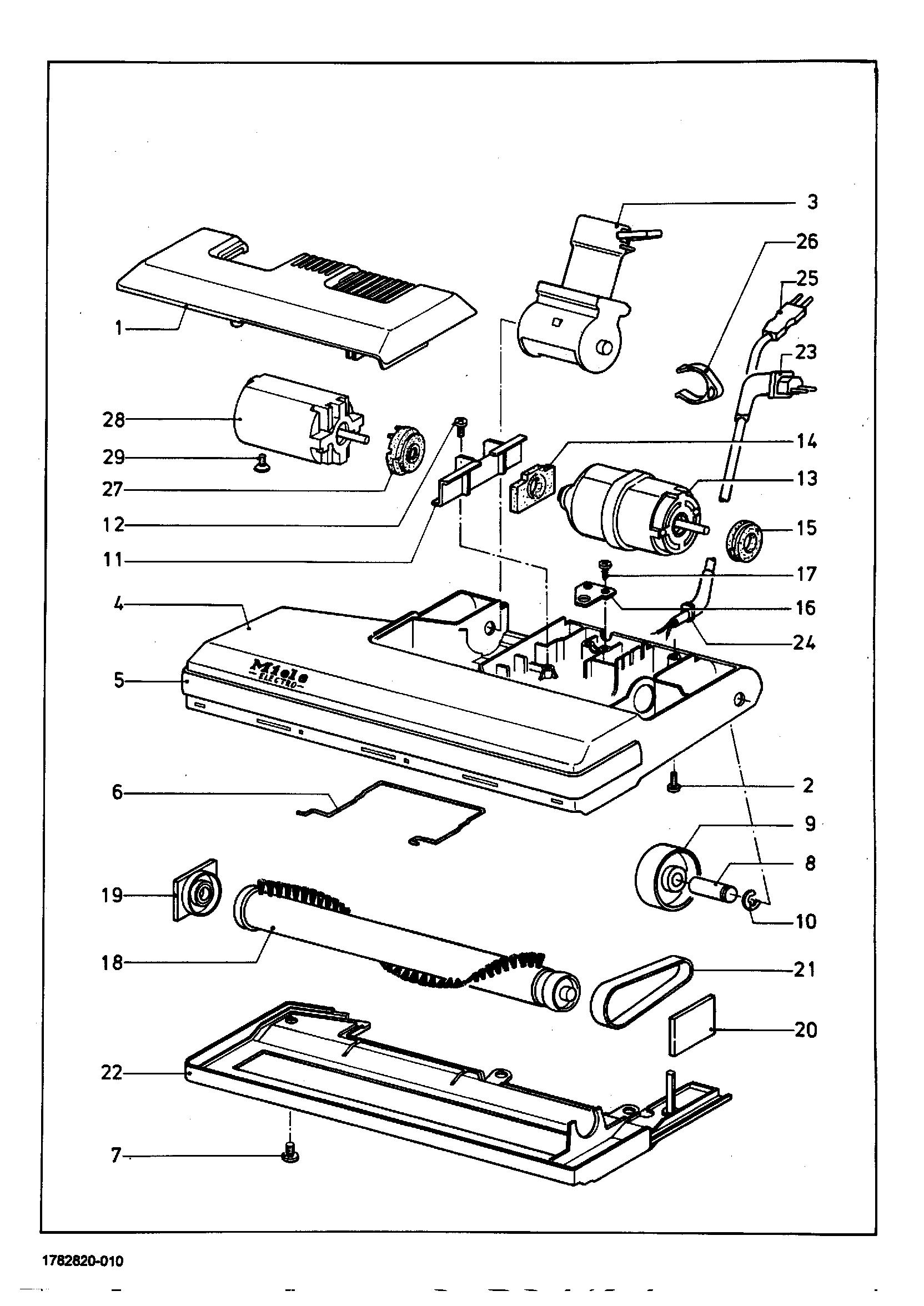

Schematic and parts book for Miele S023 S 023. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | No Image | --Cyl.Headed Screw Din 84 Am4X10 | 30668 | $2.30Read more |
| (4-6) | Not Available | Casing bottom Lava grey | 2559440 | Not Available |
| XX | Not Available | --Raised head screw M6X9 | 1764250 | Not Available |
| (8) | Not Available | Shaft | 3139240 | Not Available |
| XX | Not Available | --Spring washer DIN6799 5 | 12695 | Not Available |
| XX | No Image | --Cyl.Headed Screw Din 84 Am4X10 | 30668 | $2.30Read more |
| XX | Not Available | --Screw BZ 4X16 | 1764240 | Not Available |
| XX | Not Available | --Raised head screw M4X8 | 2559430 | Not Available |
| 1 | Not Available | Lid Lava grey | 2301860 | Not Available |
| 3 | Not Available | Connection socket Lava grey | 2284260 | Not Available |
| 5 | Not Available | -Buffer | 1832680 | Not Available |
| 6 | Not Available | -Clamp | 1832690 | Not Available |
| 8 | Not Available | Shaft | 1764320 | Not Available |
| 9 | Not Available | Support roller | 1764310 | Not Available |
| 11 | Not Available | Suspension | 1816220 | Not Available |
| 13 | Not Available | AC motor 120V 60HZ | 1763680 | Not Available |
| 14 | Not Available | Motor bracket | 1816230 | Not Available |
| 15 | Not Available | Suspension | 1764280 | Not Available |
| 16 | Not Available | Cable holder | 1816240 | Not Available |
| 18-20 | Not Available | Roller brush | 1764300 | Not Available |
| 19 | Not Available | -Bearing | 1816250 | Not Available |
| 20 | Not Available | -Bearing | 1816260 | Not Available |
| 21 | Not Available | Flat belt | 1764290 | Not Available |
| 22 | Not Available | Floor plate | 1764330 | Not Available |
| 23 | Not Available | Supply cable Lava grey | 2245600 | Not Available |
| 24 | Not Available | cable guide | 1832670 | Not Available |
| 26 | No Image | Cable Holder Black | 1182310 | $11.16Read more |
| 26 |  | Genuine Miele Cable holder anthracite | 2245161 | $9.70Read more |
| 27 | Not Available | Suspension | 2559420 | Not Available |
| 28 | Not Available | AC motor 120V 60HZ TYP GS | 2559460 | Not Available |
