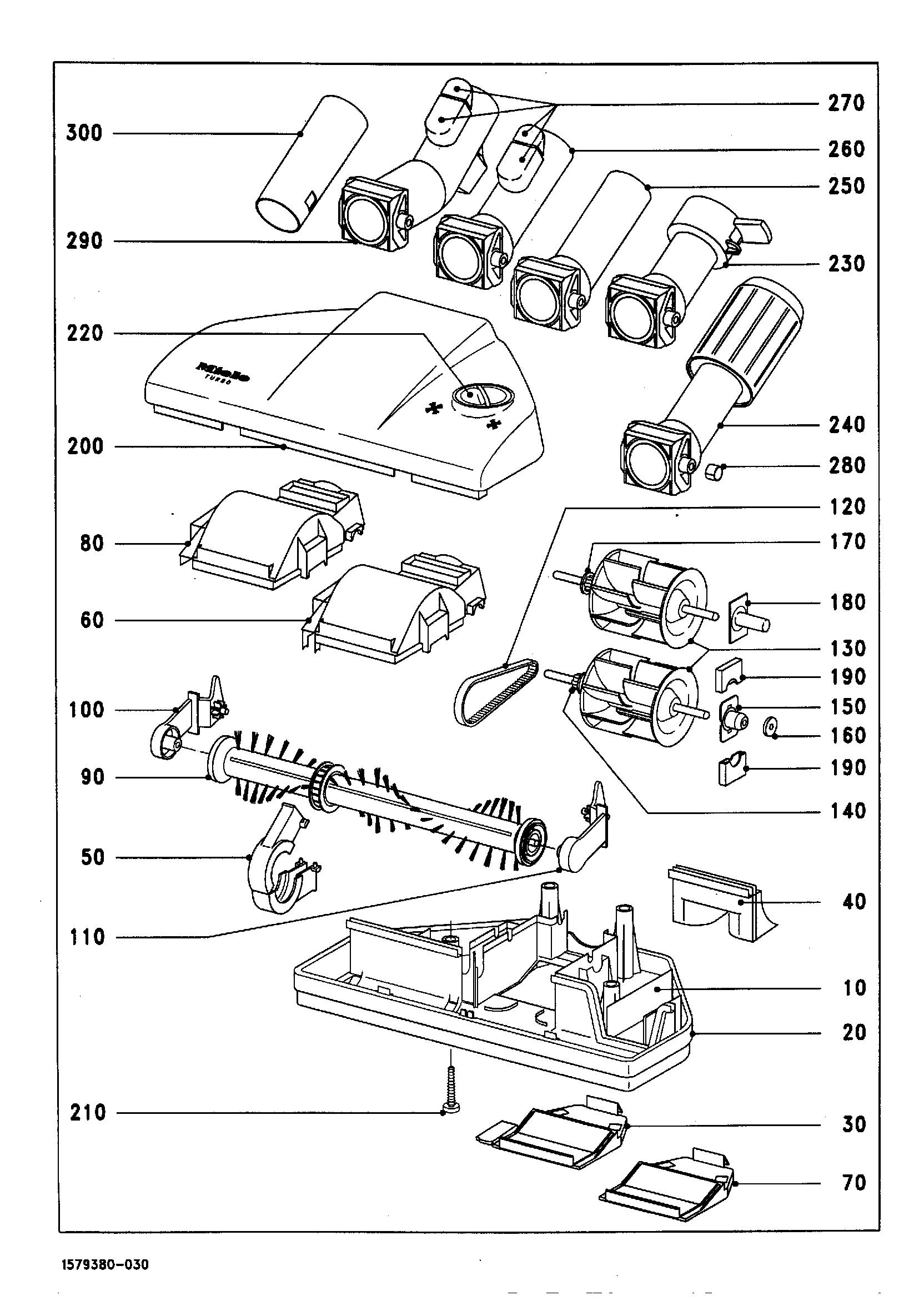

Schematic and parts book for Miele S021 S 021. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | --Screw KA35X30 | 1702700 | Not Available |
| 20 | Not Available | -Buffer Lava grey | 2084350 | Not Available |
| 20 | Not Available | -Buffer anthracite | 3640070 | Not Available |
| 30 | Not Available | -Cleaning flap anthracite | 3640080 | Not Available |
| 40 | Not Available | -Air shield black | 1582901 | Not Available |
| 50 |  | Genuine Miele Belt guard black | 2991760 | $10.70Read more |
| 60 | Not Available | -Casing black | 3182040 | Not Available |
| 70 | Not Available | Cleaning flap black/brown | 1663750 | Not Available |
| 80 | Not Available | Casing black/brown | 1582910 | Not Available |
| 90 | Not Available | Roller brush | 1944470 | Not Available |
| 100+110 | Not Available | Bearing lever | 3149980 | Not Available |
| 120 | Not Available | Tooth belt | 1695410 | Not Available |
| 140 | Not Available | -Pinion 4MM | 1582880 | Not Available |
| 140 | Not Available | -Pinion 4MM | 1582880 | Not Available |
| 160-190 | Not Available | Impeller Lava grey | 3329500 | Not Available |
| 160 | Not Available | -Disc | 1582890 | Not Available |
| 160-190 | Not Available | Impeller Lava grey | 3329500 | Not Available |
| 160 | Not Available | -Disc | 1582890 | Not Available |
| 180 | Not Available | -Bearing 4MM | 2902600 | Not Available |
| 180 | Not Available | -Bearing 4MM | 2902600 | Not Available |
| 190 | No Image | Casing Bottom Lava Grey | 2599453 | $109.00Read more |
| 190 | Not Available | -Bearing Beige | 3181990 | Not Available |
| 190 | Not Available | -Bearing Beige | 3181990 | Not Available |
| 200 | Not Available | Top Lava grey | 2084370 | Not Available |
| 220 | Not Available | Programme knob Lava grey | 2084380 | Not Available |
| 230+280 | Not Available | Linkage Lava grey | 2084360 | Not Available |
| 280 | Not Available | -Bearing bush | 2902400 | Not Available |
