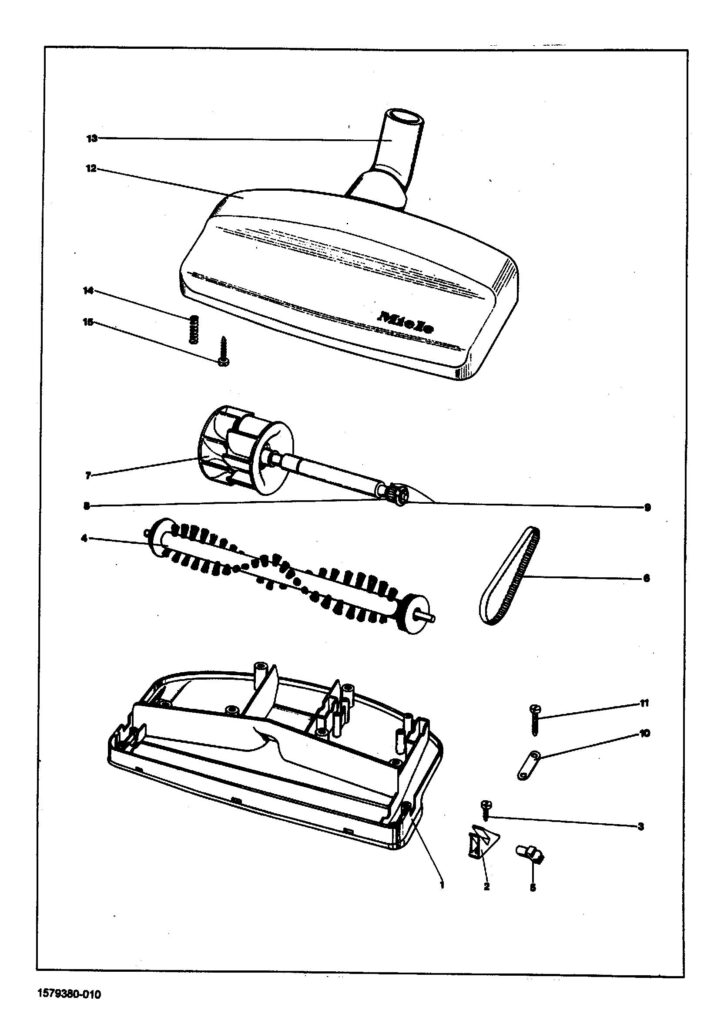

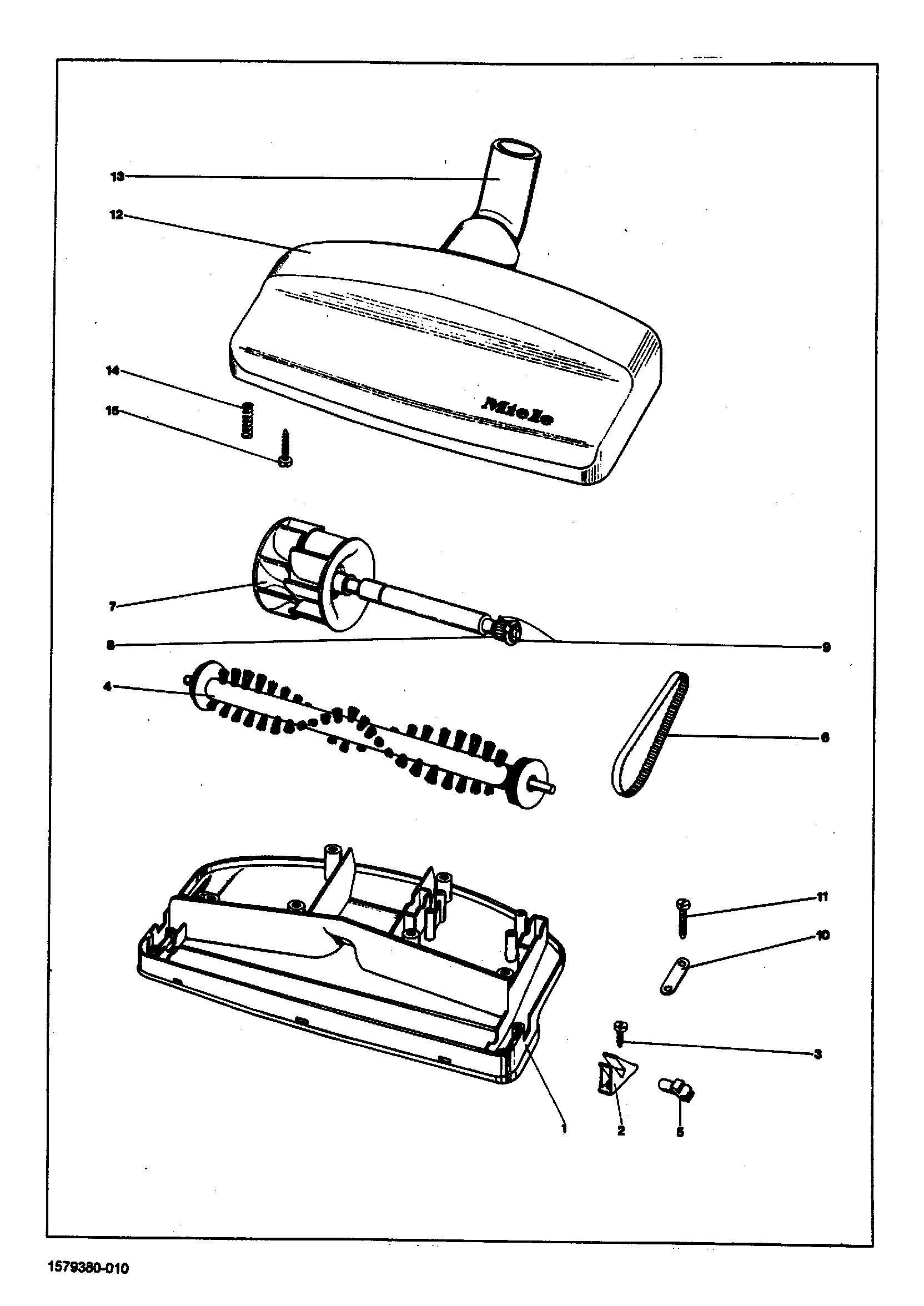

Schematic and parts book for Miele S020 S 020. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 3,5X9,5 | 20724 | $2.30Read more |
| XX | Not Available | -Cogwheel 18 ZAEHNE | 66360 | Not Available |
| XX | No Image | --Disc Din 125 6,4 | 10180 | $2.50Read more |
| XX | Not Available | --Spring washer DIN6799 5 | 12695 | Not Available |
| XX | Not Available | -Shaft | 66361 | Not Available |
| XX | Not Available | -Fan impeller | 66362 | Not Available |
| XX | Not Available | -Fan impeller | 66363 | Not Available |
| XX | Not Available | -Sleeve | 66364 | Not Available |
| XX | Not Available | -Disc | 66365 | Not Available |
| XX | Not Available | -Support roller | 66366 | Not Available |
| XX | Not Available | --Self-tapping screw DIN7971 BZ3,5X13 | 10579 | Not Available |
| 1 | Not Available | Floor plate | 66355 | Not Available |
| 2 | Not Available | Holder | 66356 | Not Available |
| 4 | Not Available | Roller brush | 1006830 | Not Available |
| 5 | Not Available | Spherical bearing | 66358 | Not Available |
| 6 | Not Available | Drive belt | 66359 | Not Available |
| 7-9 | Not Available | Impeller | 87966 | Not Available |
| 8 | Not Available | -Cogwheel 7 ZAEHNE | 66367 | Not Available |
| 10 | Not Available | --Butt strap | 66368 | Not Available |
| 11 | Not Available | --Self-tapping screw DIN7971 BZ3,5X13 | 10579 | Not Available |
| 12+13 | Not Available | Top | 66369 | Not Available |
| 12+13 | Not Available | Top | 66369 | Not Available |
| 14 | Not Available | Spring | 66370 | Not Available |
