Schematic and parts book for Miele S019 S 019. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

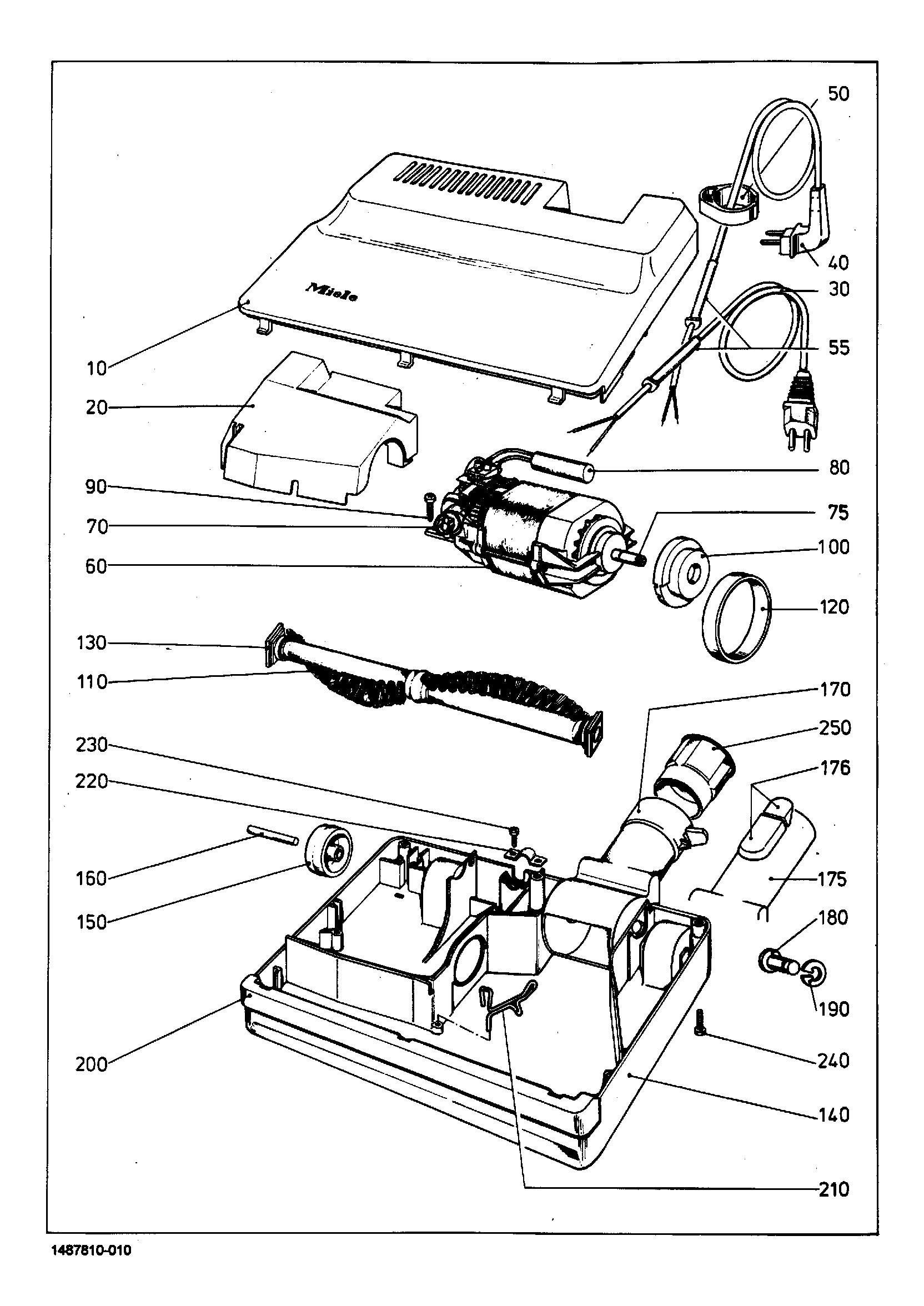

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 72163 | $2.30Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 72163 | $2.30Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 72163 | $2.30Read more |
| 10 | Not Available | Lid Lava grey | 2284270 | Not Available |
| 20 | Not Available | Hood black/brown | 1449360 | Not Available |
| 30 | Not Available | Supply cable Black 1430mm | 1471481 | Not Available |
| 30 | Not Available | Supply cable black 1265mm | 2245611 | Not Available |
| 50 | No Image | Cable Holder Black | 1182310 | $11.16Read more |
| 55 | Not Available | cable guide | 1158590 | Not Available |
| 60-80 | Not Available | AC motor 220V 50HZ/60HZ | 1775590 | Not Available |
| 70 | Not Available | -Carbon brush | 1158351 | Not Available |
| 75 | Not Available | -Pinion | 1678470 | Not Available |
| 80 | Not Available | -Interf.sup.capacit. | 1158300 | Not Available |
| 100 | Not Available | Suspension | 1158360 | Not Available |
| 110-130 | Not Available | Brush | 1160631 | Not Available |
| 120 | Not Available | -Flat belt 948-42-002 | 1158370 | Not Available |
| 130 | Not Available | -Spherical bearing | 1162270 | Not Available |
| 150 | Not Available | -Support roller | 1158390 | Not Available |
| 160 | Not Available | -Shaft | 1158380 | Not Available |
| 180 | Not Available | -Bolt | 1158530 | Not Available |
| 190 | Not Available | -Spring washer DIN6799 6 | 59932 | Not Available |
| 200 | Not Available | -Corner shield light bronze | 1449340 | Not Available |
| 210 | Not Available | -Protective panel | 1158400 | Not Available |
| 220 | Not Available | Fixing bracket | 1158410 | Not Available |

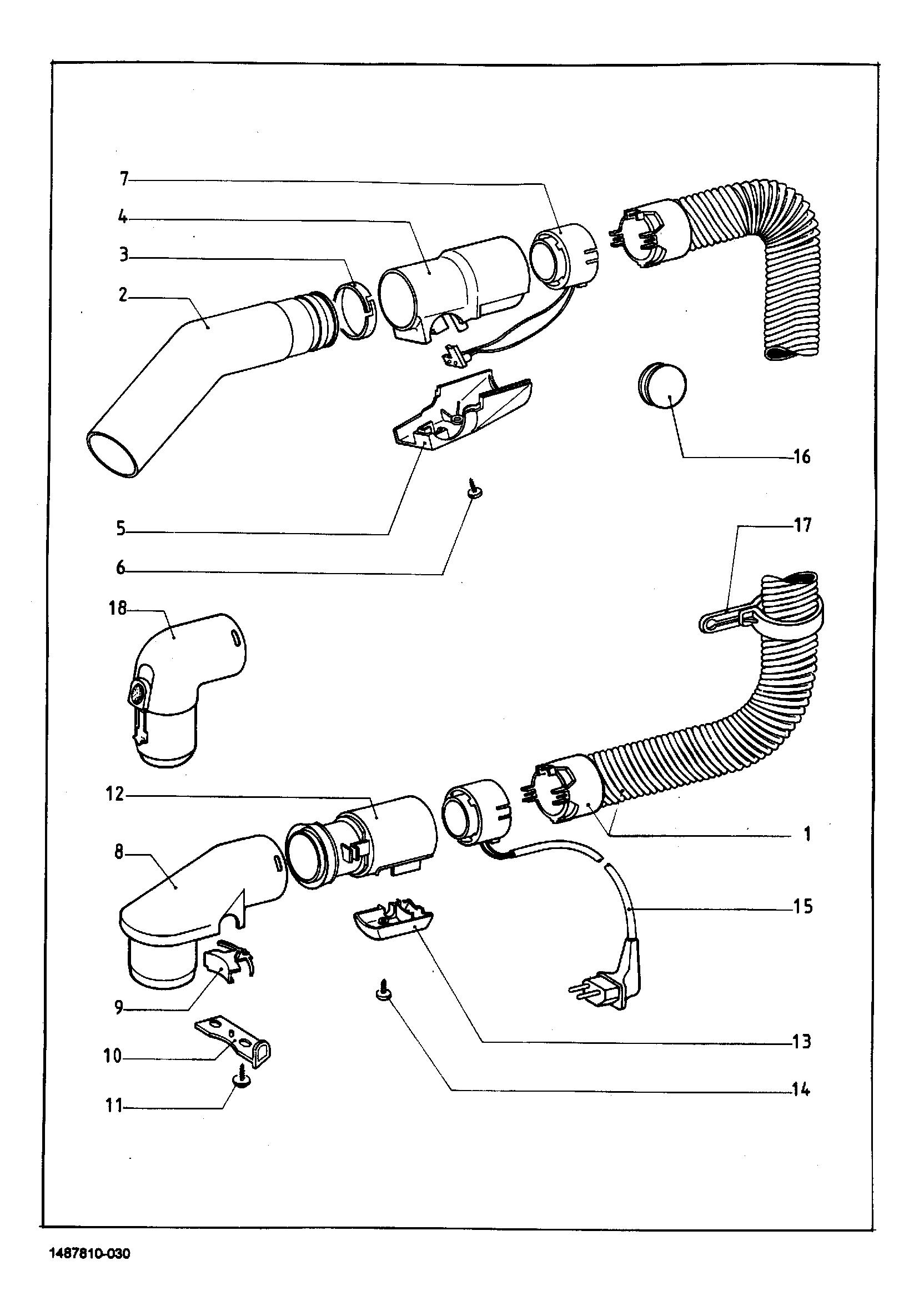

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Elec.Suction Hose Anthracite | 3697280 | $639.00Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1587200 | $2.30Read more |
| w/o fig. |  | Genuine Miele Elbow anthracite | 3565392 | $47.00Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| w/o fig. | Not Available | -Ring anthracite | 3565860 | Not Available |
| XX | No Image | --Raised Head Screw 3,5X9,5 | 1255710 | $2.50Read more |
| 1 | No Image | -Elec.Suction Hose Anthracite | 3565820 | $369.00Read more |
| 2 | Not Available | -Tubular handle black/brown | 1437720 | Not Available |
| 3 | Not Available | -Sealing ring black/brown | 1389440 | Not Available |
| 4 | Not Available | -Tubular handle black/brown | 1389450 | Not Available |
| 5 | Not Available | -Cover black/brown | 1389460 | Not Available |
| 7 | Not Available | -Flush socket outlet black/brown | 1390371 | Not Available |
| 9 | Not Available | -interlock black/brown | 1348560 | Not Available |
| 10 | | Genuine Miele Slide | 1348550 | $3.60Read more |
| 12 | Not Available | -Sleeve black/brown | 1389480 | Not Available |
| 12 | Not Available | -Sleeve anthracite | 3661300 | Not Available |
| 12-15 | Not Available | Supply cable black | 3934310 | Not Available |
| 13 | Not Available | -Cover black/brown | 1389490 | Not Available |
| 16 | Not Available | -Cap black | 1390340 | Not Available |
| 17 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 18 | Not Available | Elbow | 1328140 | Not Available |
| 140 | Not Available | -Cover anthracite | 3565980 | Not Available |

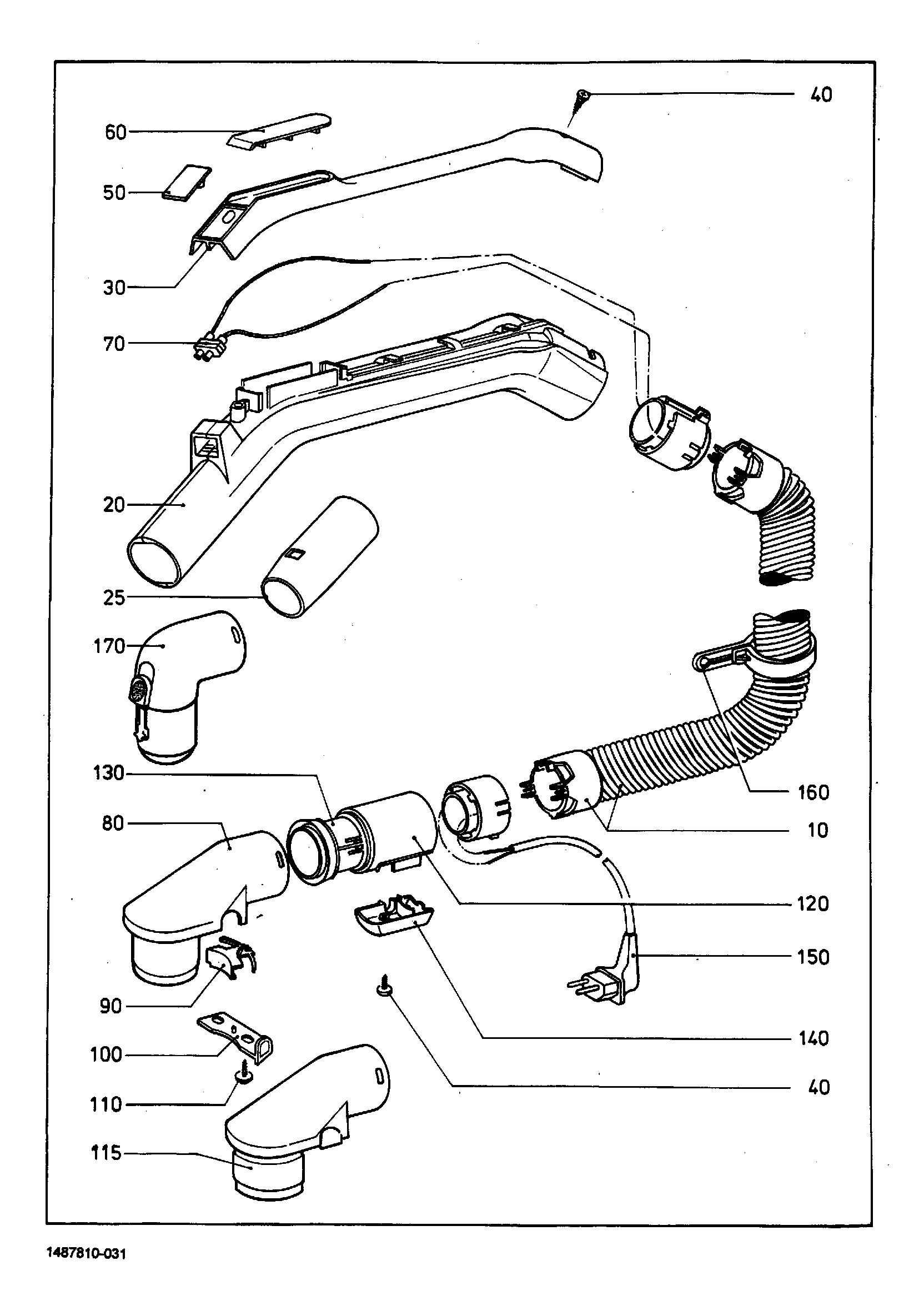

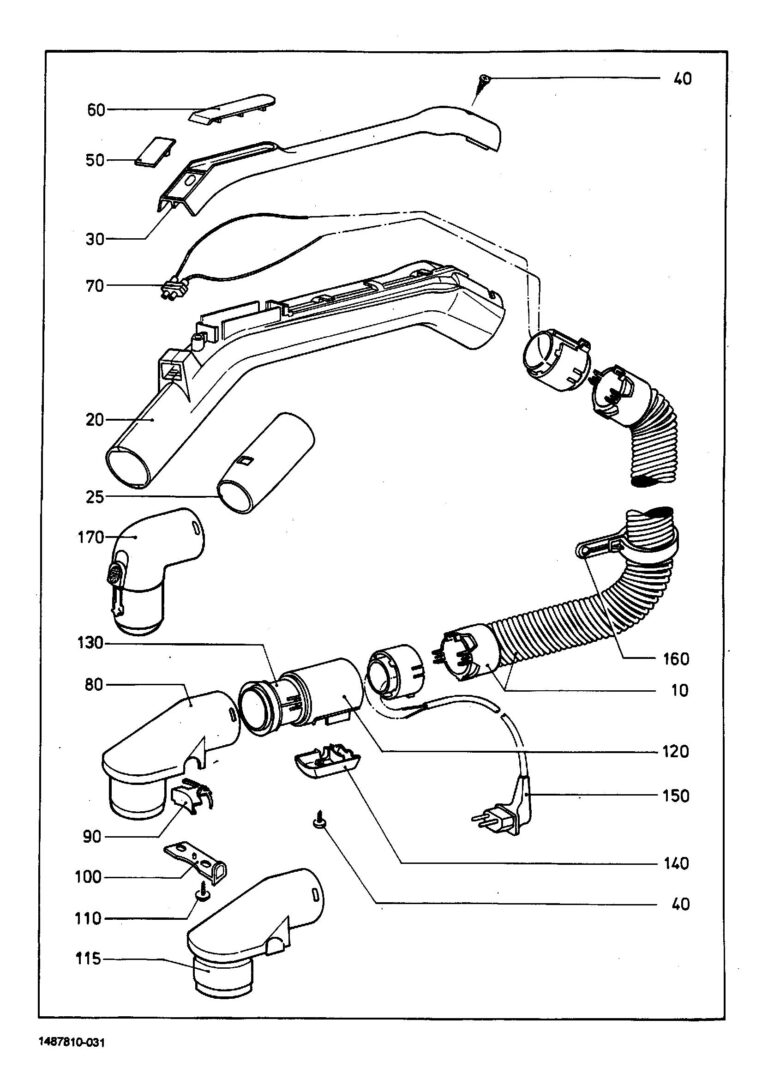

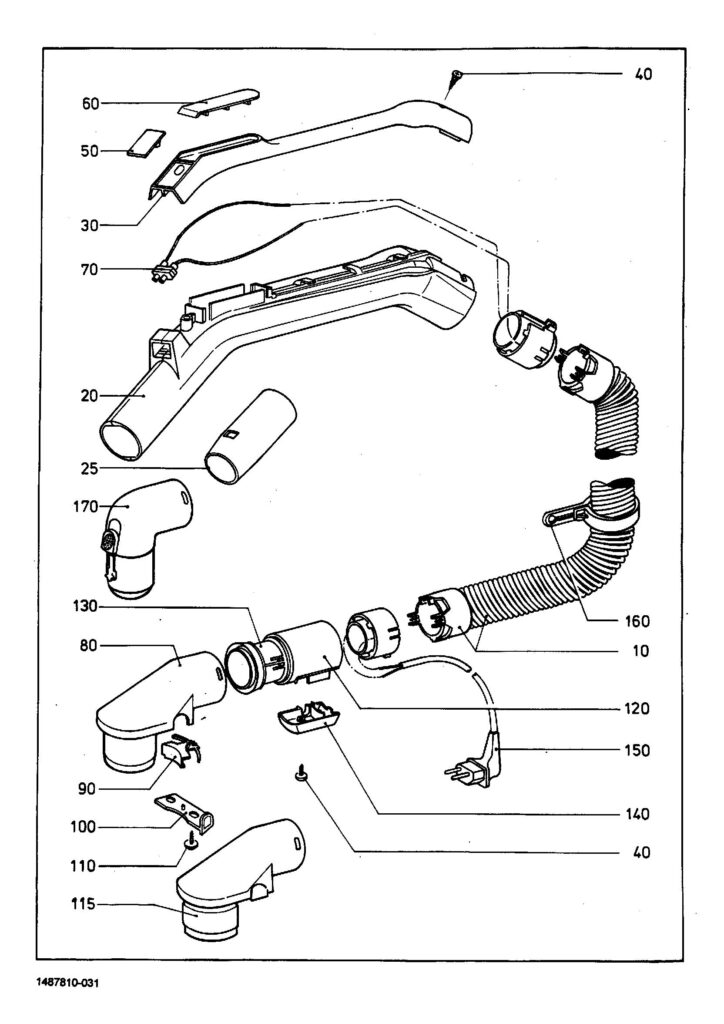

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Elec.Suction Hose Anthracite | 3697280 | $639.00Read more |
| w/o fig. | No Image | Elec.Suction Hose Anthracite | 3697280 | $639.00Read more |
| XX | No Image | --Raised Head Screw 7981-St3,5X9,5-F-Z- | 2712350 | $2.50Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | No Image | --Raised Head Screw 7981-St3,5X9,5-F-Z- | 2712350 | $2.50Read more |
| 10 | No Image | -Elec.Suction Hose Anthracite | 3565820 | $369.00Read more |
| 10 | No Image | -Elec.Suction Hose Anthracite | 3565820 | $369.00Read more |
| 20 | No Image | -Tubular Handle Black/Brown | 1937900 | $66.00Read more |
| 20+25 | Not Available | -Tubular handle anthracite | 3623740 | Not Available |
| 25 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
| 30 | No Image | -Cover Black/Brown | 2156580 | $66.00Read more |
| 30 | Not Available | -Cover Lava grey | 2156590 | Not Available |
| 30 | Not Available | -Cover anthracite | 3624910 | Not Available |
| 50 | No Image | -Cap Lava Grey | 2245790 | $11.16Read more |
| 50 | Not Available | -Cap anthracite | 3643700 | Not Available |
| 60 | Not Available | -Lid Lava grey | 2245780 | Not Available |
| 60 | Not Available | -Lid anthracite | 3643690 | Not Available |
| 70 | Not Available | -Flush socket outlet | 1659941 | Not Available |
| 70 | Not Available | -Flush socket outlet | 1659941 | Not Available |
| 90 | Not Available | -interlock black/brown | 1348560 | Not Available |
| 90 | | Genuine Miele interlock Lava grey | 1963320 | $6.60Read more |
| 100 | | Genuine Miele Slide | 1348550 | $3.60Read more |
| 115 | No Image | -Elbow Anthracite | 3565390 | $47.00Read more |
| 115 | No Image | -Elbow Anthracite | 3565390 | $47.00Read more |
| 120 | No Image | -Sleeve Anthracite | 3565850 | $36.00Read more |
| 120-150 | Not Available | -Supply cable black | 3934310 | Not Available |
| 130 | Not Available | -Ring anthracite | 3565860 | Not Available |
| 140 | Not Available | -Cover black/brown | 1389490 | Not Available |
| 140 | Not Available | -Cover Lava grey | 1998510 | Not Available |
| 160 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 170 | Not Available | -Elbow | 1328140 | Not Available |
