Schematic and parts book for Miele S018 S 018. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

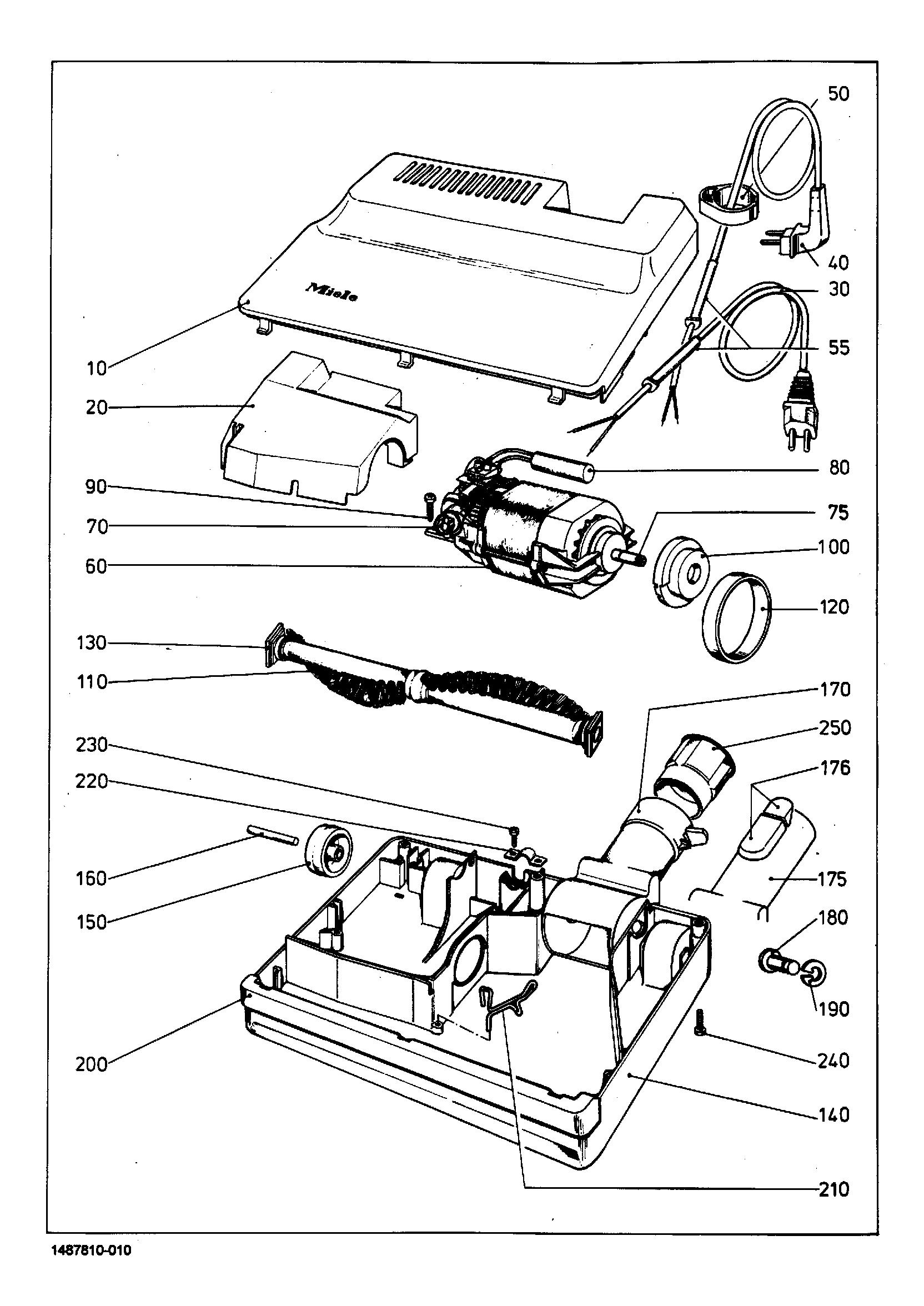

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 72163 | $2.30Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 72163 | $2.30Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 72163 | $2.30Read more |
| 10 | Not Available | Lid Lava grey | 2284270 | Not Available |
| 20 | Not Available | Hood black/brown | 1449360 | Not Available |
| 30 | No Image | Supply Cable Black | 1160650 | $0.00Read more |
| 55 | Not Available | cable guide | 1158590 | Not Available |
| 60-80 | Not Available | AC motor 220V 50HZ/60HZ | 1775590 | Not Available |
| 70 | Not Available | -Carbon brush | 1158351 | Not Available |
| 75 | Not Available | -Pinion | 1678470 | Not Available |
| 80 | Not Available | -Interf.sup.capacit. | 1158300 | Not Available |
| 100 | Not Available | Suspension | 1158360 | Not Available |
| 110-130 | Not Available | Brush | 1160631 | Not Available |
| 120 | Not Available | -Flat belt 948-42-002 | 1158370 | Not Available |
| 130 | Not Available | -Spherical bearing | 1162270 | Not Available |
| 150 | Not Available | -Support roller | 1158390 | Not Available |
| 160 | Not Available | -Shaft | 1158380 | Not Available |
| 180 | Not Available | -Bolt | 1158530 | Not Available |
| 190 | Not Available | -Spring washer DIN6799 6 | 59932 | Not Available |
| 200 | Not Available | -Corner shield light bronze | 1449340 | Not Available |
| 210 | Not Available | -Protective panel | 1158400 | Not Available |
| 220 | Not Available | Fixing bracket | 1158410 | Not Available |
| # | Part image | Description | SKU | Price |

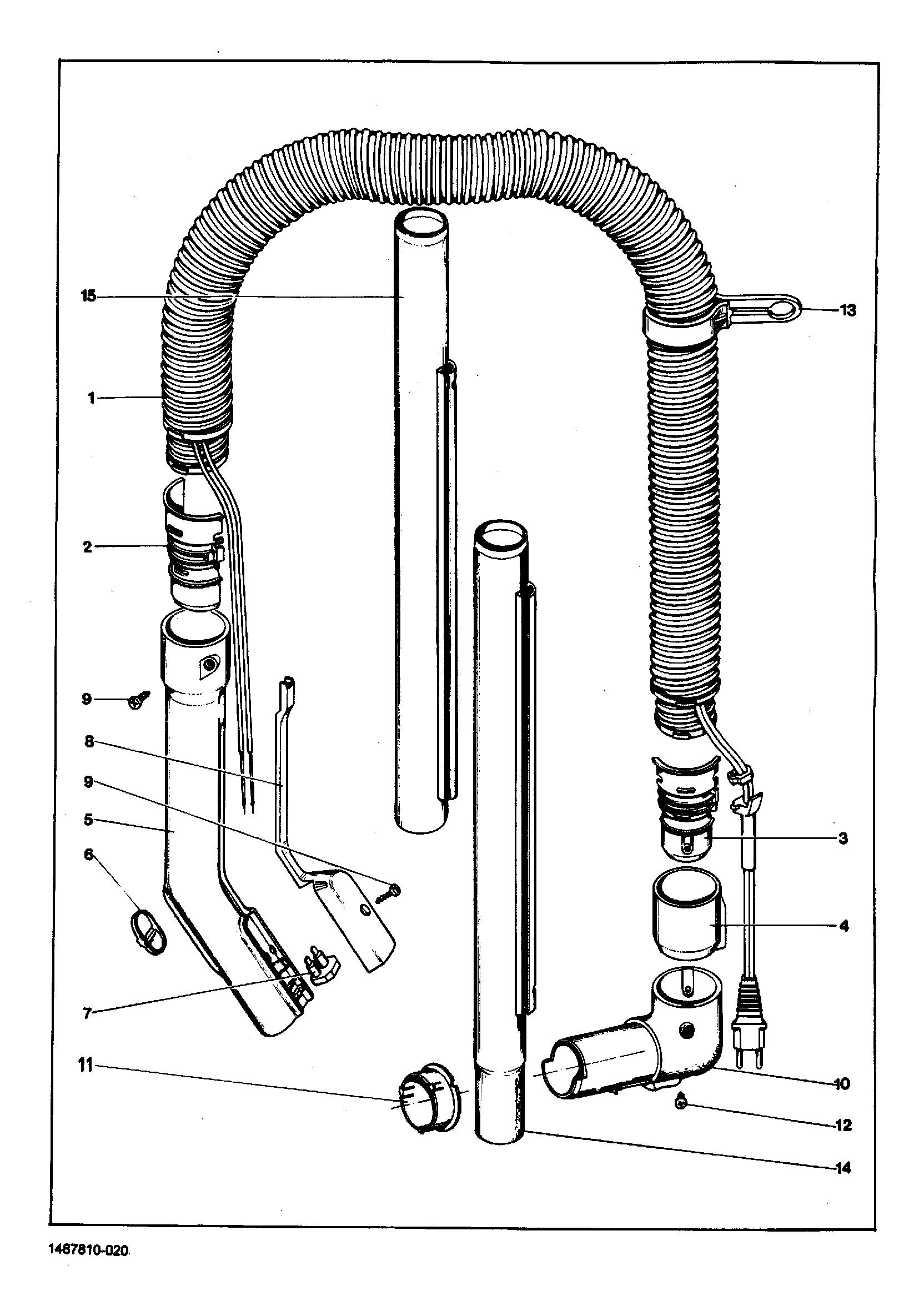

| w/o fig. | Not Available | Elec.suction hose anthracite | 3255352 | Not Available |
| XX | Not Available | --Raised head screw DIN7981 BZ3,5X13 | 1143460 | Not Available |
| XX | No Image | --Raised Head Screw Din7981 B3,5X9,5 | 1143870 | $2.50Read more |
| 5-9 | Not Available | -Tubular handle light beige | 1144680 | Not Available |
| 6 | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| 7 | Not Available | -Socket | 1142790 | Not Available |
| 8 | Not Available | -Cover light beige | 1105960 | Not Available |
| 10+11 | Not Available | -Elbow black/brown | 1175491 | Not Available |
| 11 | Not Available | -Slide sleeve black | 1204330 | Not Available |
| 13 | Not Available | Holder black | 1138840 | Not Available |
| 14 | Not Available | Suction pipe bottom | 1138870 | Not Available |
| 15 | Not Available | Suction pipe top | 1138880 | Not Available |
