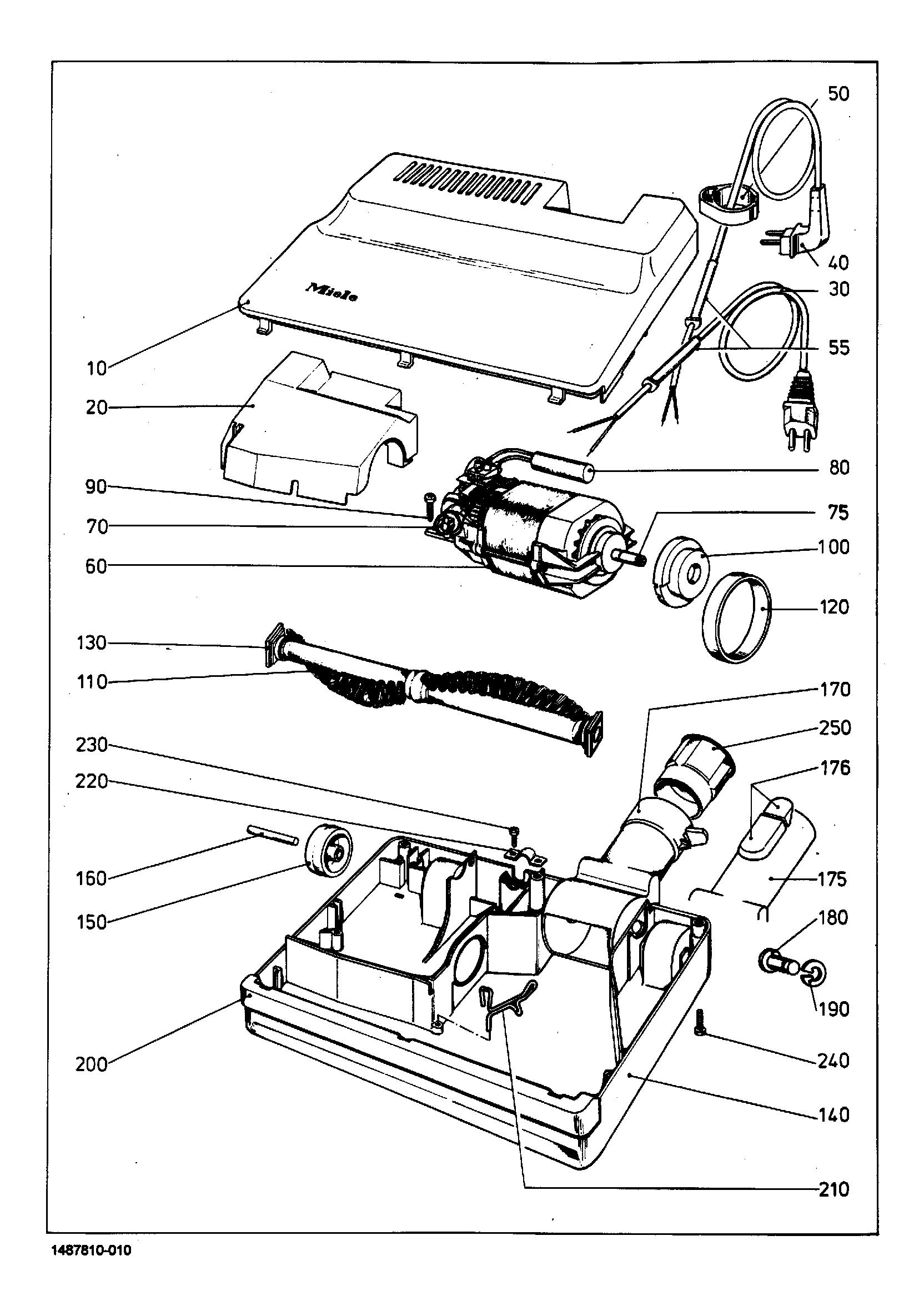

Schematic and parts book for Miele S016 S 016. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 72163 | $2.30Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 72163 | $2.30Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 72163 | $2.30Read more |
| 10 | Not Available | Lid Lava grey | 2284270 | Not Available |
| 20 | Not Available | Hood black/brown | 1449360 | Not Available |
| 30 | Not Available | Supply cable Black 1430mm | 1471481 | Not Available |
| 30 | Not Available | Supply cable black 1265mm | 2245611 | Not Available |
| 50 | No Image | Cable Holder Black | 1182310 | $11.16Read more |
| 55 | Not Available | cable guide | 1158590 | Not Available |
| 60-80 | Not Available | AC motor 220V 50HZ/60HZ | 1775590 | Not Available |
| 70 | Not Available | -Carbon brush | 1158351 | Not Available |
| 75 | Not Available | -Pinion | 1678470 | Not Available |
| 80 | Not Available | -Interf.sup.capacit. | 1158300 | Not Available |
| 100 | Not Available | Suspension | 1158360 | Not Available |
| 110-130 | Not Available | Brush | 1160631 | Not Available |
| 120 | Not Available | -Flat belt 948-42-002 | 1158370 | Not Available |
| 130 | Not Available | -Spherical bearing | 1162270 | Not Available |
| 150 | Not Available | -Support roller | 1158390 | Not Available |
| 160 | Not Available | -Shaft | 1158380 | Not Available |
| 170 | Not Available | -Connection socket Lava grey | 2284260 | Not Available |
| 180 | Not Available | -Bolt | 1158530 | Not Available |
| 190 | Not Available | -Spring washer DIN6799 6 | 59932 | Not Available |
| 200 | Not Available | -Corner shield light bronze | 1449340 | Not Available |
| 210 | Not Available | -Protective panel | 1158400 | Not Available |
| 220 | Not Available | Fixing bracket | 1158410 | Not Available |
