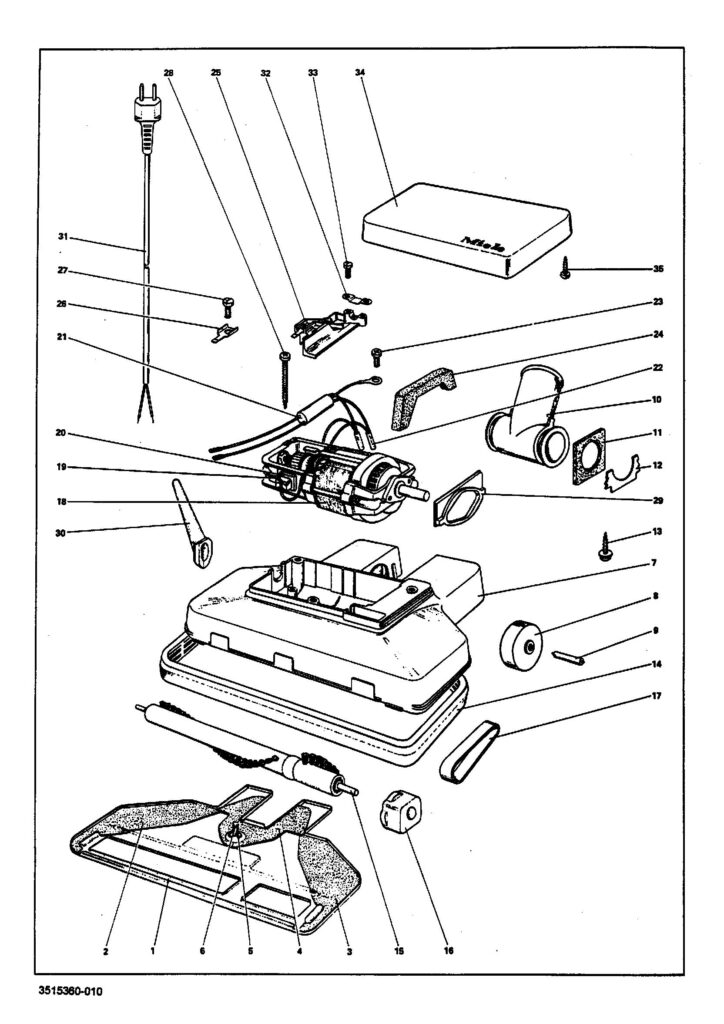

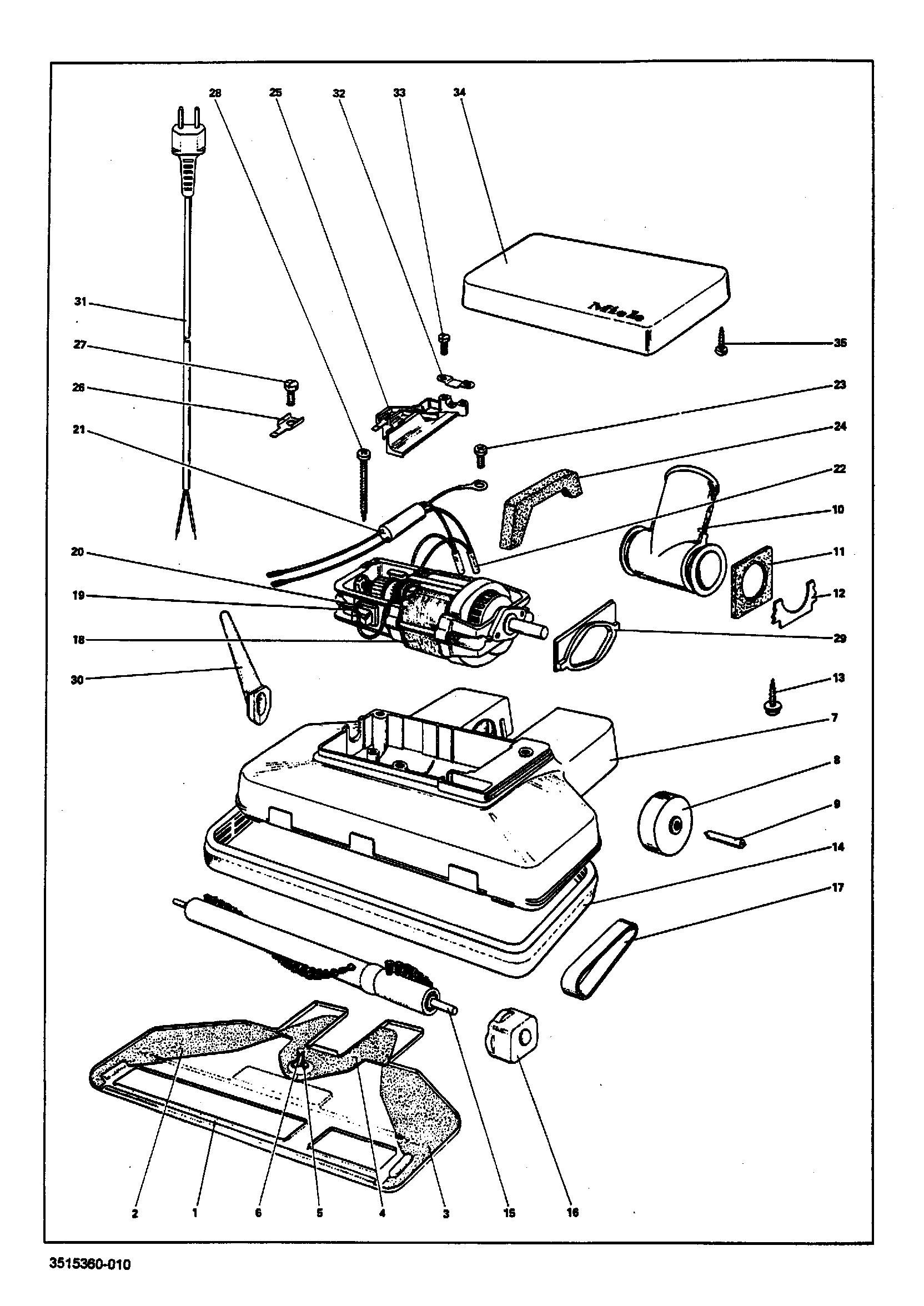

Schematic and parts book for Miele S012 S 012. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | --Raised head screw | 65535 | Not Available |
| XX | Not Available | Brush | 1050670 | Not Available |
| (20) | Not Available | -Spring | 66262 | Not Available |
| XX | Not Available | --Cyl.headed screw DIN 84 M4X6 MS | 24220 | Not Available |
| XX | Not Available | --Cyl.headed screw DIN 84 AM3,5X6 | 26406 | Not Available |
| XX | No Image | --Raised Head Screw Din7981 B3,9X35 | 65907 | $2.50Read more |
| XX | Not Available | --Cyl.headed screw M3X6 | 10024 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X13 | 33345 | $2.30Read more |
| 1-6 | Not Available | Floor plate | 65523 | Not Available |
| 2 | Not Available | -Seal | 65525 | Not Available |
| 3 | Not Available | -Seal | 65526 | Not Available |
| 4 | Not Available | -Seal | 65524 | Not Available |
| 5 | Not Available | -Spring washer | 65527 | Not Available |
| 6 | Not Available | -Raised head screw | 65528 | Not Available |
| 7 | Not Available | Casing | 65529 | Not Available |
| 8 | Not Available | Support roller | 65530 | Not Available |
| 9 | Not Available | Bolt | 65531 | Not Available |
| 10 | Not Available | Connection socket | 65532 | Not Available |
| 11 | Not Available | Seal | 65533 | Not Available |
| 12 | Not Available | support | 65534 | Not Available |
| 14 | Not Available | Corner shield | 65536 | Not Available |
| 17 | Not Available | -Flat belt | 65538 | Not Available |
| 18-22 | Not Available | AC motor 220V 50HZ | 65539 | Not Available |
| 19 | Not Available | -Carbon brush | 65540 | Not Available |
| 20 | Not Available | -Brush holder | 66261 | Not Available |
| 21 | Not Available | -Interf.sup.capacit. | 66263 | Not Available |
| 24 | Not Available | Seal | 66265 | Not Available |
| 25-27 | Not Available | Clamping strip | 66266 | Not Available |
| 29 | Not Available | Intermediate layer | 66267 | Not Available |
| 30 | Not Available | cable guide | 66268 | Not Available |
| 31 | Not Available | Supply cable black | 1160610 | Not Available |
| 32 | Not Available | Fixing clip | 66269 | Not Available |
| 34 | Not Available | Cover | 66270 | Not Available |
