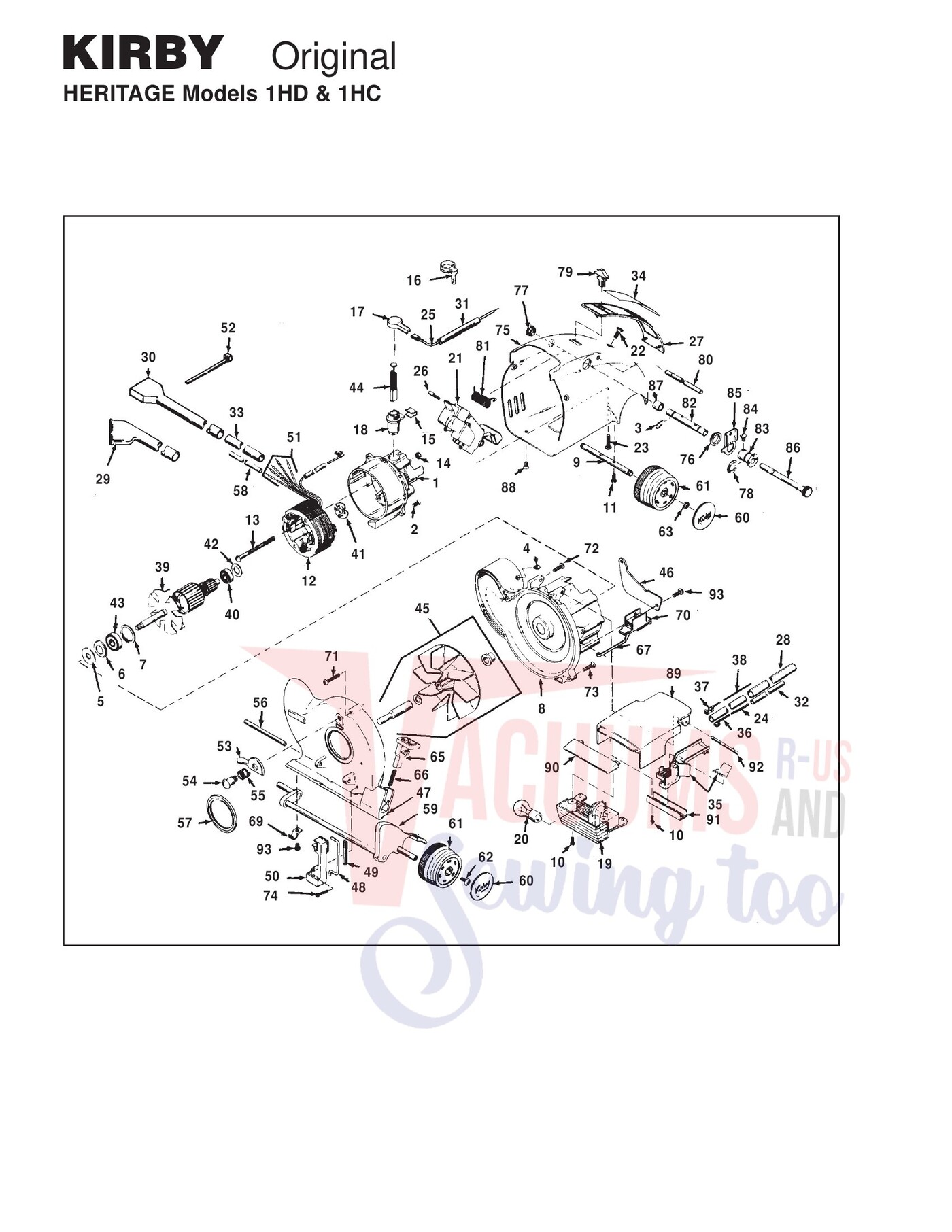

Schematic and parts book for Kirby 1HD, 1HC, Heritage . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | Field Housing Oem-Omega/ Classic Iii/ Heritage For: kirby | K100180 | $37.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Bell Housing Screw | K-100276 | Not Available |
| 3 | Not Available | Handle Fork Pin Spring Clip | K-1005 | Not Available |
| 4 | Not Available | Emtor Connector Pin | K-100656 | Not Available |
| 5 | Not Available | Front Bearing Seal | K-100773 | Not Available |
| 6 | Not Available | Front Bearing Seal Retainer | K-100873 | Not Available |
| 7 | Not Available | Front Bearing Retainer Ring | K-101076 | Not Available |
| 8 | Not Available | Motor Casting | K-101181 | Not Available |
| 9 | Not Available | Rear Wheel Shaft | K-102080 | Not Available |
| 10 | Not Available | Headlight Axle Clamp Screw | K-102168 | Not Available |
| 11 | Not Available | Rear Axle Screw | K-102269 | Not Available |
| 12 | Not Available | Field | K-103986 | Not Available |
| 13 | Not Available | Field Screw | K-104673 | Not Available |
| 14 | Not Available | Field Screw Nut | K-104773 | Not Available |
| 15 | Not Available | Commutator Brush Retainer Clip | K-106859 | Not Available |
| 16 | Not Available | Commutator Brush Cap | K-107173 | Not Available |
| 17 | Not Available | Commutator Brush Cap | K-107185 | Not Available |
| 18 | Not Available | Commutator Brush Holder | K-107276 | Not Available |
| 19 | Not Available | Headlight Lens Assembly | K-108979 | Not Available |
| 20 | Not Available | Headlight Bulb | K-109273 | Not Available |
| 21 | Not Available | Foot Switch Black | K-110584 | Not Available |
| 22 | Not Available | Foot Switch Top Screw | K-110673 | Not Available |
| 23 | Not Available | Foot Switch Bottom Screw | K-110773 | Not Available |
| 24 | Not Available | Headlight Wire W/Terminal | K-110878 | Not Available |
| 25 | Not Available | Black Wire W/Terminal | K-110985 | Not Available |
| 26 | Not Available | Foot Switch Clip | K-111180 | Not Available |
| 27 | Not Available | Scuff Plate Grey | K-111281 | Not Available |
| 28 | Not Available | Headlight Tubing Orange | K-111378 | Not Available |
| 29 | Not Available | Speed Switch and Cable Boot | K-111385 | Not Available |
| 30 | Not Available | Speed Switch and Cable Boot | K-111481 | Not Available |
| 31 | Not Available | Brush Lead Tube Black | K-111573 | Not Available |
| 32 | Not Available | Headlight Tubing White | K-111678 | Not Available |
| 33 | Not Available | Speed Switch Lead Tube | K-111981 | Not Available |
| 34 | Not Available | Scuff Plate Label | K-112082 | Not Available |
| 35 | Not Available | Terminal Block W/insulator Bushing Screw | K-112579 | Not Available |
| 36 | Not Available | Switch Terminal Single | K-112679 | Not Available |
| 37 | Not Available | Switch Terminal Double | NLA | Not Available |
| 38 | Not Available | Double Terminal Lead | K-113178 | Not Available |
| 39 | Not Available | Armature | K-114973 | Not Available |
| 40 | Not Available | Rear Bearing | K-115573 | Not Available |
| 41 | Not Available | Rear Bearing Spring | K-115674 | Not Available |
| 42 | Not Available | Rear Bearing Washer | K-115774 | Not Available |
| 43 |  | Bearing, Ball Kirby Fan End/1CB-Legend II/Lamb Part Number: 6200-2RS for Fitall | 62002RS | $12.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | Commutator Carbon Brush | K-118076 | Not Available |
| 45 | Not Available | Fan Complete Lexan | K-119078 | Not Available |
| 46 | Not Available | Motor Vent Seal | K-119276 | Not Available |
| 47 | Not Available | Fan Case | K-119781 | Not Available |
| 48 |  | Lever, Speed Switch 1HD To Legend II | K-120381 | $17.48Add to cart |
| 49 | Not Available | Speed Switch Lever Retainer | K-120481 | Not Available |
| 50 | Not Available | Speed Switch Lever Cover | K-120584 | Not Available |
| 51 | Not Available | Spade Connector Field | K-120681 | Not Available |
| 52 | Not Available | Cable Tie | K-120781 | Not Available |
| 53 | Not Available | Nozzle Lock | K-121056 | Not Available |
| 54 | Not Available | Nozzle Lock Screw | K-1211 | Not Available |
| 55 | Not Available | Nozzle Lock Spring | K-1212 | Not Available |
| 56 | Not Available | Nozzle Attachment Shaft | K-121656 | Not Available |
| 57 | Not Available | Nozzle Seal Ring | K-122068 | Not Available |
| 58 | Not Available | Insulation Tube | K-124586 | Not Available |
| 59 | Not Available | Front Bracket Shaft | K-131673 | Not Available |
| 60 | Not Available | Wheel Hub Cap (Order K-131888) | NLA | Not Available |
| 61 | Not Available | Wheel Gray | K-131981 | Not Available |
| 62 | Not Available | Wheel Screw | K-1321 | Not Available |
| 63 | Not Available | Mounting Retainer Clip | K-132180 | Not Available |
| 65 | Not Available | Ratchet Lock | K-631589 | Not Available |
| 66 | Not Available | Ratchet Lock Spring | K-1331 | Not Available |
| 67 | Not Available | Speed Switch Arm | K-133882 | Not Available |
| 68 | Not Available | Speed Switch Spring (Not Shown) | K-133981 | Not Available |
| 69 | Not Available | Front Shaft Clamp | K-134073 | Not Available |
| 70 | Not Available | Speed Switch | K-134384 | Not Available |
| 71 | Not Available | Fan Housing Screw Long | K-134673 | Not Available |
| 72 | Not Available | Fan Housing/Motor Housing Screw | K-134756 | Not Available |
| 74 | Not Available | Speed Switch Mounting Screw | K-135473 | Not Available |
| 75 | Not Available | Motor Shell Housing | K-135581 | Not Available |
| 76 | Not Available | Shell Bushing Large | K-135860 | Not Available |
| 77 | Not Available | Shell Bushing Small | K-135960 | Not Available |
| 78 | Not Available | Bushing Spring Clip | K-136373 | Not Available |
| 79 | Not Available | Lock Button Gray | K-136681 | Not Available |
| 80 | Not Available | Handle Lock Shaft | K-136979 | Not Available |
| 81 | Not Available | Handle Fork Spring | K-137073 | Not Available |
| 82 | Not Available | Handle Fork Spring Shaft | K-137173 | Not Available |
| 83 | Not Available | Handle Fork Spring Bushing | K-137273 | Not Available |
| 84 | Not Available | Handle Fork Spring | K-137373 | Not Available |
| 85 | Not Available | Handle Fork Yoke | K-137579 | Not Available |
| 86 | Not Available | Handle Fork Pin | K-137879 | Not Available |
| 87 | Not Available | Handle Fork Oilite Bearing | K-137973 | Not Available |
| 88 | Not Available | Motor Shell Mounting Screw | K-138470 | Not Available |
| 89 | Not Available | Headlight Cap Complete Gray | K-160081 | Not Available |
| 90 | Not Available | Headlight Cap Bumper Gray | K-161981 | Not Available |
| 91 | Not Available | Hold Down Bar | K-162379 | Not Available |
| 92 | Not Available | Headlight Cap Hinge Pin | K-163379 | Not Available |
| 93 | Not Available | Front Axle Clamp Screw | K-193281 | Not Available |
