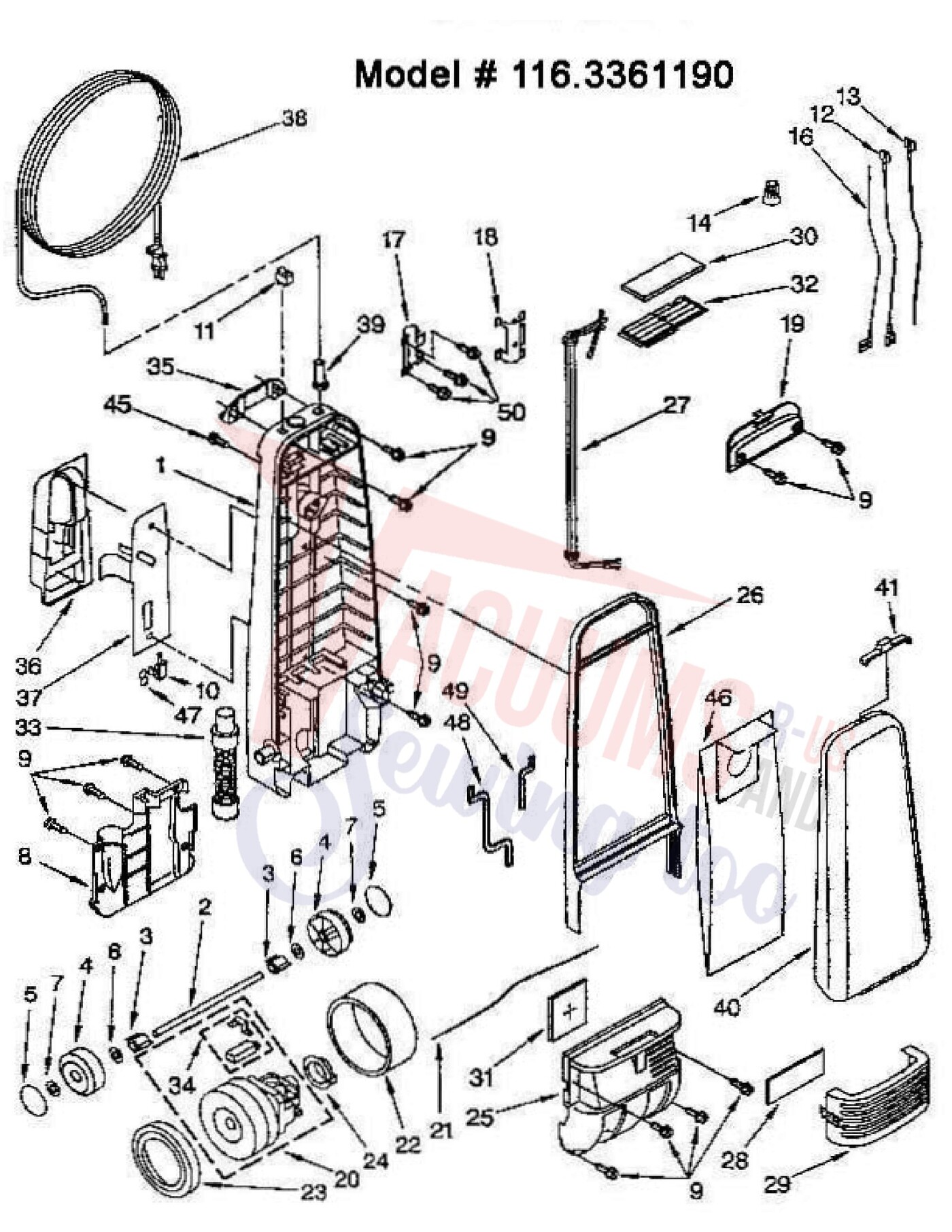

Schematic and parts book for Kenmore 116.3361190 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | COMPARTMENT DUST | 4368974 | Not Available |
| 2 | Not Available | SHAFT REAR WHEEL | 4368648 | Not Available |
| 3 | Not Available | BEARING SHAFT | 4368649 | Not Available |
| 4 | No Image | WHEEL, REAR UPRIGHT 116. 3571290 Part Number: 4369049 for Kenmore | 4369049 | $12.31Read more |
| 5 | Not Available | LABEL WHEEL | 4369050 | Not Available |
| 6 | Not Available | WASHER | 681384 | Not Available |
| 7 | Not Available | CLIP SPRING | 681689 | Not Available |
| 8 | Not Available | COVER REAR WHEEL | 4368968 | Not Available |
| 9 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Switch, Push Button Handle Elite 11631150310 Part Number: 4368653 for Kenmore | 4368653 | $20.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | SWITCH ON-OFF | 4369051 | Not Available |
| 12 | Not Available | WIRE LEAD BLUE | 4368655 | Not Available |
| 13 | Not Available | WIRE LEAD BLACK | 4368656 | Not Available |
| 14 | Not Available | NUT WIRE | 4368522 | Not Available |
| 16 | Not Available | WIRE LEAD BLACK | 4368881 | Not Available |
| 17 | Not Available | FITTING HANDLE | 4368660 | Not Available |
| 18 | Not Available | SUPPORTER HANDLE | 4368661 | Not Available |
| 19 | Not Available | COVER SWITCH | 4369052 | Not Available |
| 20 | Not Available | MOTOR UNIT | 4369053 | Not Available |
| 21 | Not Available | WIRE LEAD WHITE | 4368662 | Not Available |
| 22 | Not Available | SUPPRESSOR NOISE | 4368663 | Not Available |
| 23 | Not Available | SUPPORT MOTOR FRONT | 4368664 | Not Available |
| 24 | Not Available | SUPPORT MOTOR REAR | 4368665 | Not Available |
| 25 | Not Available | HOUSING MOTOR | 4369054 | Not Available |
| 26 | Not Available | BUMPER | 4369055 | Not Available |
| 27 | Not Available | CORD CONNECTION | 4368748 | Not Available |
| 28 | Not Available | FILTER | 4368669 | Not Available |
| 29 | Not Available | COVER FRONT FILTER | 4369056 | Not Available |
| 30 | Not Available | FILTER SECONDARY | 4368671 | Not Available |
| 31 | Not Available | FILTER EXHAUST | 4368672 | Not Available |
| 32 | Not Available | SCREEN FILTER SUPPORTER | 4368673 | Not Available |
| 33 | Not Available | HOSE ASSEMBLY | 4368674 | Not Available |
| 34 | Not Available | BRUSH ASSEMBLY | 4368626 | Not Available |
| 35 | Not Available | HANDLE CARRYING | 4368678 | Not Available |
| 36 | Not Available | TRAY ATTACHMENT | 4368679 | Not Available |
| 37 | Not Available | PLATE SUPPORT | 4368680 | Not Available |
| 38 | Not Available | CORD POWER | 4369057 | Not Available |
| 39 | Not Available | PROTECTOR RUBBER | 4369058 | Not Available |
| 40 | Not Available | COVER DUST | 4369063 | Not Available |
| 45 | Not Available | SCREW HANDLE | 4368718 | Not Available |
| 46 |  | kenmore type U 3 PackDVC bags | KER1468 | $7.65Read more |
| 47 | Not Available | LEVER SWITCH | 4368716 | Not Available |
| 48 | Not Available | PACKING LEFT | 4368606 | Not Available |
| 49 | Not Available | PACKING RIGHT | 4368607 | Not Available |
| 50 | Not Available | SCREW # 20 | 4368641 | Not Available |

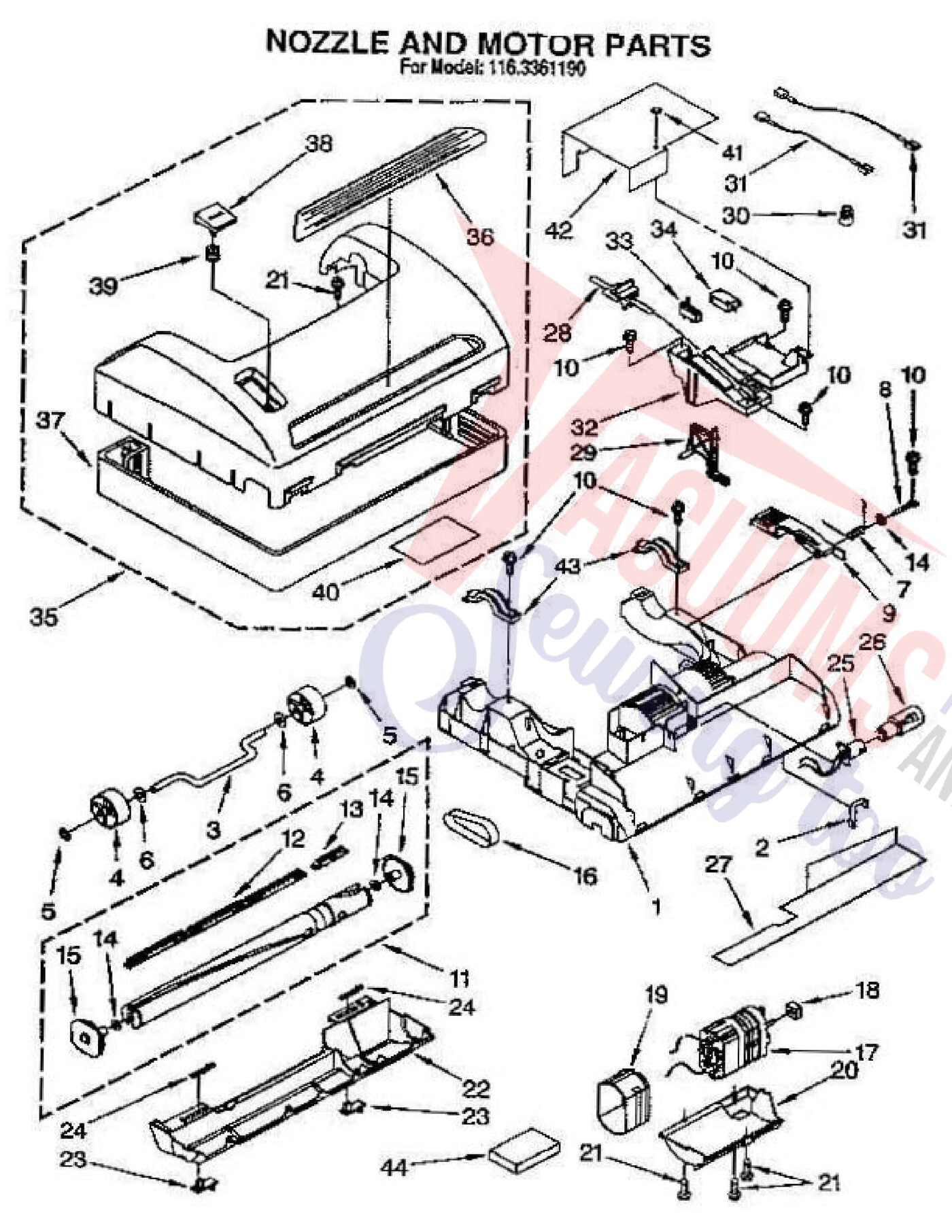

| # | Part image | Description | SKU | Price |
| 1 | Not Available | LOWER BODY | 4368627 | Not Available |
| 2 | Not Available | GUARD BELT | 4368628 | Not Available |
| 3 | Not Available | AXLE-FRONT | 744505 | Not Available |
| 4 | Not Available | ROLLER NOZZLE | 4368629 | Not Available |
| 5 | Not Available | CLIP SPRING | 681689 | Not Available |
| 6 | Not Available | WASHER | 681384 | Not Available |
| 7 | Not Available | SPRING PEDAL | 4368630 | Not Available |
| 8 | Not Available | SHAFT PEDAL | 4368631 | Not Available |
| 9 | Not Available | PEDAL HANDLE RELESE | 4369047 | Not Available |
| 10 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | BRUSHROLL, MODEL 116. 3491291 ROUND ENDS Part Number: 4368634 for Kenmore | 4368634 | $105.95Read more |
| 12 | Not Available | BRUSH LONG | 4368635 | Not Available |
| 13 | Not Available | BRUSH SHORT | 4368636 | Not Available |
| 14 | Not Available | WASHER | 681424 | Not Available |
| 15 | Not Available | BEARING ASSEMBLY | 4368577 | Not Available |
| 16 | Not Available | BELT SEARS NO. 20-5286 | ROR-1000 | Not Available |
| 17 | Not Available | MOTOR | 4368638 | Not Available |
| 18 | Not Available | SEAL SHAFT | 743498 | Not Available |
| 19 | Not Available | SUPPORT MOTOR | 4368639 | Not Available |
| 20 | Not Available | COVER MOTOR | 4368640 | Not Available |
| 21 | Not Available | SCREW # 20 | 4368641 | Not Available |
| 22 | Not Available | COVER LOWER PLATE | 4369048 | Not Available |
| 23 | Not Available | LATCH COVER | 4368643 | Not Available |
| 24 | Not Available | SPRING LATCH | 4368644 | Not Available |
| 25 | Not Available | SOCKET BULB | 4368645 | Not Available |
| 26 | Not Available | BULB LIGHT SEARS NO. 20-5240 | FA-3515 | Not Available |
| 27 | Not Available | REFLECTOR BASE | 4368646 | Not Available |
| 28 | Not Available | KNOB HEIGHT ADJUST | 4369059 | Not Available |
| 29 | Not Available | CAM HEIGHT ADJUST | 4368688 | Not Available |
| 30 | Not Available | NUT WIRE | 4368522 | Not Available |
| 31B | Not Available | RED | 4368690 | Not Available |
| 31A | Not Available | BLACK | 4368689 | Not Available |
| 32 | Not Available | SUPPORT SLIDER | 4368691 | Not Available |
| 33 | Not Available | PROTECTOR OVERLOAD | 4368692 | Not Available |
| 34 | Not Available | ON-OFF SWITCH BARE FLOOR | 4368693 | Not Available |
| 35 | Not Available | NOZZLE HOUSING ASSEMBLY | 4369060 | Not Available |
| 36 | Not Available | COVER WINDOW | 4368695 | Not Available |
| 37 | Not Available | GUARD FURNITURE | 4369061 | Not Available |
| 38 | Not Available | BUTTON RESET | 4369062 | Not Available |
| 39 | Not Available | SPRING RESET BUTTON | 4368698 | Not Available |
| 40 | Not Available | REFLECTOR HOOD | 4368699 | Not Available |
| 41 | Not Available | SPRING PUSH-NUT | 4155375 | Not Available |
| 42 | Not Available | COVER WIRE | 4368720 | Not Available |
| 43 | Not Available | HOLDER PLASTIC | 4368721 | Not Available |
| 44 | Not Available | PACKING MOTOR SEAL (LOWER) | 4368873 | Not Available |

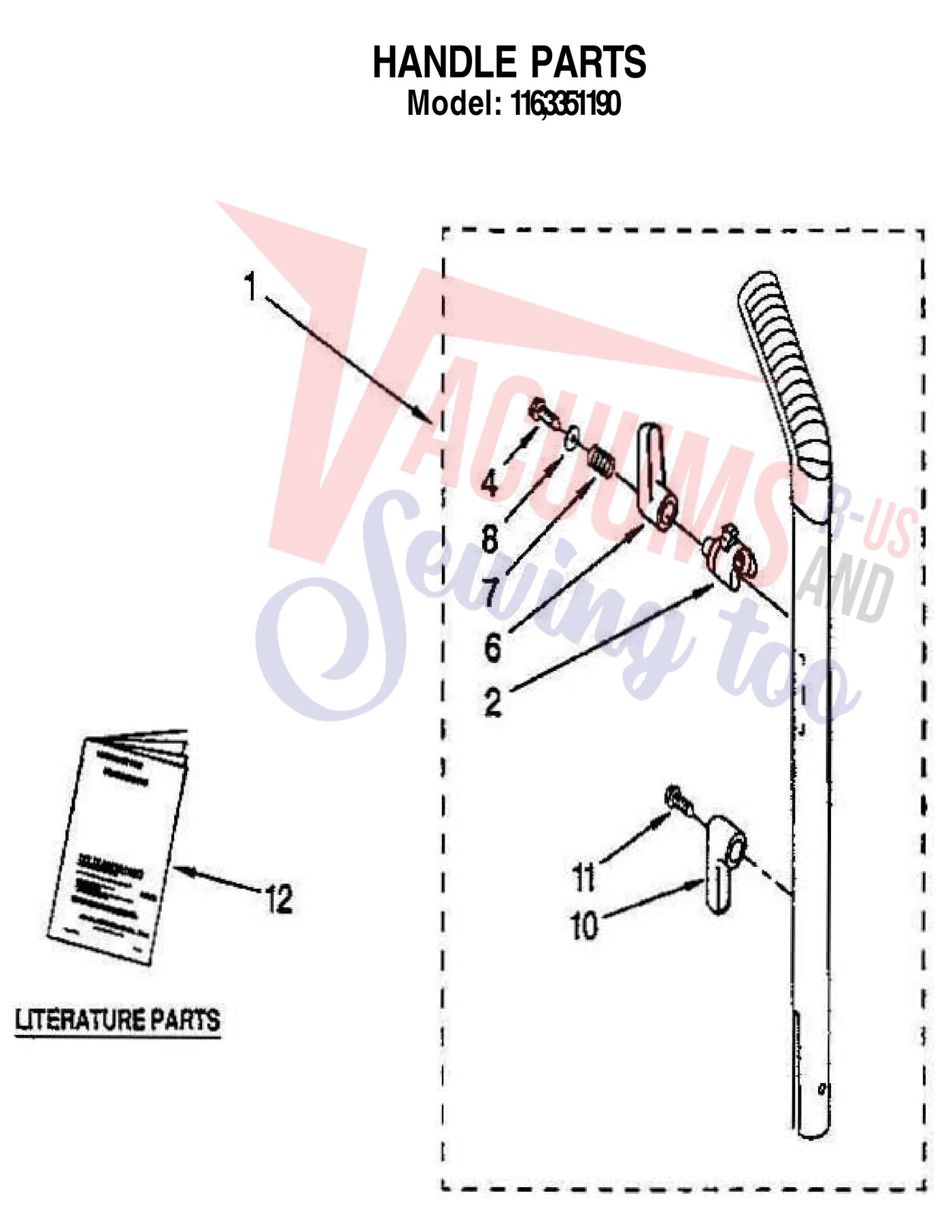

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE UNIT (INCLUDES ITEMS 2 4 6 7 8 10 & 11) | 4369065 | Not Available |
| 2 | Not Available | LINER CORD HOOK | 4369068 | Not Available |
| 4A | Not Available | SCREW REPAIR | 681550 | Not Available |
| 4 | Not Available | SCREW # 45 | 4368938 | Not Available |
| 6 | Not Available | HOOK UPPER CORD | 4369067 | Not Available |
| 7 | Not Available | SPRING CORD HOOK | 4368713 | Not Available |
| 8 | Not Available | WASHER | 4368714 | Not Available |
| 10 | Not Available | HOOK LOWER CORD | 4369066 | Not Available |
| 11 | Not Available | SCREW # 20 | 4368641 | Not Available |
| 11A | Not Available | SCREW REPAIR | 4148999 | Not Available |

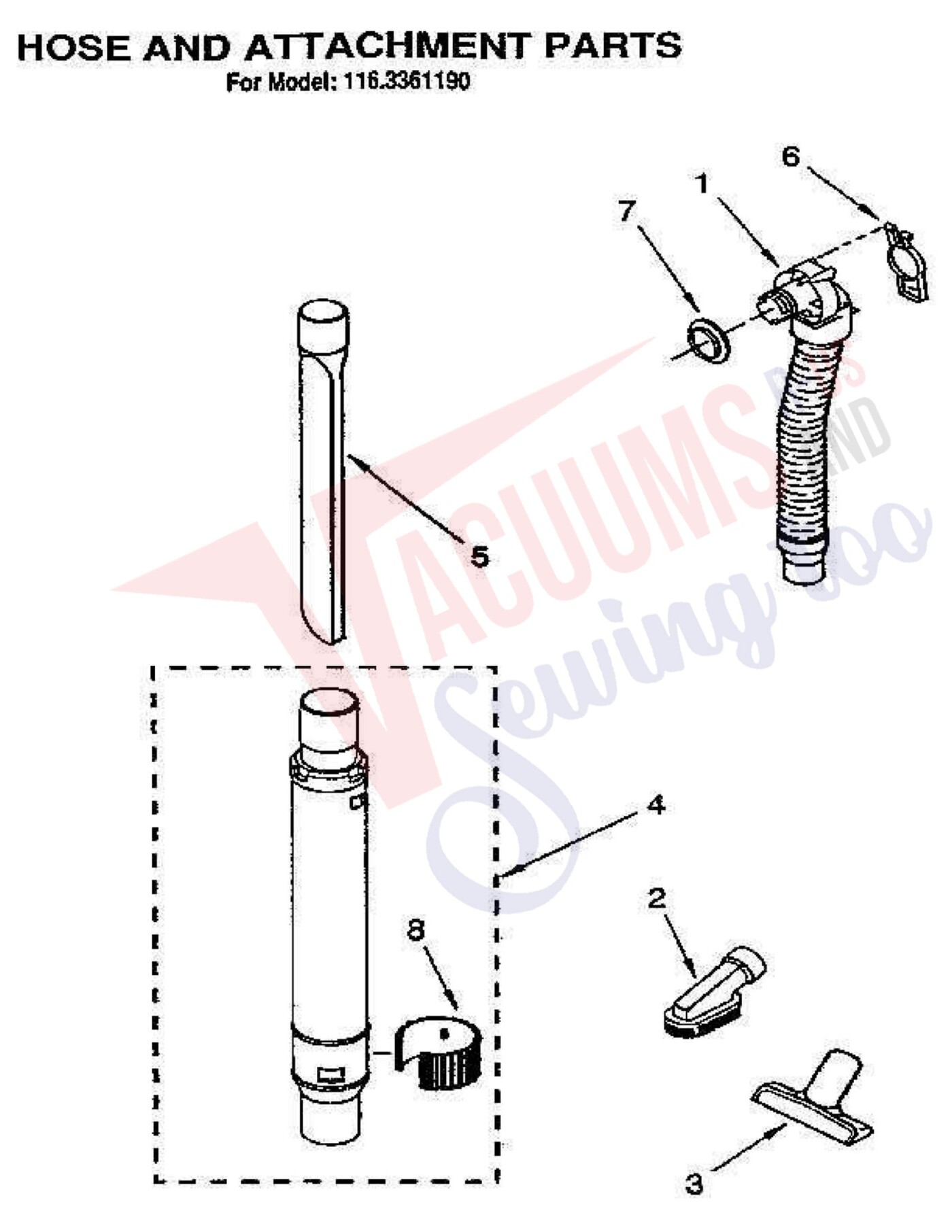

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOSE UNIT | 4368675 | Not Available |
| 2 | Not Available | BRUSH DUSTING | 4368681 | Not Available |
| 3 | Not Available | NOZZLE UPHOLSTERY | 4368682 | Not Available |
| 4 | Not Available | WAND TELESCOPING | 4368995 | Not Available |
| 5 |  | Crevice Tool-Kenmore Vacuum - Grey
14 1/4 Inch Long For: kenmore | 4368684 | $16.80Read more |
| 6 | Not Available | COVER INLET | 4368676 | Not Available |
| 7 | Not Available | PACKING SUCTION INLET | 4368677 | Not Available |
| 8 | Not Available | REGULATOR SUCTION | 4368996 | Not Available |
