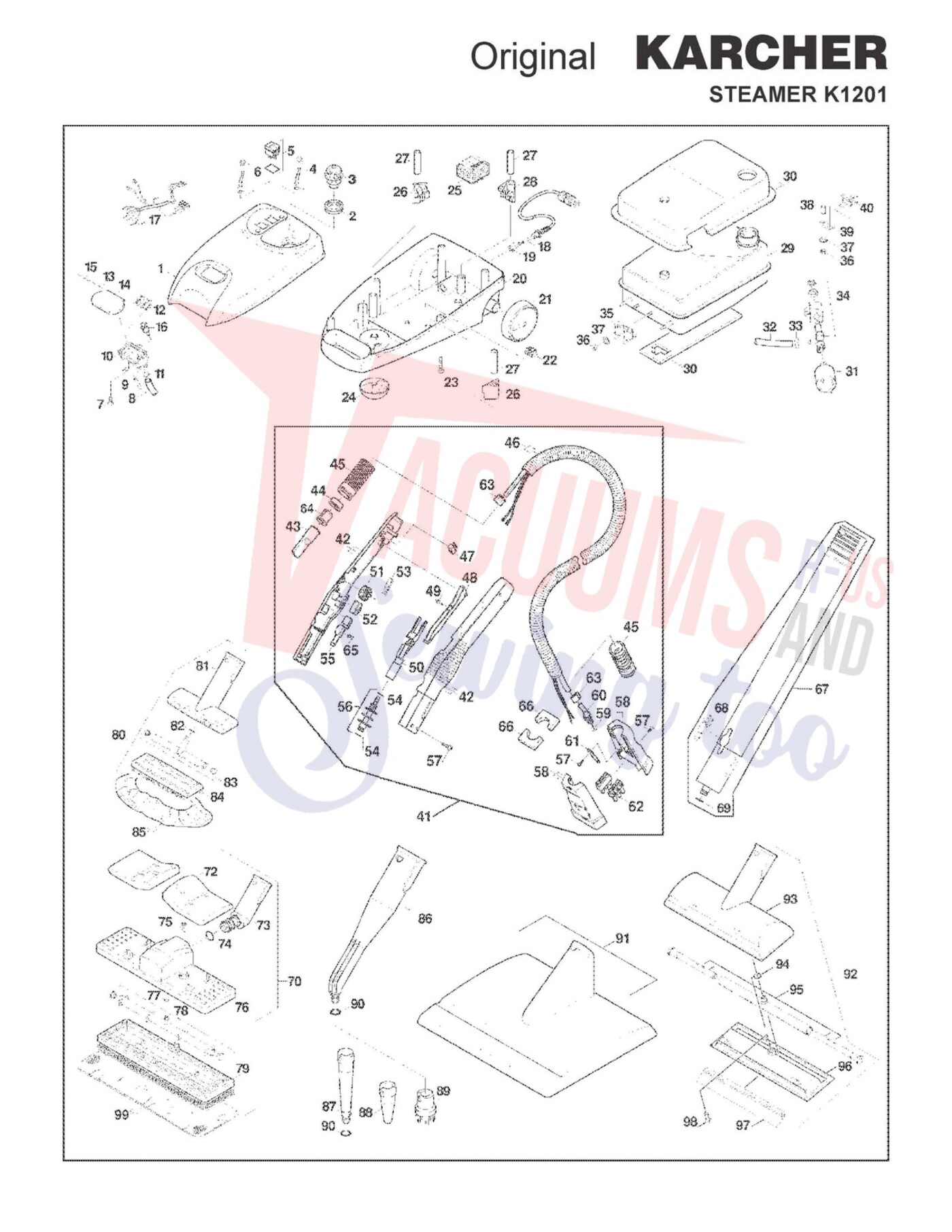

Schematic and parts book for Karcher K1201 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Iron Attachment | KA-48620600 | Not Available |
| 1 | Not Available | Upper Housing (Incl. 13 14 15) | KA-40603100 | Not Available |
| 2 | Not Available | Seal Safety Cap | KA-53633800 | Not Available |
| 3 | Not Available | Tank Cap | KA-45900860 | Not Available |
| 4 | Not Available | Pilot Light (Switch) | KA-66513590 | Not Available |
| 5 | Not Available | Switch | KA-66319890 | Not Available |
| 6 | Not Available | Pilot Light (Switch) | KA-66513580 | Not Available |
| 7 | Not Available | Screw | KA-63031220 | Not Available |
| 8 | Not Available | Tubing | KA-63898620 | Not Available |
| 9 | Not Available | Connector Hose | KA-63882160 | Not Available |
| 10 | Not Available | Hose Connector Socket | KA-50313930 | Not Available |
| 11 | Not Available | Hose Clip | KA-63898820 | Not Available |
| 12 | Not Available | Hose Receptacle | KA-66001050 | Not Available |
| 13 | Not Available | Spring Hose Connection Cover | KA-53324160 | Not Available |
| 14 | Not Available | Hose Connection Cover | KA-50637330 | Not Available |
| 15 | Not Available | Shaft Hose Connection Cover | KA-51002220 | Not Available |
| 16 | Not Available | Large Receptacle | KA-54092400 | Not Available |
| 17 | Not Available | Wire Harness (Incl. 4 6) | KA-40390940 | Not Available |
| 18 | Not Available | Cord | KA-66482750 | Not Available |
| 19 | Not Available | Strain Relief | KA-63431700 | Not Available |
| 20 | Not Available | Lower Housing | KA-40603180 | Not Available |
| 21 | Not Available | Rear Wheel | KA-55151020 | Not Available |
| 22 | Not Available | Receptacle | KA-66430720 | Not Available |
| 23 | Not Available | Screw | KA-73031080 | Not Available |
| 24 | Not Available | Castor | KA-55151030 | Not Available |
| 25 | Not Available | Transformer | KA-66222070 | Not Available |
| 26 | Not Available | Rubber Support | KA-57670070 | Not Available |
| 27 | Not Available | Support Tube | KA-50291040 | Not Available |
| 28 | Not Available | Rubber Support | KA-57670090 | Not Available |
| 29 | Not Available | Boiler (Incl. 35) | KA-40704500 | Not Available |
| 30 | Not Available | Insulation | KA-46730030 | Not Available |
| 31 | Not Available | Pressure Regulator | KA-64122800 | Not Available |
| 32 | Not Available | Hose | KA-63898620 | Not Available |
| 33 | Not Available | Hose Clip | KA-63898820 | Not Available |
| 34 | Not Available | Solenoid Valve | KA-66860770 | Not Available |
| 35 | Not Available | Thermostat | KA-66301540 | Not Available |
| 36 | Not Available | Hex Nut | KA-73110010 | Not Available |
| 37 | Not Available | Lock Washer | KA-73122300 | Not Available |
| 38 | Not Available | Protective Sleeve W/Nylon Bristle 4 Pk | KA-51106520 | Not Available |
| 39 | Not Available | Mounting Bracket | KA-50481400 | Not Available |
| 40 | Not Available | Thermostat (Safety Lock) W/Brass Bristle 3 Pk | KA-66300510 | Not Available |
| 41 | Not Available | Hose Assembly | KA-43210880 | Not Available |
| 42 | Not Available | Handle Assembly | KA-53215100 | Not Available |
| 43 | Not Available | Handle Connector Attachment End | KA-53670240 | Not Available |
| 44 | Not Available | Handle Connector Ring | KA-53670250 | Not Available |
| 45 | Not Available | Strain Relief | KA-53943740 | Not Available |
| 46 | Not Available | Hose Blank | KA-44404800 | Not Available |
| 47 | Not Available | Actuator Switch | KA-66318020 | Not Available |
| 48 | Not Available | Trigger | KA-53240290 | Not Available |
| 49 | Not Available | Spring Trigger | KA-53321680 | Not Available |
| 50 | Not Available | Valve Trigger | KA-45803680 | Not Available |
| 51 | Not Available | Steam Control Wheel | KA-53220100 | Not Available |
| 52 | Not Available | Handle Bolt | KA-50310640 | Not Available |
| 53 | Not Available | Screen | KA-50311250 | Not Available |
| 54 | Not Available | O-Ring | KA-63629220 | Not Available |
| 55 | Not Available | Button Lock Handle | KA-50371020 | Not Available |
| 56 | Not Available | Nozzle Tip | KA-44710010 | Not Available |
| 57 | Not Available | Screw Handle | KA-63030580 | Not Available |
| 58 | Not Available | Machine End Coupling | KA-50310600 | Not Available |
| 59 | Not Available | O-Ring | KA-63629230 | Not Available |
| 60 | Not Available | Hose Connector Machine End | KA-54092180 | Not Available |
| 61 | Not Available | Bracket | KA-66475130 | Not Available |
| 62 | Not Available | Receptacle | KA-66463250 | Not Available |
| 63 | Not Available | Hose Clip | KA-63898840 | Not Available |
| 64 | Not Available | Hose Insert Attachment End | KA-50311230 | Not Available |
| 65 | Not Available | Spring Button Lock | KA-53323730 | Not Available |
| 66 | Not Available | Gasket Machine End | KA-53641740 | Not Available |
| 67 | Not Available | Extension Wand (Incl. 68 69) | KA-41270120 | Not Available |
| 68 | Not Available | Button Lock | KA-50371030 | Not Available |
| 69 | Not Available | O-Ring | KA-63929220 | Not Available |
| 70 | Not Available | Floor Tool Ass'y | KA-5510 | Not Available |
| 72 | Not Available | Clip Cloth | KA-50429400 | Not Available |
| 73 | Not Available | Elbow Floor Tool | KA-54080530 | Not Available |
| 74 | Not Available | O-Ring | KA-63628830 | Not Available |
| 75 | Not Available | Spring | KA-63300160 | Not Available |
| 76 | Not Available | Body Floor Tool | KA-57680470 | Not Available |
| 77 | Not Available | O-Ring | KA-63628810 | Not Available |
| 78 | Not Available | Axle Floor Tool | KA-57680380 | Not Available |
| 79 | Not Available | Brush Insert | KA-57621350 | Not Available |
| 80 | Not Available | Hand Tool Ass'y | KA-41301110 | Not Available |
| 81 | Not Available | Body Hand Tool | KA-57680430 | Not Available |
| 82 | Not Available | O-Ring | KA-63629220 | Not Available |
| 83 | Not Available | Axle Hand Tool | KA-57680340 | Not Available |
| 84 | Not Available | Brush Insert | KA-57621340 | Not Available |
| 85 | Not Available | Cleaning Cloths Hand Nozzle 5 Pk | KA-5971 | Not Available |
| 86 | Not Available | Nozzle Ass'y | KA-51301910 | Not Available |
| 87 | Not Available | Extension Nozzle | KA-57621380 | Not Available |
| 88 | Not Available | Nozzle Small | NLA | Not Available |
| 89 | Not Available | Tip Steamer Brush | KA-28630580 | Not Available |
| 89 | Not Available | Tip Steamer Brush | KA-5910 | Not Available |
| 90 | Not Available | O-Ring | KA-63629240 | Not Available |
| 91 | Not Available | Wallpaper Tool Ass'y | KA-5900 | Not Available |
| 92 | Not Available | Window Tool Ass'y | KA-5940 | Not Available |
| 93 | Not Available | Body Window Tool | KA-57680440 | Not Available |
| 94 | Not Available | O-Ring | KA-63629220 | Not Available |
| 95 | Not Available | Axle Window Tool | KA-47680160 | Not Available |
| 96 | Not Available | Bottom Plate | KA-57680360 | Not Available |
| 97 | Not Available | Squeege | KA-62731400 | Not Available |
| 98 | Not Available | Screw | KA-63030580 | Not Available |
| 99 | Not Available | Cleaning Cloths Floor Nozzle 5 Pk | KA-5970 | Not Available |
