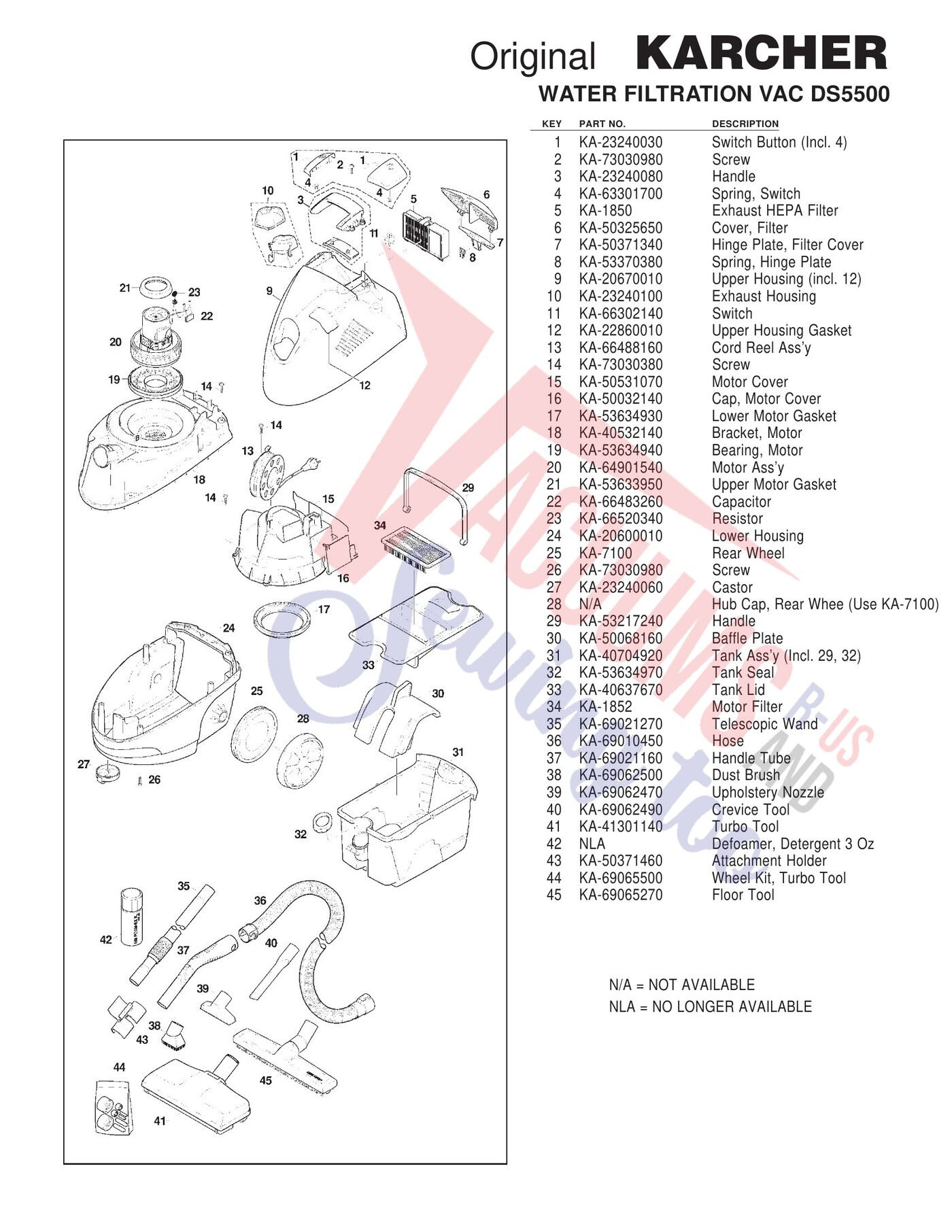

Schematic and parts book for karcher DS5500 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Switch Button (Incl. 4) | KA-23240030 | Not Available |
| 2 | Not Available | Screw | KA-73030980 | Not Available |
| 3 | Not Available | Handle | KA-23240080 | Not Available |
| 4 | Not Available | Spring Switch | KA-63301700 | Not Available |
| 5 | Not Available | Exhaust HEPA Filter | KA-1850 | Not Available |
| 6 | Not Available | Cover Filter | KA-50325650 | Not Available |
| 7 | Not Available | Hinge Plate Filter Cover | KA-50371340 | Not Available |
| 8 | Not Available | Spring Hinge Plate | KA-53370380 | Not Available |
| 9 | Not Available | Upper Housing (incl. 12) | KA-20670010 | Not Available |
| 10 | Not Available | Exhaust Housing | KA-23240100 | Not Available |
| 11 | Not Available | Switch | KA-66302140 | Not Available |
| 12 | Not Available | Upper Housing Gasket | KA-22860010 | Not Available |
| 13 | Not Available | Cord Reel Ass’y | KA-66488160 | Not Available |
| 14 | Not Available | Screw | KA-73030380 | Not Available |
| 15 | Not Available | Motor Cover | KA-50531070 | Not Available |
| 16 | Not Available | Cap Motor Cover | KA-50032140 | Not Available |
| 17 | Not Available | Lower Motor Gasket | KA-53634930 | Not Available |
| 18 | Not Available | Bracket Motor | KA-40532140 | Not Available |
| 19 | Not Available | Bearing Motor | KA-53634940 | Not Available |
| 20 | Not Available | Motor Ass’y | KA-64901540 | Not Available |
| 21 | Not Available | Upper Motor Gasket | KA-53633950 | Not Available |
| 22 | Not Available | Capacitor | KA-66483260 | Not Available |
| 23 | Not Available | Resistor | KA-66520340 | Not Available |
| 24 | Not Available | Lower Housing | KA-20600010 | Not Available |
| 25 | Not Available | Rear Wheel | KA-7100 | Not Available |
| 26 | Not Available | Screw | KA-73030980 | Not Available |
| 27 | Not Available | Castor | KA-23240060 | Not Available |
| 28 | Not Available | Hub Cap Rear Whee (Use KA-7100) | N/A | Not Available |
| 29 | Not Available | Handle | KA-53217240 | Not Available |
| 30 | Not Available | Baffle Plate | KA-50068160 | Not Available |
| 31 | Not Available | Tank Ass’y (Incl. 29 32) | KA-40704920 | Not Available |
| 32 | Not Available | Tank Seal | KA-53634970 | Not Available |
| 33 | Not Available | Tank Lid | KA-40637670 | Not Available |
| 34 | Not Available | Motor Filter | KA-1852 | Not Available |
| 35 | Not Available | Telescopic Wand | KA-69021270 | Not Available |
| 36 | Not Available | Hose | KA-69010450 | Not Available |
| 37 | Not Available | Handle Tube | KA-69021160 | Not Available |
| 38 | Not Available | Dust Brush | KA-69062500 | Not Available |
| 39 | Not Available | Upholstery Nozzle | KA-69062470 | Not Available |
| 40 | Not Available | Crevice Tool | KA-69062490 | Not Available |
| 41 | Not Available | Turbo Tool | KA-41301140 | Not Available |
| 42 | Not Available | Defoamer Detergent 3 Oz | NLA | Not Available |
| 43 | Not Available | Attachment Holder | KA-50371460 | Not Available |
| 44 | Not Available | Wheel Kit Turbo Tool | KA-69065500 | Not Available |
| 45 | Not Available | Floor Tool | KA-69065270 | Not Available |
