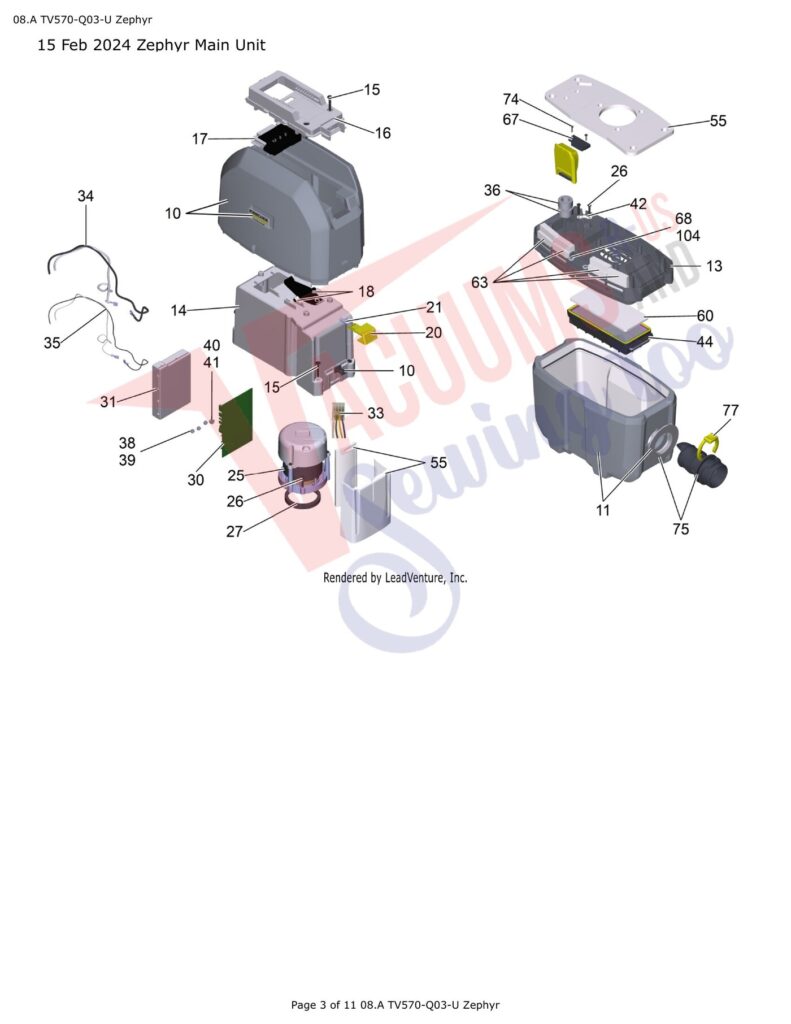

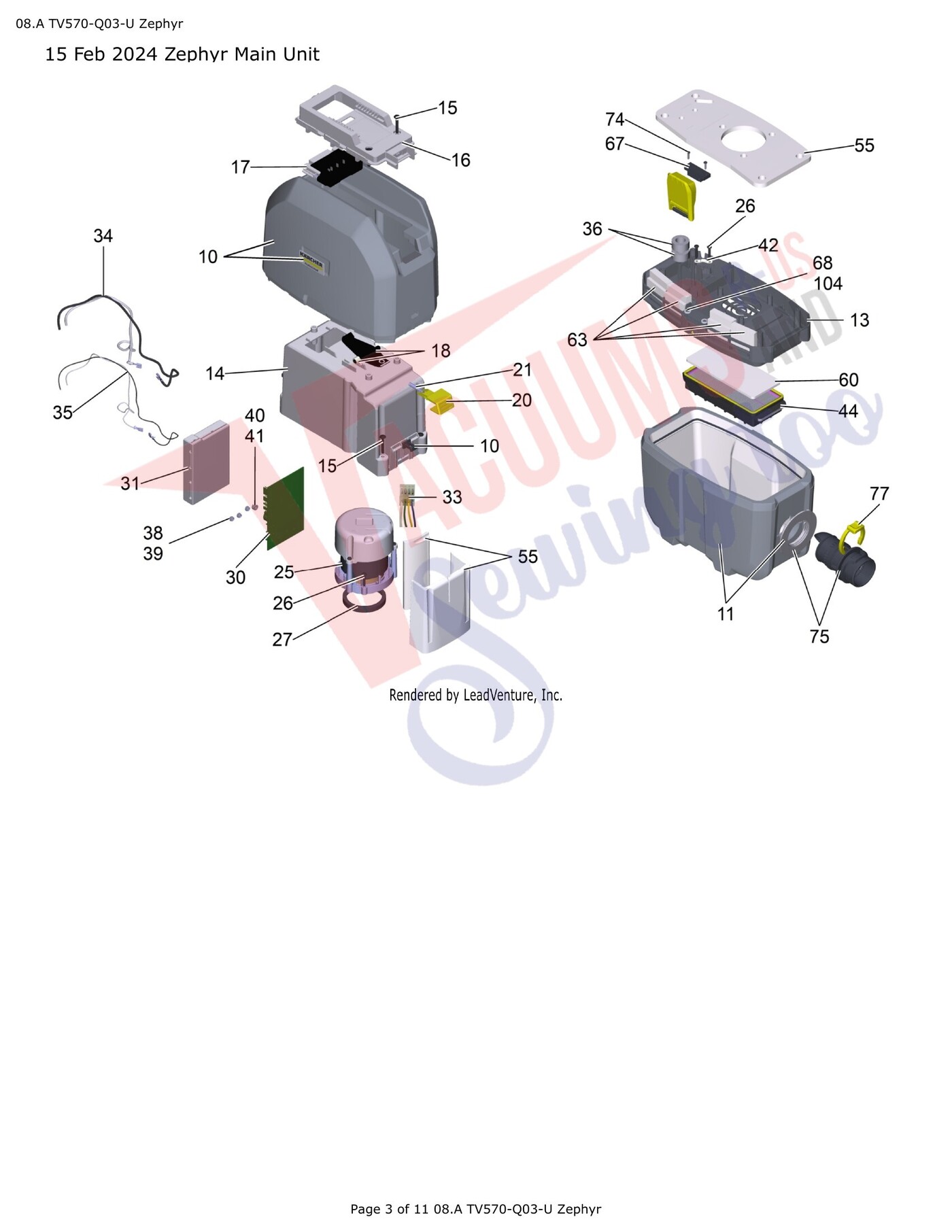

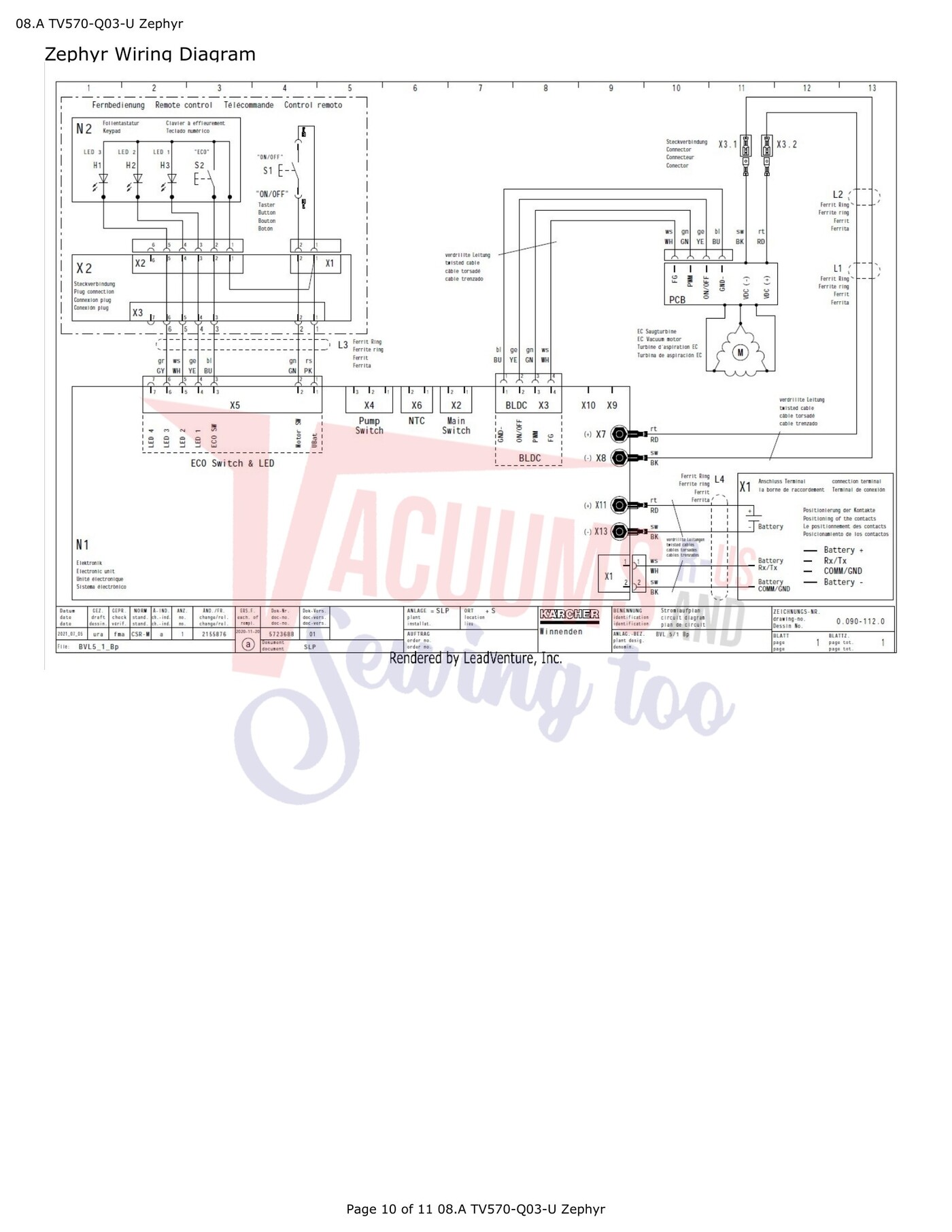

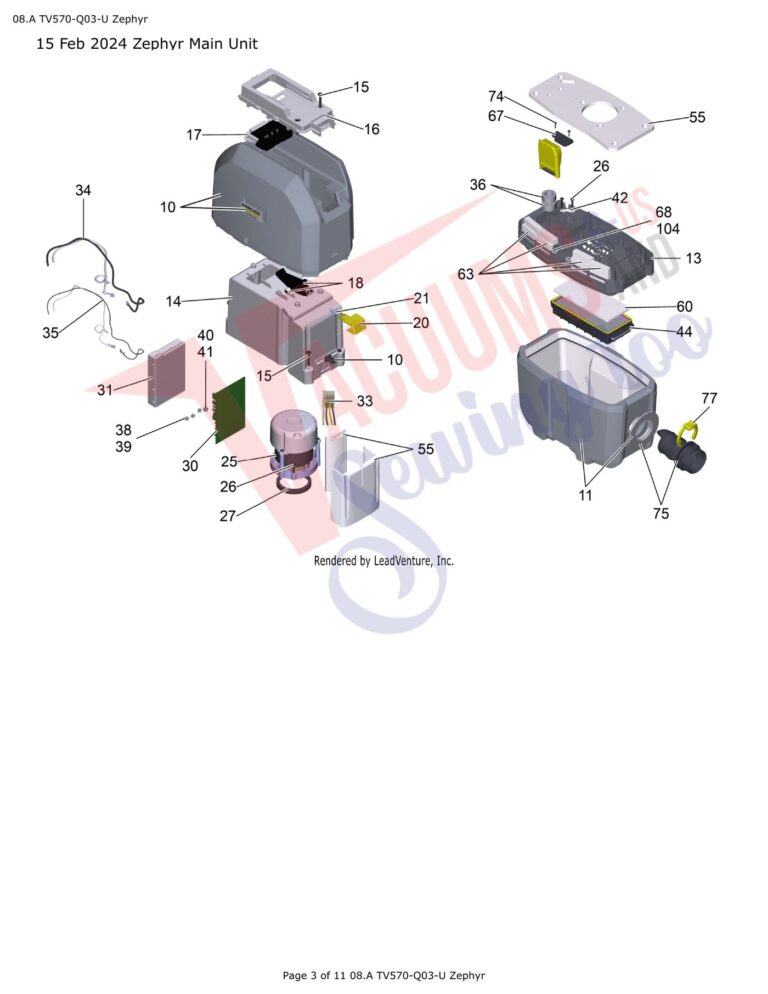

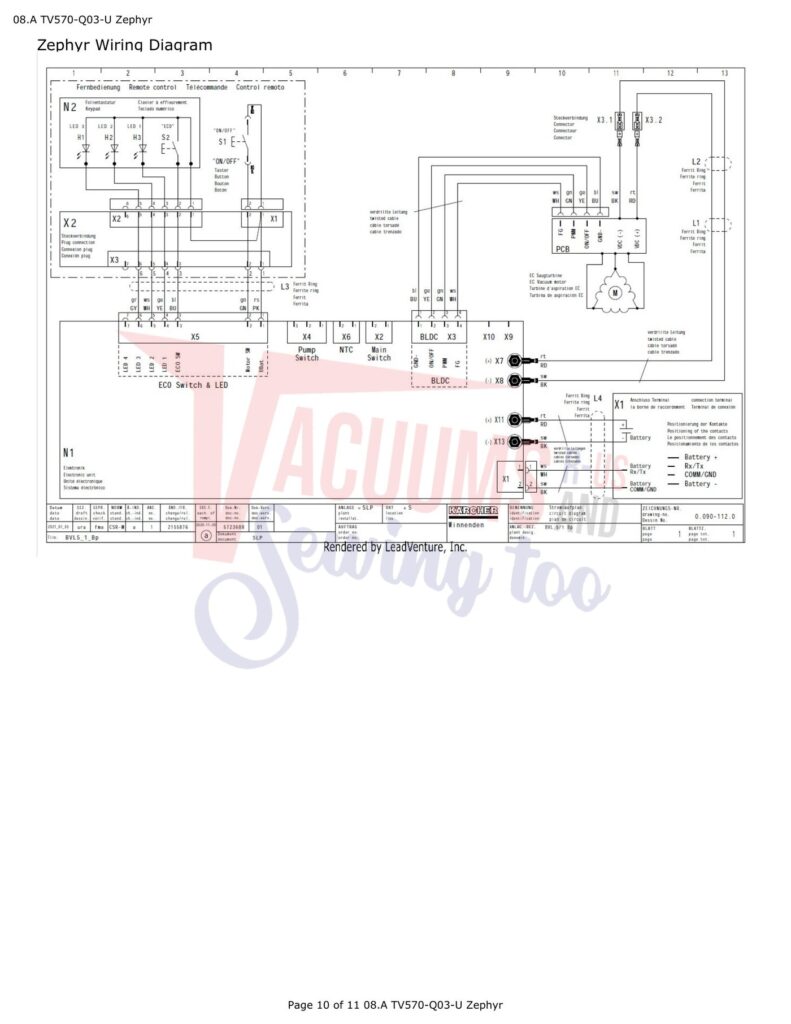

Schematic and parts book for Karcher 1.394-305.0 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| Not shown | No Image | 36/75 Battery 36V 7.5 Ah Fits TV190-W10-U TV400-W26-U TV570-Q03-U | K24450750 | $502.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Exterior Shell, Top Housing, Zephyr | K46051960 | $100.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Bottom Housing, Zephyr | K46051900 | $122.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Baseplate Black For Spare Parts, Zephyr | K56054723 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Housing Baseplate, Zephyr | K56052473 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Screw 5x30, Battery Rail, Zephyr | K73030860 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Rail For Battery, Zephyr | K56052383 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Battery Contact Connector, Zephyr | K40513683 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Locking Latch for Battery, Zephyr | K40715990 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Button, Battery Release, Zephyr | K53242203 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Spring, Battery Release, Zephyr | K69075770 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Vacuum Motor, Strike and Zephyr | K46101083 | $187.99Read more |
| 26 | No Image | Screw 4x22, Vacuum Motor, Zephyr | K73030960 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Gasket, Vacuum Motor, Zephyr | K53634980 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Control Board, Zephyr | K46840263 | $155.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Housing, Control Board, Zephyr | K56054303 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Wirring Harness, Motor, Zephyr | K66518340 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | Battery Cables, Zephyr | K66510730 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | Wiring Harness, Battery, Zephyr | K66510720 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Ferrite Ring, Motherboard, Strike | K63460430 | $1.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Spring Washer | K66456640 | Not Available |
| 39 | Not Available | Nut | K73110010 | Not Available |
| 40 | Not Available | Spring Washer | K73130020 | Not Available |
| 41 | Not Available | Nut | K73110020 | Not Available |
| 42 | No Image | CLAMP CLIP | K69032410 | $4.99Read more |
| 44 | No Image | HEPA Filter Fits TV190-W10-U TV570-Q03-U | K28893420 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | No Image | Insulation Assembly | K42860000 | $0.00Read more |
| 60 |  | Pre Filter, Zephyr, Pack of three | K28894190 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | No Image | Post Filter, Zephyr | K42860040 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | No Image | Magnet Only, Strap, Zephyr | K66530260 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | No Image | Screw M3 X 12 | K63035570 | $0.00Read more |
| 75 | No Image | Hose Adapter, Zephyr | K40320460 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 77 | No Image | Clip, Hose Adapter, Zephyr | K53430220 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 104 | No Image | Quick fastener | K63431690 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

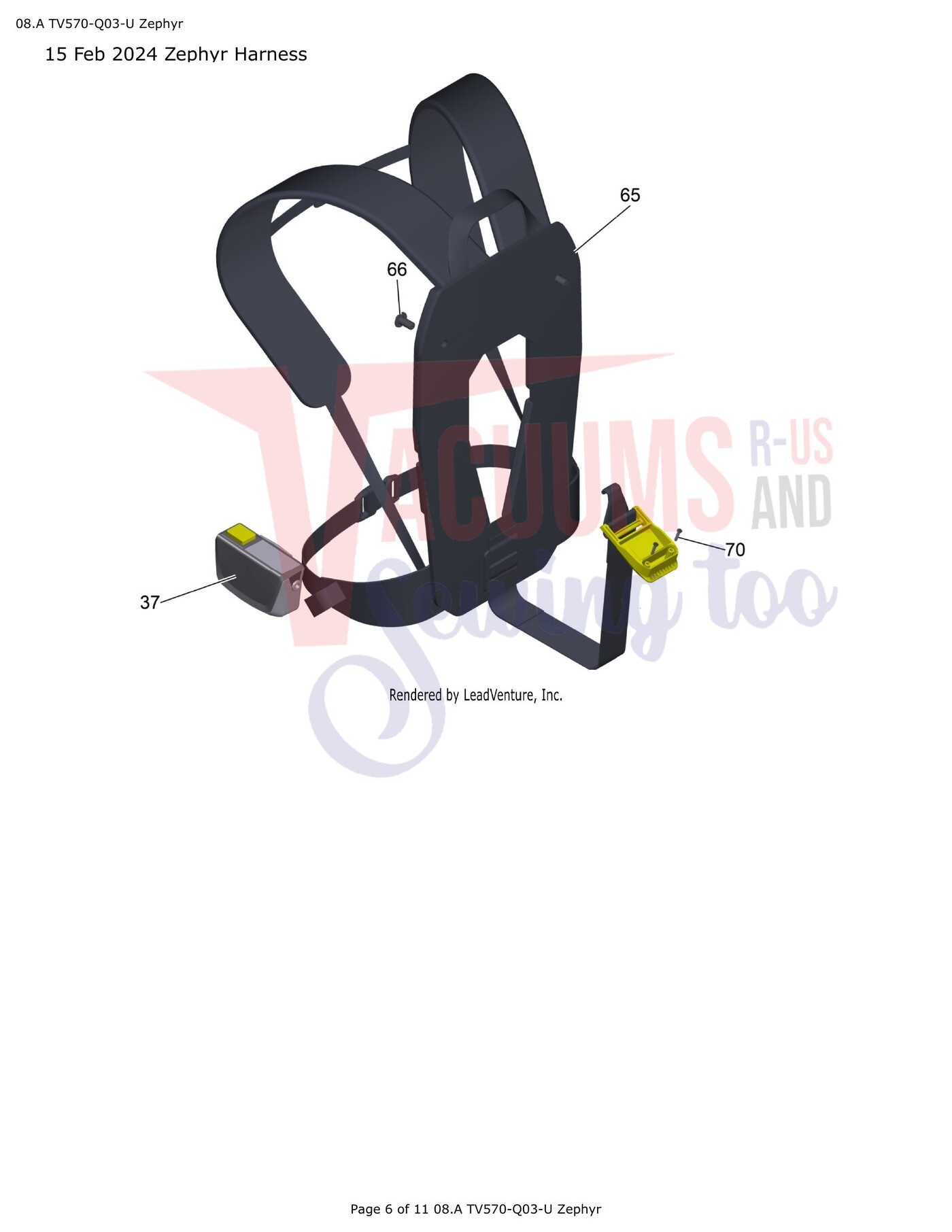

| 37 |  | Switch Harness and Wiring Assembly, Zephyr | K46457360 | $153.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | No Image | Harness and Straps, Zephyr | K65410183 | $227.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | No Image | Screw, Harness,Zephyr | K73062540 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| Not Shown | | Pre Filter, Zephyr, Pack of three | K28894190 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown | No Image | Pre Filter, Zephyr, Pack Of Five | K54140073 | $0.00Read more |
| 64 |  | Fleece Bag Fits TV570-Q03-U 10 Pack | K69043350 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

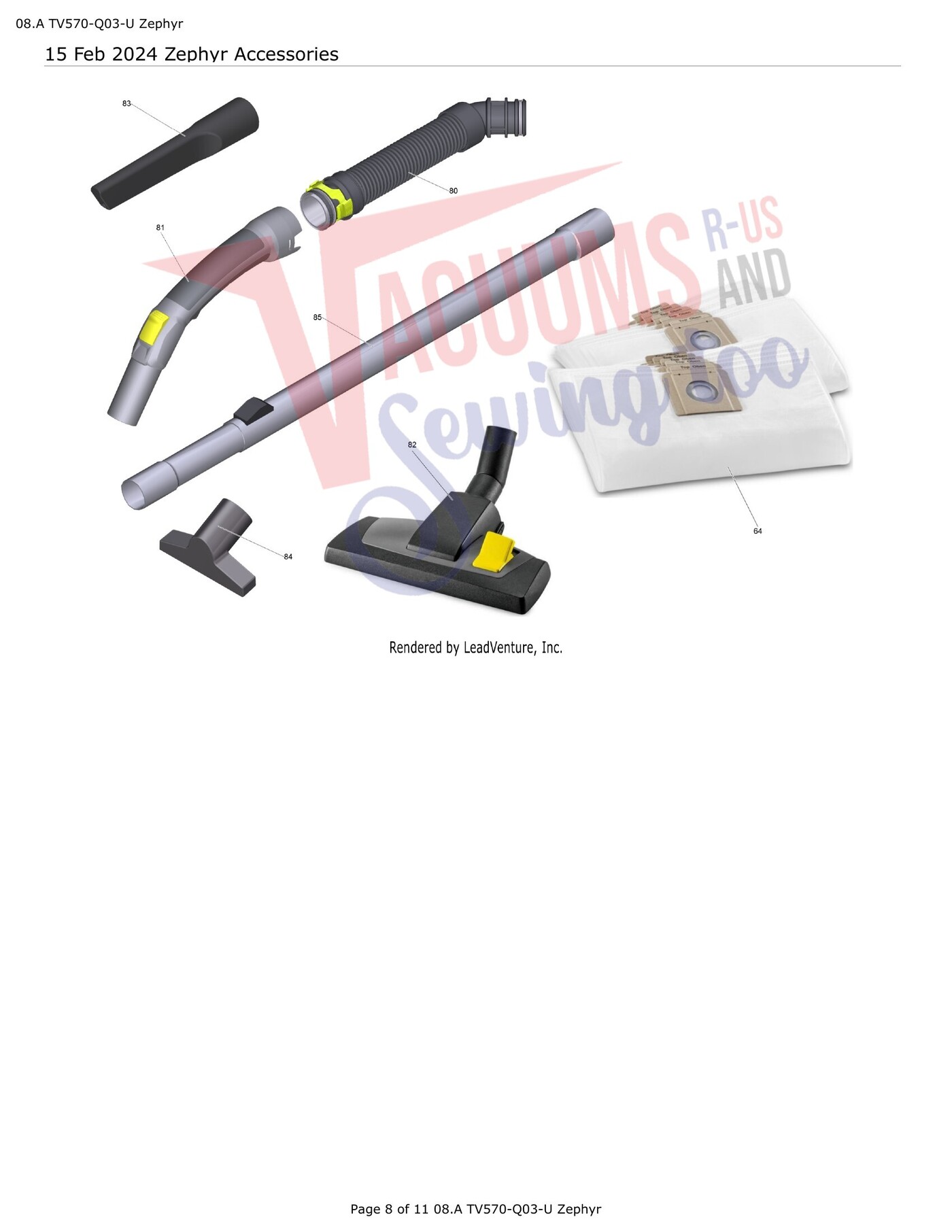

| 80 | No Image | Suction Hose, Zephyr | K44401983 | $46.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81 | No Image | Hose Bend Connector, Zephyr | K44080200 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 |  | Floor Tool, Zephyr | K69074960 | $52.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 |  | Crevice Tool, Zephyr | K69003850 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 84 | No Image | Upholstery Tool, Strike and Zephyr | K69059980 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | No Image | Telescoping Wand, Zephyr | K69075753 | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
