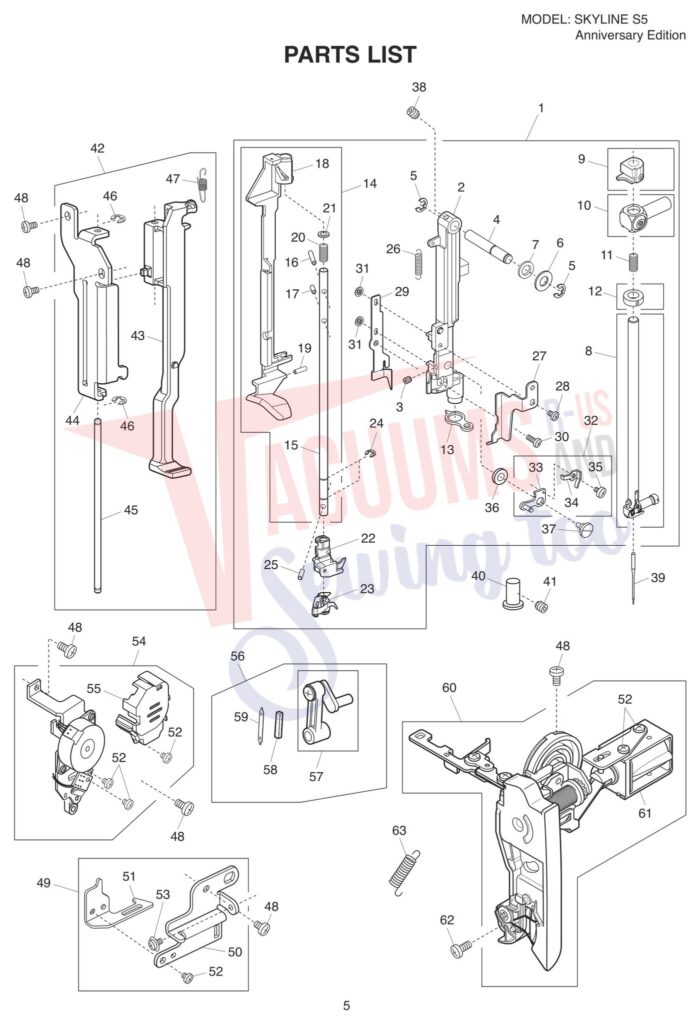

Schematic and parts book for Janome SKS5AE, Skyline S5 Aniversary Edition, S5 SKS5AE, Skyline S5 Aniversary Edition, S5. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

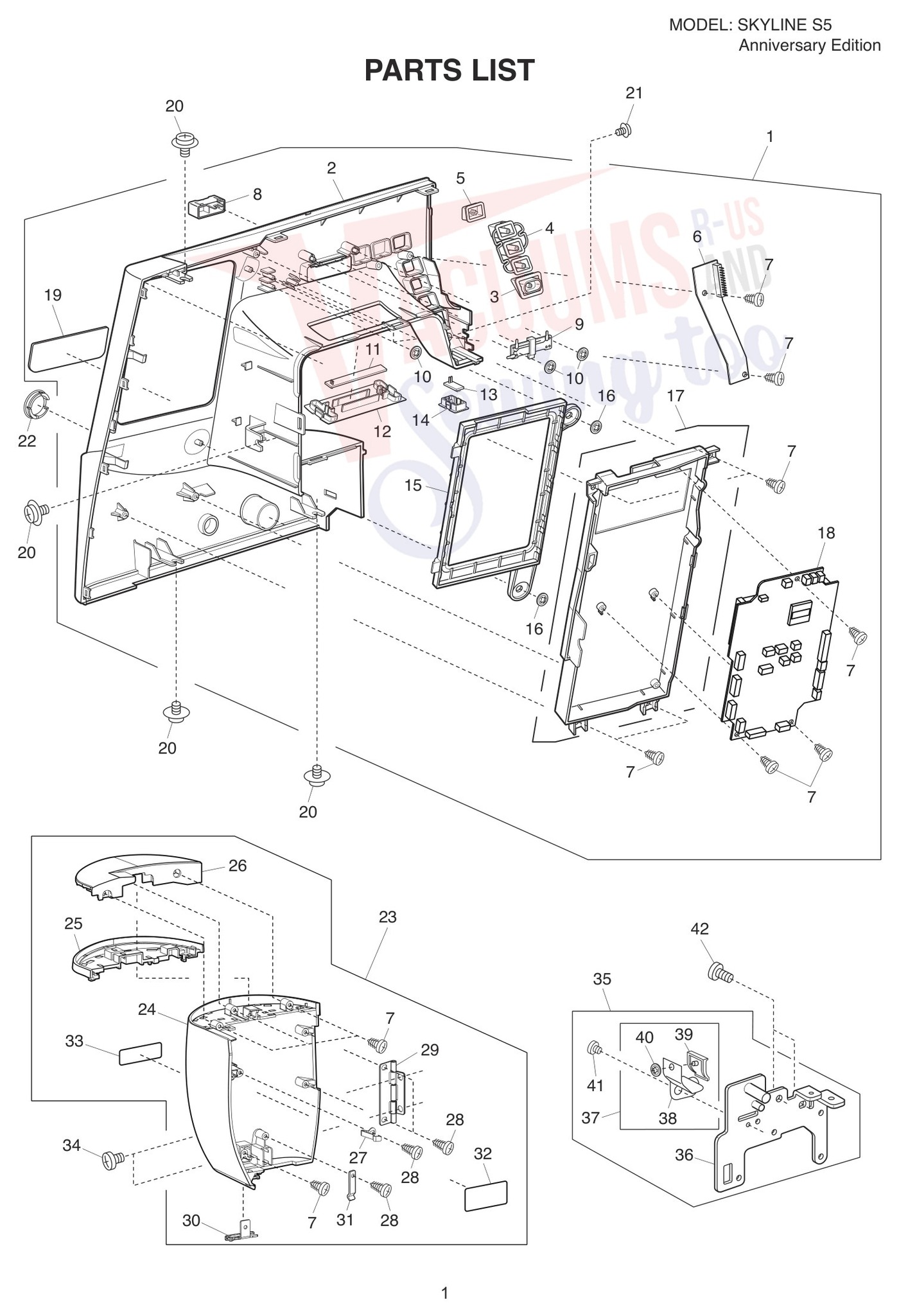

| # | Part image | Description | SKU | Price |
| 1 | No Image | Front Cover (Unit) | 863676507 | $572.42Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Front cover | 863181B02 | Not Available |
| 3 |  | Start/Stop Button | 863017A01 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Function button 1 sewing machine part or accessory For Janome Models: SKS3AE | 863018H01 | $11.09Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Function button 2 sewing machine part or accessory For Janome Models: SKS3AE | 863182B01 | $11.41Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Printed circuit board F (unit) sewing machine part or accessory For Janome Models: SKS3AE | 861528002 | $83.74Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Speed control slider sewing machine part or accessory For Janome Models: SKS3AE | 863020016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Slide volume (unit) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8... | 653507082 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Printed circuit board L1 (unit) sewing machine part or accessory 858502310 Printed circuit board ... | 858502310 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | LED cover 2 sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC820... | 858106000 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Printed circuit board L2 (unit) sewing machine part or accessory 859525910 Printed circuit board ... | 859525910 | $14.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Lamp cover 2 sewing machine part or accessory 860167006 Lamp cover 2 | 860167006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Front cover ornamental panel sewing machine part or accessory For Janome Models: SKS3AE | 863183007 | $6.34Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Lcd Case (Unit) | 863417704 | $90.61Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | A-Board (Us,Can) | 863419131 | $358.69Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | LCD panel sewing machine part or accessory For Janome Models: SKS3AE | 863023020 | $3.38Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set screw 3x6 sewing machine part or accessory For Janome Models: 1110DX, 1600P, 1600P-DB, 1600P-... | 000114710 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Feed balancing dial cover sewing machine part or accessory For Models: , MC9900 Horizon, EL900... | 859216007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Face plate (unit) (U.S.A.) (Canada) sewing machine part or accessory For Janome Models: SKS3AE | 863671007 | $93.24Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Face plate sewing machine part or accessory For Janome Models: SKS3AE | 863175A01 | $50.69Read more |
| 25 | | Face plate ornamental panel 1 sewing machine part or accessory For Janome Models: SKS3AE | 863176007 | $4.12Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Face plate ornamental panel 2 sewing machine part or accessory For Janome Models: SKS3AE | 863177008 | $5.28Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Face Plate Spring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC7700QCP... | 850013005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Face plate hinge (unit) sewing machine part or accessory For Janome Models: SKS3AE | 843545010 | $3.38Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Thread cutter (unit) sewing machine part or accessory For Elna Models: EL830LCE | 832508017 | $22.92Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Magnifier fixing plate sewing machine part or accessory 859233000 Magnifier fixing plate | 859233000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Caution sticker (U.S.A.) (Canada) sewing machine part or accessory 100045000 Caution sticker (U.S... | 100045000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Caution sticker (Canada) sewing machine part or accessory 100517008 Caution sticker (Canada) | 100517008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Carrying handle supporter (front) (unit) sewing machine part or accessory For Janome Models: SKS3AE | 863672008 | $39.07Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Carrying handle supporter (front) sewing machine part or accessory For Janome Models: SKS3AE | 863178009 | $12.14Read more |
| 37 | | Spring (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyl... | 861613005 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Spring sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyline S5 | 861073007 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Spring cap sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyline S5 | 861074008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Snap ring CS-3.5 sewing machine part or accessory For Janome Models: MC9900 , EL900 eXpressive, E... | 000017701 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 234D... | 000101116 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

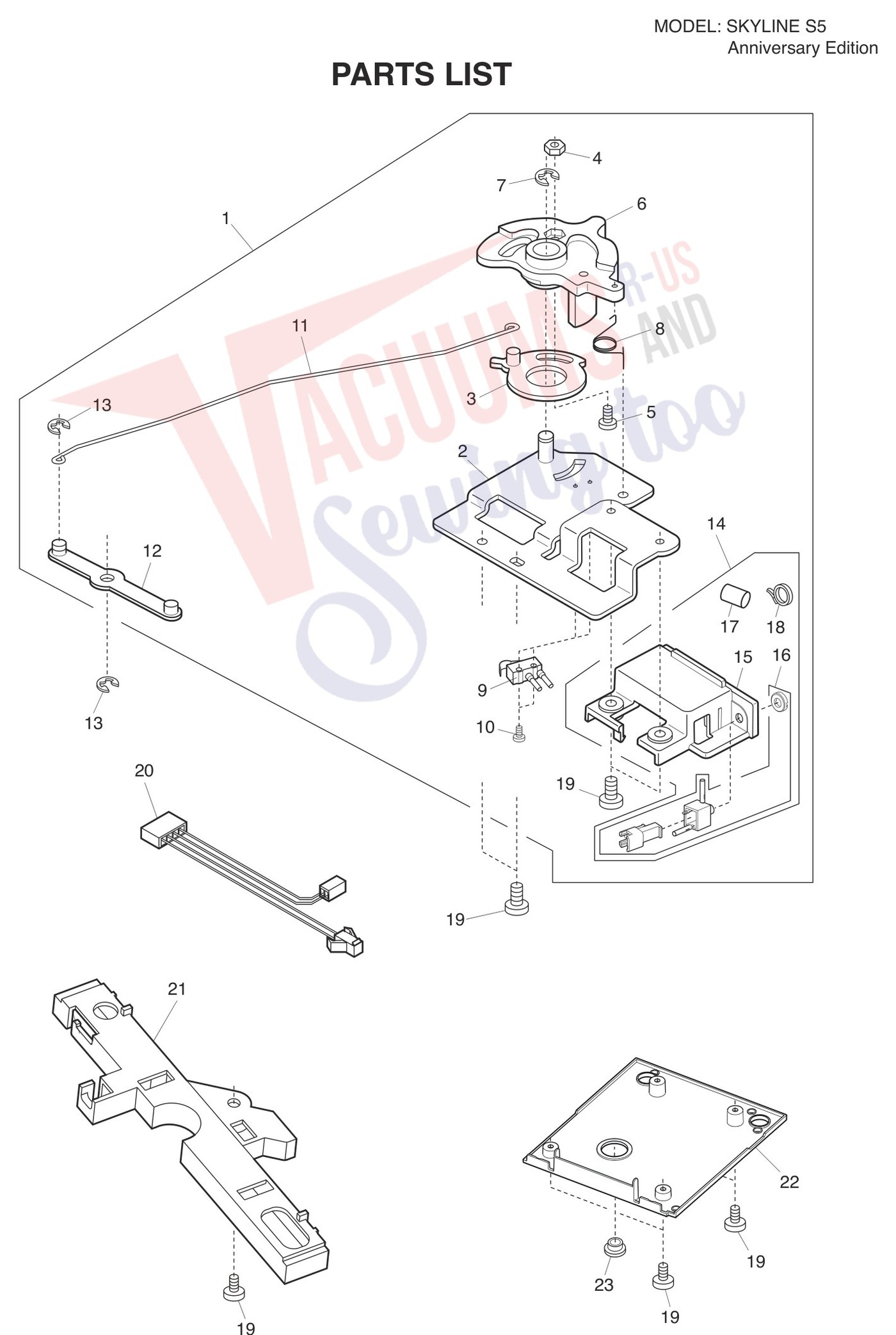

| # | Part image | Description | SKU | Price |
| 1 | | Feed dog drop lever (unit) (U.S.A.) (Canada) sewing machine part or accessory For Janome Models: ... | 863680102 | $86.06Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Feed dog drop lever base sewing machine part or accessory For Janome Models: SKS3AE | 863186000 | $9.61Read more |
| 3 |  | Feed dog drop lever sewing machine part or accessory For Janome Models: Skyline S5 | 858142008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | NUT 3-3-5.5 5001 sewing machine part or accessory For Janome Models: MC4900, MC5001, Skyline S5 | 000061803 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | dial sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC8200 Horiz... | 858143009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Spring sewing machine part or accessory For Janome Models: SKS3AE | 863187001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Micro switch (unit) sewing machine part or accessory For Janome Models: SKS5AE | 652520147 | $9.72Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set screw 2x8 sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 6125Q... | 000102900 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Rod sewing machine part or accessory For Janome Models: Skyline S7 | 863123009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Drop connecting block sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horiz... | 858139002 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 14 | | Print circ brd B case unit USA sewing machine part or accessory For Elna Models: EL680 | 863622003 | $17.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Printed circuit board B case sewing machine part or accessory 861090022 Printed circuit board B case | 861090022 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Jack cord (unit) (JA, JEBV) sewing machine part or accessory For Janome Models: SKS5 | 767541202 | $9.23Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Ferrite core sewing machine part or accessory 863504008 Ferrite core | 863504008 | $8.05Read more |
| 18 | Not Available | Cord binder | 000053101 | Not Available |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Junction cable sewing machine part or accessory For Elna Models: EL680PLUS | 863503100 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Cord guide 2 sewing machine part or accessory For Elna Models: EL710 | 858159101 | $3.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Base plate sewing machine part or accessory For Janome Models: Skyline S5 | 863029004 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Cap | 626045407 | Not Available |

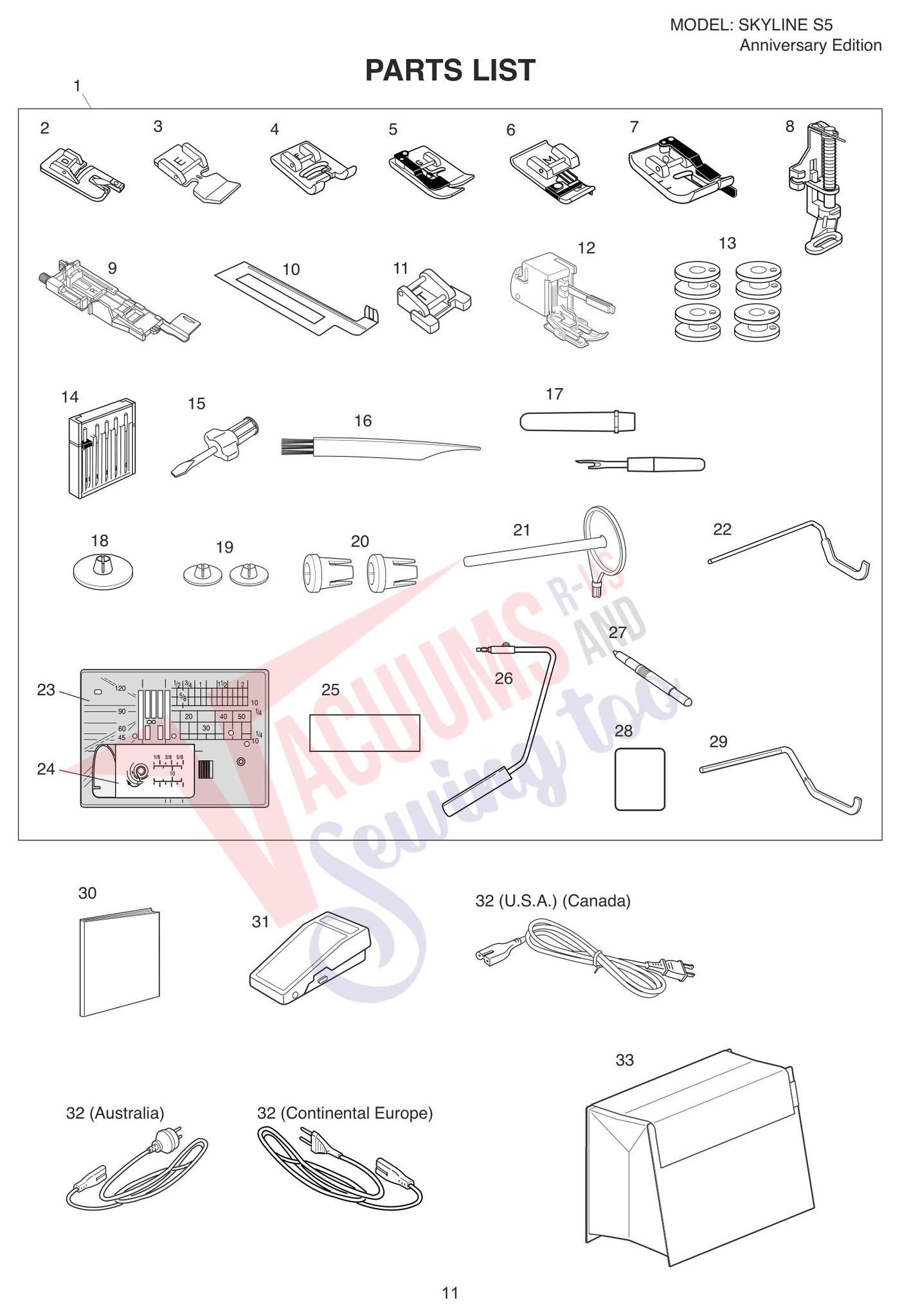

| # | Part image | Description | SKU | Price |
| 1 | No Image | Accessory Set | 863870248 | $257.88Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Rolled Hem Foot D for Janome | 859804008 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Zipper foot E sewing machine part or accessory For Janome Models: MC12000 , MC8900 Horizon , MC82... | 859805009 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Satin stitch foot F sewing machine part or accessory For Janome Models: MC12000 , MC8900 Horizon ... | 859806011 | $4.25Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Blind hemming foot G sewing machine part or accessory This foot has a metal guide in the center a... | 859807001 | $7.25Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Overedge foot M sewing machine part or accessory For Janome Models: MC12000 , MC8900 Horizon , MC... | 859810007 | $10.95Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | 1/4˝ seam foot O for Janome | 859814012 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Janome darning foot PD-H | 859839002 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Automatic buttonhole foot R sewing machine part or accessory For Janome Models: 15000, EL920 | 862822013 | $51.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Stabilizer plate sewing machine part or accessory For Models: , CM17, M7, M8, M6, MC15000, MC140... | 859832016 | $20.70Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Janome Button Sewing Toot T | 859811008 | $5.50Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Even Feed Foot with Quilt Guide - 9mm without IAF sewing machine part or accessory Even Feed Foot... | 202137009 | $31.10Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Needle set sewing machine part or accessory For Models: , MC8900 Horizon , MC8200 Horizon , MC9... | 859856005 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 16 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Spool holders (special) sewing machine part or accessory For Janome Models: Skyline S5 | 862408008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Spool pin sewing machine part or accessory For Models: , MC9900 Horizon, EL900 eXpressive, EL8... | 809041004 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Quilting guide bar sewing machine part or accessory For Models: , MC8900 Horizon , MC8200 Horiz... | 755802001 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Straight stitch needle plate sewing machine part or accessory Straight stitch needle plate for 9450 | 862817118 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Hook cover plate sewing machine part or accessory 809136100 Hook cover plate | 809136100 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Caution card sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyli... | 858801002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Knee lifter sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC820... | 846417011 | $57.40Read more |
| 27 | | TOUCH PEN sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC7700QCP, MC89... | 860194002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Threading guide sticker sewing machine part or accessory For Janome Models: SKS3AE | 101506A09 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Quilting Guide for Even Feedft sewing machine part or accessory For Janome Models: 2041LX, 4048/8... | 214015007 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Instruction Book (English) | 863850301 | $33.26Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Foot control sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH18... | C-1036 | $53.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Compatible alternateFoot Control Pedal for Janome and Elna - Use with: 3160QDC HF8050, MC2160QDC, JNH1860, JNH720, JP... More Product Details | C1036 | $57.99Add to cart |
| 32 | | Power supply cord (U.S.A.) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC... | 856519004 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Cover sewing machine part or accessory For Janome Models: SKS3AE | 863422001 | $91.38Add to cart Special order: ships in 2 to 4 weeks |

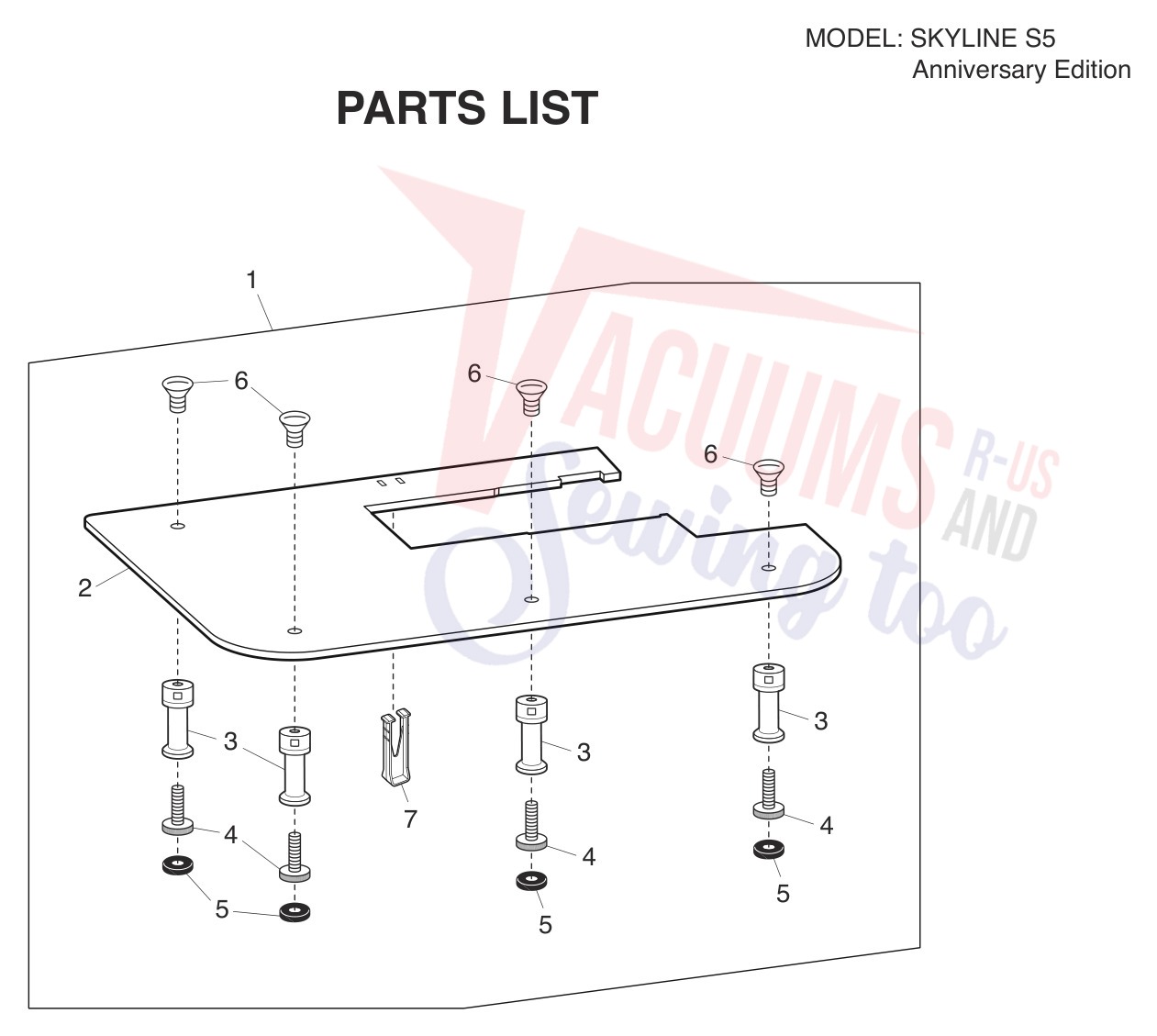

| # | Part image | Description | SKU | Price |
| 1 | | Extra wide table (unit) sewing machine part or accessory Comes standard with Skyline Anniversary ... | 863846005 | $170.16Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Extra wide table sewing machine part or accessory For Janome Models: SKS3AE | 861401112 | $126.30Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Extra wide table leg (unit) sewing machine part or accessory For Janome Models: MC9400 | 489603006 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Foot For Quilting Table (1pc) sewing machine part or accessory Foot For Quilting Table | 489004001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Rubber sole sewing machine part or accessory For Janome Models: MC15000 Horizon, EL900 eXpressive | 491002006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SETSCREW 5X18 sewing machine part or accessory For Janome Models: MC11000 Special Edition Clothse... | 000165509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Extra wide table supporter sewing machine part or accessory For Janome Models: SKS3AE | 863401004 | $1.90Add to cart Special order: ships in 2 to 4 weeks |

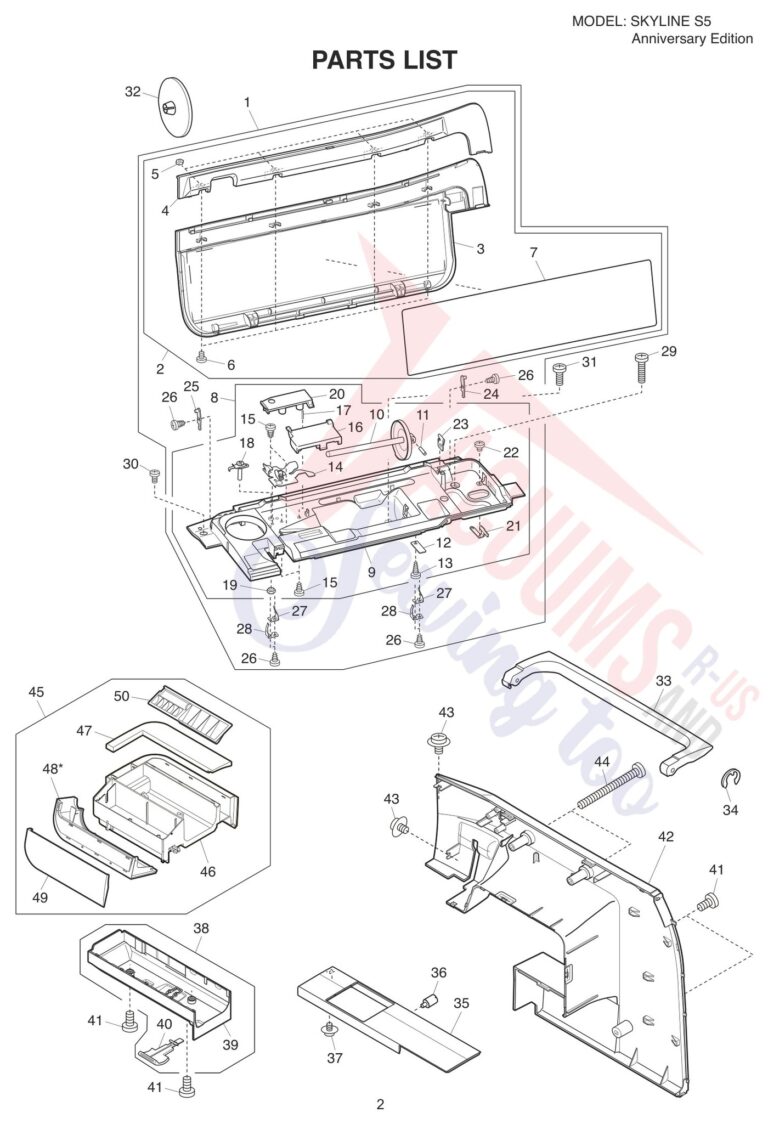

| # | Part image | Description | SKU | Price |
| 1 | No Image | Top Cover (Whole Unit) | 863668207 | $131.37Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Top Cover (Unit) | 863669208 | $88.39Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Top cover sewing machine part or accessory For Janome Models: SKS3AE | 863168006 | $15.63Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Top cover ornamental panel sewing machine part or accessory For Janome Models: SKS3AE | 863169007 | $9.72Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | NUT 3-3-5.5 5001 sewing machine part or accessory For Janome Models: MC4900, MC5001, Skyline S5 | 000061803 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Quick Reference Chart | 863170A03 | $18.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Top cover body (unit) sewing machine part or accessory For Janome Models: SKS3AE | 863670109 | $70.96Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Top cover body sewing machine part or accessory For Janome Models: SKS3AE | 863171002 | $18.80Read more |
| 10 | | Spool pin sewing machine part or accessory For Models: , MC8900 Horizon , MC8200 Horizon , MC99... | 859052003 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | PIN 8000/7-7500/6000/4000/4123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 822017002 | $1.00Read more |
| 12 |  | SPOOL PIN SPRING 8000 7500 700 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 822018003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Thread guide (unit) sewing machine part or accessory For Models: , MC8900 Horizon , MC8200 Hori... | 859541004 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Thread guide cover (unit) sewing machine part or accessory For Models: , MC8900 Horizon , MC820... | 859648002 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Spring pin 2X10 sewing machine part or accessory For Janome Models: MC300E, MC350E, MC6000, MC770... | 000020202 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | BOBBIN WINDER THREAD GUIDE 800 sewing machine part or accessory For Janome Models: MC8000, MC7700... | 862535016 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Bobbin Winder Thread Guide Cover Plate sewing machine part or accessory For Janome Models: MC8000... | 830011001 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Bobbin winder stopper sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressi... | 861099009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Set screw 3x4 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 000101127 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Thread Cutter (Unit) | 830505007 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Top Cover Hinge (Right) | 858023002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Top Cover Hinge (Left) | 858023105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Top cover hinge spring (upper) sewing machine part or accessory For Janome Models: SKS3AE | 863172003 | $3.38Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Top cover hinge spring (lower) sewing machine part or accessory For Janome Models: SKS3AE | 863173004 | $3.38Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | SET SCREW 4X12 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000170507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Carrying handle sewing machine part or accessory For Janome Models: SKS3AE | 863174005 | $34.21Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Free arm cover sewing machine part or accessory 861007103 Free arm cover | 861007103 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Pin sewing machine part or accessory 858165100 Pin | 858165100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Set screw 3x6 sewing machine part or accessory For Janome Models: 1110DX, 1600P, 1600P-DB, 1600P-... | 000114710 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Bed cover (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, S... | 861604003 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Bed cover sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyline S5 | 861008001 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Lever sewing machine part or accessory For Models: , MC8900 Horizon , MC8200 Horizon , MC9900 H... | 859040008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Rear cover sewing machine part or accessory For Janome Models: SKS3AE | 863167B01 | $37.49Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Setscrew 4x45 sewing machine part or accessory For Janome Models: SKS3AE | 000081810 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Extension table (unit) sewing machine part or accessory For Janome Models: SKS3AE | 863613B01 | $102.12Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Extension table sewing machine part or accessory For Janome Models: Skyline S5 | 863003002 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Extension table cover sewing machine part or accessory For Janome Models: SKS3AE | 863004014 | $8.66Add to cart Special order: ships in 2 to 4 weeks |
| 48 | Not Available | Not Sold Separately | Not Sold Separately | Not Available |
| 49 |  | Extension table lid cover sewing machine part or accessory 863006016 Extension table lid cover | 863006016 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Foot tray sewing machine part or accessory For Janome Models: Skyline S5 | 861012008 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 |  | Needle plate (unit) sewing machine part or accessory 861606016 Needle plate (unit) | 861606016 | $75.40Add to cart Special order: ships in 2 to 4 weeks |

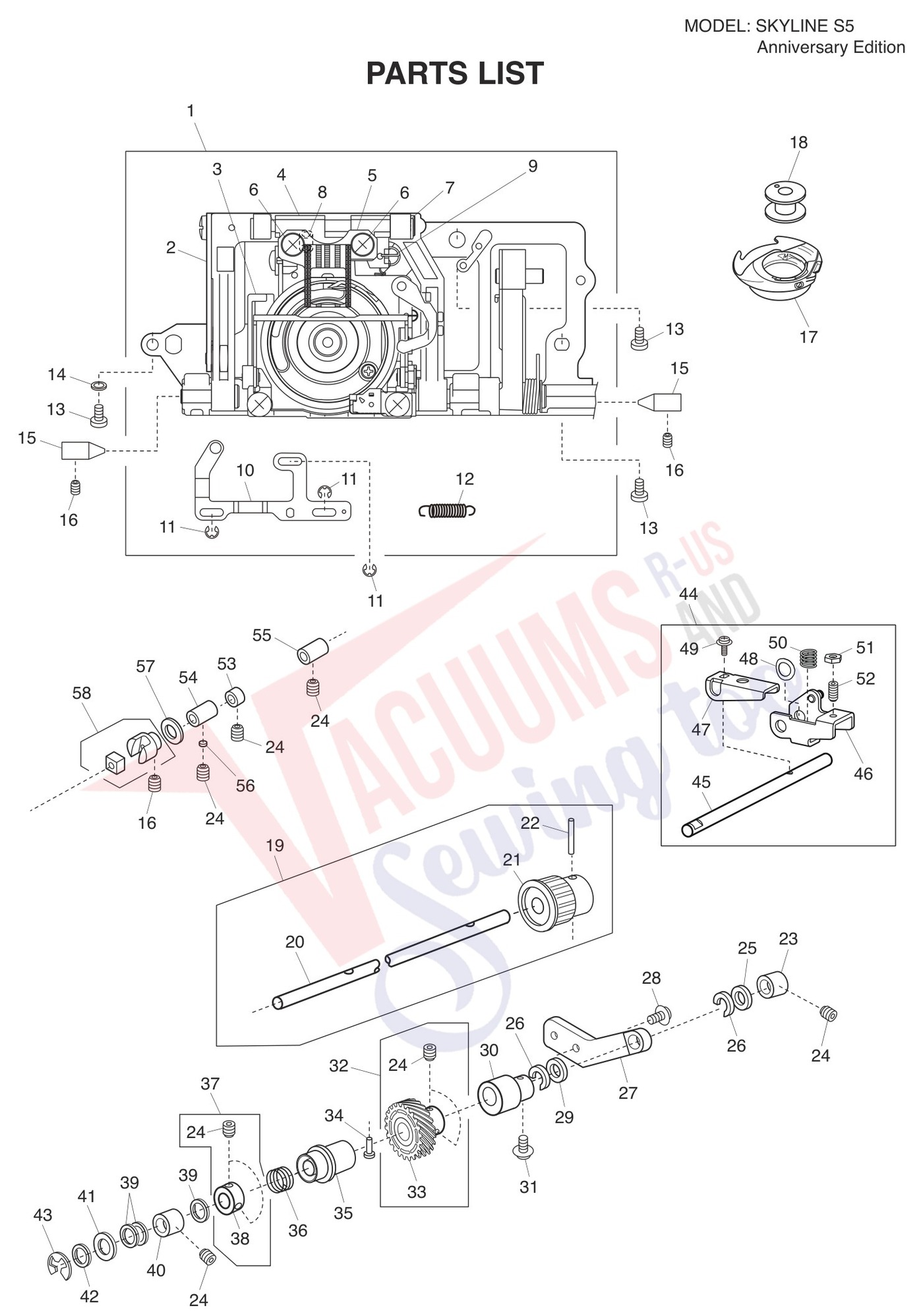

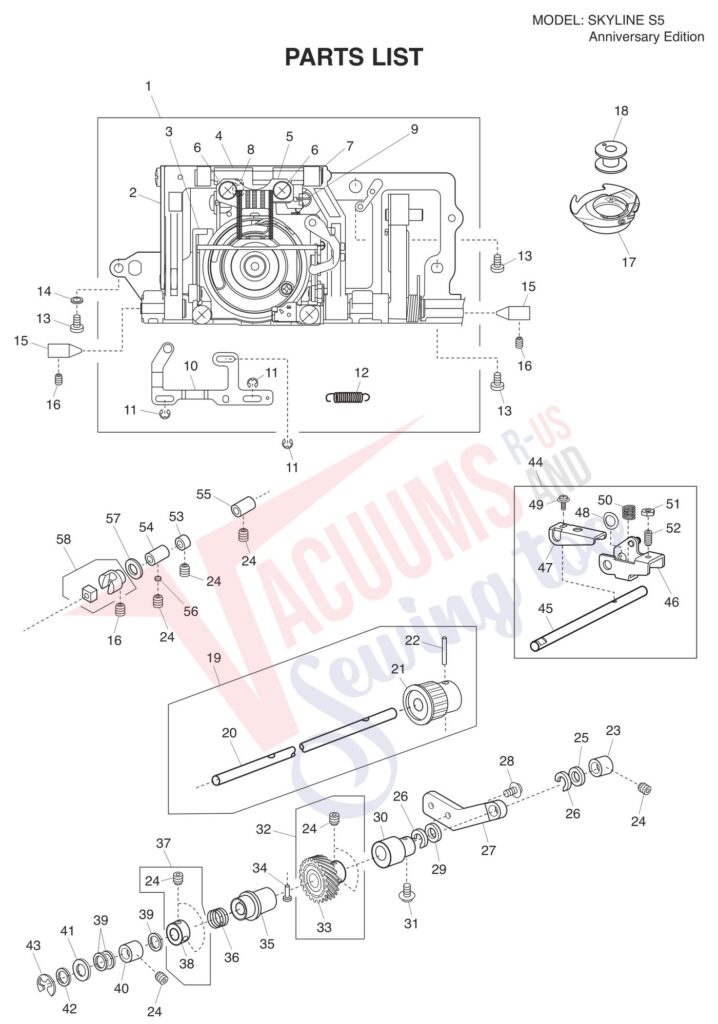

| 2 | | Needle plate sewing machine part or accessory 861013032 Needle plate | 861013032 | $38.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hook Cover Plate Supporter | 861014000 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Hook cover plate supporter base sewing machine part or accessory For Janome Models: MC9900 , MC15... | 809134005 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Guide holder sewing machine part or accessory 809135006 Guide holder | 809135006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Cutter sewing machine part or accessory 809137008 Cutter | 809137008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Rotation stopper sewing machine part or accessory For Janome Models: MC9900 Horizon, MC12000 Hori... | 809044203 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Setscrew sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC350E, MC6500P,... | 000097613 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Needle plate sensor block sewing machine part or accessory 859046004 Needle plate sensor block | 859046004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Spring sewing machine part or accessory 859047016 Spring | 859047016 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Pan head small screw 2X2.3 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 000169709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Spring 2 | 859245005 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Needle plate supporter sewing machine part or accessory 859271000 Needle plate supporter | 859271000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Screw sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE, M... | 000102807 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Rubber sticker sewing machine part or accessory 859272104 Rubber sticker | 859272104 | $1.00Add to cart |
| 20 | | Spring sewing machine part or accessory 809184000 Spring | 809184000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Hook cover plate sewing machine part or accessory 809136100 Hook cover plate | 809136100 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Belt Cover (Unit) | 863681206 | $45.83Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Belt Cover | 863188208 | $19.33Read more |
| 24 | | Belt cover ornamental panel 1 sewing machine part or accessory For Janome Models: SKS3AE | 863189003 | $3.27Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Belt cover ornamental panel 2 sewing machine part or accessory For Janome Models: SKS3AE | 863190007 | $2.43Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Setscrew 3x10 sewing machine part or accessory For Janome Models: 1110DX, 334, 4045LX, 4045NX, 41... | 000149002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Cap sewing machine part or accessory 745033002 Cap | 745033002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Base cover sewing machine part or accessory For Janome Models: SKS3AE | 863001011 | $12.88Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Needle Plate Nut Set Plate | 860003025 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Setscrew | 810220106 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Needle plate positioning pin sewing machine part or accessory 859270009 Needle plate positioning pin | 859270009 | $4.80Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Needle plate adjusting plate sewing machine part or accessory 859247018 Needle plate adjusting plate | 859247018 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Genuine Janome/Elna Needle plate sensor (unit) For: MC9900 , EL860 eXpressive, Skyline S5 | 859671107 | $18.80Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Switch (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyl... | 859524104 | $14.20Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Setscrew sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX,... | 755096004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Switch set plate sewing machine part or accessory 859246006 Switch set plate | 859246006 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Set screw sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521, 525... | 000193001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Arm sole (front side) (unit) sewing machine part or accessory For Janome Models: SKS3AE | 861601011 | $35.59Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Arm sole (front side) sewing machine part or accessory For Janome Models: SKS3AE | 861002016 | $17.42Read more |
| 45 | No Image | Spring | 858162004 | $0.80Read more |
| 46 | | Cushion sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900CP, DX2015, MC100... | 605074008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Adjusting Screw | 820350004 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Setscrew 6x12 (S) sewing machine part or accessory 000148403 Setscrew 6x12 (S) | 000148403 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Arm sole (rear side) (unit) sewing machine part or accessory For Janome Models: SKS3AE | 861603013 | $33.05Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

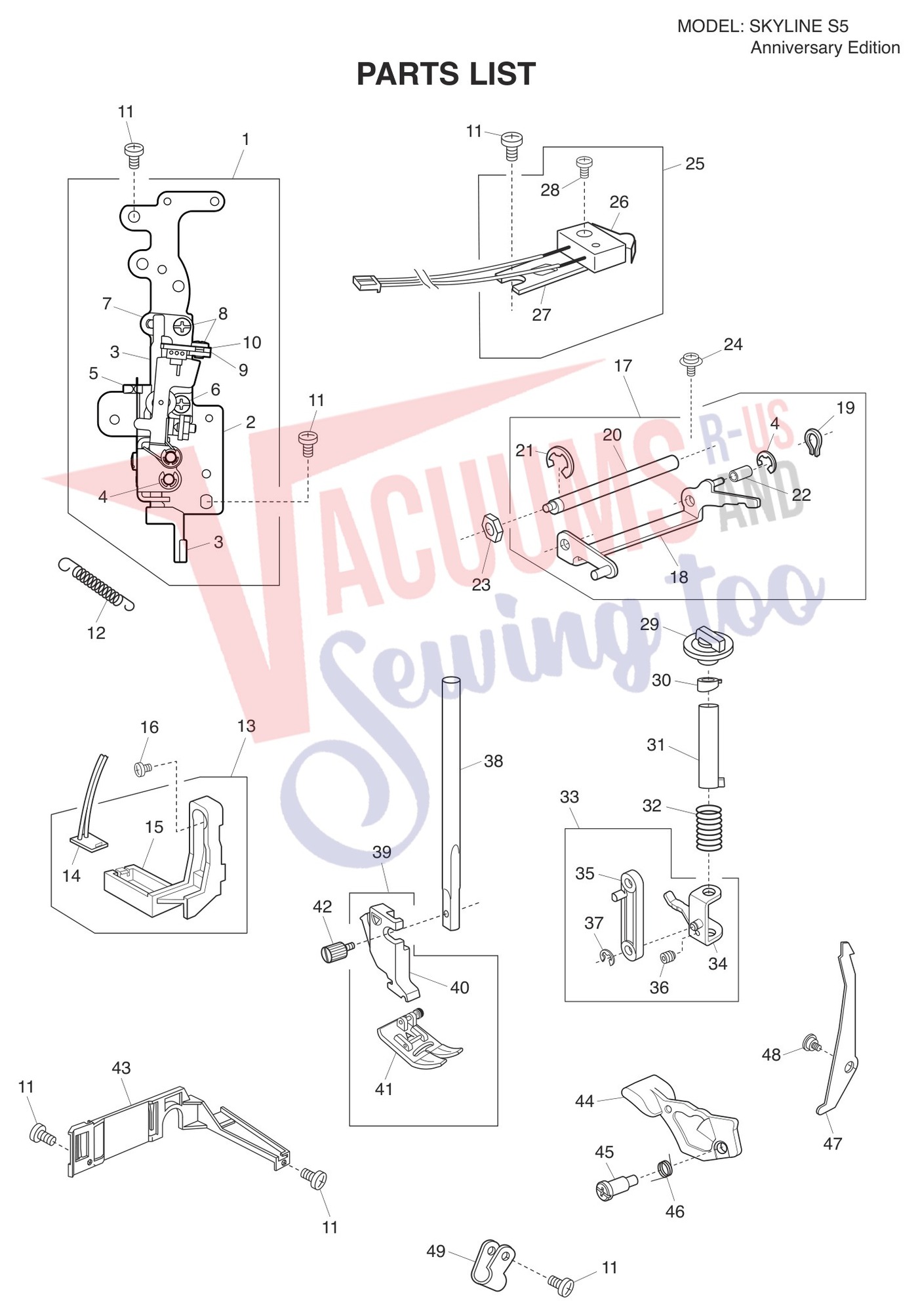

| 1 | No Image | Front Bracket (Unit) | 863606403 | $55.55Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Front bracket sewing machine part or accessory For Janome Models: SKS5 | 861030013 | $5.20Read more |
| 3 | | Buttonhole lever (unit) sewing machine part or accessory For Janome Models: 9410 | 808673307 | $15.21Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 5 |  | Buttonhole Lever Guide | 830057021 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Sensor base plate sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, ... | 861031003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Printed circuit board G1 (unit) sewing machine part or accessory For Janome Models: MC9900 , EL86... | 852502312 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Insulation Sheet | 853028002 | $0.26Read more |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Needle bar supporter spring sewing machine part or accessory For Janome Models: Skyline S7 | 858312001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | LED cover (unit) sewing machine part or accessory 861665507 LED cover (unit) SKS3 | 861665507 | $25.00Read more |
| 14 |  | Printed circuit board L2 unit sewing machine part or accessory For Elna Models: EL680PLUS | 859525817 | $14.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | LED cover sewing machine part or accessory For Janome Models: MC15000 Horizon, EL860 eXpressive, ... | 859232021 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Presser foot actuator arm (unit) sewing machine part or accessory For Janome Models: SKS5 | 861616101 | $12.00Read more |
| 18 | | Presser foot actuator arm sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpr... | 861035007 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Snap ring G-6 sewing machine part or accessory For Janome Models: COMBI-10, HF1012, HF2022, JF100... | 000014605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Presser foot actuator arm sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpr... | 830060005 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Bushing sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyline S5 | 861034006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000115629 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Presser foot lifter switch (unit) sewing machine part or accessory For Janome Models: MC9900 , EL... | 861617009 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Micro switch (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive... | 652520099 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Micro switch set plate sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpress... | 861029008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Set screw 2x8 sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 6125Q... | 000102900 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Presser foot pressure adjusting dial sewing machine part or accessory For Janome Models: MC9900 ,... | 858136102 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Presser adjusting cam sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horiz... | 858155004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Presser bar bushing sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon... | 858028007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Presser bar spring sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive,... | 861026005 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Presser bar supporter (unit) sewing machine part or accessory For Janome Models: Skyline S5 | 863614002 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Presser bar supporter sewing machine part or accessory 863012004 Presser bar supporter SKS3 | 863012004 | $3.00Read more |
| 35 | | Presser bar link sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, S... | 861028007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Presser bar sewing machine part or accessory For Janome Models: Skyline S5 | 827021200 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Presser foot (unit) sewing machine part or accessory For Janome Models: CM17 SRV | 867819001 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Presser foot holder (unit) sewing machine part or accessory For Janome Models: CM17 SRV | 867542000 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Zig Zag Foot for Janome | 859802006 | $8.50Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Thumbscrew sewing machine part or accessory For Janome Models: MC9900 , MC15000 15000 Horizon, EL... | 858274000 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Cord guide (rear) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, ... | 861078002 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Presser foot lifter lever sewing machine part or accessory For Elna Models: EL680PLUSA | 863011014 | $1.60Read more |
| 45 | | Setscrew sewing machine part or accessory 865049006 Setscrew | 865049006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Spring | 859029001 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Tension release lever sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressi... | 861067008 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Setscrew sewing machine part or accessory For Models: , MC9900 Horizon, MC15000 15000 Horizon, ... | 859273002 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Nylon clip acc-2.5 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 000188601 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

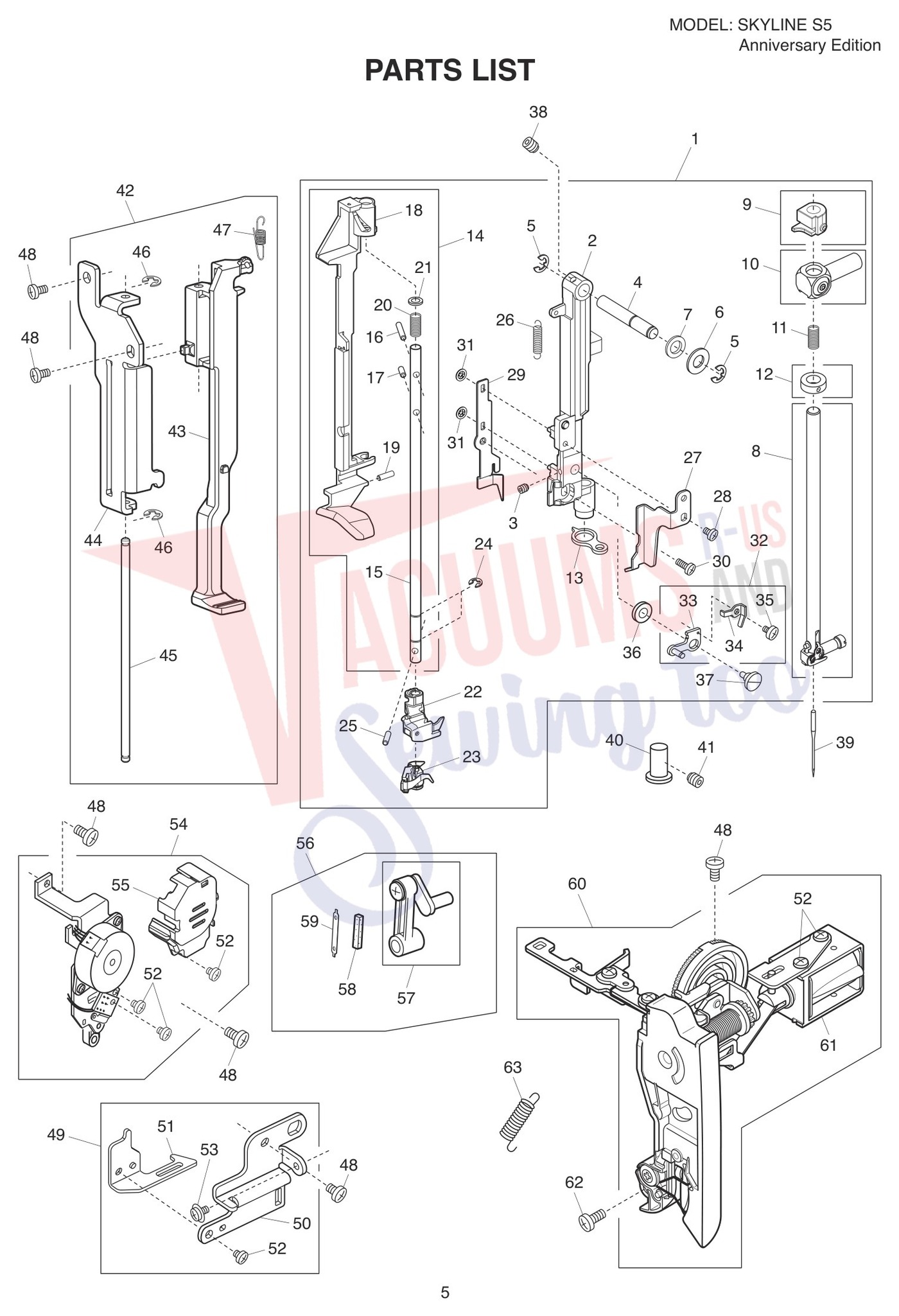

| 1 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: SKS3AE | 863673009 | $130.73Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Needle bar supporter sewing machine part or accessory For Janome Models: 9410 | 869021004 | $30.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Needle bar supporter pin sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 735144006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle bar (unit) sewing machine part or accessory For Janome Models: MC15000 Horizon | 858538005 | $46.89Read more |
| 9 |  | Rotation pin stopper (unit) sewing machine part or accessory For Janome Models: MC9400 | 858540000 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle bar supporter (unit) sewing machine part or accessory 846515009 Needle bar supporter (unit) | 846515009 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Needle bar supporter spring sewing machine part or accessory For Janome Models: 9410 | 869022005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Threader guide ring (unit) sewing machine part or accessory For Janome Models: MC9400 | 858541001 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Supporter guide sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 829027006 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Threader shaft (unit) sewing machine part or accessory For Janome Models: 9410 | 869608001 | $18.90Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Threader shaft sewing machine part or accessory For Janome Models: 9410 | 869023006 | $6.65Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Guide pin 2x12-CH sewing machine part or accessory 000265500 Guide pin 2x12-CH | 000265500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Guide pin 2x6-CH sewing machine part or accessory 000265603 Guide pin 2x6-CH | 000265603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Threader arm sewing machine part or accessory For Janome Models: 9410 | 869024A01 | $7.18Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Cam pin sewing machine part or accessory For Janome Models: 9410 | 869025008 | $2.75Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Needle threader spring sewing machine part or accessory For Janome Models: 9410 | 869026009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Washer sewing machine part or accessory For Elna Models: EL680PLUSA | 539061004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Thread guide base sewing machine part or accessory For Janome Models: 9410 | 869609002 | $8.34Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Hook holder (unit) sewing machine part or accessory For Janome Models: 9410 | 869610006 | $17.85Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | SNAP RING E-2.5 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 1110D... | 000001207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Needle threader return spring sewing machine part or accessory For Janome Models: 9410 | 869030006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Spring supporter sewing machine part or accessory For Janome Models: 9410 | 869031007 | $3.91Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Thread release plate sewing machine part or accessory For Janome Models: 9410 | 869037003 | $4.44Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Setscrew 3x12 sewing machine part or accessory For Janome Models: 203, 234D, 509, 521, 525S, 625E... | 000081500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Snap ring CS-2 sewing machine part or accessory For Janome Models: 1000CPX, 808A, MC200E, Necchi ... | 000014100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Zigzag width rod (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpres... | 861630008 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Zigzag width rod sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, J... | 808015006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Zigzag Width Rod Spring | 827088009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Washer sewing machine part or accessory 863127003 Washer | 863127003 | $0.20Read more |
| 37 | | Eccentric pin sewing machine part or accessory 678084306 Eccentric pin | 678084306 | $1.80Read more |
| 38 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Needle sewing machine part or accessory 647814031 Needle | 647814031 | $1.60Read more |
| 40 |  | Supporter guide pin sewing machine part or accessory 827083004 Supporter guide pin | 827083004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Hexagon socket screw sewing machine part or accessory For Janome Models: 1200D, 1200D, 6019QC, 61... | 000216805 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Needle threader lever (unit) sewing machine part or accessory For Janome Models: SKS3AE | 863666009 | $30.10Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Needle threader lever sewing machine part or accessory For Janome Models: SKS3AE | 863164013 | $2.96Read more |
| 44 | | Needle threader shaft retaining plate sewing machine part or accessory For Janome Models: SKS3AE | 863166004 | $9.72Read more |
| 45 | | Needle threader lever shaft sewing machine part or accessory For Janome Models: SKS3AE | 863165003 | $3.59Read more |
| 46 |  | SNAP Snap Ring sewing machine part or accessory For Janome Models: 1200D, 888 COMPULOCK, MB-4, MC... | 000002301 | $1.00Read more |
| 47 | | Needle threader lever spring sewing machine part or accessory For Janome Models: SKS3AE | 861167009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Arm thread guide (unit) sewing machine part or accessory For Janome Models: SKS3AE | 862651112 | $34.95Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Arm thread guide sewing machine part or accessory For Janome Models: SKS3AE | 862081115 | $10.45Read more |
| # | Part image | Description | SKU | Price |

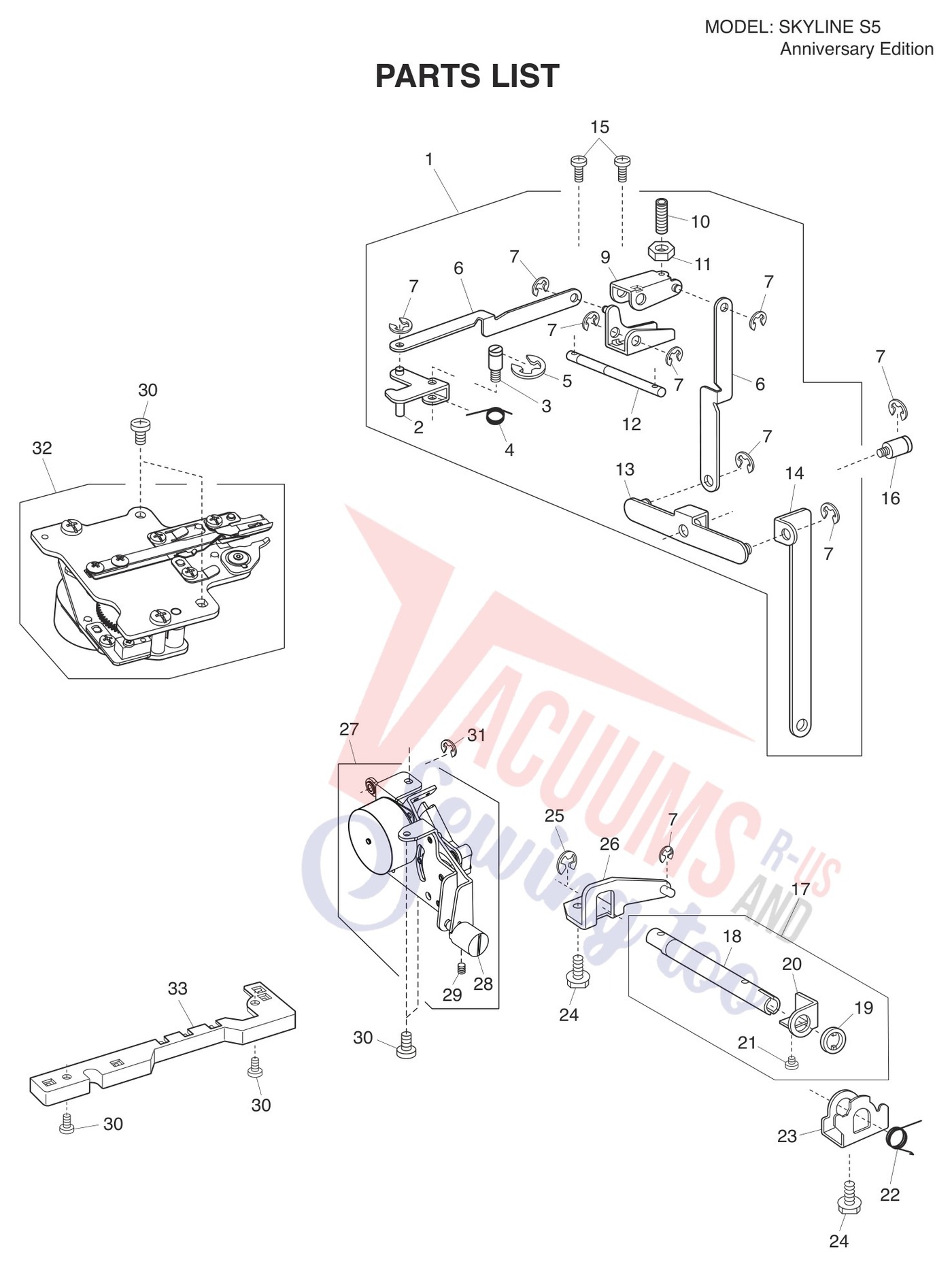

| 1 |  | Knee lifter link (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpres... | 861633001 | $19.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Knee lifter link (1) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressiv... | 861058006 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Knee lifter link (1) shaft sewing machine part or accessory For Janome Models: MC9900 , EL860 eXp... | 861059007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Knee lifter link (1) spring sewing machine part or accessory For Janome Models: MC9900 , EL860 eX... | 861065006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Knee lifter rod (1) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive... | 861060001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Knee lifter link (2) sewing machine part or accessory For Janome Models: MC11000, MC11000SE , MC9... | 860053008 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Knee lifter link (3) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressiv... | 861061002 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hexagonal socket screw 4x25 sewing machine part or accessory For Janome Models: MC9900 , EL860 eX... | 000196406 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Knee lifter link (2) shaft sewing machine part or accessory For Janome Models: MC9900 , EL860 eXp... | 861062003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Knee lifter middle link sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpres... | 861063004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Knee lifter link (4) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressiv... | 861064005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | BINDING HEAD SCREW 3.5X12 sewing machine part or accessory For Janome Models: 360, 380 & 381,... | 000103303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | HINGE SCREW 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, C... | 686063005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Knee lifter shaft (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpre... | 861632000 | $17.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Knee lifter shaft sewing machine part or accessory For Janome Models: SKS5 | 861057005 | $13.20Read more |
| 19 | | STOPPER sewing machine part or accessory For Janome Models: | 846297002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Stopper plate sewing machine part or accessory For Janome Models: MC9900 , Necchi EX100, Necchi E... | 861072006 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Knee lifter stopper spring sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 ... | 858091001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Knee lifter stopper sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive... | 861154003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Hexagonal socket screw 5x10 sewing machine part or accessory For Janome Models: MC7700QCP, MC8900... | 000138503 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Snap ring 9mm sewing machine part or accessory For Janome Models: 531, MC6500P, MC6600P, MC7700QC... | 000002208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Knee lifter shaft arm sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressi... | 861066007 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Feed motor (unit) sewing machine part or accessory For Elna Models: EL680 | 861628209 | $84.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Feed balancing dial sewing machine part or accessory For Models: , MC9900 Horizon, MC15000 1500... | 859215006 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Hexagonal socket screw 4x4 WP sewing machine part or accessory For Janome Models: MC9900 , MC1500... | 000110200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 32 | | Automatic thread cutter (unit) sewing machine part or accessory For Janome Models: 9850 | 861631010 | $67.80Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Cord guide (Free arm) sewing machine part or accessory For Janome Models: Skyline S5 | 861077001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |

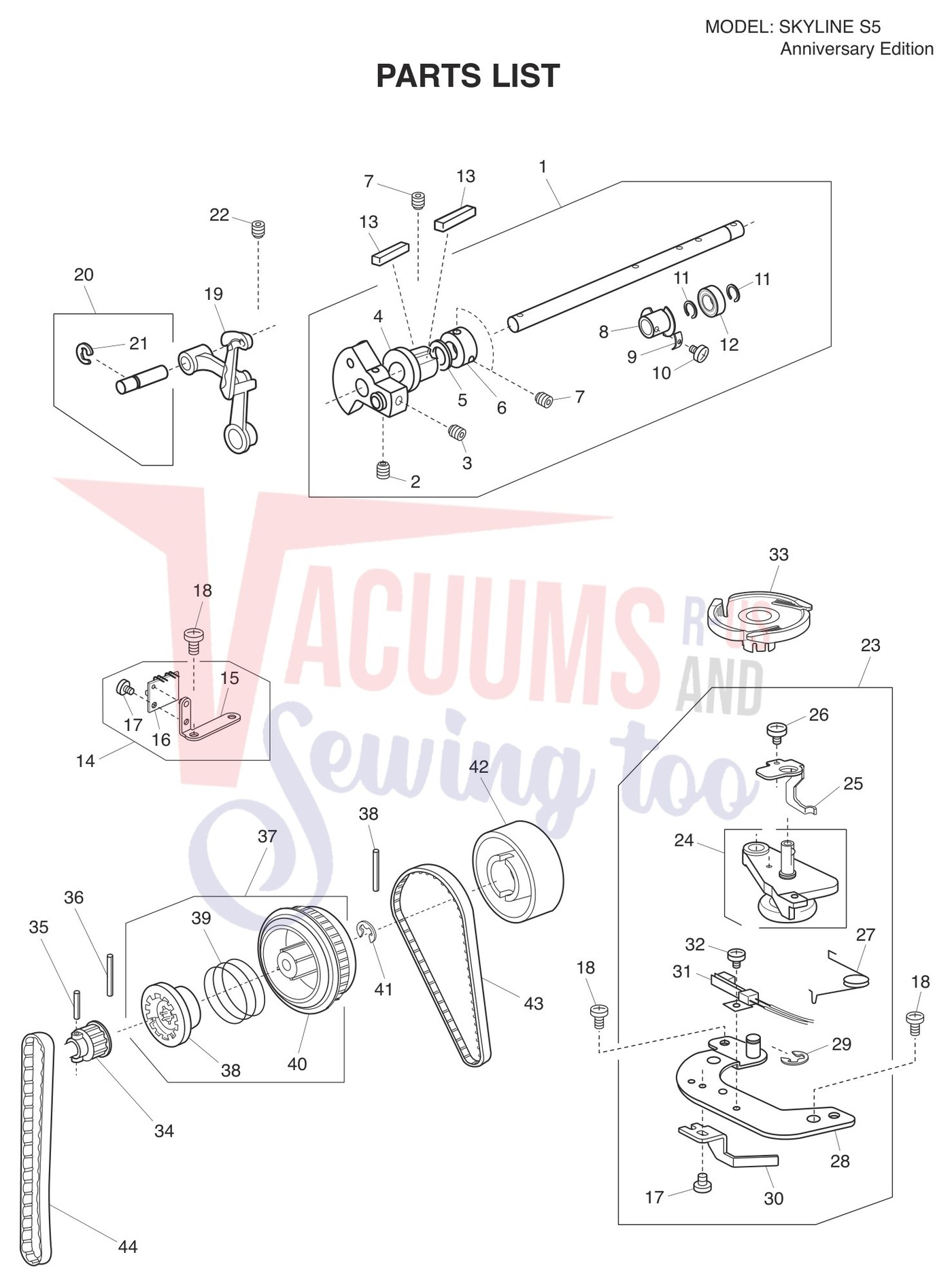

| # | Part image | Description | SKU | Price |
| 1 |  | Upper shaft (unit) sewing machine part or accessory For Janome Models: Skyline S5 | 861619104 | $48.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Upper shaft front bushing sewing machine part or accessory 670079201 Upper shaft front bushing | 670079201 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Washer sewing machine part or accessory 000040105 Washer | 000040105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Ring | 767077006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 8 |  | Upper shaft shield plate sewing machine part or accessory For Models: , MC9900 Horizon, EL900 ... | 859055006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Washer | 859033008 | $0.80Read more |
| 10 | | Set screw 3x10 sewing machine part or accessory For Janome Models: 134D, 234D, 434D, 534, 534D, D... | 000080406 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Snap ring 5103-46 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 000032702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Ball bearing 6901ZZ sewing machine part or accessory For Janome Models: Skyline S5 | 767178101 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Upper shaft sensor (unit) sewing machine part or accessory For Janome Models: Skyline S7 | 861620201 | $23.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Sensor set plate sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, S... | 861039001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Printed circuit board P (unit) sewing machine part or accessory 807505304 Printed circuit board P... | 807505304 | $19.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Pin Unit sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC300... | 650626001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Bobbin winder (unit) sewing machine part or accessory For Elna Models: EL680PLUS | 861636314 | $38.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Bobbin winder (unit) sewing machine part or accessory For Elna Models: EL710 | 861503034 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Clutch lever sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyli... | 861096006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Bobbin winder arm spring sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpre... | 861091001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Bobbin winder set plate sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpres... | 861092002 | $3.80Read more |
| 29 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Guide plate sewing machine part or accessory 861098008 Guide plate | 861098008 | $1.60Read more |
| 31 |  | Leaf switch (unit) sewing machine part or accessory For Janome Models: Skyline S5 | 856512203 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Setscrew 2.5x5 sewing machine part or accessory For Janome Models: MISS, 3160QDC, MC200E HF8050, ... | 000081706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Thread cutter holder (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eX... | 809619009 | $15.80Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | Upper Shaft Gear | 858052000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Spring pin 3x20 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC3... | 000004303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Belt wheel (unit) sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon ,... | 858647008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Clutch ring sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC820... | 858053001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | clutch spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 405, 4119 (QUIL... | 502065004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Belt wheel sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC8200... | 858054002 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Snap ring E-10 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000030009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Handwheel sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC8200 ... | 858055003 | $2.40Read more |
| 43 |  | Timing belt 178 sewing machine part or accessory For Janome Models: 550E | 846098104 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Timing belt 168 sewing machine part or accessory For Elna Models: EL680PLUS | 858118108 | $6.20Read more |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Feed Rock Shaft (Whole Unit) | 861625608 | $224.51Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Feed rock shaft (unit) sewing machine part or accessory 846629100 Feed rock shaft (unit) SKS3 | 846629100 | $45.77Read more |
| 3 |  | Hook race (unit) sewing machine part or accessory For Janome Models: Skyline S7 | 861626104 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Feed dog set base (unit) sewing machine part or accessory For Janome Models: 9410 | 859639103 | $40.97Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Feed dog sewing machine part or accessory 867033003 Feed dog | 867033003 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Feed base shaft sewing machine part or accessory 825099007 Feed base shaft | 825099007 | $2.99Read more |
| 8 |  | SOCKET SCREW 4X6 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, M... | 000111407 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Feed Base Spring | 825103005 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Drop plate sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC8200... | 858138001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 12 | | Threader spring sewing machine part or accessory For Janome Models: MC200E , MC8200 Horizon, Necc... | 661018008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 17 |  | Bobbin holder (unit) sewing machine part or accessory For Janome Models: Skyline S5 | 858570009 | $35.00Add to cart |
| 18 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Lower shaft (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive,... | 861621006 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Lower shaft sewing machine part or accessory 861040005 Lower shaft | 861040005 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Lower shaft gear sewing machine part or accessory 650073007 Lower shaft gear | 650073007 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Felt Holder (1) | 822112008 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Lower Shaft Supporter | 858058006 | $2.20Read more |
| 28 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Felt sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyline S5 | 861051009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Feed cam sewing machine part or accessory For Janome Models: MC6600P, MC7700QCP, MC8900 Horizon ,... | 846379009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Set screw with flange 3X14 sewing machine part or accessory For Janome Models: 6260QC, 712T, DC40... | 000149600 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Lower shaft gear (unit) sewing machine part or accessory For Elna Models: EL680PLUSA | 863663006 | $4.80Read more |
| 33 |  | Lower shaft gear sewing machine part or accessory For Janome Models: NQM2016 | 808137005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Feed lifting cam 6500p 6500 sewing machine part or accessory For Janome Models: 3160QDC, MC11000,... | 846103000 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Feed lifting cam spring sewing machine part or accessory 825093001 Feed lifting cam spring | 825093001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Lower shaft ring (unit) sewing machine part or accessory 820672005 Lower shaft ring (unit) | 820672005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Lower Shaft Bushing (Front) | 858060001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Lower shaft washer sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive,... | 858177002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Feed shaft (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, ... | 861627002 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Feed shaft sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyline S5 | 861048003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Feed arm (1) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyli... | 858129009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Feed arm (2) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Skyli... | 858130003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | Spring washer sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 6... | 810207004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Setscrew 3x10 sewing machine part or accessory For Janome Models: 1100D, 1200D, 6125QC , MC9900 H... | 000201302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | BH feed adjusting spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 589040002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

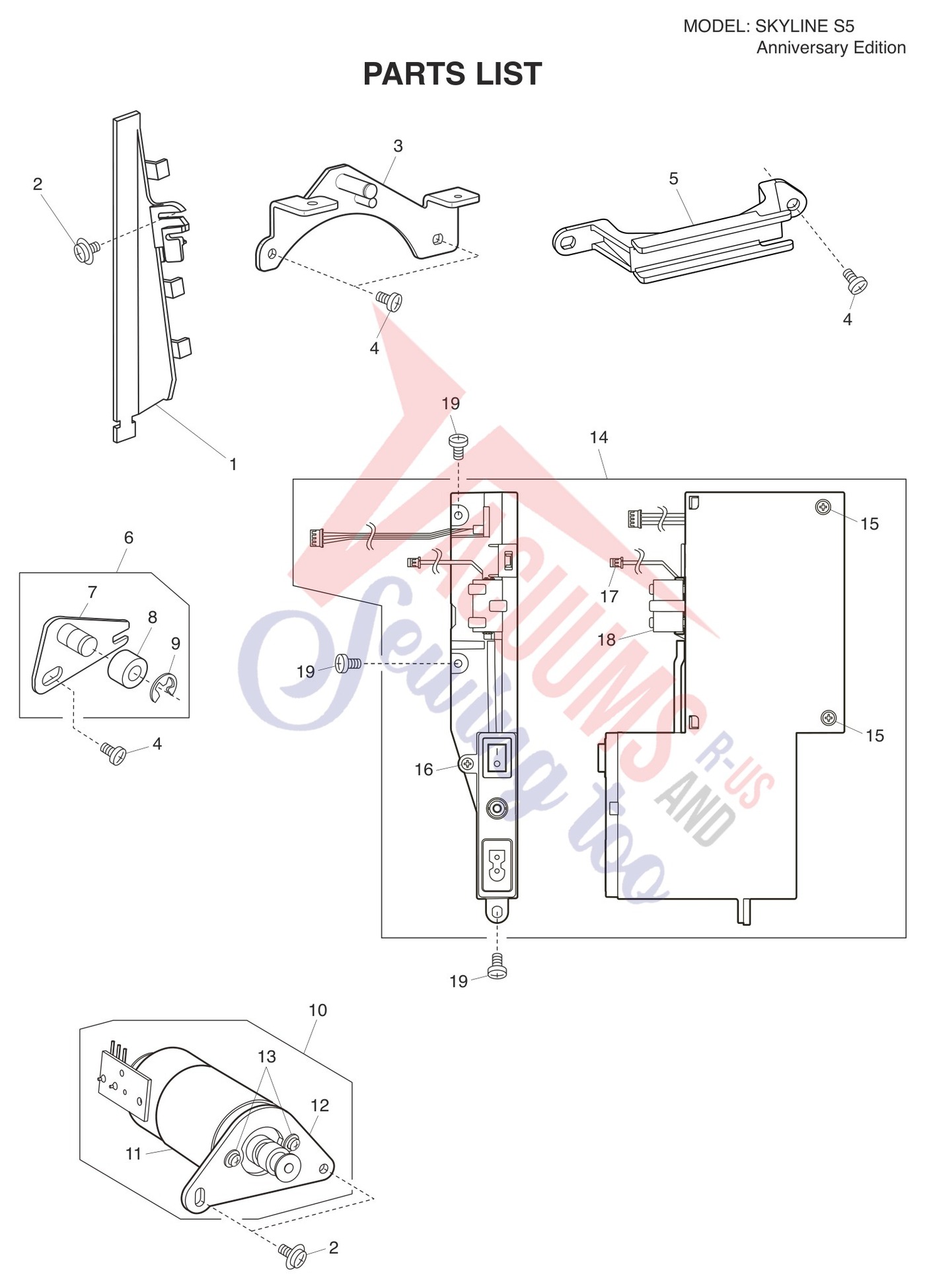

| # | Part image | Description | SKU | Price |
| 1 | | Cord guide plate sewing machine part or accessory For Janome Models: MC9900 , EL900 eXpressive, E... | 858145012 | $4.20Read more |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Carrying handle supporter (rear) sewing machine part or accessory For Janome Models: SKS3AE | 863185009 | $10.45Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Cord guide sewing machine part or accessory For Janome Models: SKS3AE | 861168000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Idler base (unit) sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC7700Q... | 860608004 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Idler base sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC7700QCP, MC8... | 860021007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | DC motor (unit) sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive, Sk... | 858639100 | $80.00Read more |
| 11 | Not Available | DC motor (unit) | 843518807 | Not Available |
| 12 | | DC moter set plate sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon ... | 858117004 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Switching pwr supply(JAI/JCA) sewing machine part or accessory For Janome Models: Skyline S5 | 863612103 | $203.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000119704 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | TRS connector cord (U.S.A.) (Canada) sewing machine part or accessory For Janome Models: Skyline S3 | 863505102 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Ferrite core sewing machine part or accessory For Janome Models: MC15000 Horizon, EL860 eXpressive | 808108007 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
