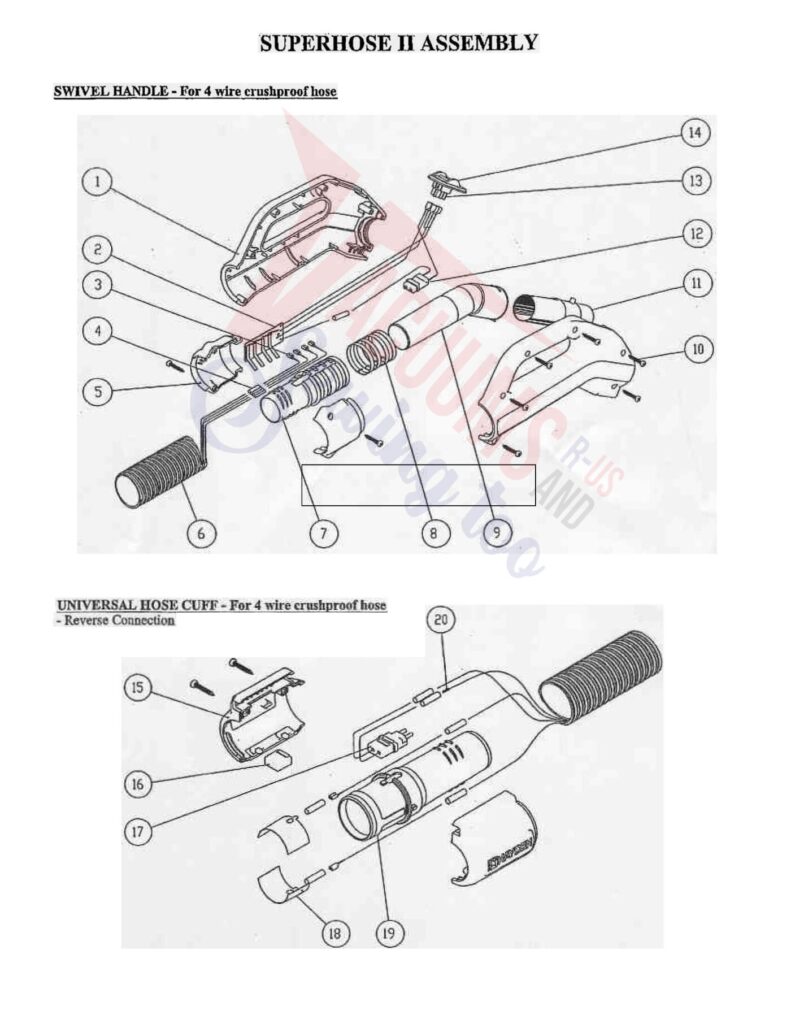

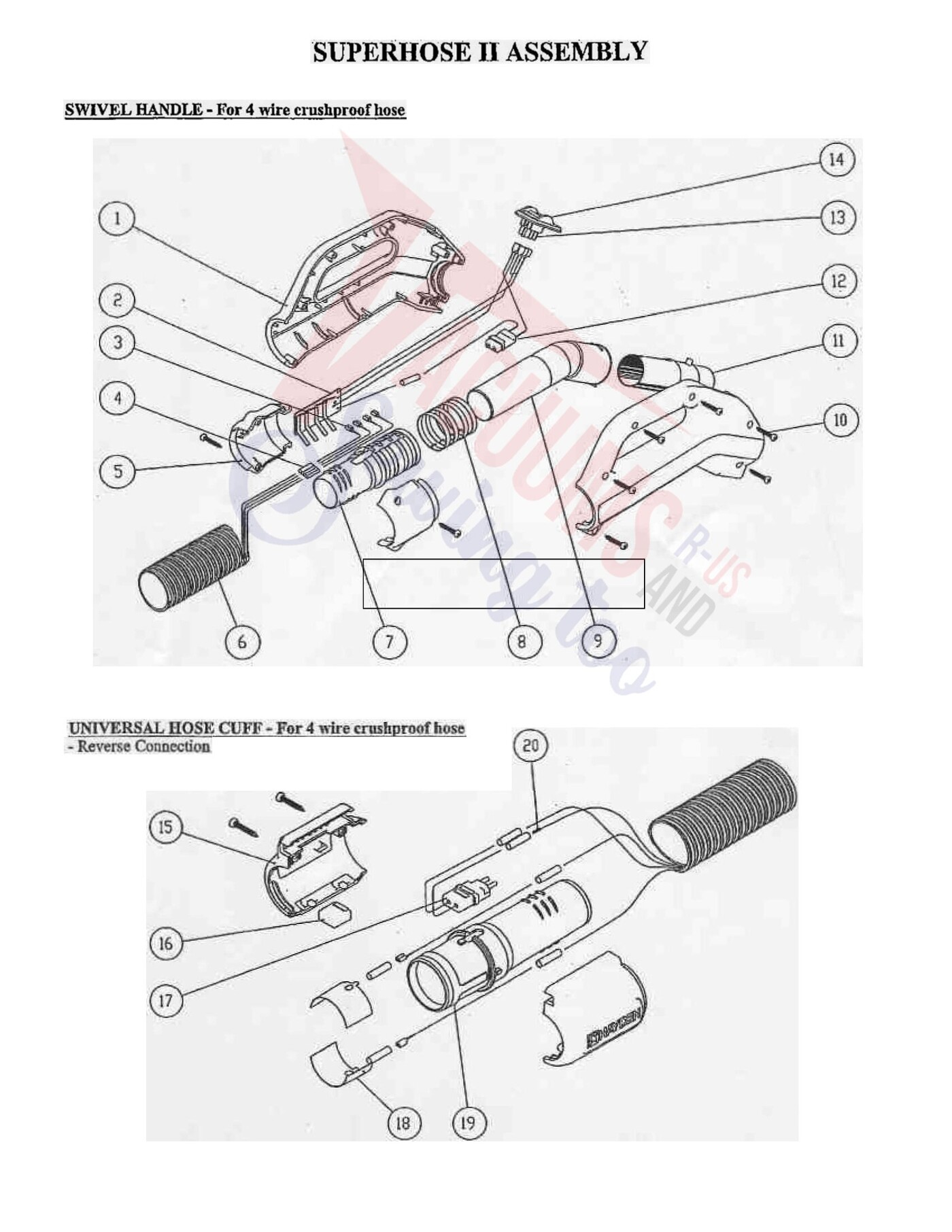

Schematic and parts book for Hayden Super Hose II, superhose2, super hose 2 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 4 | Not Available | SUPERHOSE INSULATION 3/16" OD CUT 11 | 9003-00-CUT | Not Available |
| 8 | Not Available | BRASS CIRCULAR CONTACT 4 | 4226-00-SV | Not Available |
| 10 | Not Available | SCREW -*6' x 3/4" - SUPERHOSE HANDLE 10 | 9000-00 | Not Available |
| 11 | Not Available | STUB TUBE WHIRLPOOL CHROME 1 | 9081-00-WP | Not Available |
| 18 | Not Available | METAL CONTACT PLATE | 4227-00-SV | Not Available |
| 20 | Not Available | 7AFUSE 1 | 9046-00 | Not Available |
