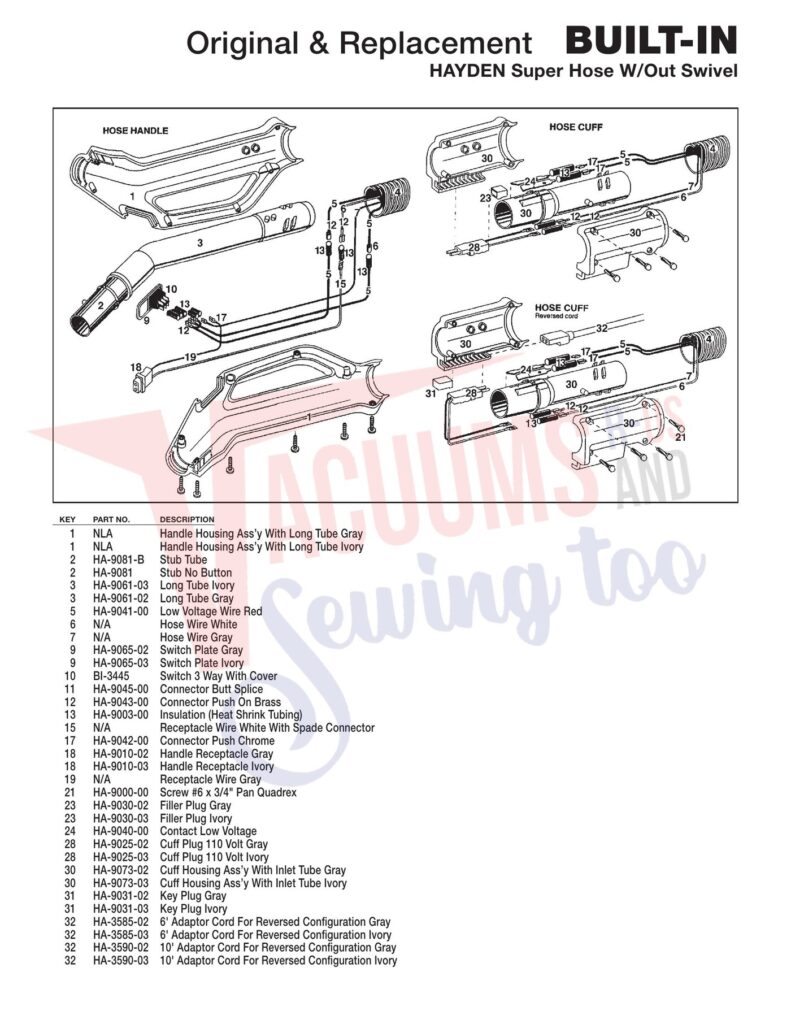

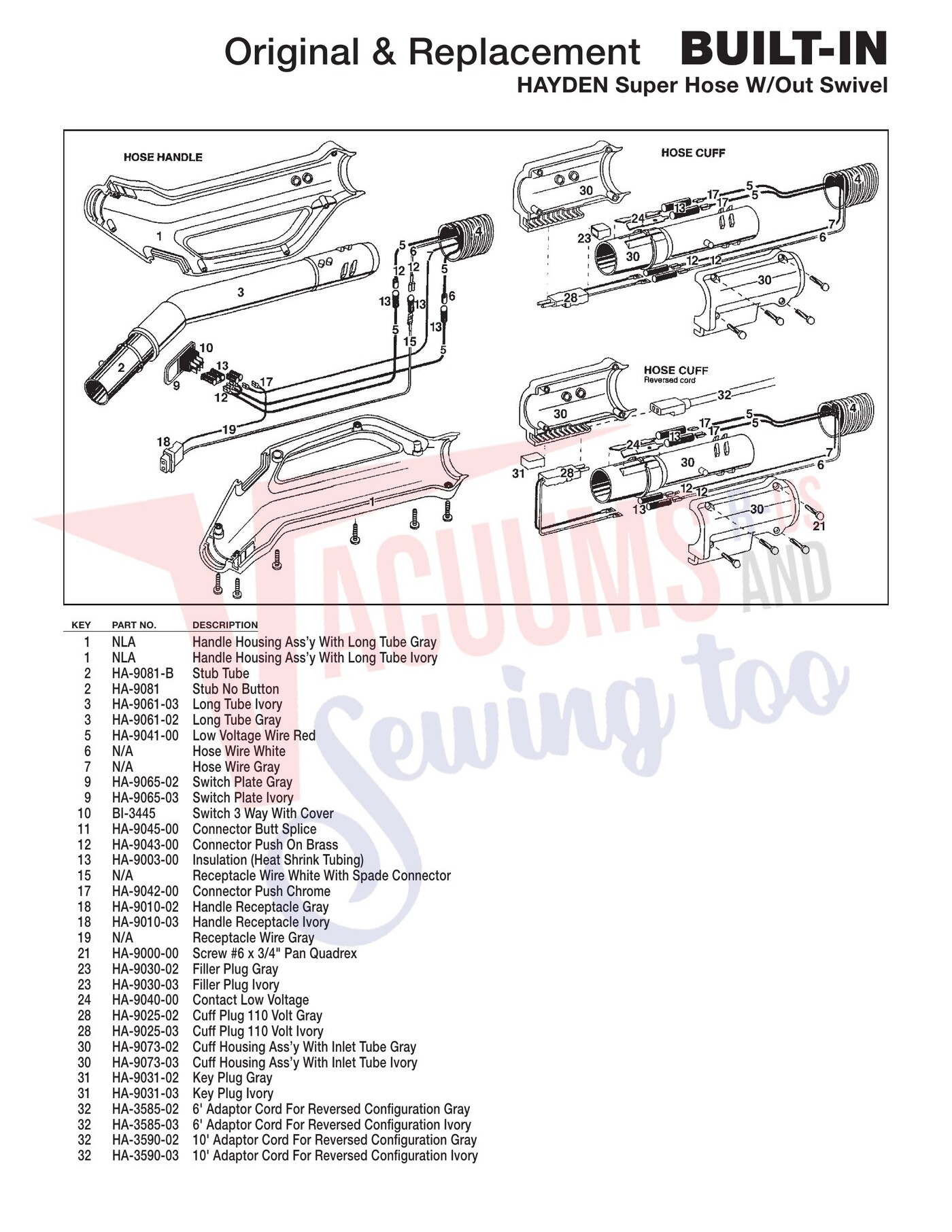

Schematic and parts book for Hayden Ha-9081-B, Ha-9081 Super hose w/Out Swivel. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Housing ass’y With long tube gray | NLA | Not Available |
| 1 | Not Available | Handle Housing ass’y With long tube ivory | NLA | Not Available |
| 2 | Not Available | stub tube | 9081-B | Not Available |
| 2 | Not Available | stub no Button | 9081 | Not Available |
| 3 | Not Available | long tube ivory | 9061-03 | Not Available |
| 3 | Not Available | long tube gray | 9061-02 | Not Available |
| 5 | Not Available | low Voltage Wire Red | 9041-00 | Not Available |
| 6 | Not Available | Hose Wire White | N/A | Not Available |
| 7 | Not Available | Hose Wire gray | N/A | Not Available |
| 9 | Not Available | switch plate gray | 9065-02 | Not Available |
| 9 | Not Available | switch plate ivory | 9065-03 | Not Available |
| 10 | Not Available | switch 3 Way With cover | BI-3445 | Not Available |
| 11 | Not Available | connector Butt splice | 9045-00 | Not Available |
| 12 | Not Available | connector push on Brass | 9043-00 | Not Available |
| 13 | Not Available | insulation (Heat shrink tubing) | 9003-00 | Not Available |
| 15 | Not Available | Receptacle Wire White With spade connector | N/A | Not Available |
| 17 | Not Available | connector push chrome | 9042-00 | Not Available |
| 18 | Not Available | Handle Receptacle gray | 9010-02 | Not Available |
| 18 | Not Available | Handle Receptacle ivory | 9010-03 | Not Available |
| 19 | Not Available | Receptacle Wire gray | N/A | Not Available |
| 21 | Not Available | screw #6 x 3/4" pan Quadrex | 9000-00 | Not Available |
| 23 | Not Available | filler plug gray | 9030-02 | Not Available |
| 23 | Not Available | filler plug ivory | 9030-03 | Not Available |
| 24 | Not Available | contact low Voltage | 9040-00 | Not Available |
| 28 | Not Available | cuff plug 110 Volt gray | 9025-02 | Not Available |
| 28 | Not Available | cuff plug 110 Volt ivory | 9025-03 | Not Available |
| 30 | Not Available | cuff Housing ass’y With inlet tube gray | 9073-02 | Not Available |
| 30 | Not Available | cuff Housing ass’y With inlet tube ivory | 9073-03 | Not Available |
| 31 | Not Available | Key plug gray | 9031-02 | Not Available |
| 31 | Not Available | Key plug ivory | 9031-03 | Not Available |
| 32 | Not Available | 6' adaptor cord for Reversed configuration gray | 3585-02 | Not Available |
| 32 | Not Available | 6' adaptor cord for Reversed configuration ivory | 3585-03 | Not Available |
| 32 | Not Available | 10' adaptor cord for Reversed configuration gray | 3590-02 | Not Available |
| 32 | Not Available | 10' adaptor cord for Reversed configuration ivory | 3590-03 | Not Available |
