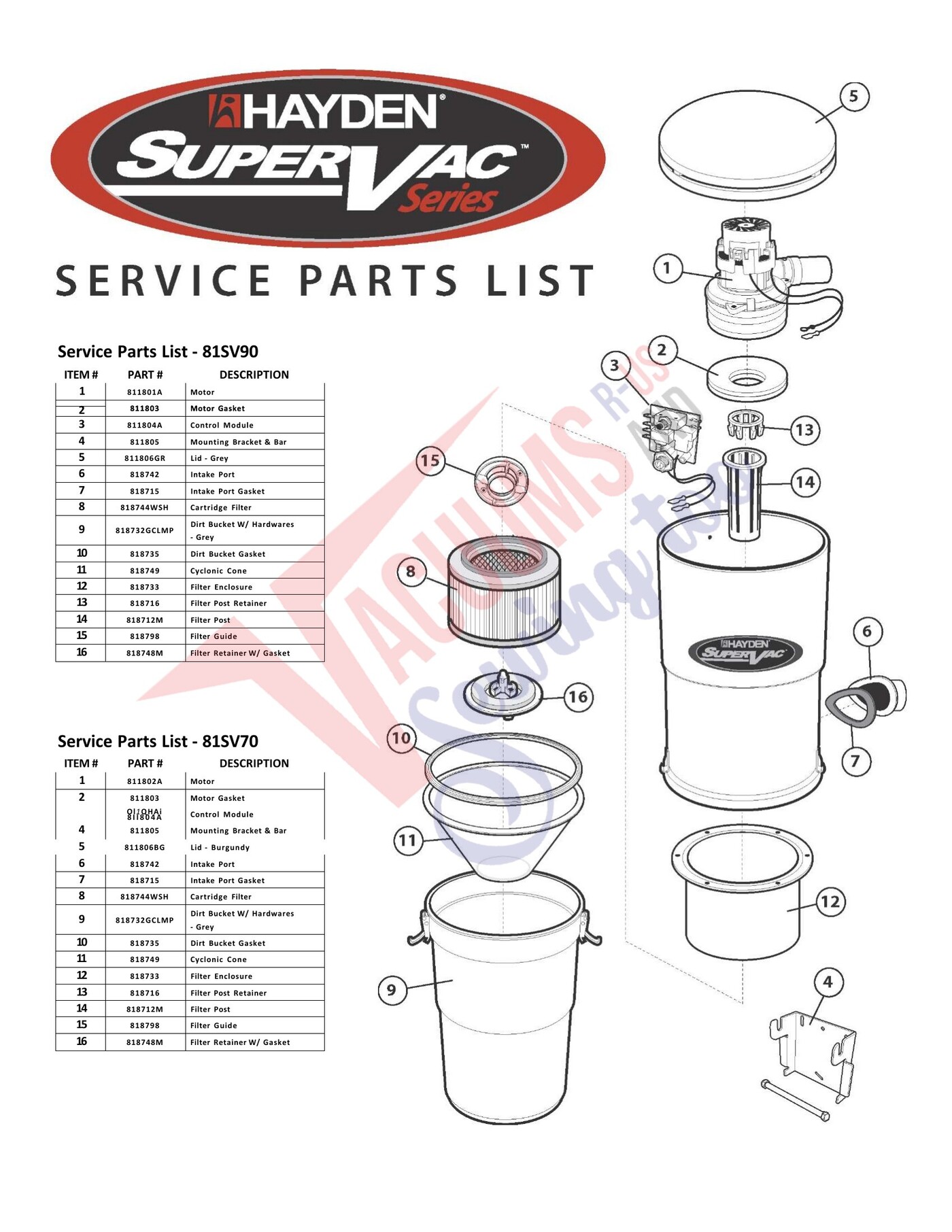

Schematic and parts book for Hayden 81SV90 Super Vac. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor | 811801A | Not Available |
| 1 | Not Available | Motor | 811802A | Not Available |
| 2 | Not Available | MMoottoorr GGaasskkeett | 881111880033 | Not Available |
| 2 | Not Available | Motor Gasket | 811803 | Not Available |
| 3 | Not Available | Control Module | 811804A | Not Available |
| 4 | Not Available | Mounting Bracket & Bar | 811805 | Not Available |
| 4 | Not Available | Mounting Bracket & Bar | 811805 | Not Available |
| 5 | Not Available | Lid - Grey | 811806GR | Not Available |
| 5 | Not Available | Lid - Burgundy | 811806BG | Not Available |
| 6 | Not Available | Intake Port | 818742 | Not Available |
| 6 | Not Available | Intake Port | 818742 | Not Available |
| 7 |  | Canplas - Hayden Gasket Intake Port-hayden Central Vac | 818715 | $5.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Cartridge Filter | 818744WSH | Not Available |
| 8 | | Canplas - Hayden Gasket Intake Port-hayden Central Vac | 818715 | $5.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Cartridge Filter | 818744WSH | Not Available |
| 9 | Not Available | Dirt Bucket W/ Hardwares | 818732GCLMP | Not Available |
| 10 | Not Available | Dirt Bucket W/ Hardwares | 818732GCLMP | Not Available |
| 10 | Not Available | Dirt Bucket Gasket | 818735 | Not Available |
| 10 | Not Available | Dirt Bucket Gasket | 818735 | Not Available |
| 11 | Not Available | Cyclonic Cone | 818749 | Not Available |
| 11 | Not Available | Cyclonic Cone | 818749 | Not Available |
| 12 | Not Available | Filter Enclosure | 818733 | Not Available |
| 12 | Not Available | Filter Enclosure | 818733 | Not Available |
| 13 |  | Canplas - Hayden Retainer Filter Post Hayden Central Vac | 818716 | $4.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | | Canplas - Hayden Retainer Filter Post Hayden Central Vac | 818716 | $4.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Filter Post | 818712M | Not Available |
| 14 | Not Available | Filter Post | 818712M | Not Available |
| 15 |  | Canplas - Hayden Filter Guide-hayden 81sv90 Central Vac | 818798 | $6.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Canplas - Hayden Filter Guide-hayden 81sv90 Central Vac | 818798 | $6.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Filter Retainer W/ Gasket | 818748M | Not Available |
| 16 | Not Available | Filter Retainer W/ Gasket | 818748M | Not Available |
