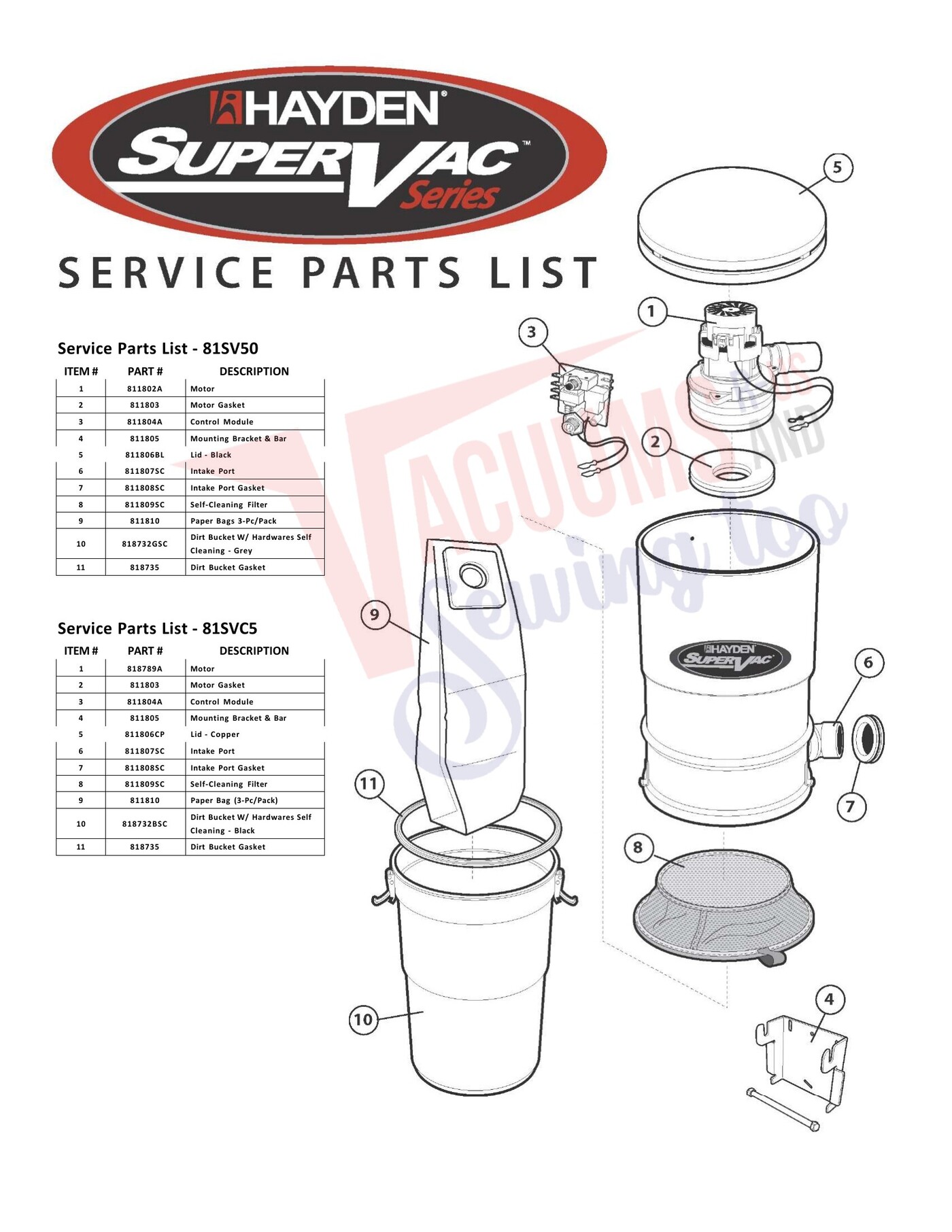

Schematic and parts book for Hayden 81SV50 Super Vac. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor | 811802A | Not Available |
| 1 | Not Available | Motor | 818789A | Not Available |
| 2 | Not Available | Motor Gasket | 811803 | Not Available |
| 2 | Not Available | Motor Gasket | 811803 | Not Available |
| 3 | Not Available | Control Module | 811804A | Not Available |
| 3 | Not Available | Control Module | 811804A | Not Available |
| 4 | Not Available | Mounting Bracket & Bar | 811805 | Not Available |
| 4 | Not Available | Mounting Bracket & Bar | 811805 | Not Available |
| 5 | Not Available | Lid - Black | 811806BL | Not Available |
| 5 | Not Available | Lid - Copper | 811806CP | Not Available |
| 6 | Not Available | Intake Port | 811807SC | Not Available |
| 6 | Not Available | Intake Port | 811807SC | Not Available |
| 7 | Not Available | Intake Port Gasket | 811808SC | Not Available |
| 7 | Not Available | Intake Port Gasket | 811808SC | Not Available |
| 8 | Not Available | Self-Cleaning Filter | 811809SC | Not Available |
| 8 | Not Available | Self-Cleaning Filter | 811809SC | Not Available |
| 9 | Not Available | Paper Bags 3-Pc/Pack | 811810 | Not Available |
| 9 | Not Available | Paper Bag (3-Pc/Pack) | 811810 | Not Available |
| 10 | Not Available | Dirt Bucket W/ Hardwares Self | 818732GSC | Not Available |
| 10 | Not Available | Dirt Bucket W/ Hardwares Self | 818732BSC | Not Available |
| 11 | Not Available | Dirt Bucket Gasket | 818735 | Not Available |
| 11 | Not Available | Dirt Bucket Gasket | 818735 | Not Available |
