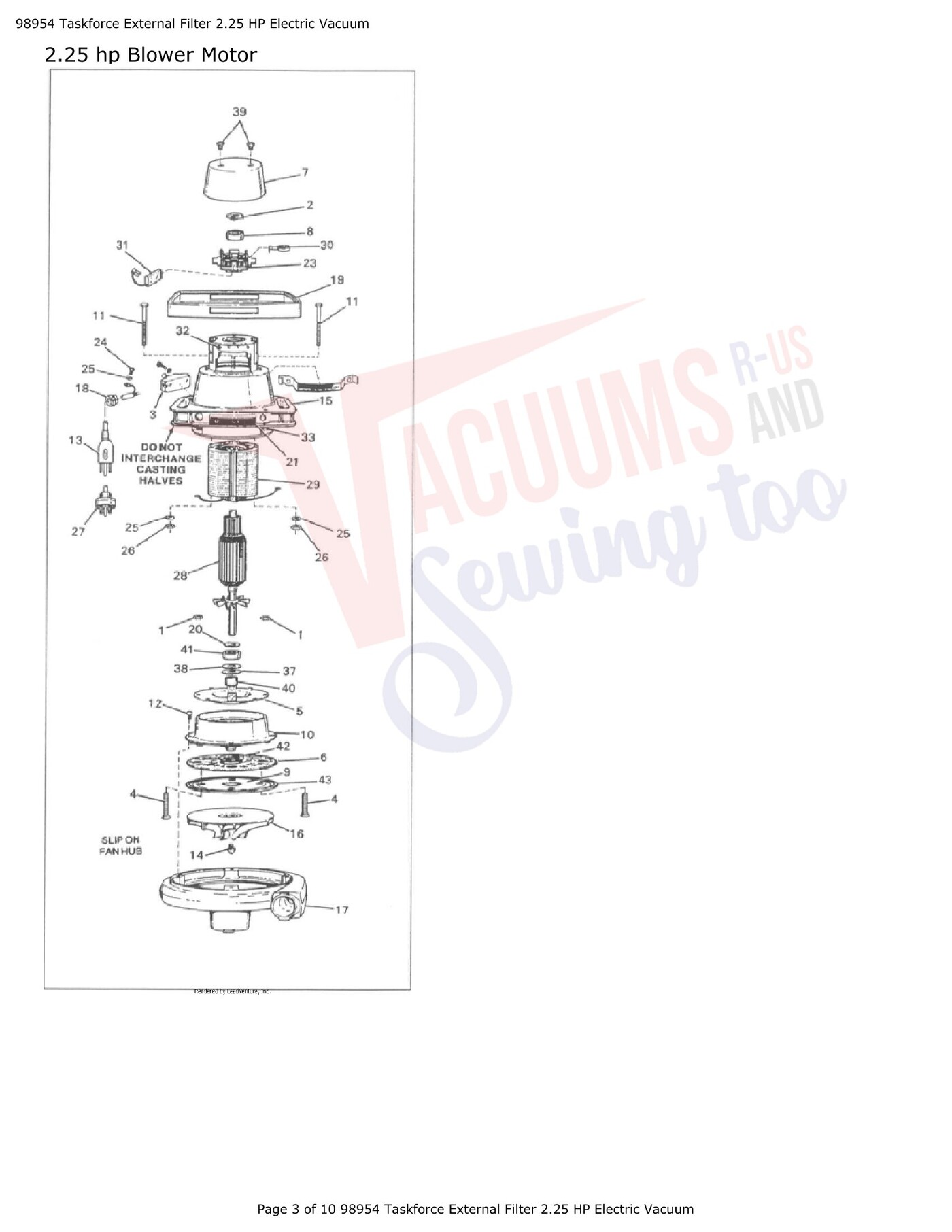

Schematic and parts book for Grainger 98954 Taskforce . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Nut | 00940 | $0.00Read more |
| Not Shown | No Image | Nut (Holds Switch To Handle) | 05773 | $0.00Read more |
| Not Shown | No Image | Brush Spring | 11570 | $0.00Read more |
| Not Shown |  | GASKET, PAD BRUSH CARD | 13022 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown | No Image | Brush Holder | 11250 | $0.00Read more |
| 1 | No Image | Nut Hex Lock P/T 1/4 20 | 07533 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Spring | 07858 | $0.00Read more |
| 3 | Not Available | Switch | 08516 | Not Available |
| 4 | No Image | Screw 1/4-20 X 2" | 11197 | $0.00Read more |
| 5 | No Image | Cooling Fan Baffle | 11198 | $0.00Read more |
| 6 | No Image | Fiberglass Pad | 11199 | $0.00Read more |
| 7 | Not Available | Blower Top Cover | 12436 | Not Available |
| 8 | Not Available | Bearing | 11236 | Not Available |
| 9 | No Image | Fan Chamber Plate | 11237 | $0.00Read more |
| 10 | No Image | Cover Plate | 12644 | $0.00Read more |
| 11 | No Image | Screw #10-24 X 1/2" | 11239 | $0.00Read more |
| 12 | No Image | Screw #10-24 X 1/2" | 11240 | $0.00Read more |
| 13 | No Image | CABLE PWR.CRD.ASSY(115V) | 11241 | $83.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Fan Spinner | 11242 | Not Available |
| 15 | Not Available | Motor Housing | 11243 | Not Available |
| 16 | No Image | Fan with Straight Blades | 12692B | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Black Fan Chamber | 12614 | $0.00Read more |
| 18 | Not Available | Strain Relief Bushing | 11252 | Not Available |
| 19 | Not Available | Bumper | 11253 | Not Available |
| 20 | Not Available | Washer | 14322 | Not Available |
| 21 | No Image | Label, NAMEPLATE | 11900 | $4.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Brush Card S/A | 11278 | Not Available |
| 24 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 25 | Not Available | Lock Washer | 01713 | Not Available |
| 26 |  | Nut Hex.Lock #10, 24 Part Number 10892 for Cleanmax Models CM-WAV | 10892 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Male Plug 115VAC | 08220 | Not Available |
| 28 | No Image | Armature 2.25 Hp | 11255 | $0.00Read more |
| 29 | No Image | Field, Blower 2.25HP 120V 50-60Hz 15A(98900) | 11256 | $271.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Spring, Spiral Brush | 11249 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | Brush Carbon 1 Per 98900 | 11251 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | SCREW PHIL. PAN HD TAPT 1/4 20 X 1 1/2 (ZP) | 11245 | $24.99Read more |
| 33 | No Image | Screw 1/4-20 X 1" | 11244 | $0.00Read more |
| 37 | No Image | Felt Washer | 12602 | $0.00Read more |
| 38 | No Image | Split Washer | 12603 | $0.00Read more |
| 39 | No Image | Screw 1/4-20 X 3/8" | 12439 | $0.00Read more |
| 40 | No Image | Spacer | 12601 | $0.00Read more |
| 41 | Not Available | Bearing | 11236 | Not Available |
| 42 | No Image | Gasket | 11555 | $0.00Read more |
| 43 | No Image | Gasket No X 142 Channel 21 | 11563 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

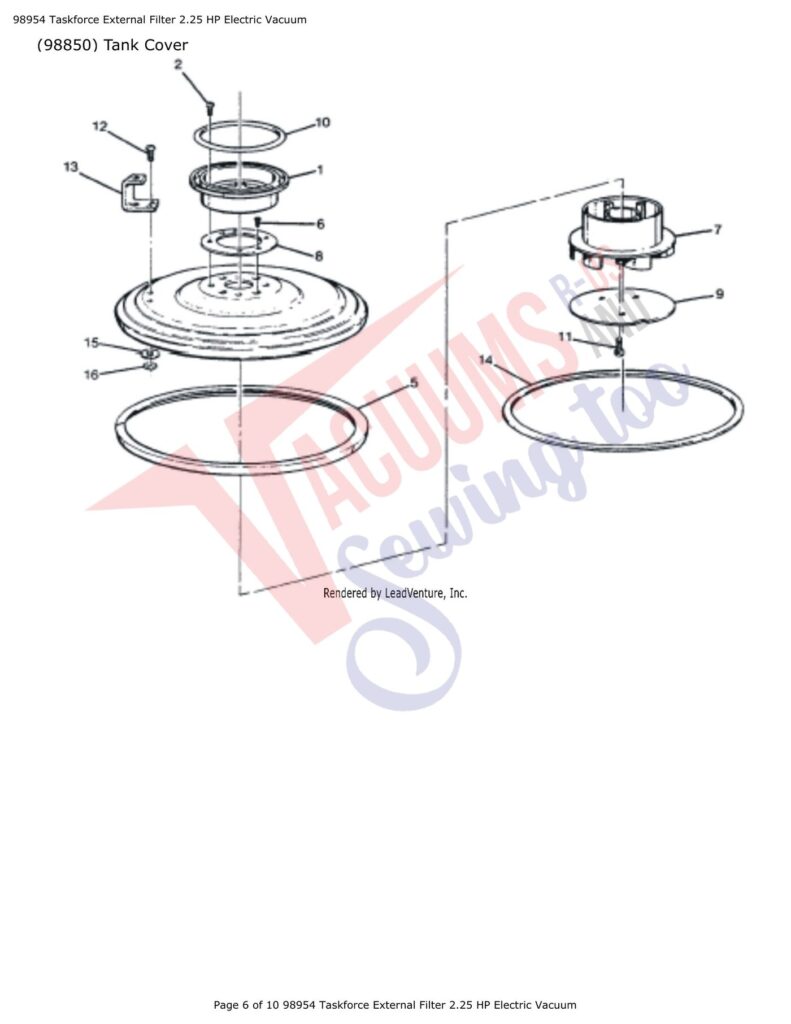

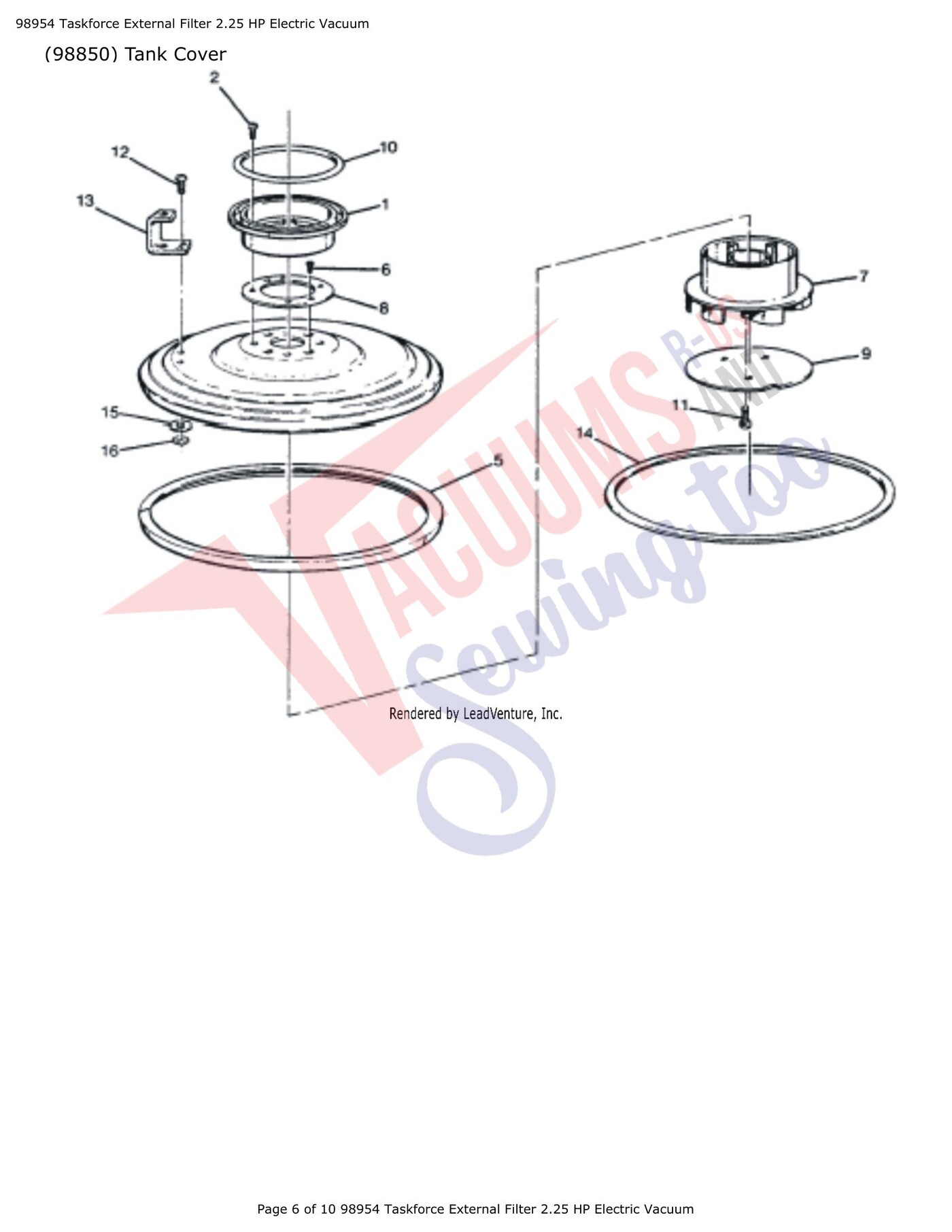

| # | Part image | Description | SKU | Price |
| 1 | No Image | Adapter | 14415 | $53.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | SCREW PHIL. RND HD MACH 1/4 20 X 7/8 (NICK) | 02053 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Cover, Tank Cover Jumbo Vac | 13831 | $634.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Bumper, Tank Cover Taskforce | 11700 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | SCREW PHIL. FLAT HD TAPT No 10 24 X 5/8 (ZP) | 11394 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Intake, Guide Jumbo Vac | 11358 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | GASKET | 11386 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Plate | 12300 | $0.00Read more |
| 10 | No Image | Gasket, Black (PVC) 5 Dia. X .46 Dia. | 08004 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | SCREW 10-16x5/8 PANHD TCT BT | 11390 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Screw Rnd Hd PH Machine 1/4 20x1/2 ZP | 00086 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Bracket | 11414 | $0.00Read more |
| 14 | No Image | GASKET | 11356 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Washer Sealing 1/4 | 07741 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Nut Hex Lock P/T 1/4 20 | 07533 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

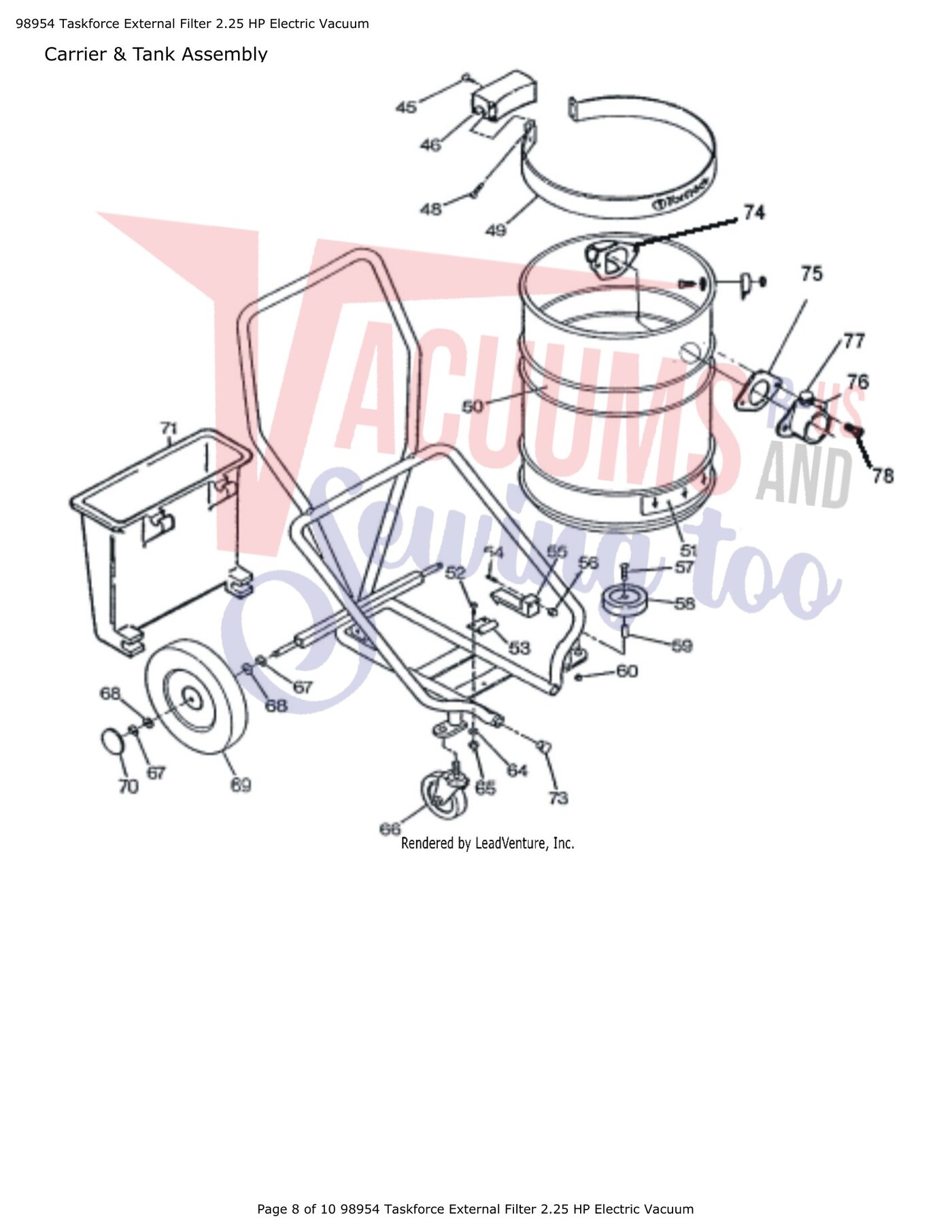

| # | Part image | Description | SKU | Price |
| XX | No Image | Tube Plug 1" | 17784 | $0.00Read more |
| 18 | No Image | TANK ASSEMBLY TASKFORCE 18 GAL.(SS)EXTERNAL VACS | 92650 | $449.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 46 | No Image | Pet Hair Eraser Cordless Hand Vacuum | 17823 | $107.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 |  | SCREW-SOCKET HD CAP #10-32 x 1-1/4 Part Number 11733 for Simplicity Models SCE | 11733 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | Tank Strap | 18722 | $0.00Read more |
| 50 | No Image | Tornado Decal Strip W/Logo | 11898 | $0.00Read more |
| 51 | No Image | Enamel Touch-Up White 8Ml | 14676 | $42.00Read more |
| 52 | No Image | Screw #10-24 X 7/16" | 03660 | $0.00Read more |
| 53 |  | KIT TANK LATCH REPLACEMENT | 18754 | $74.99Read more |
| 54 | No Image | Set Screw #10-24 X 1/2" | 16316 | $0.00Read more |
| 55 | | KIT TANK LATCH REPLACEMENT | 18754 | $74.99Read more |
| 56 | No Image | Acorn Nut | 02167 | $0.00Read more |
| 57 | Not Available | Screw 1/4-20 x 1-1/2" | 01978 | Not Available |
| 58 | No Image | Wheel Bumper 3 x 7/8 Grey | 30044 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 |  | SPACER 1/4 | 17400 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | No Image | Nut Hex Lock P/T 1/4 20 | 07533 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | No Image | Washer | 00696 | $0.00Read more |
| 65 | No Image | Nut | 10594 | $0.00Read more |
| 66 |  | Caster 4in Swivel | 17373 | $62.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 |  | Ring Retaining Ext E 1/2 Heavy Duty | 03470 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | No Image | Washer | 16581 | $0.00Read more |
| 69 | No Image | Wheel 10 Black Hub | 02661 | $98.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 |  | CAP HUB | 03084 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 71 | No Image | Tool Basket | 17817 | $0.00Read more |
| 73 | No Image | Tube Plug 1" | 17784 | $0.00Read more |
| 74 |  | Deflector Intake | 02916 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 |  | GASKET | 02915 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 76 | No Image | Tank Intake | 02914 | $0.00Read more |
| 77 |  | LOCK | 08080 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 78 | No Image | Screw Oval PH HD Machine 1/4 20x3/4 SS | 00064 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
