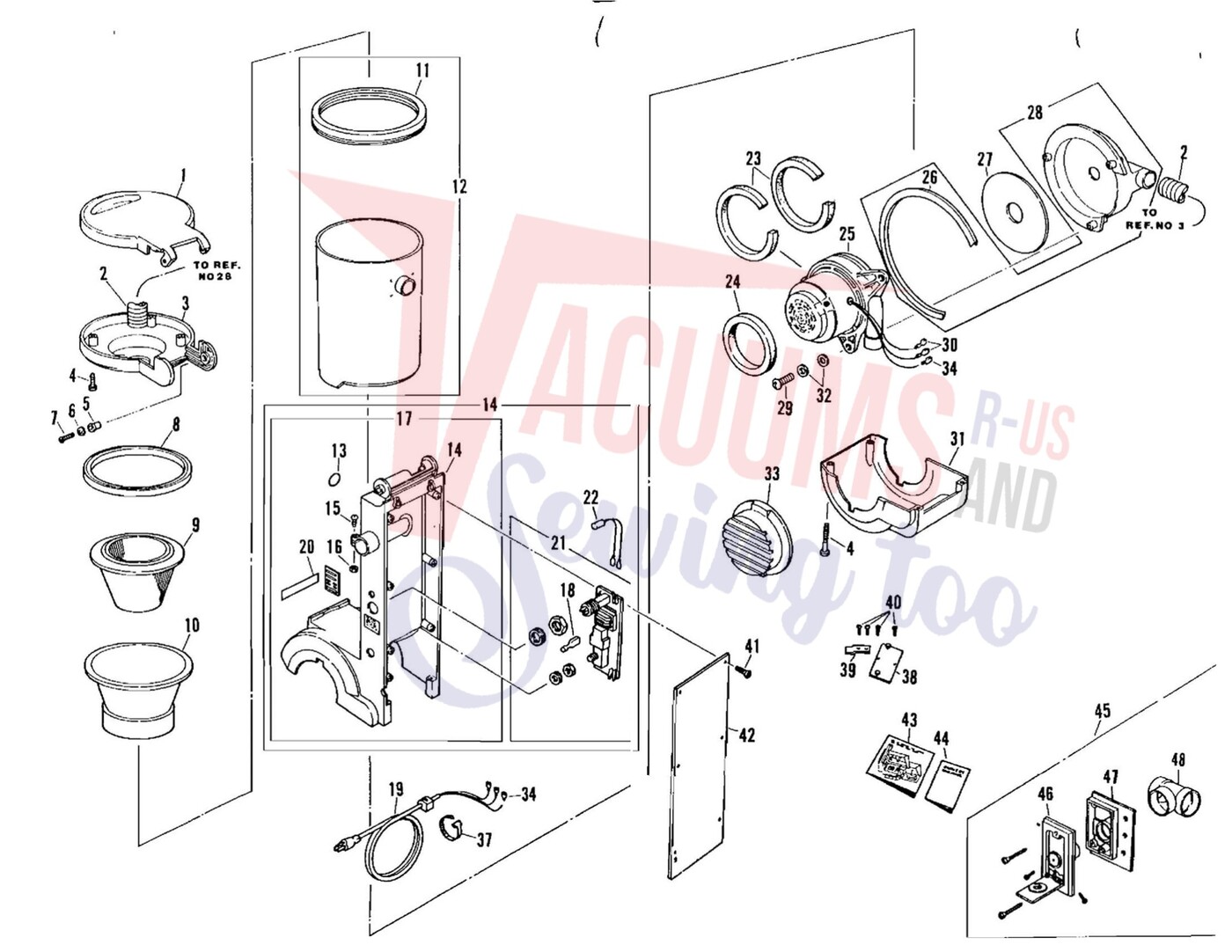

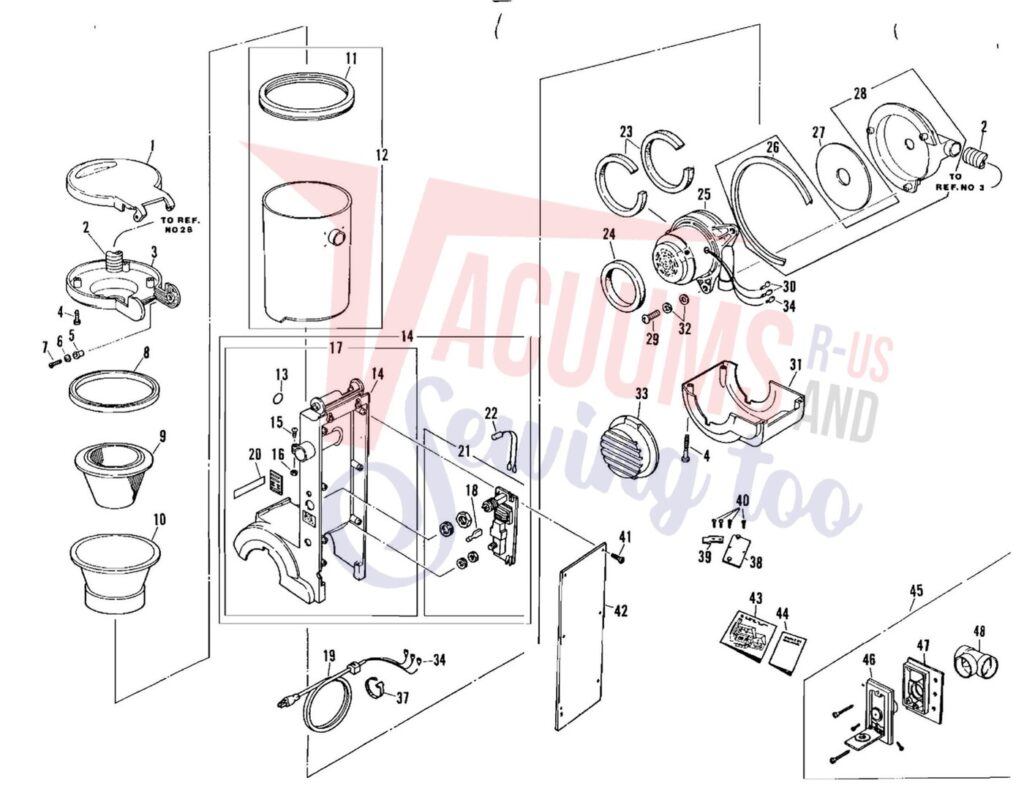

Schematic and parts book for Filter Queen v3000 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 2 | Not Available | 38" FlexHe Hose | VQIP7-B | Not Available |
| 4 | Not Available | Screw | VQ-24 | Not Available |
| 5 | Not Available | Spacer | 107278 | Not Available |
| 7 | Not Available | Screw | 1100634 | Not Available |
| 9 | Not Available | FX-Filler Assembly | GR-10404 | Not Available |
| 10 | Not Available | DH Separator | GX-110770 | Not Available |
| 11 | Not Available | DvtContamer Gasket | VQ-41 | Not Available |
| 12 | Not Available | DH Contamer Assembly | GR-VI1040C | Not Available |
| 13 | Not Available | "0" Riig | VQ-19 | Not Available |
| 14 | Not Available | Complete Upper Body Assembly | GR-11025-G | Not Available |
| 15 | Not Available | Hex Bolt | VQ-17 | Not Available |
| 16 | Not Available | Hex Nut • | VQ-18 | Not Available |
| 17 | Not Available | Upper Body Assembly (Gray) | GR-1025G | Not Available |
| 18 | Not Available | 1/4' CMck Connector | VQ-03 | Not Available |
| 19 | Not Available | Power Cord | VQ-18-C | Not Available |
| 20 | Not Available | Housing Label V-3000 | V-110706D | Not Available |
| 21 | Not Available | Control Power Module 120 Volts | 110302 | Not Available |
| 22 | Not Available | 24 Volt bvfcator Light | 100835 | Not Available |
| 23 | Not Available | Motor Mouit Sti%} Gasket | VQ-02 | Not Available |
| 25 | Not Available | C.V. Motor Ametek #116507 | GR-11008 | Not Available |
| 26 | Not Available | : Channel Gasket | VQ-05 | Not Available |
| 27 | Not Available | Gasket for 7.20" Dia Motor | GX-110279 | Not Available |
| 28 | Not Available | 720" Dia. Motor Mouit Assembly | GR-QP-11016-A | Not Available |
| 30 | Not Available | Connector | VQ-03-A | Not Available |
| 32 | Not Available | Washer | VQ-06 | Not Available |
| 34 | Not Available | Wire Jont | VQ-32 | Not Available |
| 37 | Not Available | Cable tie | VQ-08 | Not Available |
| 38 | Not Available | C.V. Mouibig Plate Assembly | GR-10614 | Not Available |
| 39 | Not Available | C.V. Sifiport Bracket | 100310 | Not Available |
| 41 | Not Available | Screw | 317194 | Not Available |
| 43 | Not Available | bistalation Manual | V-110139 | Not Available |
| 44 | Not Available | Vacu-Queen Owners Manual | VQ-110956 | Not Available |
| 45 | Not Available | AuxSary Het Kit | GR-11049-A | Not Available |
| 46 | Not Available | Het Valve Watte | VQ-92-W | Not Available |
| 47 | Not Available | Mouibig Plate | VQ-91 | Not Available |

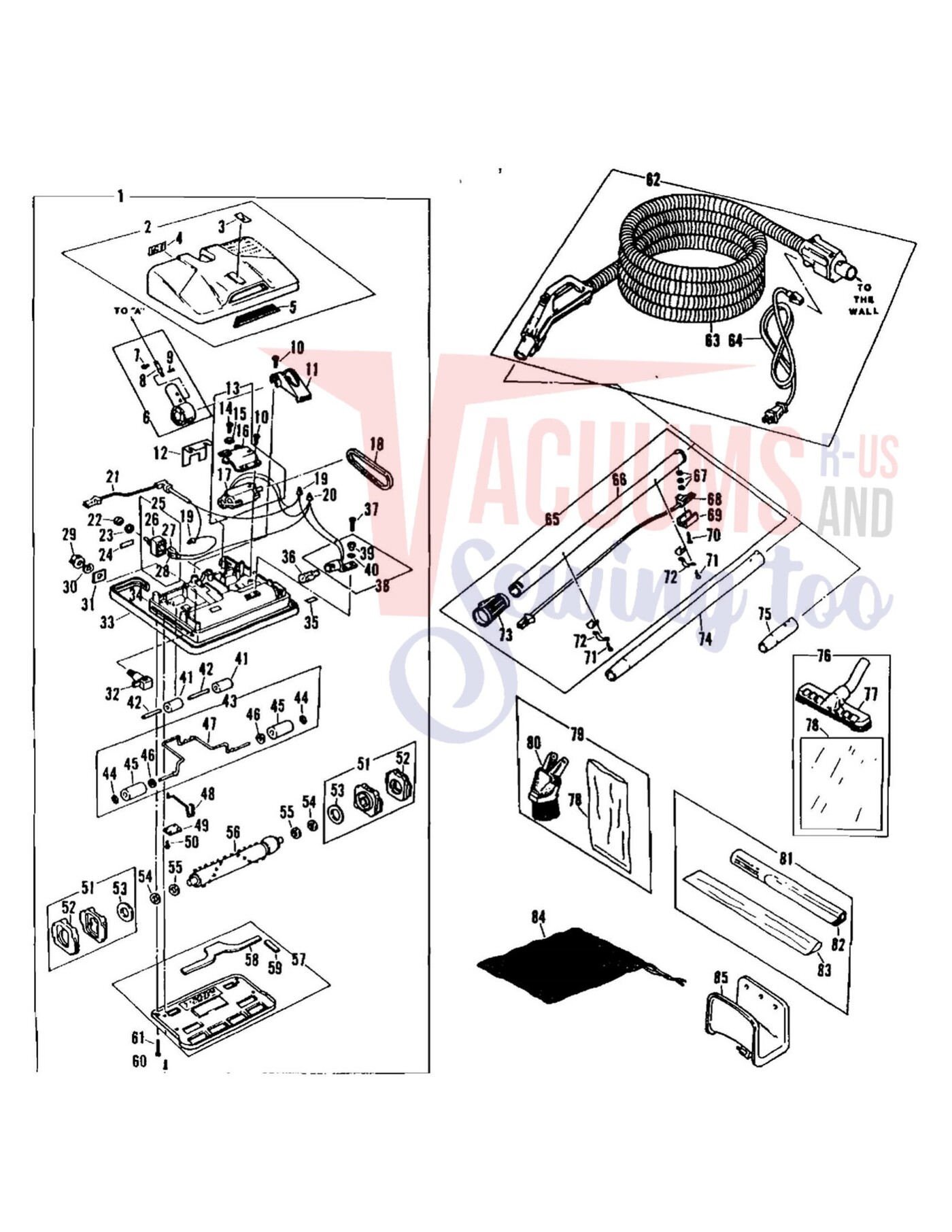

| # | Part image | Description | SKU | Price |
| XX | Not Available | Motor Assembly 42 88249 Roller Shaft 71 48329 Pop Rivet | GR-8809 | Not Available |
| 1 | Not Available | Complete "V-96" Power | GR-V-9620 | Not Available |
| 2 | Not Available | Complete Nozzle Cover Assy | GR-V-9625 | Not Available |
| 3 | Not Available | Name Plate | VQ96706 | Not Available |
| 3 | Not Available | Circuit Breaker Washer | 88025 | Not Available |
| 4 | Not Available | Warning Label | HE-96765 | Not Available |
| 5 | Not Available | Lens | RB-88230 | Not Available |
| 5 | Not Available | Circuit Breaker and Leads Assy | GR-B831 | Not Available |
| 6 | Not Available | Swivel Adaptor Assy | GR-9687-A | Not Available |
| 7 | Not Available | Retainer Pin | 156232 | Not Available |
| 8 | Not Available | Retainer Spring | 350231 | Not Available |
| 8 | Not Available | Black Wire | 88029 | Not Available |
| 9 | Not Available | Rivet | 133054 | Not Available |
| 11 | Not Available | Adaptor Retainer | 96211 | Not Available |
| 12 | Not Available | Insulator | 88308 | Not Available |
| 14 | Not Available | Circuit Breaker Label 53 8822B Belt Dirt Seal | 96303 | Not Available |
| 15 | Not Available | #10 Internal Lock Washer | 42348 | Not Available |
| 17 | Not Available | Power Nozzle Motor | GR960B | Not Available |
| 18 | Not Available | Belt | 48260 | Not Available |
| 20 | Not Available | Soiderless Connector (targe) | 48760 | Not Available |
| 22 | Not Available | Circuit Breaker Nut | 44081 | Not Available |
| 29 | Not Available | Control Knob 58 88280-A Bottom Plate Sealing Gaskei | 96221 | Not Available |
| 30 | Not Available | Retainer Ring 59 88279-A Strip Gasket | 52222 | Not Available |
| 31 | Not Available | Cam Indicating Plate | 96244 | Not Available |
| 32 | Not Available | 'Cam ' 61 88208-P Screw | 52225 | Not Available |
| 33 | Not Available | Bumper 62 GR"VJ 1084A Hose Assy with Switch i ( | BM-88201 | Not Available |
| 34 | Not Available | Nozzle Base w/Qnserts | GR-96209 | Not Available |
| 35 | Not Available | Lamp Warning Label | 88238 | Not Available |
| 36 | Not Available | Lamp : : | 88235 | Not Available |
| 36 | Not Available | Circuit Breaker | 88302 | Not Available |
| 37 |  | Handle,Spotter,Transport | 31215 | $209.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Lamp Socket Assy | GR-8835 | Not Available |
| 39 | Not Available | Eyelet | 88345 | Not Available |
| 40 | Not Available | Giommet | 88324 | Not Available |
| 41 | Not Available | Roller | 88248 | Not Available |
| 42 | Not Available | Roller Shaft | 88249 | Not Available |
| 43 | Not Available | Roler Arm Assy | GR-8822 | Not Available |
| 44 | Not Available | Retainer Ring | 48276 | Not Available |
| 46 | Not Available | Washer | 48243 | Not Available |
| 47 | Not Available | Roller Arm | 88281 | Not Available |
| 48 | Not Available | Roller Arm Tension Spring | 88284 | Not Available |
| 49 |  | Gasket, :( Rubber Bag Adapter Part Number: 48282 for Eureka | 48282 | $4.65Read more |
| 49 |  | Compatible alternateBag Gasket For: eureka,sanitaire More Product Details | 48282A | $3.56Add to cart Special order — allow 2-4 weeks. |
| 51 | Not Available | Brush Bearing Assy | GR-5223 | Not Available |
| 52 |  | MICROFIBER, WET MOP PAD BLUE 2 PK Part Number: 52274 for Cen-Tec | 52274 | $1.85Read more |
| 54 |  | 3-way pull chain socket interior, no paper insulator | 48216 | $9.99Read more |
| 54 |  | Compatible alternateWasher, Fiber All Power Nozzle Brushrolls Part Number: 8888003900 for Filter Queen More Product Details | 8888003900 | $1.20Add to cart Special order — allow 2-4 weeks. |
| 55 | Not Available | Sleel Washer | 48246 | Not Available |
| 56 | Not Available | Revolving Brush 85 .110033 Hose Holder - Black | GR-8821 | Not Available |
| 57 | Not Available | Bottom Plate Assy | GR-A-8824 | Not Available |
| 60 | Not Available | Screw | A-88215-P | Not Available |
| 63 | Not Available | 30 ft long Hose | 110802 | Not Available |
| 64 | Not Available | 7 ft Black Power Cord | 103301 | Not Available |
| 65 | Not Available | Power Wand Assy | GR-VII030A | Not Available |
| 66 | Not Available | C.V. Straight Extension Tube | VQ-110313 | Not Available |
| 67 | Not Available | Washer | J-48276 | Not Available |
| 68 | Not Available | Handle Tube Cord | GR-9636 | Not Available |
| 69 | Not Available | Cord Connector Clamp | VQ-48304 | Not Available |
| 70 | Not Available | Pop Rivet | J-48717 | Not Available |
| 71 | Not Available | Pop Rivet | 48329 | Not Available |
| 72 | Not Available | Cord Clip | 48305 | Not Available |
| 73 | Not Available | Short Tube Seal | 109842 | Not Available |
| 74 | Not Available | 30" Straight Extension Tube | PT-110313 | Not Available |
| 75 | Not Available | 6" C.V. Attachment Tube | VQ-110811 | Not Available |
| 76 | Not Available | Floor Brush Assy | GR-11081 | Not Available |
| 77 | Not Available | Floor Brush | 110081 | Not Available |
| 78 | Not Available | Sack-6-1 /4x9-1 /2 | 350913 | Not Available |
| 79 | Not Available | Dust Brush Assy | GR-11082 | Not Available |
| 80 | Not Available | Dust Brush | 110082 | Not Available |
| 81 | Not Available | Crevlc Tool Assy | GR-11079 | Not Available |
| 82 | Not Available | Crevic Tool | 110801 | Not Available |
| 83 | Not Available | Sack for Crevic Tool | 31911 | Not Available |
| 84 | Not Available | Tool Holder Caddy | 110051 | Not Available |
