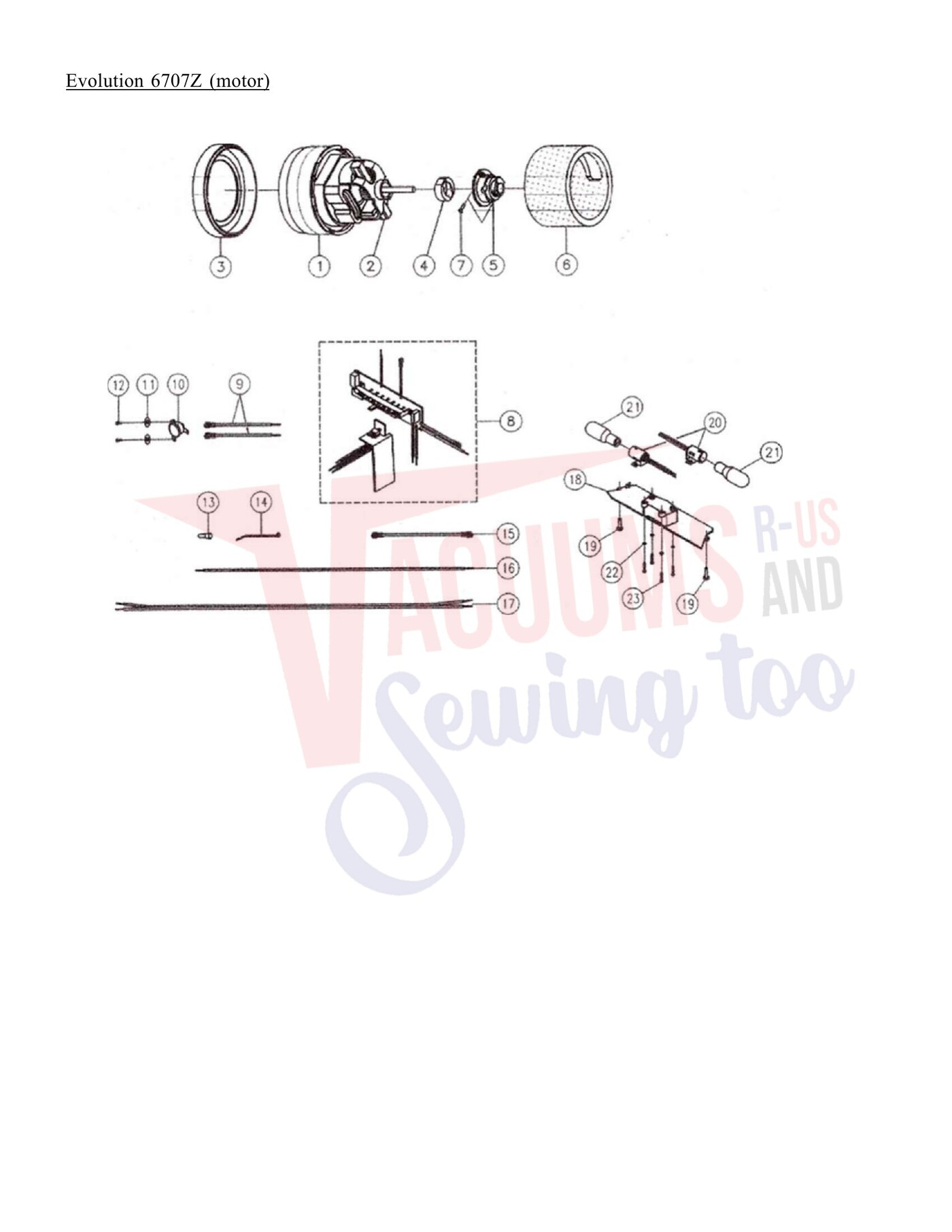

Schematic and parts book for Evolution 6707Z . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | MOTOR ASSY, EVOLUTION 6707Z Part Number: V700998300 for Evolution | V700998300 | $459.04Read more |
| 2 | Not Available | Carbon Brush (Blue Cover) | V700987300 | Not Available |
| 3 | Not Available | Motor Mount (Rear) | V700233301 | Not Available |
| 4 | Not Available | Motor Mount (Front) | V700232301 | Not Available |
| 5 | Not Available | Motor Pivot Sleeve | V700234301 | Not Available |
| 6 | Not Available | Noise Suppressor | V700231300 | Not Available |
| 7 | Not Available | Set Screw (M4*15) | VM400191 | Not Available |
| 8 | Not Available | PCB and Cord Complete | V700964400 | Not Available |
| 9 | Not Available | Vacuum Sensor Cord (16# Black) | V700966300 | Not Available |
| 10 |  | Switch, Reset Evolution Part Number: V700944300 for Evolution | V700944300 | $20.02Read more |
| 11 | Not Available | Washer (4.2*14*1) | VWA00194 | Not Available |
| 12 | Not Available | Set Screw (M3*12) | VM301695 | Not Available |
| 13 | Not Available | Wire Connector (HW-C4) | V700939300 | Not Available |
| 14 | Not Available | Cord Clip (TSL-100-M) | V700938300 | Not Available |
| 15 | Not Available | Check Bag Cord (16# Black) | V700956300 | Not Available |
| 16 | Not Available | Motor Cord (18# White) | V700963300 | Not Available |
| 17 | Not Available | Wire Cord (SPT-2 18# White) | V700968300 | Not Available |
| 18 | Not Available | Bulb Socket Support Frame | V700242305 | Not Available |
| 19 | Not Available | Set Screw (M4*15) | VM400191 | Not Available |
| 20 | Not Available | Bulb Socket (75W 125V) | V700949500 | Not Available |
| 21 | Not Available | Light Bulb (15W 130V) | V700947300 | Not Available |
| 22 | Not Available | Spring Washer (3.1*5.9*0.7) | VWA00691 | Not Available |
| 23 | Not Available | Set Screw (M3*17) | VM300694 | Not Available |
