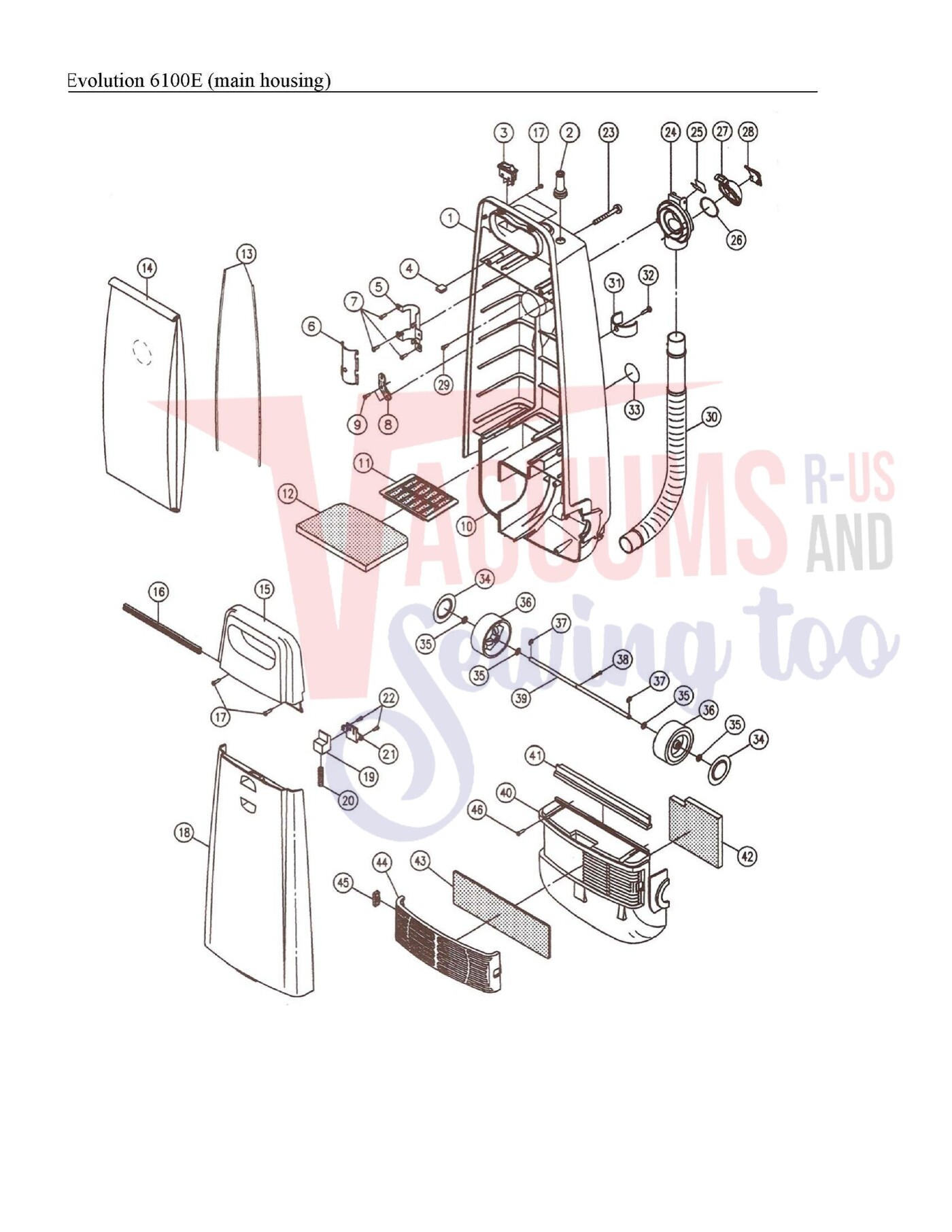

Schematic and parts book for Evolution 6100e . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Dust Compartment - Black | V720001301 | Not Available |
| 1 | Not Available | Handle Tube | V720014392 | Not Available |
| 1 |  | Housing, Black Nozzle Evolution 6100 Part Number: V500002301 for Evolution | V500002301 | $27.06Read more |
| 1 | Not Available | Brush Roll Assembly - Metal | V720027400 | Not Available |
| 2 | Not Available | Rubber Boot - Black | V700020301 | Not Available |
| 2 | Not Available | Handle End Cover | V720015301 | Not Available |
| 2 | Not Available | Plastic Bushing | V700054301 | Not Available |
| 2 | Not Available | Brush Roll Core - Metal | V700162392 | Not Available |
| 3 | No Image | Switch, Rocker Evolution 6100 Part Number: V700927300 for Evolution | V700927300 | $13.87Read more |
| 3 | Not Available | Foam Handle Grip - Black | V700268301 | Not Available |
| 3 | Not Available | Top Mark (6100) | V700291301 | Not Available |
| 3 | Not Available | Rubber End Cover | V700227301 | Not Available |
| 4 | Not Available | Vented Support Rubber | V720013301 | Not Available |
| 4 |  | Holder, Black Upper Cord Hook Evolution 6100 Part Number: V720016301 for Evolution | V720016301 | $1.89Read more |
| 4 |  | Lens, Headlight Evolution 6400 Part Number: V500008306 for Evolution | V500008306 | $7.51Read more |
| 4 | Not Available | End Cap | V700172300 | Not Available |
| 5 | Not Available | Handle Fitting (Rear) | V700023391 | Not Available |
| 5 | Not Available | Upper Cord Hook - Black | V700120301 | Not Available |
| 5 | Not Available | Bottom Plate Lock Screw (M4) | VM400691 | Not Available |
| 5 | Not Available | Brush Roll Felt Washer | V700174300 | Not Available |
| 6 | Not Available | Handle Fitting (Front) | V700022391 | Not Available |
| 6 | Not Available | Cord Hook Spring | V700121391 | Not Available |
| 6 | Not Available | Nozzle Housing Felt Packing | V500040300 | Not Available |
| 6 | Not Available | Washer (6.2*12*0.5) | VWA01191 | Not Available |
| 7 | Not Available | Set Screw (M4*15) | VM400191 | Not Available |
| 7 | Not Available | Washer (4.2*14*1) | VWA00194 | Not Available |
| 7 | Not Available | Vented Support Felt Packing | V700262300 | Not Available |
| 7 | Not Available | Brush Roll Bearing (626DD) | V700287300 | Not Available |
| 8 | Not Available | Cord Holder | V700019301 | Not Available |
| 8 | Not Available | Set Screw (M4*50) | VM400995 | Not Available |
| 8 | Not Available | Vented Support Fitting | V700055391 | Not Available |
| 8 | Not Available | Brush Roll Bearing Holder | V700170300 | Not Available |
| 9 | Not Available | Set Screw (M4*12) | VM401091 | Not Available |
| 9 | Not Available | Lower Cord Hook - Black | V700122301 | Not Available |
| 9 | Not Available | Hose Inlet Fitting | V500014304 | Not Available |
| 9 | Not Available | Brush Roll Brush | V700175500 | Not Available |
| 10 | Not Available | Motor Compartment Seals | V700304400 | Not Available |
| 10 | Not Available | Spring Washer (4.2*7.2*1.2) | VWA00491 | Not Available |
| 10 | Not Available | Set Screw (M4*16) | VM400391 | Not Available |
| 10 | Not Available | Brush Roll Pulley Complete | V720022501 | Not Available |
| 11 | Not Available | Filter Supporter Screen | V700017300 | Not Available |
| 11 | Not Available | Set Screw (M4*25) | VM400591 | Not Available |
| 11 | Not Available | Furniture Guard - Black | V700009301 | Not Available |
| 11 | Not Available | Brush Roll Pulley | V720022301 | Not Available |
| 12 | Not Available | Secondary Filter | V720012300 | Not Available |
| 12 | Not Available | Power Cord (24 Ft SVT 17#) - Black | V700976301 | Not Available |
| 12 | Not Available | Washer (4.2*12*1) | VWA00891 | Not Available |
| 12 | Not Available | Brush Roll Pulley Bushing | V720023391 | Not Available |
| 13 | Not Available | Dust Compartment Side Seals | V700021305 | Not Available |
| 13 | Not Available | Cord Protection Tube | V700932300 | Not Available |
| 13 | Not Available | Set Screw (M4*15) | VM400191 | Not Available |
| 13 | Not Available | Brush Roll Shaft | V700285300 | Not Available |
| 14 | Not Available | Disposable Dust Bag | V700303301 | Not Available |
| 14 | Not Available | Bottom Plate Assembly - Lock | V760011592 | Not Available |
| 14 | Not Available | Foot Pedal Complete - Black | V700131401 | Not Available |
| 14 | Not Available | Matsushita Motor SDS1021MS | V700995300 | Not Available |
| 15 | No Image | COVER, SWITCH HOUSING 6100 BLACK Part Number: V720004301 for Evolution | V720004301 | $7.54Read more |
| 15 | Not Available | Bottom Plate - Lock | V700151392 | Not Available |
| 15 | Not Available | Pedal Frame | V700134395 | Not Available |
| 15 | Not Available | Carbon Brush - Matsushita | V700991300 | Not Available |
| 16 | Not Available | Dust Cover Seal | V700102305 | Not Available |
| 16 | Not Available | Bottom Plate Wheel Pin | V700154392 | Not Available |
| 16 | Not Available | Foot Pedal - Black | V700132301 | Not Available |
| 16 | Not Available | Motor Mount - Rear | V700233301 | Not Available |
| 17 | Not Available | Set Screw (M4*18.5) | VM400291 | Not Available |
| 17 | Not Available | Bottom Plate Wheel (TPR) | V700153301 | Not Available |
| 17 | Not Available | Foot Pedal Spring | V700135391 | Not Available |
| 17 | Not Available | Motor Support Housing - Black | V700026301 | Not Available |
| 18 | Not Available | Dust Cover - Black | V700003301 | Not Available |
| 18 | Not Available | Push-on Nut (PSN-4) | VP493 | Not Available |
| 18 | Not Available | Rear Belt Cover - Black | V700133301 | Not Available |
| 18 | Not Available | Suction Inlet Packing | V500020301 | Not Available |
| 19 | Not Available | Cover Release Button - Black | V700081301 | Not Available |
| 19 |  | LATCH, BOTTOM PLATE EVOLUTION (ALL MODELS) Part Number: V700156301 for Evolution | V700156301 | $0.90Read more |
| 19 | Not Available | Foot Pedal Shaft | V700136395 | Not Available |
| 19 | Not Available | Motor Mount - Front | V700232301 | Not Available |
| 20 | Not Available | Cover Release Button Spring | V700082391 | Not Available |
| 20 | No Image | NLS1/06: SPRING FOR B/P LATCH (ALL MODEL) BERN Part Number: V700157300 for Evolution | V700157300 | $2.09Read more |
| 20 | Not Available | E-Clip (ETW-4) | VE494 | Not Available |
| 20 | Not Available | Motor Pivot Sleeve | V700234301 | Not Available |
| 21 | Not Available | Release Button Cover - Black | V700083301 | Not Available |
| 21 | Not Available | Bottom Plate Latch Washer | VWA00991 | Not Available |
| 21 | Not Available | Belt Guard | V720017391 | Not Available |
| 21 | Not Available | Noise Suppressor | V700231300 | Not Available |
| 22 | Not Available | Set Screw (M4*15) | VM400191 | Not Available |
| 22 | No Image | SCREW, BOTTOM PLATE LATCH ALL EVOLUTION UPRIGHTS Part Number: VM300295 for Evolution | VM300295 | $0.84Read more |
| 22 | Not Available | Set Screw (M4*18.5) | VM401591 | Not Available |
| 22 | Not Available | Fuse Assembly (15A) | V700934500 | Not Available |
| 23 | Not Available | Handle Screw (M5*45) | VM500191 | Not Available |
| 23 | Not Available | Packing Grip - White | V700308500 | Not Available |
| 23 | Not Available | Set Screw (M4*12) | VM401091 | Not Available |
| 23 | Not Available | Fuse (15A) | V700930300 | Not Available |
| 24 | Not Available | Suction Inlet - Black | V720025301 | Not Available |
| 24 | Not Available | Belt | V700301300 | Not Available |
| 24 | Not Available | Cord (16AWG) - Black | V700966300 | Not Available |
| 25 | Not Available | Suction Inlet Cover Spring | V700186300 | Not Available |
| 25 | Not Available | Set Screw (M4*15) | VM400191 | Not Available |
| 26 |  | Suction Inlet Gasket Bernina 6100/6500 For: evolution-bernina | V700298300 | $1.71Read more |
| 26 | Not Available | Wire Connector (HW-C4) | V700939300 | Not Available |
| 27 | Not Available | Suction Inlet Cover - Black | V700184301 | Not Available |
| 27 | Not Available | Motor Cord (SPT-2 16#) - Black | V700943300 | Not Available |
| 28 | Not Available | Suction Control Dial - Black | V700185301 | Not Available |
| 28 | Not Available | Wire Cord (SPT-2 18#) - White | V700968300 | Not Available |
| 29 | Not Available | Set Screw (M4*15) | VM400191 | Not Available |
| 29 | Not Available | Reflector | V500016391 | Not Available |
| 30 | Not Available | Nozzle Hose - Black | V500013301 | Not Available |
| 30 | Not Available | Set Screw (M4*15) | VM400191 | Not Available |
| 31 | Not Available | Upper Wand Clip - Black | V700207301 | Not Available |
| 31 | Not Available | Bulb Socket (75W 125V) | V700949500 | Not Available |
| 32 | Not Available | Set Screw (M4*15) | VM400191 | Not Available |
| 32 | Not Available | Light Bulb (15W 120-130V) | V700947300 | Not Available |
| 33 | Not Available | Warning Label | V700801300 | Not Available |
| 33 | Not Available | Spring Washer (3.1*5.9*0.7) | VWA00691 | Not Available |
| 34 | Not Available | Rear Wheel Hubcap | V700272309 | Not Available |
| 34 | Not Available | Set Screw (M3*6) | VM300391 | Not Available |
| 35 | Not Available | Washer (6.2*12*0.7) | VWA00791 | Not Available |
| 35 | Not Available | Wire Bushing (4W-2) | V700937300 | Not Available |
| 36 | Not Available | Rear Wheel - Black | V700142301 | Not Available |
| 37 | Not Available | E-Clip (ETW-5) | VE594 | Not Available |
| 38 |  | Screw, Rear Wheel Evoluition (All Models) Part Number: VM300191 for Evolution | VM300191 | $0.76Read more |
| 39 | Not Available | Rear Wheel Shaft | V700143395 | Not Available |
| 40 | Not Available | Motor Cover - Black | V700005301 | Not Available |
| 41 | Not Available | Motor Cover Seal | V700095305 | Not Available |
| 42 | Not Available | Exhaust Filter | V700091300 | Not Available |
| 43 | Not Available | Electrostatic Filter | V700280300 | Not Available |
| 44 | No Image | Cover, Post Filter 6100 Evolution Upright Part Number: V700006301 for Evolution | V700006301 | $4.59Read more |
| 45 | Not Available | Post Cover Knob - Black | V700094301 | Not Available |
| 46 | Not Available | Set Screw (M4*18.5) | VM400291 | Not Available |
