Schematic and parts book for eureka sp6952ac . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

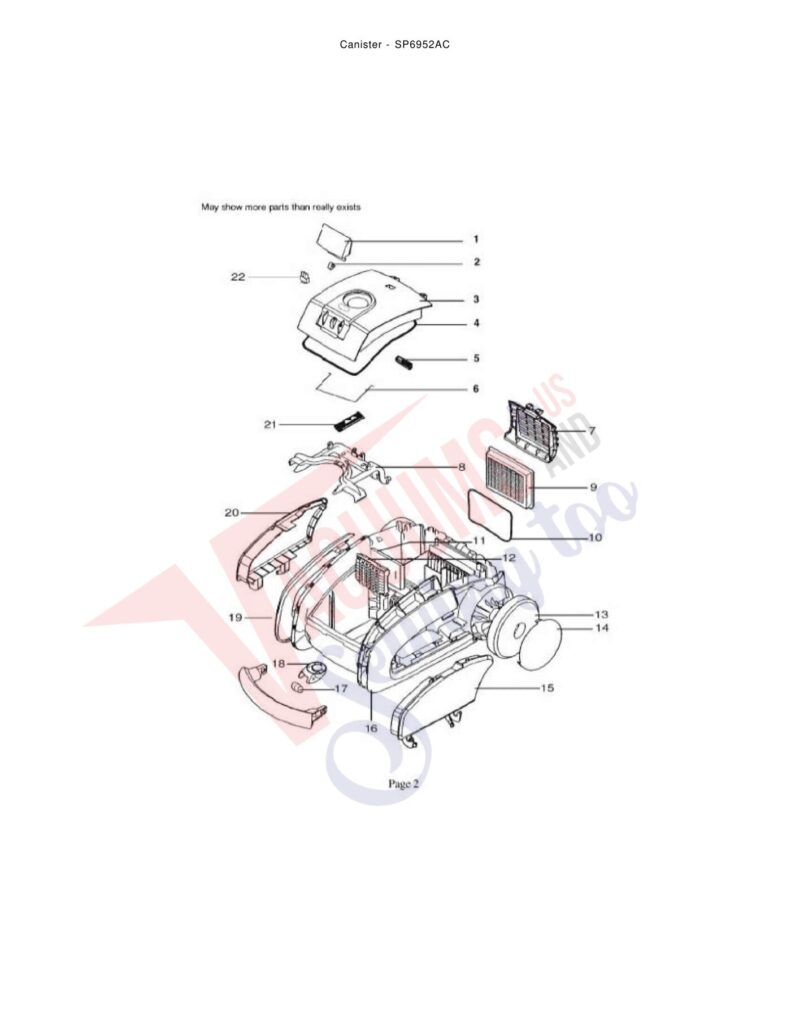

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BAG COVER LATCH | 39805-355N | Not Available |
| 2 | Not Available | LATCH SPRING | 6681008-10 | Not Available |
| 3 | Not Available | BAG COVER & GRAPHICS ASSE | 39803-1 | Not Available |
| 4 | Not Available | GASKET - DUST BAG | 1096847-01 | Not Available |
| 5 |  | INDICATOR, BAG CHANGE SP6952 Part Number: 39807 for Eureka | 39807 | $18.44Read more |
| 6 | Not Available | HOOK - WIRE | 1096522-01 | Not Available |
| 7 | No Image | COVER, EXHAUST FILTER SP6951 Part Number: 39817-410P for Eureka | 39817410P | $194.99Read more |
| 8 | Not Available | BAG HOLDER | 39838-380N | Not Available |
| 9 | Not Available | SYSTEM PRO WASHABLE FILTER | SP012W | Not Available |
| 10 | Not Available | SEAL | 1130289-01 | Not Available |
| 11 | Not Available | MOTOR FILTER | 39811 | Not Available |
| 13 | Not Available | REAR WHEEL - OVERMOLD | 39826-355N | Not Available |
| 14 | Not Available | REAR WHEEL COVER (PAINTED | 39831-410P | Not Available |
| 15 | Not Available | LEFT COVER AND GRAPHICS A | 39906-1 | Not Available |
| 17 | No Image | WHEEL, FRONT Part Number: 39828-380N for Eureka | 39828380N | $23.32Read more |
| 18 | Not Available | FRONT WHEEL HOLDER | 39827-355N | Not Available |
| 20 | Not Available | RIGHT COVER AND GRAPHICS | 39907-1 | Not Available |
| 22 | Not Available | This part is obsolete and there is no substitute available. | 39806-380N | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Speed Control Knob | 39822-355N | Not Available |
| 3 | No Image | Circuit Board, SP6952A Part Number: 2190494-08 for Eureka | 219049408 | $120.67Read more |
| 4 | Not Available | HOSE - COOLING (L230) | 1096837-06 | Not Available |
| 5 | Not Available | CORD REEL | 39825 | Not Available |
| 6 | Not Available | MOTOR ADAPTER VM3 | 1096471-00 | Not Available |
| 7 | Not Available | SUSPENSION BLOCK D | 2196205-01 | Not Available |
| 8 | Not Available | HOSE - COOLING (CW) | 2191082-01 | Not Available |
| 9 | Not Available | WIRE SEAL | 1096954-01 | Not Available |
| 10 | Not Available | SEAL - BLOWER (VM3) | 1096831-02 | Not Available |
| 11 | No Image | Motor, Right Side Broom, TW050-W43-U | 39848 | $214.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | GASKET - HOOD | 1096947-01 | Not Available |
| 13 | Not Available | REAR HOUSING | 39812-355N | Not Available |
| 14 | Not Available | SWITCH-PUSH BUTTON | 6698086-36 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | WINDOW | 665200 | Not Available |
| 2 | Not Available | MOTOR ASSY SCREW FOR PREM/IMP | 345500 | Not Available |
| 3 | Not Available | POWERHEAD MOTOR "ADVOCATE- | 155209 | Not Available |
| 4 | Not Available | LAMP HALOGEN 12V20W | 395123 | Not Available |
| 5 | Not Available | 8X1/2" SOCKET COVER SCREW | 345502 | Not Available |
| 6 |  | Belt-Eureka - Cogged - Sp6952Ac - System Pro
Also Fits Beam Ap900 - B1501 - Sl100A For: beam | 155555 | $15.59Read more |
| 6 |  | Compatible alternateBelt, Kenmore Serpentine Style 20-5201 Part Number: 46-3305-01 for Kenmore Replacement More Product Details | 46330501 | $6.81Add to cart |
| 7 | Not Available | BRUSHROLLCOVER | 665110 | Not Available |
| 9 | Not Available | SHAFT - ROLLER | 205000 | Not Available |
| 10 | Not Available | BRUSHROLLASSY | 665133 | Not Available |
| 11 | Not Available | COVER | 665229 | Not Available |
| 12 | Not Available | BUMPER | 665226 | Not Available |
| 14 | Not Available | BASE ASSY | 665183 | Not Available |
| 15 | Not Available | WHEEL ASSY. | 665131 | Not Available |
| 16 | Not Available | WASHER FELT | 665210 | Not Available |
| 17 | Not Available | BRKR: 2.5 AMP | 320004 | Not Available |
| 18 | Not Available | CORD STRAIN RELIEF PREM/IMP | 340651 | Not Available |
| 19 | Not Available | NECK | 665128 | Not Available |
| 21 | Not Available | HOLDER G4 HALOGEN LAMP | 395124 | Not Available |
| 23 | Not Available | Cord EZ Supply Not pictured. | 325406 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | SWIVEL HOSE ASSY | 62360-1 | Not Available |
| 2 | Not Available | COUPLING ASSY - EASY CHAN | 39041 | Not Available |
| 3 | Not Available | BUTTON COVER WAND | 37738-7 | Not Available |
| 4 |  | Wand, Chrome/Blk W/2-Prong Cord Oxygen 698 Part Number: 39040A-2 for Eureka | 39040A2 | $37.74Read more |
| 5 |  | Fastening plate, Side Broom, TW050-W43-U | 39844 | $3.99Read more |
| 6 | No Image | Side broom cover left, TW050-W43-U | 39842 | $102.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Side broom cover right, TW050-W43-U | 39843 | $102.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | SYSTEM PRO S BAG Pkg of | SP200 | Not Available |
