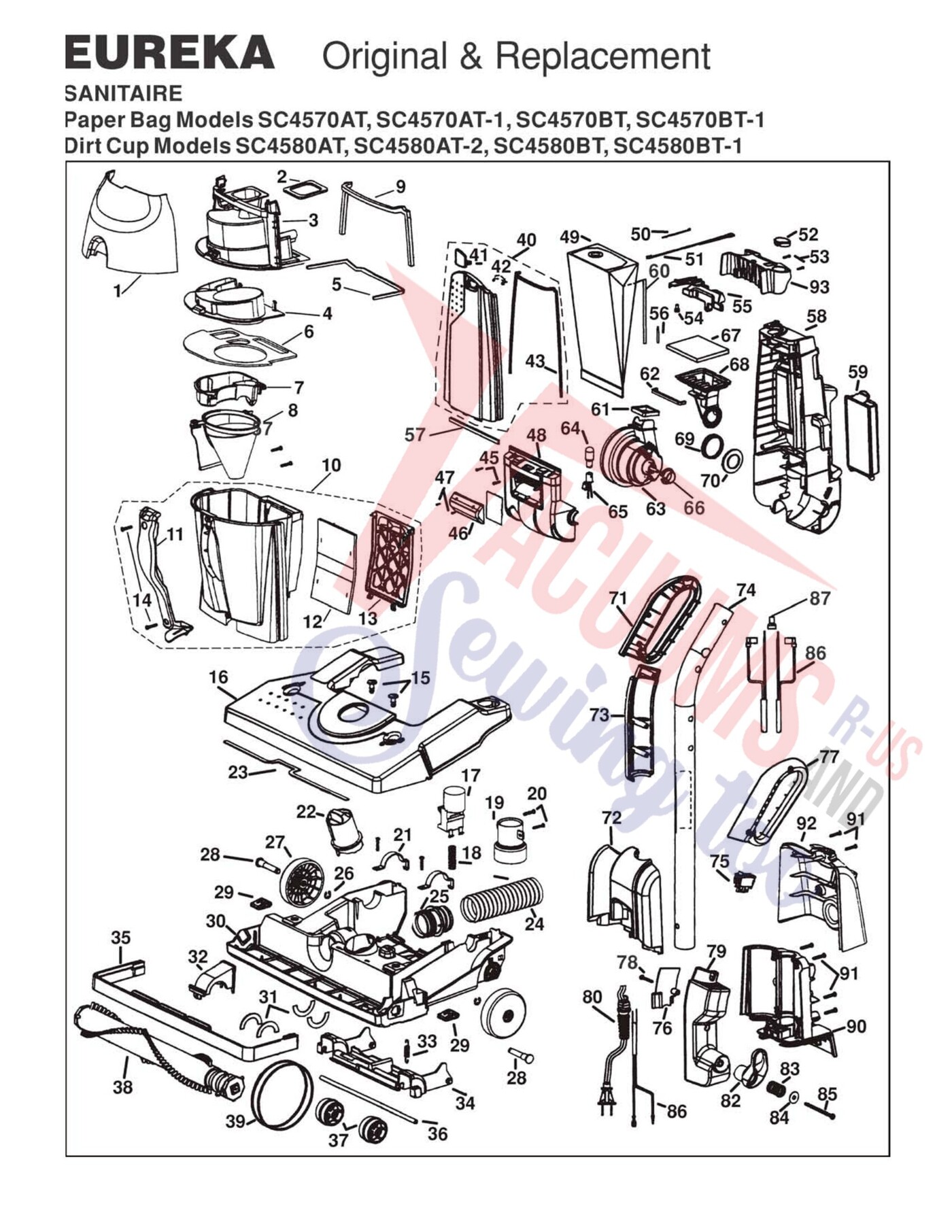

Schematic and parts book for Eureka SC4570AT, SC4570AT-1, SC4570BT, SC4570BT-1, SC4580AT, SC4580AT-2, SC4580BT, SC4580BT-1 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Front Cover Assembly | 60704-14 | Not Available |
| 2 | No Image | GASKET, SHEET 4481 Part Number: 39219B for Eureka | 39219B | $9.22Read more |
| 3 | Not Available | Upper Cyclone Assembly | 60705-2 | Not Available |
| 4 | Not Available | Order E-60705-2 | N/A | Not Available |
| 5 | Not Available | Gasket | 59297-2SV | Not Available |
| 6 | Not Available | Order E-60705-2 | N/A | Not Available |
| 7 | Not Available | Filter Screen | 28099B-333N | Not Available |
| 8 | Not Available | Cyclone Funnel | 02311A-333N | Not Available |
| 9 | Not Available | Gasket | 59852-1 | Not Available |
| 10 | Not Available | Dirt Cup Assembly | 60706-1 | Not Available |
| 11 | Not Available | Dirt Cup Grip | 28131-288N | Not Available |
| 11 | Not Available | Dirt Cup Grip | ER-7025 | Not Available |
| 12 | Not Available | Dirt Cup Filter | 28115 | Not Available |
| 12 | Not Available | Dirt Cup Filter | ER-1820 | Not Available |
| 13 | Not Available | Filter Frame | 28114-119N | Not Available |
| 14 | Not Available | Screw Package | 53197-1 | Not Available |
| 15 | Not Available | 1/4 Turn Fastener | 60940 | Not Available |
| 16 | Not Available | Hood Assembly | 60249-1 | Not Available |
| 17 | Not Available | Handle Release | 27467A-288N | Not Available |
| 18 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 19 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $5.87Read more |
| 20 | Not Available | Screw Package | 53197-1 | Not Available |
| 21 | Not Available | Clamp | 38420-2 | Not Available |
| 22 |  | HEIGHT ADJUSTMENT KNOB/VICTORY Part Number: 27462B-288N for Eureka | 27462B288N | $1.82Read more |
| 23 | Not Available | Gasket | 58506-3 | Not Available |
| 24 | Not Available | Lower Hose | 38479-4 | Not Available |
| 25 | Not Available | Base Adaptor | 28243-316N | Not Available |
| 26 | Not Available | Wheel Retainer | 54432 | Not Available |
| 27 | Not Available | Rear Wheel | 39260A-288N | Not Available |
| 28 | Not Available | Rear Axle | 38590 | Not Available |
| 29 | Not Available | Receptacle | 60939 | Not Available |
| 30 | Not Available | Base Assembly | 60938-1 | Not Available |
| 31 | Not Available | Felt Gasket | 70524 | Not Available |
| 32 | Not Available | Belt Cover | 54376-2 | Not Available |
| 33 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Front Wheel Carriage E-53197-1 Screw | 14993B-119N | Not Available |
| 35 | Not Available | Bumper | 15591-288N | Not Available |
| 36 | Not Available | Front Wheel Axle | 58206-1 | Not Available |
| 37 | Not Available | Front Wheel | 39173-119N | Not Available |
| 38 | Not Available | Brushroll | 60909-3 | Not Available |
| 39 |  | Motor 120 Volt Part Number 39266 for Simplicity Models BRIO | 39266 | $92.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | Belt 2 Pk | 61120 | Not Available |
| 40 | Not Available | Bag Cover Assembly | 60937-1 | Not Available |
| 41 | Not Available | Latch | 28256-288N | Not Available |
| 42 | Not Available | Air Deflector | 38268 | Not Available |
| 43 | Not Available | Bag Cover Gasket | 58505 | Not Available |
| 45 | Not Available | Screw | 53197-1 | Not Available |
| 46 | Not Available | Lens E-60920-1 Hose Assembly | 15407-313N | Not Available |
| 47 | Not Available | Screw | 60068-2 | Not Available |
| 48 | No Image | COVER, MOTOR SC4580 Part Number: 609421 for Eureka | 609421 | $55.57Read more |
| 49 | Not Available | Paper Bag Style AA 3 Pk | 58236 | Not Available |
| 49 | Not Available | Paper Bag Style AA 3 Pk | ER-1401 | Not Available |
| 50 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 51 | Not Available | Thermocoupling | 39252-3 | Not Available |
| 52 | No Image | BUSHING, TOOL CADDY 4580 Part Number: 70133-119N for Eureka | 70133119N | $4.57Read more |
| 53 | Not Available | Screw | 53197-1 | Not Available |
| 54 | Not Available | Wire Nut | SS-3270 | Not Available |
| 55 | No Image | ***NLS RETAINER Part Number: 28290-333N for Eureka | 28290333N | $84.70Read more |
| 56 | Not Available | Adapter Tube | 59361A | Not Available |
| 57 | Not Available | Gasket | 38613 | Not Available |
| 58 | Not Available | Rear Housing | 60944-1 | Not Available |
| 59 | Not Available | HEPA Filter | 60285 | Not Available |
| 59 | Not Available | HEPA Filter | ER-1825 | Not Available |
| 60 | Not Available | Tube | 59362B | Not Available |
| 61 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| 62 | Not Available | Air Duct Gasket | 59297SV | Not Available |
| 63 | Not Available | Motor Assembly | 60943-1 | Not Available |
| 64 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 64 | Not Available | Light Bulb | HR-3500 | Not Available |
| 65 | Not Available | Headlight Socket | 38611 | Not Available |
| 66 | Not Available | Grommet | 27552B | Not Available |
| 67 | No Image | BOTTOM HOUSING WALL MOUNT TASKFORCE | 39292 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | Not Available | Air Duct | 15408A-119N | Not Available |
| 69 |  | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $3.17Read more |
| 70 | Not Available | Motor Intake Flange | 39023 | Not Available |
| 71 | Not Available | Handle Grip Right | 15597-288N | Not Available |
| 72 | No Image | HOUSING, FRONT HANDLE SC4570 Part Number: 15533-308N for Eureka | 15533308N | $13.67Read more |
| 73 | Not Available | Switch Housing Right | 02349-288N | Not Available |
| 74 | Not Available | Handle Tube | 15580 | Not Available |
| 75 |  | Switch, Black Rect Rocker On/Off Ultra Smart Vac Part Number: 28073A for Eureka | 28073A | $8.67Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 76 | No Image | SHIELD - WIRING | 59741316N | $12.99Read more |
| 77 | Not Available | Handle Grip Left | 15596-288N | Not Available |
| 78 | No Image | SCREW, HANDLE SC677 Part Number: 60947 for Eureka | 60947 | $18.83Read more |
| 79 | No Image | HOUSING, LEFT SWITCH SC4570 Part Number: 02348-288N for Eureka | 02348288N | $6.74Read more |
| 80 | Not Available | Cord | 38680-19 | Not Available |
| 82 | Not Available | Cord Hook | 28316-288N | Not Available |
| 83 | No Image | SPRING, UPPER CORD HOOK SC4570 10PK Part Number: 60945 for Eureka | 60945 | $5.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 84 | No Image | Washer, SC677 10Pk Part Number: 60946 for Eureka | 60946 | $10.48Read more |
| 85 |  | SCREW, HANDLE BRAVO SOFT BODY 10PK Part Number: 5323818 for Eureka | 5323818 | $5.48Read more |
| 86 | Not Available | Wiring Harness | 28011-2 | Not Available |
| 87 | Not Available | Wire Nut | SS-3270 | Not Available |
| 89 | Not Available | Screw | 53197-1 | Not Available |
| 90 | Not Available | Rear Handle Housing | 15534-119N | Not Available |
| 91 | Not Available | Screw | 53197-1 | Not Available |
| 92 | No Image | COVER, HANDLE Part Number: 15581-119N for Eureka | 15581119N | $100.41Read more |
| 93 | Not Available | Tool Caddy | 15443A-119N | Not Available |
