Schematic and parts book for Eureka S4170AT . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

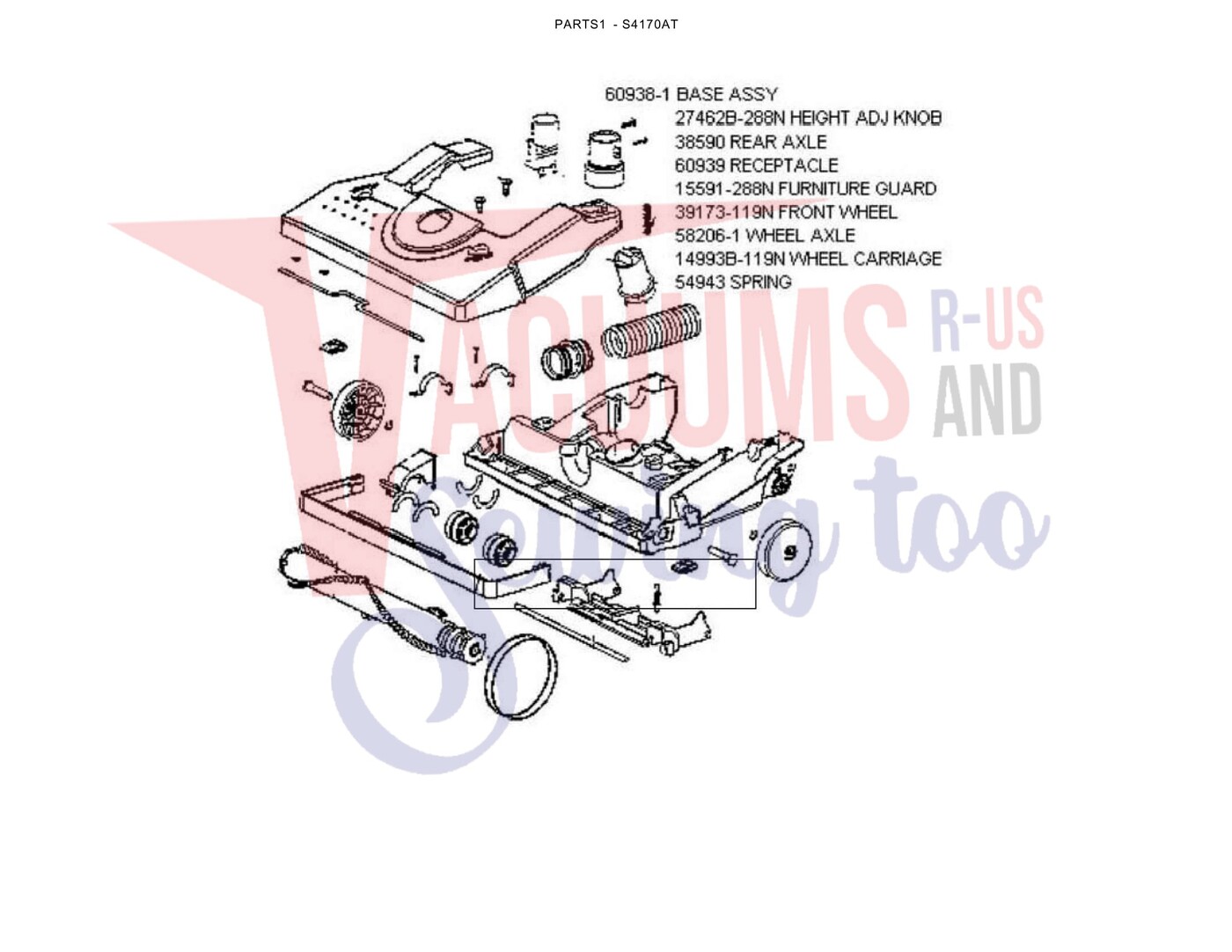

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CARRIAGE - WHEEL | 14993B-119N | Not Available |
| 2 | Not Available | GUARD - FURNITURE | 15591-288N | Not Available |
| 3 |  | HEIGHT ADJUSTMENT KNOB/VICTORY Part Number: 27462B-288N for Eureka | 27462B288N | $1.82Read more |
| 4 | Not Available | RELEASE - HANDLE | 27467-288N | Not Available |
| 5 | Not Available | CUFF - HOSE | 27468C-119N | Not Available |
| 6 | Not Available | ADAPTER - BASE | 28243-316N | Not Available |
| 7 | Not Available | CLAMP | 38420-2 | Not Available |
| 8 | Not Available | HOSE - COMPRESSION (PURCH | 38479-4 | Not Available |
| 9 | Not Available | AXLE - REAR | 38590 | Not Available |
| 11 | Not Available | WHEEL - REAR | 39260-288N | Not Available |
| 12 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 13 | Not Available | BELT PACKAGE ASSEMBLY (U) | 54312 | Not Available |
| 14 | Not Available | BELT CAP & GASKET -PACKA | 54376-2 | Not Available |
| 15 | Not Available | PACKAGE - RETAINING RING | 54432 | Not Available |
| 16 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $3.33Read more |
| 18 | Not Available | AXLE - WHEEL | 58206-1 | Not Available |
| 19 | Not Available | GASKET | 58506-3 | Not Available |
| 20 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $3.14Read more |
| 21 | Not Available | HOOD ASSEMBLY - PACKAGED | 60249-2 | Not Available |
| 22 | Not Available | DISTURBULATOR ASSY - CART | 60909-1 | Not Available |
| 23 | Not Available | BASE ASSEMBLY - PACKAGED | 60938-1 | Not Available |
| 24 | Not Available | QUARTER TURN RECEPTACLE - | 60939 | Not Available |
| 25 | Not Available | QUARTER TURN FASTENER - P | 60940 | Not Available |
| 26 | Not Available | QUARTER TURN RETAINER - P | 60941 | Not Available |

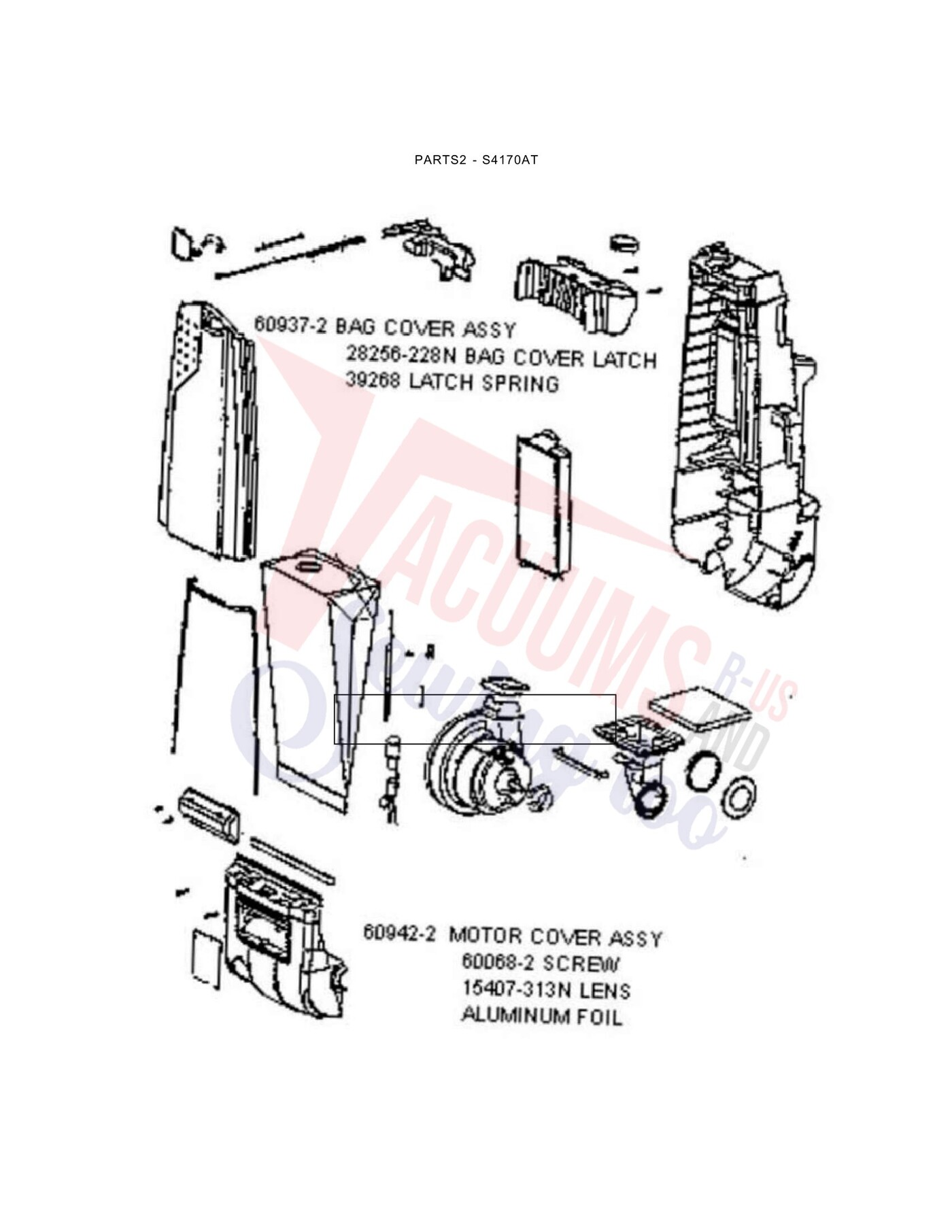

| # | Part image | Description | SKU | Price |
| 1 | Not Available | LENS - MOTOR COVER | 15407-313N | Not Available |
| 2 | Not Available | DUCT - AIR | 15408A-119N | Not Available |
| 3 | Not Available | TOOL CADDY | 15443A-119N | Not Available |
| 5 | Not Available | GROMMET | 27552B | Not Available |
| 6 | Not Available | LATCH - BAG COVER | 28256-288N | Not Available |
| 7 | No Image | ***NLS RETAINER Part Number: 28290-333N for Eureka | 28290333N | $84.70Read more |
| 8 | Not Available | HEADLAMP SCKT & TERMINAL | 38611 | Not Available |
| 9 | Not Available | GASKET | 38613 | Not Available |
| 10 | Not Available | FLANGE - MOTOR INTAKE | 39023 | Not Available |
| 11 |  | THERMOSTAT, 4870 Part Number: 39252-1 for Eureka | 392521 | $7.74Read more |
| 12 |  | Insulation Part Number 39268 for Simplicity Models BRIO | 39268 | Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | BOTTOM HOUSING WALL MOUNT TASKFORCE | 39292 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $3.30Read more |
| 15 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $5.07Read more |
| 16 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 17 | Not Available | GASKET - BAG COVER | 58505 | Not Available |
| 18 |  | Eureka Victory AA Vacuum Cleaner Bags, DVC Replacement Brand, designed to fit Eureka Victory Upri... | 748167000159 | $9.89Add to cart |
| 19 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| 20 | Not Available | GASKET - AIR DUCT | 59297SV | Not Available |
| 21 | Not Available | ADAPTER - TUBE | 59361A | Not Available |
| 22 | Not Available | TUBE | 59362B | Not Available |
| 23 | Not Available | SCREW PACKAGE | 60068-2 | Not Available |
| 24 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | HEPA FILTER PACKAGE | 60285 | Not Available |
| 26 | Not Available | PUSH ON NUT PKG | 60613 | Not Available |
| 27 | Not Available | HEPA MOTOR & SHROUD ASSY | 60625-4 | Not Available |
| 28 | Not Available | BAG COVER ASSEMBLY - PKGD | 60937-2 | Not Available |
| 29 | Not Available | MOTOR COVER ASSEMBLY - PK | 60942-2 | Not Available |
| 30 | Not Available | REAR HOUSING - PACKAGED | 60944-1 | Not Available |
| 31 | No Image | BUSHING, TOOL CADDY 4580 Part Number: 70133-119N for Eureka | 70133119N | $4.57Read more |
| # | Part image | Description | SKU | Price |
| 1 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $6.58Read more |
| 2 | No Image | ADAPTOR, HOSE SC4570 Part Number: 28375-119N for Eureka | 28375119N | $4.71Read more |
| 3 | Not Available | COUPLING - HOSE | 37057A-3 | Not Available |
| 4 |  | Upholstery Tool, Black Excalibur Part Number: 382843 for Eureka | 382843 | $8.79Read more |
| 5 | Not Available | PLATE - HOOK | 39152A-168N | Not Available |
| 6 | Not Available | STRAP - HOSE | 39231-1 | Not Available |
| 7 |  | Dust Brush, Black Natural Bristles Part Number: 602901 for Eureka | 602901 | $15.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | TELESCOPIC WAND ASSEMBLY | 60424 | Not Available |
| 9 | Not Available | TELESCOPIC WAND ASSEMBLY | 60424-1 | Not Available |
| 10 |  | Hose, Assy Stretch Sanitaire S4170/S4570AT Part Number: 609201 for Eureka | 609201 | $41.98Read more |
| 11 | No Image | COLLAR, FLOOR TOOL Part Number: 70124 for Compact | 70124 | $2.59Read more |

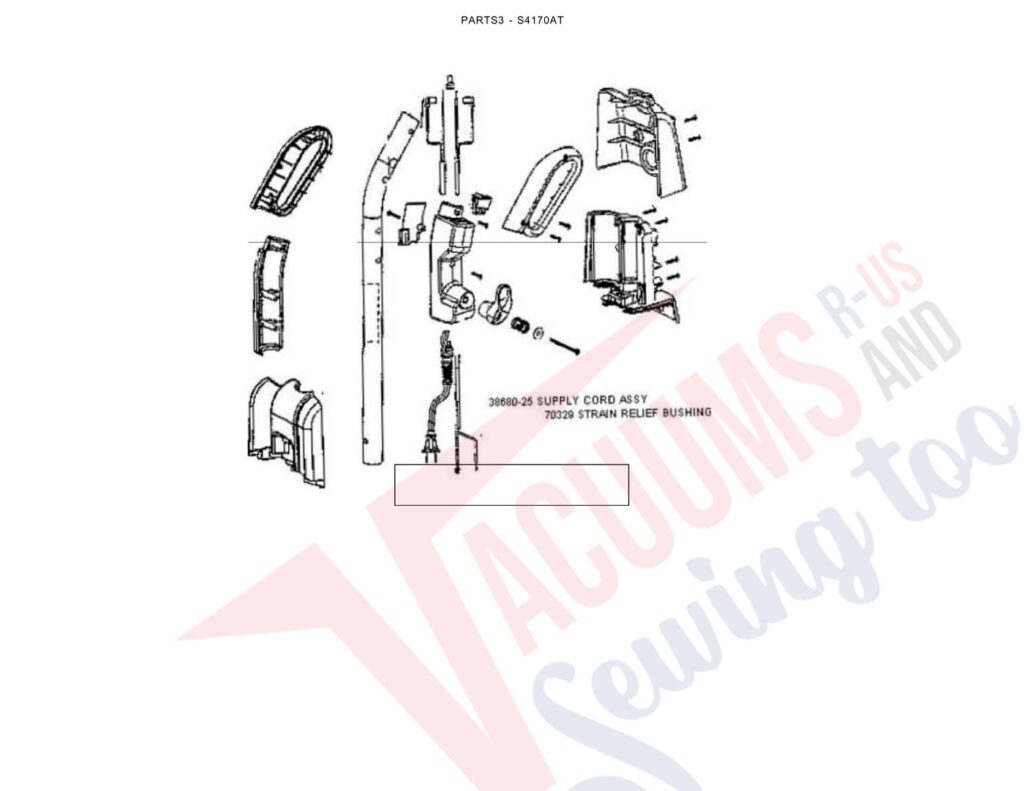

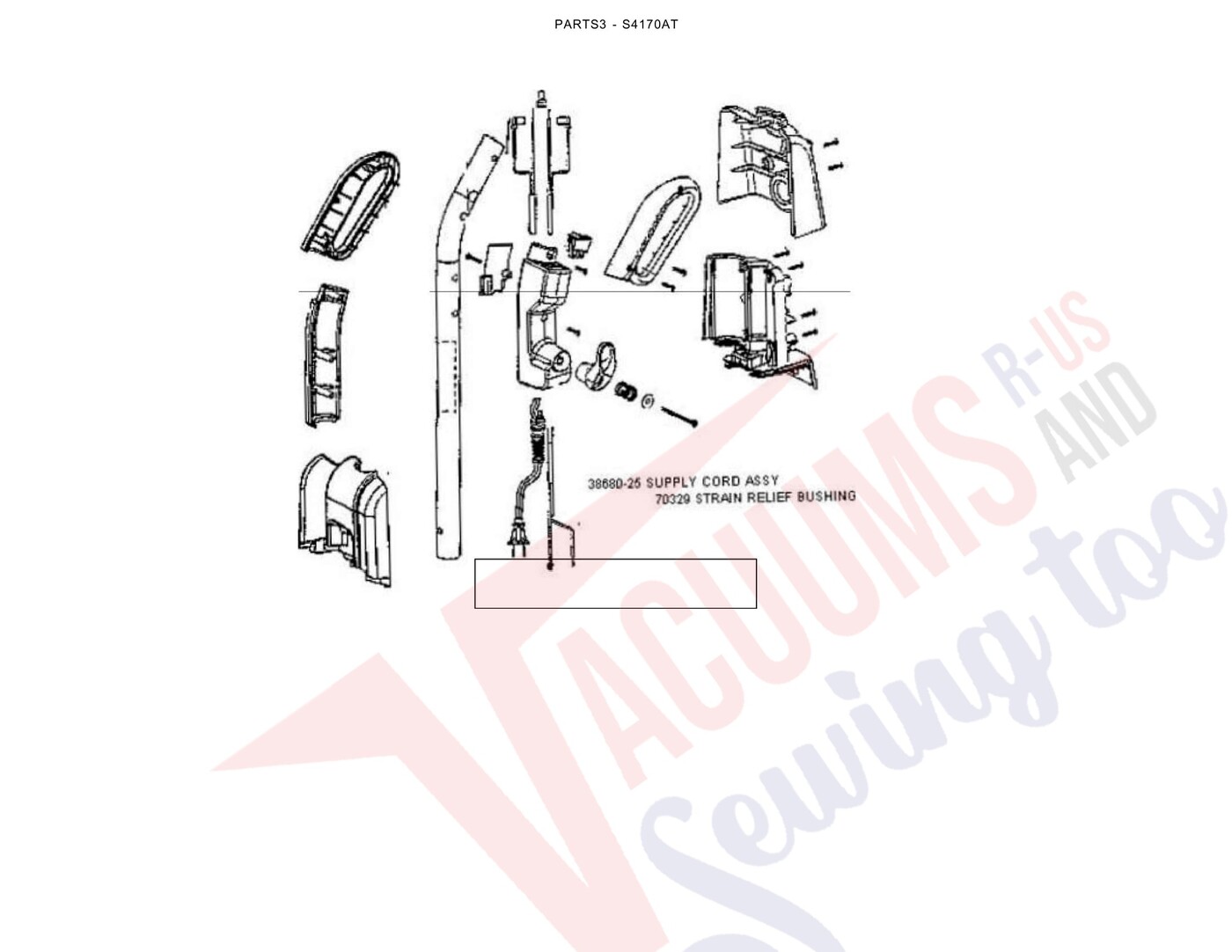

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOUSING - SWITCH (RH) | 02349-288N | Not Available |
| 2 | Not Available | HOUSING - FRONT HANDLE | 15533-335N | Not Available |
| 3 | Not Available | HOUSING - REAR HANDLE | 15534-119N | Not Available |
| 4 | Not Available | HANDLE - STEEL | 15580 | Not Available |
| 5 | No Image | COVER, HANDLE Part Number: 15581-119N for Eureka | 15581119N | $100.41Read more |
| 6 | Not Available | GRIP - LEFT HANDLE | 15596-288N | Not Available |
| 7 | Not Available | GRIP - RIGHT HANDLE | 15597-288N | Not Available |
| 8 | Not Available | UPPER CORD ASSEMBLY | 28011-2 | Not Available |
| 9 | Not Available | SWITCH - ROCKER | 28305 | Not Available |
| 10 | Not Available | RETAINER - CORD | 28316-288N | Not Available |
| 11 | Not Available | SUPPLY CORD & TERMINAL AS | 38680-25 | Not Available |
| 12 | Not Available | SCREW PACKAGE | 53197-1 | Not Available |
| 13 |  | SCREW, HANDLE BRAVO SOFT BODY 10PK Part Number: 5323818 for Eureka | 5323818 | $5.48Read more |
| 14 | No Image | SHIELD - WIRING | 59741316N | $12.99Read more |
| 15 | | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | SPRING, UPPER CORD HOOK SC4570 10PK Part Number: 60945 for Eureka | 60945 | $5.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Washer, SC677 10Pk Part Number: 60946 for Eureka | 60946 | $10.48Read more |
| 18 | No Image | SCREW, HANDLE SC677 Part Number: 60947 for Eureka | 60947 | $18.83Read more |
| 19 | Not Available | BUSHING - STRAIN RELIEF | 70329 | Not Available |
