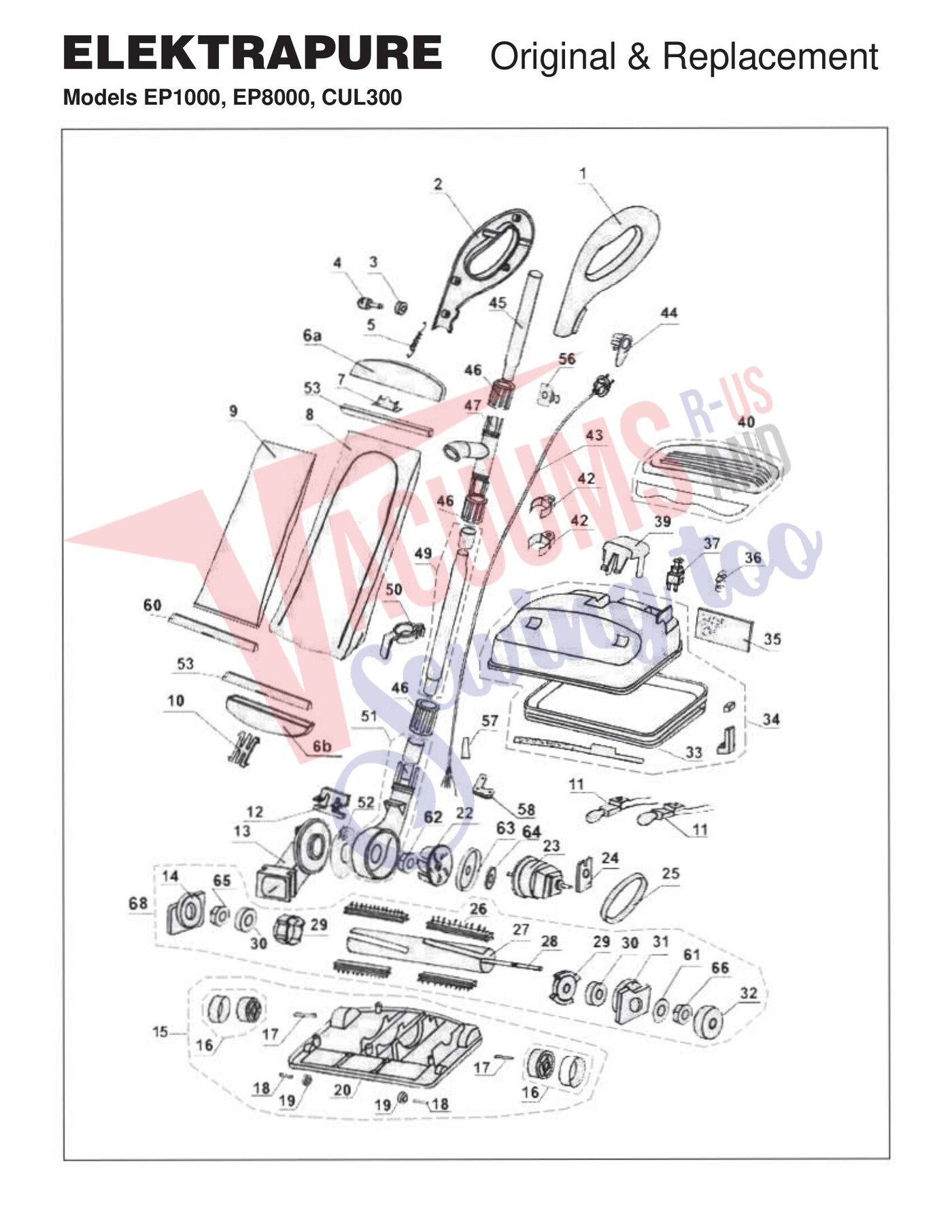

Schematic and parts book for Elektrapure EP1000, EP8000, CUL300 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | inner Cloth dump Bag eP8000 CUL300 45 eP-70000 Upper Handle Tube | EP-12400 | Not Available |
| XX | Not Available | Bulb Gray with Orange | HR-3500 | Not Available |
| 1 | Not Available | Left Handle eP1000 Maroon | EP-70250 | Not Available |
| 1 | Not Available | Left Handle eP8000 CUL300 Orange | EP-70252 | Not Available |
| 2 | Not Available | Right Handle eP1000 Maroon | EP-70251 | Not Available |
| 2 | Not Available | Right Handle eP8000 CUL300 Orange | EP-70253 | Not Available |
| 3 | Not Available | Bag spring Hook Gasket | EP-76001 | Not Available |
| 4 | Not Available | Bag spring Hook | EP-16000 | Not Available |
| 5 | Not Available | Bag spring | EP-77001 | Not Available |
| 7 | Not Available | Bag Housing Clasp | EP-16005 | Not Available |
| 8 | Not Available | Outer Cloth Bag eP1000 | EP-12001 | Not Available |
| 8 | Not Available | Outer Cloth Bag eP8000 CUL300 | EP-12002 | Not Available |
| 9 |  | Paper Bag, Super 8 Fits Sunbeam 410B Micron 6 Pk Part Number: EP1405 for Elektrapure | EP1405 | $10.80Read more |
| 10 | Not Available | Outer dust Bag Anchor Gray | EP-16007 | Not Available |
| 11 | Not Available | Lamp Housing w/Bulb | EP-36001 | Not Available |
| 12 | Not Available | Handle Catch | EP-70500 | Not Available |
| 13 | Not Available | dirt intake | EP-72001 | Not Available |
| 14 | Not Available | end Cap RH Non-Pulley end | EP-20500 | Not Available |
| 15 | Not Available | Bottom Plate Ass’y Metal Brushroll | NLA | Not Available |
| 15 | Not Available | Bottom Plate Ass’y Plastic Brushroll (Order eP-72003) | EP-76102 | Not Available |
| 16 | Not Available | Rear Wheel Ass’y | EP-71001 | Not Available |
| 17 | Not Available | Rear Wheel shaft | EP-71002 | Not Available |
| 18 | Not Available | Front Wheel shaft | EP-71004 | Not Available |
| 19 | Not Available | Front Wheel | EP-71003 | Not Available |
| 20 | Not Available | Bottom Plate (Order Key 15) | NLA | Not Available |
| 22 | Not Available | Motor Fan | EP-28000 | Not Available |
| 23 | Not Available | Motor | OR-6000 | Not Available |
| 24 | Not Available | Motor support Rubber | EP-62000 | Not Available |
| 25 | Not Available | Belt 2 Pk | EP-1020 | Not Available |
| 26 | Not Available | Brush strip 4 Pk | EP-22000 | Not Available |
| 27 | Not Available | Brushroll Core | NLA | Not Available |
| 28 | Not Available | Brushroll shaft | NLA | Not Available |
| 29 | Not Available | Bearing Holder | EP-20503 | Not Available |
| 30 | Not Available | Roller Bearing | EP-62002 | Not Available |
| 31 | Not Available | end Cap LH Pulley end | EP-20504 | Not Available |
| 32 | Not Available | Brushroll Pulley | EP-20505 | Not Available |
| 33 | Not Available | Bumper | EP-74001 | Not Available |
| 34 | Not Available | Hood Ass’y eP1000 Metal Brushroll Maroon | EP-73000 | Not Available |
| 34 | Not Available | Hood Ass’y eP1000 Plastic Brushroll Maroon | EP-73005 | Not Available |
| 34 | Not Available | Hood Ass’y eP8000 CUL300 Orange | EP-73001 | Not Available |
| 35 | Not Available | Foam exhaust Filter | EP-18001 | Not Available |
| 36 | Not Available | switch spring | EP-77002 | Not Available |
| 37 | Not Available | switch | EP-34001 | Not Available |
| 39 | Not Available | switch Cover eP1000 Maroon | EP-34501 | Not Available |
| 39 | Not Available | switch Cover eP8000 CUL300 Gray | EP-34502 | Not Available |
| 40 | Not Available | Lens Cover Ass’y | EP-73002 | Not Available |
| 42 | Not Available | Cord Clip | EP-32601 | Not Available |
| 43 | Not Available | Cord eP1000 25’ 17/2 Gray | EP-30000 | Not Available |
| 43 | Not Available | Cord eP8000 CUL300 30’ 18/3 Gray | EP-30001 | Not Available |
| 44 | Not Available | Upper Cord Hook eP1000 Maroon | EP-70501 | Not Available |
| 44 | Not Available | Upper Cord Hook eP8000 CUL300 Gray | EP-70502 | Not Available |
| 45 | Not Available | Upper Handle Tube | EP-70000 | Not Available |
| 46 | Not Available | Handle Collar eP1000 Gray with Maroon | EP-70504 | Not Available |
| 46 | Not Available | Handle Collar eP8000 CUL300 | EP-70505 | Not Available |
| 47 | Not Available | Handle Connector | EP-70001 | Not Available |
| 49 | Not Available | Lower Handle Ass’y | EP-70002 | Not Available |
| 50 | Not Available | Lower Cord Hook | EP-70503 | Not Available |
| 51 | Not Available | Fan Housing eP1000 Maroon | NLA | Not Available |
| 51 | Not Available | Fan Housing eP8000 CUL300 Gray | EP-72003 | Not Available |
| 52 | Not Available | Fan Housing Gasket | EP-76004 | Not Available |
| 53 | Not Available | Bag support | EP-16009 | Not Available |
| 56 | Not Available | Cord Hook Base eP1000 Maroon | EP-70506 | Not Available |
| 56 | Not Available | Cord Hook Base eP8000 CUL300 Gray | EP-70507 | Not Available |
| 57 | Not Available | strain Relief | EP-32600 | Not Available |
| 58 | Not Available | Cord Lock | EP-32000 | Not Available |
| 60 | Not Available | dump Bag slide | EP-16008 | Not Available |
| 61 | Not Available | Washer | EP-77003 | Not Available |
| 62 | Not Available | Motor shaft Nut | EP-77004 | Not Available |
| 63 | Not Available | Metal dust Cap | EP-62001 | Not Available |
| 64 | Not Available | dust Gasket | EP-76006 | Not Available |
| 65 | Not Available | shaft Nut (standard thread) | EP-77007 | Not Available |
| 66 | Not Available | shaft Nut (reverse thread) | EP-77006 | Not Available |
| 68 | Not Available | Brushroll Ass’y Complete Metal | NLA | Not Available |
| 68 | Not Available | Brushroll Ass’y Complete Plastic | EP-20005 | Not Available |
