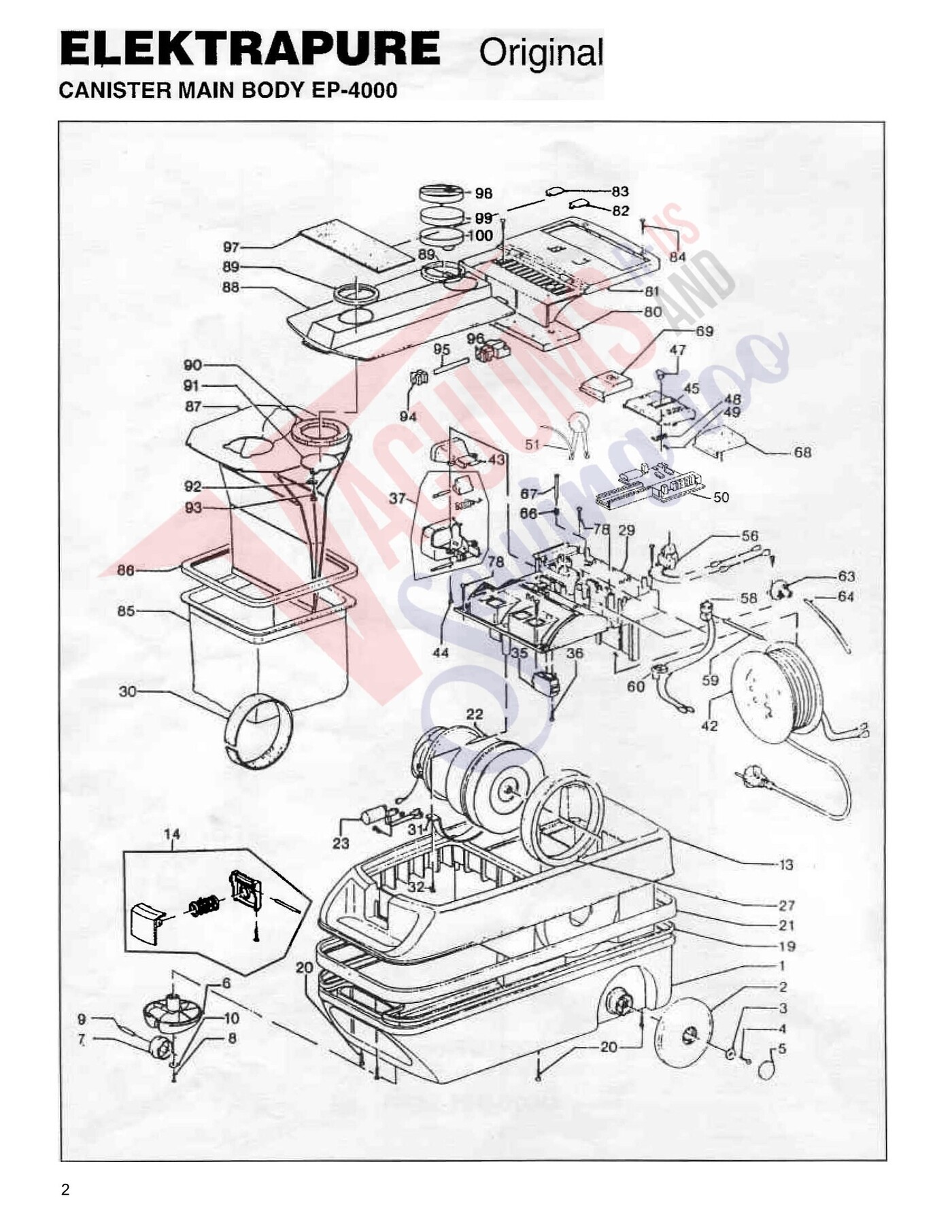

Schematic and parts book for Elektrapure EP-4000 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Lower Housing | EP-75000 | Not Available |
| 2 | Not Available | Rear Wheel | EP-71000 | Not Available |
| 3 | Not Available | Washer | EP-77000 | Not Available |
| 5 | Not Available | Hub Cap | EP-71150 | Not Available |
| 6 | Not Available | Swivel Castor Housing | EP-75025 | Not Available |
| 7 | Not Available | Swivel Castor | EP-71105 | Not Available |
| 9 | Not Available | Swivel Castor Axle | EP-71100 | Not Available |
| 10 | Not Available | Washer | EP-77015 | Not Available |
| 13 | Not Available | Upper Housing 84 "Screw | EP-75005 | Not Available |
| 14 | Not Available | Latch Ass'y | EP-75060 | Not Available |
| 19 | Not Available | Sealing Strip With Rubber Seal (#86) | EP-76020 | Not Available |
| 21 | Not Available | Bumper | EP-74G0Q | Not Available |
| 22 | Not Available | Motor Suction With Dust Lock 6 Pk | EP-60000 | Not Available |
| 23 | Not Available | Thermo Coupling | EP-36000 | Not Available |
| 27 | Not Available | Lower Motor Ring Rubber | EP-76015 | Not Available |
| 29 | Not Available | Motor Support | EP-76018 | Not Available |
| 30 | Not Available | Middle Motor Ring Rubber | EP-76010 | Not Available |
| 31 | Not Available | Motor Clamp Metal 92 "Washer | EP-75050 | Not Available |
| 35 | Not Available | Terminal Block Ass'y | EP-36015 | Not Available |
| 37 | Not Available | Lower Cord Brake Housing Ass'y | EP-75032 | Not Available |
| 42 | Not Available | Cord Reel Ass'y | EP-30750 | Not Available |
| 43 | Not Available | Upper Cord Brake Housing | EP-75030 | Not Available |
| 45 | Not Available | Cover Plate Power Selector | EP-75034 | Not Available |
| 47 | Not Available | Power Selector Slide | EP-75035 | Not Available |
| 48 | Not Available | Locking Plate Slide Selector | EP-75040 | Not Available |
| 49 | Not Available | Clamping Pin | EP-75045 | Not Available |
| 50 | Not Available | Circuit Board Ass'y | EP-36010 | Not Available |
| 51 | Not Available | Surge Protector | EP-36005 | Not Available |
| 56 | Not Available | On-Off Switch | EP-34000 | Not Available |
| 58 | Not Available | Full Bag Indicator PC Board & LED | EP-36020 | Not Available |
| 59 | Not Available | 4" Tubing | EP-34512 | Not Available |
| 60 | Not Available | Receptacle Power Nozzle | EP-36030 | Not Available |
| 63 | Not Available | Vacuum Switch | EP-34010 | Not Available |
| 64 | Not Available | 10" Tubing Vacuum Switch | EP-34510 | Not Available |
| 66 | Not Available | Spring Cord Release Plunger | EP-77005 | Not Available |
| 67 | Not Available | Cord Release Plunger | EP-77010 | Not Available |
| 68 | Not Available | On-Off Pedai | EP-34505 | Not Available |
| 69 | Not Available | Cord Reel Pedal | EP-345G0 | Not Available |
| 80 | Not Available | Noise Muffling Filter | EP-18020 | Not Available |
| 81 | Not Available | Motor Unit Cover Plate | EP-75G10 | Not Available |
| 82 | Not Available | Lens Full Bag Indicator | EP-75012 | Not Available |
| 83 | Not Available | Cover Power Nozzle Connection | EP-75013 | Not Available |
| 85 | Not Available | HEPA Cloth Bag | EP-12000 | Not Available |
| 86 | Not Available | Bag Seal Gasket (Rubber) | EP-76022 | Not Available |
| 87 |  | GR-EP-47 EP-PBI Elektrapure canister bags | EP1400 | $30.00Read more |
| 88 | Not Available | Lid Ass'y | EP-75015 | Not Available |
| 89 | Not Available | Ring Gasket Lid | EP-76Q0Q | Not Available |
| 90 | Not Available | Sealing Ring Foam Gasket | EP-76005 | Not Available |
| 91 | Not Available | Rubber Check Valve | EP-76025 | Not Available |
| 94 | Not Available | Retainer Vacuum Tube | EP-75065 | Not Available |
| 95 | Not Available | Rigid Vacuum Tube | EP-75070 | Not Available |
| 96 | Not Available | Connecting Block Vacuum Tube | EP-75075 | Not Available |
| 97 | Not Available | Elecktra Static Exhaust Filter | EP-18030 | Not Available |
| 98 | Not Available | Upper Final Filter Housing | EP-7510G | Not Available |
| 99 | Not Available | Charcoal Filter | EP-18000 | Not Available |
| 99 | Not Available | Foam Scent Pad | EP-18040 | Not Available |
| 100 | Not Available | Lower Final Filter Housing | EP-75105 | Not Available |

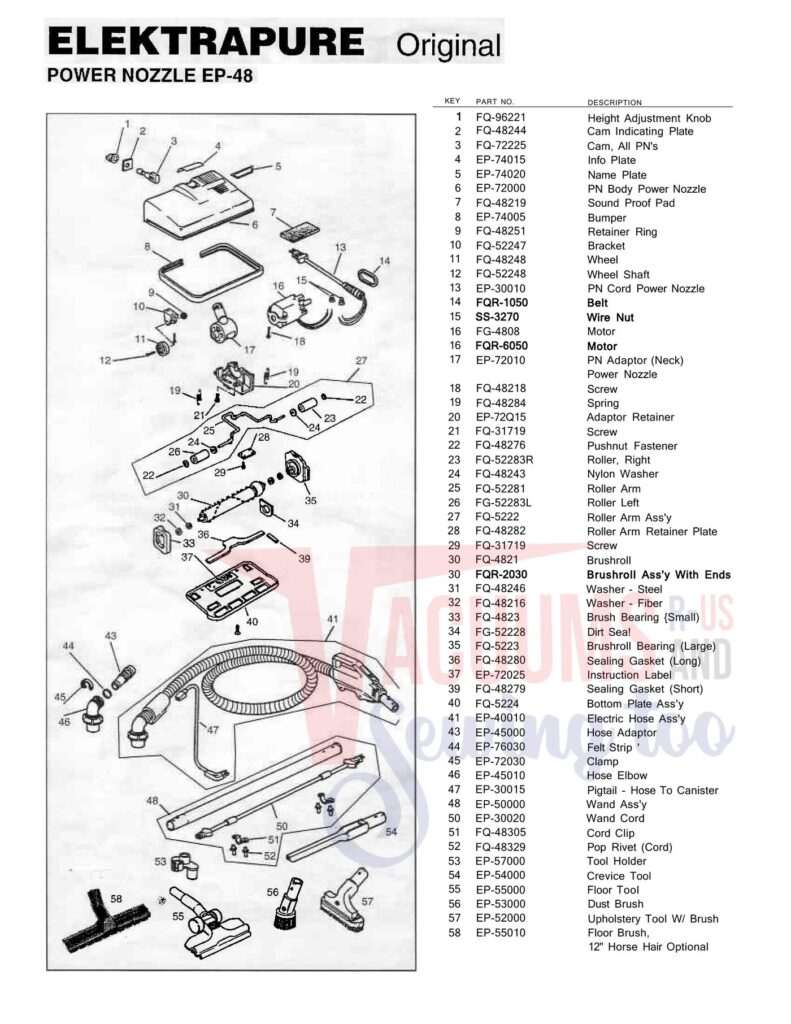

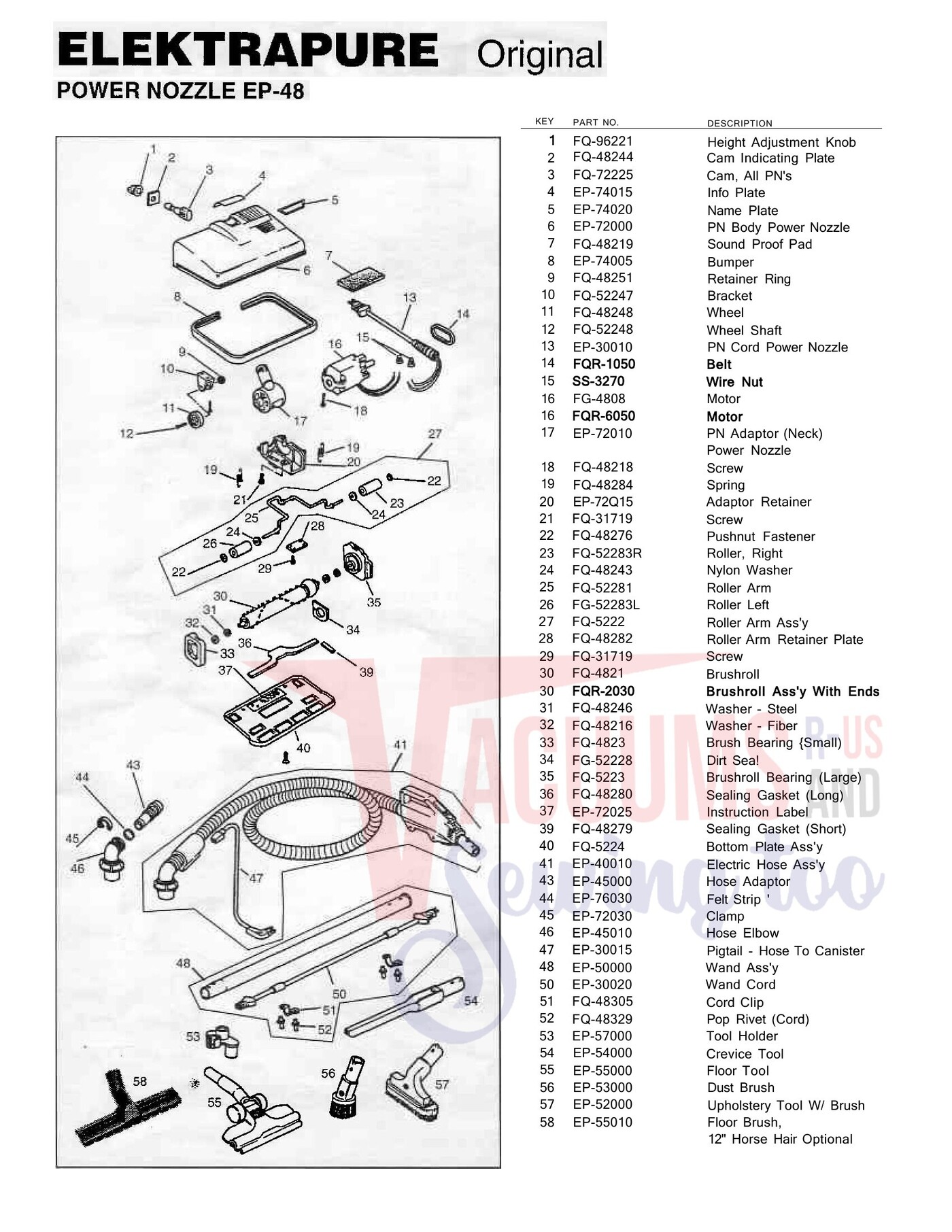

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Height Adjustment Knob | FQ-96221 | Not Available |
| 2 | Not Available | Cam Indicating Plate | FQ-48244 | Not Available |
| 3 | Not Available | Cam All PN's | FQ-72225 | Not Available |
| 4 | Not Available | Info Plate | EP-74015 | Not Available |
| 5 | Not Available | Name Plate | EP-74020 | Not Available |
| 6 | Not Available | PN Body Power Nozzle | EP-72000 | Not Available |
| 7 | Not Available | Sound Proof Pad | FQ-48219 | Not Available |
| 8 | Not Available | Bumper | EP-74005 | Not Available |
| 9 | Not Available | Retainer Ring | FQ-48251 | Not Available |
| 10 | Not Available | Bracket | FQ-52247 | Not Available |
| 11 | Not Available | Wheel | FQ-48248 | Not Available |
| 12 | Not Available | Wheel Shaft | FQ-52248 | Not Available |
| 13 | Not Available | PN Cord Power Nozzle | EP-30010 | Not Available |
| 14 | Not Available | Belt | FQR-1050 | Not Available |
| 15 | Not Available | Wire Nut | SS-3270 | Not Available |
| 16 | Not Available | Motor | FG-4808 | Not Available |
| 16 | Not Available | Motor | FQR-6050 | Not Available |
| 17 | Not Available | PN Adaptor (Neck) | EP-72010 | Not Available |
| 18 | Not Available | Screw | FQ-48218 | Not Available |
| 19 | Not Available | Spring | FQ-48284 | Not Available |
| 20 | Not Available | Adaptor Retainer | EP-72Q15 | Not Available |
| 21 | Not Available | Screw | FQ-31719 | Not Available |
| 22 | Not Available | Pushnut Fastener | FQ-48276 | Not Available |
| 23 | Not Available | Roller Right | FQ-52283R | Not Available |
| 24 | Not Available | Nylon Washer | FQ-48243 | Not Available |
| 25 | Not Available | Roller Arm | FQ-52281 | Not Available |
| 26 | Not Available | Roller Left | FG-52283L | Not Available |
| 27 | Not Available | Roller Arm Ass'y | FQ-5222 | Not Available |
| 28 | Not Available | Roller Arm Retainer Plate | FQ-48282 | Not Available |
| 29 | Not Available | Screw | FQ-31719 | Not Available |
| 30 | Not Available | Brushroll | FQ-4821 | Not Available |
| 30 | Not Available | Brushroll Ass'y With Ends | FQR-2030 | Not Available |
| 31 | Not Available | Washer - Steel | FQ-48246 | Not Available |
| 32 | Not Available | Washer - Fiber | FQ-48216 | Not Available |
| 33 | Not Available | Brush Bearing {Small) | FQ-4823 | Not Available |
| 34 | Not Available | Dirt Sea! | FG-52228 | Not Available |
| 35 | Not Available | Brushroll Bearing (Large) | FQ-5223 | Not Available |
| 36 | Not Available | Sealing Gasket (Long) | FQ-48280 | Not Available |
| 37 | Not Available | Instruction Label | EP-72025 | Not Available |
| 39 | Not Available | Sealing Gasket (Short) | FQ-48279 | Not Available |
| 40 | Not Available | Bottom Plate Ass'y | FQ-5224 | Not Available |
| 41 | Not Available | Electric Hose Ass'y | EP-40010 | Not Available |
| 43 | Not Available | Hose Adaptor | EP-45000 | Not Available |
| 44 | Not Available | Felt Strip ' | EP-76030 | Not Available |
| 45 | Not Available | Clamp | EP-72030 | Not Available |
| 46 | Not Available | Hose Elbow | EP-45010 | Not Available |
| 47 | Not Available | Pigtail - Hose To Canister | EP-30015 | Not Available |
| 48 | Not Available | Wand Ass'y | EP-50000 | Not Available |
| 50 | Not Available | Wand Cord | EP-30020 | Not Available |
| 51 | Not Available | Cord Clip | FQ-48305 | Not Available |
| 52 | Not Available | Pop Rivet (Cord) | FQ-48329 | Not Available |
| 53 | Not Available | Tool Holder | EP-57000 | Not Available |
| 54 | Not Available | Crevice Tool | EP-54000 | Not Available |
| 55 | Not Available | Floor Tool | EP-55000 | Not Available |
| 56 | Not Available | Dust Brush | EP-53000 | Not Available |
| 57 | Not Available | Upholstery Tool W/ Brush | EP-52000 | Not Available |
| 58 | Not Available | Floor Brush | EP-55010 | Not Available |
