Schematic and parts book for Electrolux EL8802A;EL8802 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

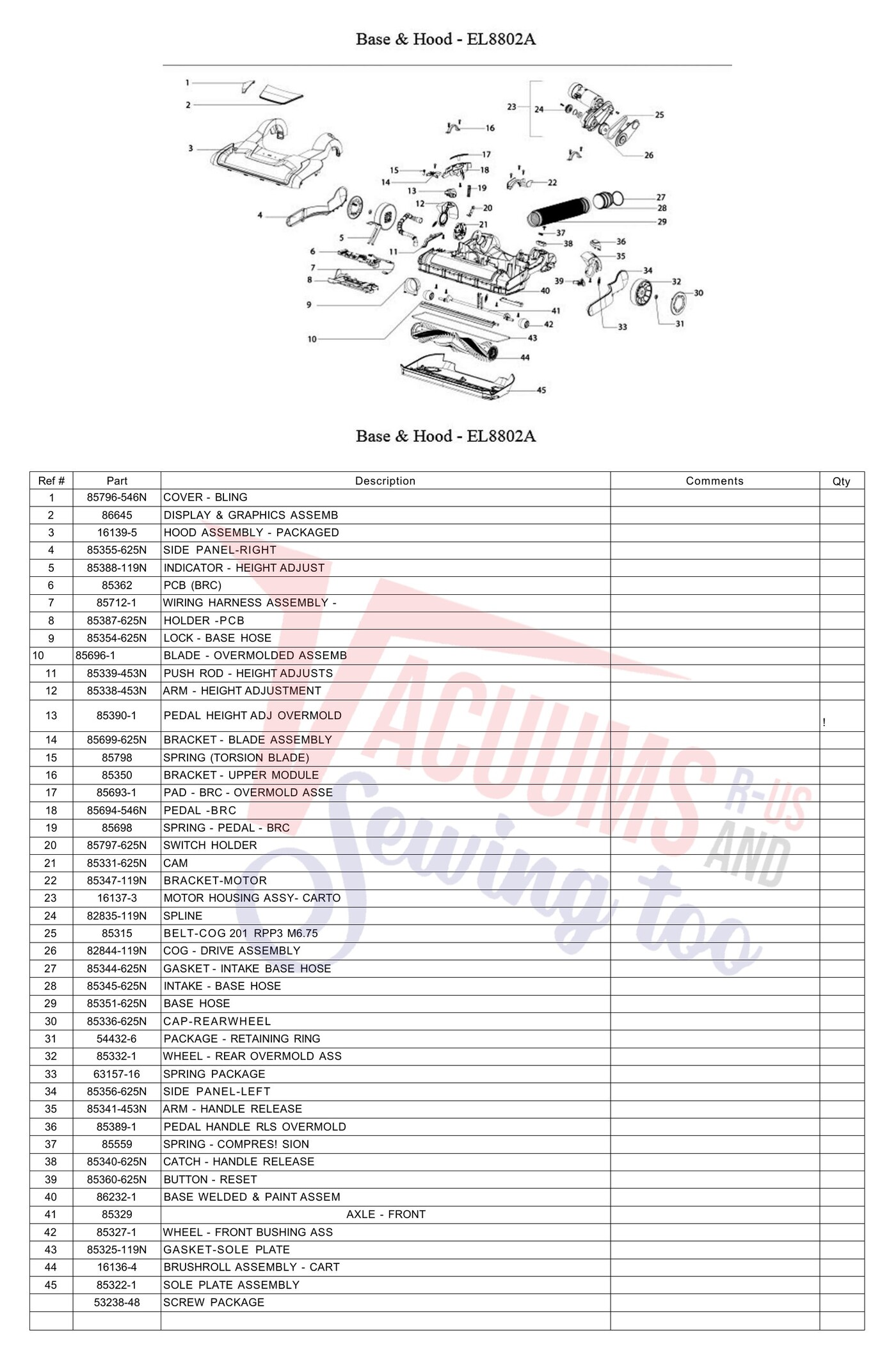

| 1 | Not Available | COVER - BLING | 85796-546N | Not Available |
| 2 | Not Available | DISPLAY & GRAPHICS ASSEMB | 86645 | Not Available |
| 3 | Not Available | HOOD ASSEMBLY - PACKAGED | 16139-5 | Not Available |
| 4 | Not Available | SIDE PANEL-RIGHT | 85355-625N | Not Available |
| 5 | Not Available | INDICATOR - HEIGHT ADJUST | 85388-119N | Not Available |
| 6 | Not Available | PCB (BRC) | 85362 | Not Available |
| 7 | Not Available | WIRING HARNESS ASSEMBLY - | 85712-1 | Not Available |
| 8 | Not Available | HOLDER -PCB | 85387-625N | Not Available |
| 9 | Not Available | LOCK - BASE HOSE | 85354-625N | Not Available |
| 10 | Not Available | BLADE - OVERMOLDED ASSEMB | 85696-1 | Not Available |
| 11 | Not Available | PUSH ROD - HEIGHT ADJUSTS | 85339-453N | Not Available |
| 12 | Not Available | ARM - HEIGHT ADJUSTMENT | 85338-453N | Not Available |
| 13 | Not Available | PEDAL HEIGHT ADJ OVERMOLD | 85390-1 | Not Available |
| 14 | Not Available | BRACKET - BLADE ASSEMBLY | 85699-625N | Not Available |
| 15 | Not Available | SPRING (TORSION BLADE) | 85798 | Not Available |
| 16 | Not Available | BRACKET - UPPER MODULE | 85350 | Not Available |
| 17 | Not Available | PAD - BRC - OVERMOLD ASSE | 85693-1 | Not Available |
| 18 | No Image | PEDAL-BRC, EL8802A Part Number: 85694-546N for Eureka | 85694546N | $7.83Read more |
| 19 | Not Available | SPRING - PEDAL - BRC | 85698 | Not Available |
| 20 | Not Available | SWITCH HOLDER | 85797-625N | Not Available |
| 21 | Not Available | CAM | 85331-625N | Not Available |
| 22 | Not Available | BRACKET-MOTOR | 85347-119N | Not Available |
| 23 | Not Available | MOTOR HOUSING ASSY- CARTO | 16137-3 | Not Available |
| 24 | Not Available | SPLINE | 82835-119N | Not Available |
| 25 | Not Available | BELT-COG 201 RPP3 M6.75 | 85315 | Not Available |
| 26 | Not Available | COG - DRIVE ASSEMBLY | 82844-119N | Not Available |
| 27 | Not Available | GASKET - INTAKE BASE HOSE | 85344-625N | Not Available |
| 28 | Not Available | INTAKE - BASE HOSE | 85345-625N | Not Available |
| 29 | Not Available | BASE HOSE | 85351-625N | Not Available |
| 30 | Not Available | CAP-REARWHEEL | 85336-625N | Not Available |
| 31 | Not Available | PACKAGE - RETAINING RING | 54432-6 | Not Available |
| 32 | Not Available | WHEEL - REAR OVERMOLD ASS | 85332-1 | Not Available |
| 33 | Not Available | SPRING PACKAGE | 63157-16 | Not Available |
| 34 | Not Available | SIDE PANEL-LEFT | 85356-625N | Not Available |
| 35 | Not Available | ARM - HANDLE RELEASE | 85341-453N | Not Available |
| 36 | Not Available | PEDAL HANDLE RLS OVERMOLD | 85389-1 | Not Available |
| 37 | Not Available | SPRING - COMPRES! SION | 85559 | Not Available |
| 38 | Not Available | CATCH - HANDLE RELEASE | 85340-625N | Not Available |
| 39 | Not Available | BUTTON - RESET | 85360-625N | Not Available |
| 40 | No Image | BASE WELDED & PAINT ASSEMBLY Part Number: 86232-1 for Eureka | 862321 | $38.83Read more |
| 41 | Not Available | AXLE - FRONT | 85329 | Not Available |
| 42 | Not Available | WHEEL - FRONT BUSHING ASS | 85327-1 | Not Available |
| 43 | Not Available | GASKET-SOLE PLATE | 85325-119N | Not Available |
| 44 | Not Available | BRUSHROLL ASSEMBLY - CART | 16136-4 | Not Available |
| 45 | Not Available | SOLE PLATE ASSEMBLY | 85322-1 | Not Available |
| 45 | Not Available | SCREW PACKAGE | 53238-48 | Not Available |
| # | Part image | Description | SKU | Price |

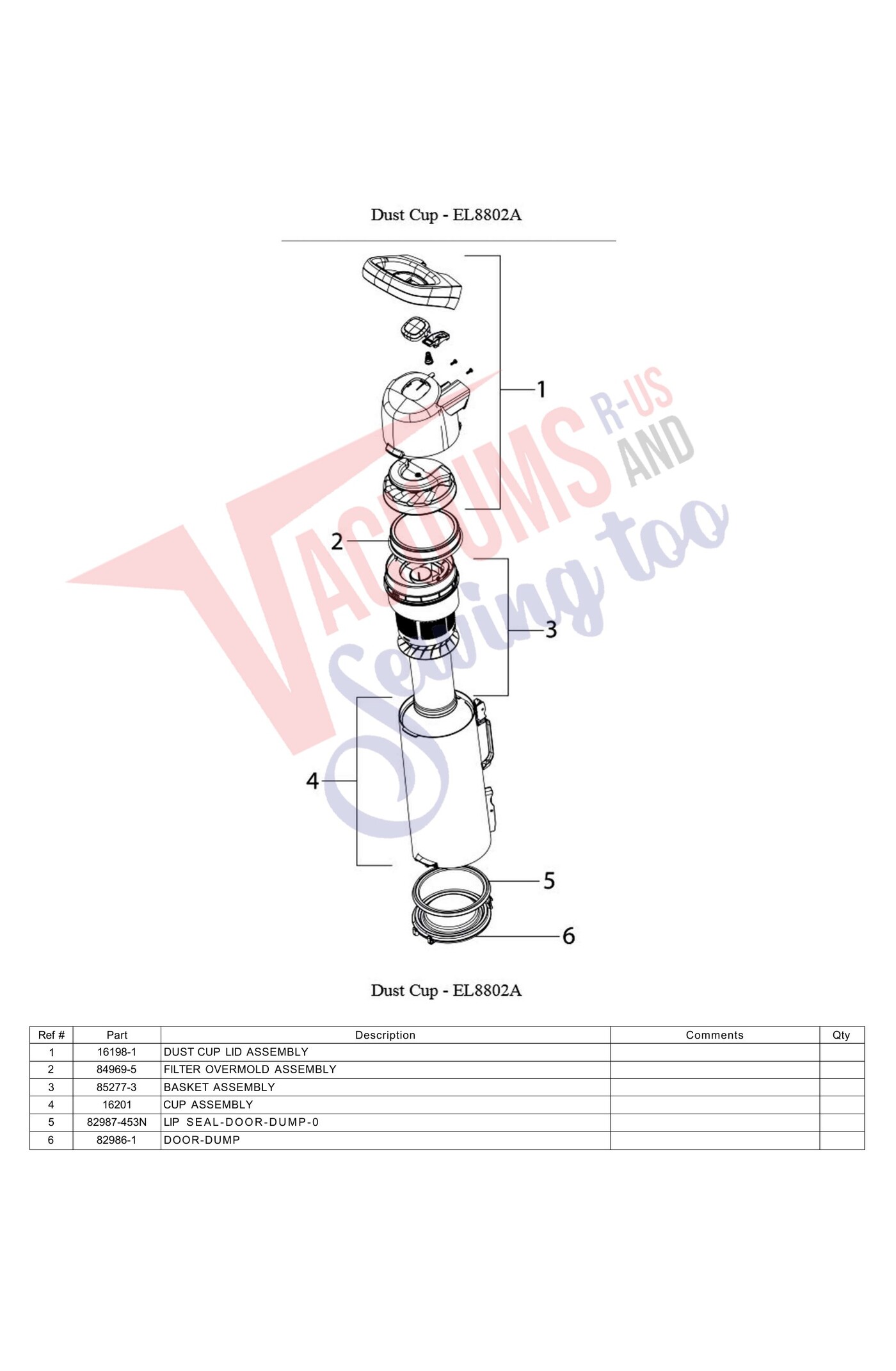

| 1 | Not Available | DUST CUP LID ASSEMBLY | 16198-1 | Not Available |
| 2 | Not Available | FILTER OVERMOLD ASSEMBLY | 84969-5 | Not Available |
| 3 | Not Available | BASKET ASSEMBLY | 85277-3 | Not Available |
| 4 | Not Available | CUP ASSEMBLY | 16201 | Not Available |
| 5 | Not Available | LIP SEAL-DOOR-DUMP-0 | 82987-453N | Not Available |
| 6 | Not Available | DOOR-DUMP | 82986-1 | Not Available |
| # | Part image | Description | SKU | Price |

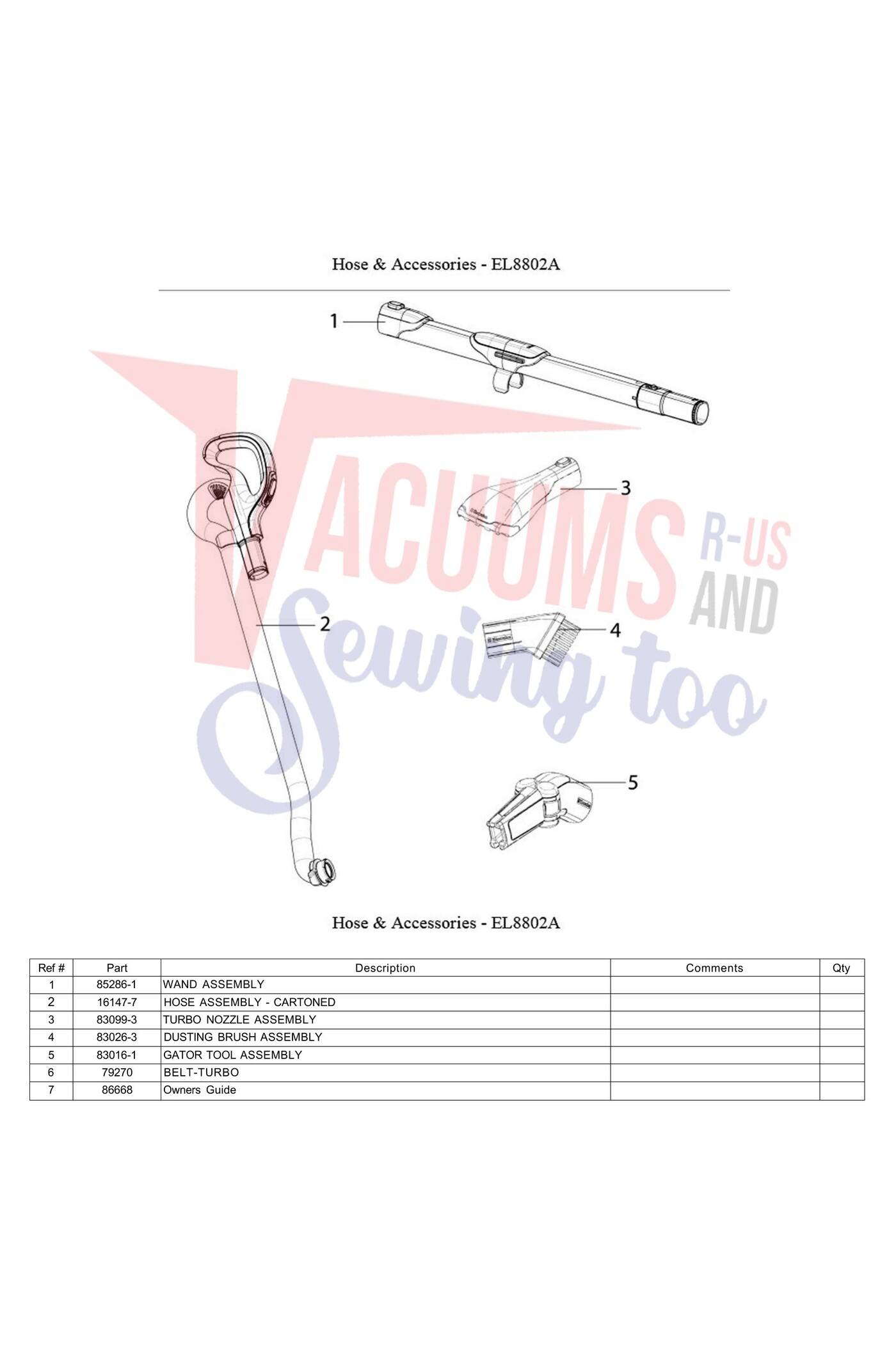

| 1 | Not Available | WAND ASSEMBLY | 85286-1 | Not Available |
| 2 | Not Available | HOSE ASSEMBLY - CARTONED | 16147-7 | Not Available |
| 3 | Not Available | TURBO NOZZLE ASSEMBLY | 83099-3 | Not Available |
| 4 | Not Available | DUSTING BRUSH ASSEMBLY | 83026-3 | Not Available |
| 5 | Not Available | GATOR TOOL ASSEMBLY | 83016-1 | Not Available |
| 6 |  | Belt, Geared EL8025/EL8505 Part Number: 79270 for Eureka | 79270 | $23.57Read more |
| 7 | Not Available | Owners Guide | 86668 | Not Available |
| # | Part image | Description | SKU | Price |

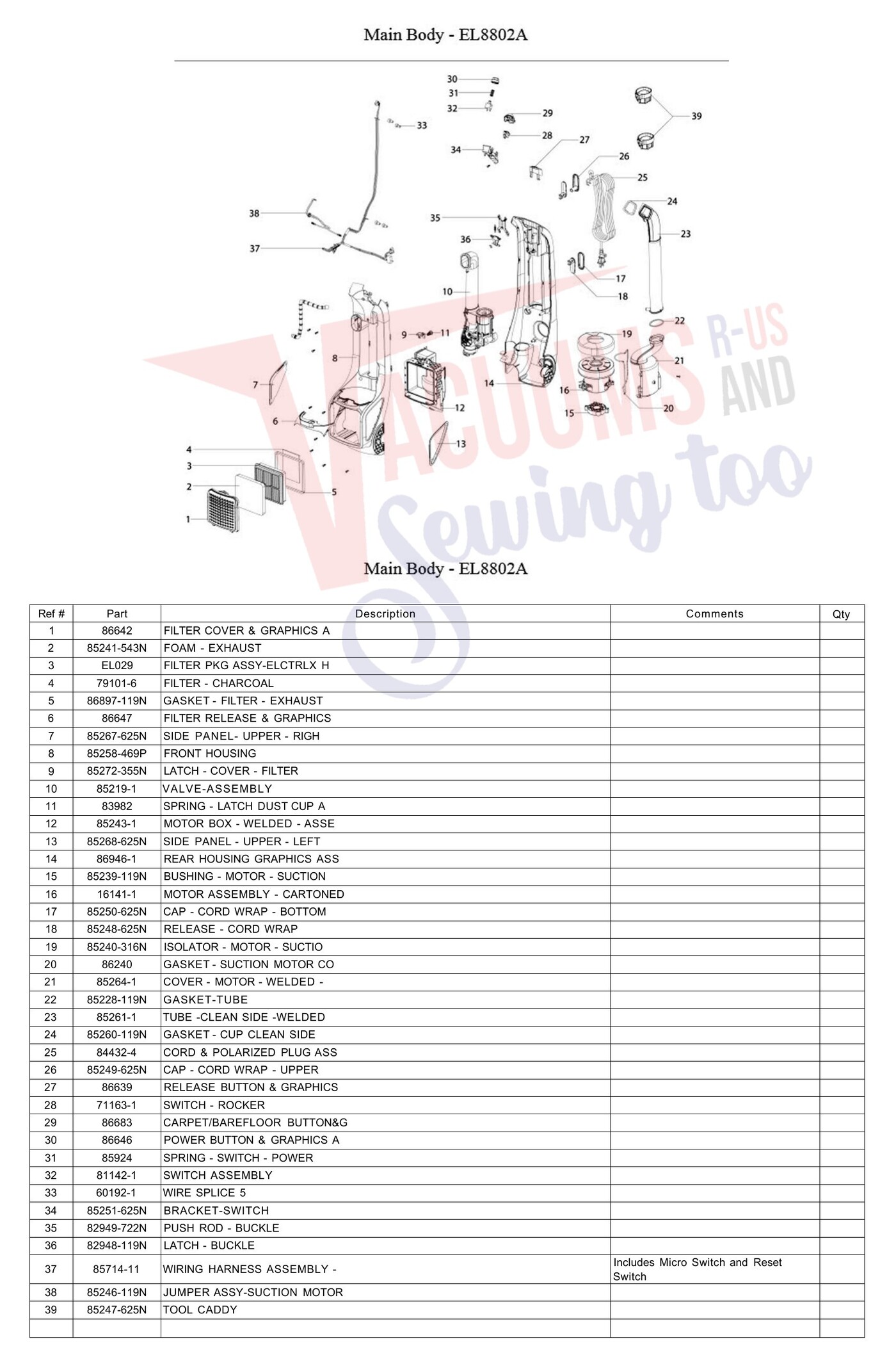

| 1 | Not Available | FILTER COVER & GRAPHICS A | 86642 | Not Available |
| 2 | No Image | Filter, Exhaust Foam EL8802A/EL8811A/EL8811AX Part Number: 85241-543N for Eureka | 85241543N | $4.34Read more |
| 3 |  | Electrolux HEPA U-Filter 1Pk | EL029A | $25.30Read more |
| 4 | Not Available | FILTER - CHARCOAL | 79101-6 | Not Available |
| 5 | Not Available | GASKET - FILTER - EXHAUST | 86897-119N | Not Available |
| 6 | Not Available | FILTER RELEASE & GRAPHICS | 86647 | Not Available |
| 7 | Not Available | SIDE PANEL- UPPER - RIGH | 85267-625N | Not Available |
| 8 | Not Available | FRONT HOUSING | 85258-469P | Not Available |
| 9 | Not Available | LATCH - COVER - FILTER | 85272-355N | Not Available |
| 10 | Not Available | VALVE-ASSEMBLY | 85219-1 | Not Available |
| 11 | Not Available | SPRING - LATCH DUST CUP A | 83982 | Not Available |
| 12 | Not Available | MOTOR BOX - WELDED - ASSE | 85243-1 | Not Available |
| 13 | Not Available | SIDE PANEL - UPPER - LEFT | 85268-625N | Not Available |
| 14 | Not Available | REAR HOUSING GRAPHICS ASS | 86946-1 | Not Available |
| 15 | Not Available | BUSHING - MOTOR - SUCTION | 85239-119N | Not Available |
| 16 | Not Available | MOTOR ASSEMBLY - CARTONED | 16141-1 | Not Available |
| 17 | Not Available | CAP - CORD WRAP - BOTTOM | 85250-625N | Not Available |
| 18 | Not Available | RELEASE - CORD WRAP | 85248-625N | Not Available |
| 19 | Not Available | ISOLATOR - MOTOR - SUCTIO | 85240-316N | Not Available |
| 20 | Not Available | GASKET - SUCTION MOTOR CO | 86240 | Not Available |
| 21 | Not Available | COVER - MOTOR - WELDED - | 85264-1 | Not Available |
| 22 | Not Available | GASKET-TUBE | 85228-119N | Not Available |
| 23 | Not Available | TUBE -CLEAN SIDE -WELDED | 85261-1 | Not Available |
| 24 | Not Available | GASKET - CUP CLEAN SIDE | 85260-119N | Not Available |
| 25 | Not Available | CORD & POLARIZED PLUG ASS | 84432-4 | Not Available |
| 26 | Not Available | CAP - CORD WRAP - UPPER | 85249-625N | Not Available |
| 27 | Not Available | RELEASE BUTTON & GRAPHICS | 86639 | Not Available |
| 28 | No Image | SWITCH, ROCKER BRUSHROLL ON/OFF Part Number: 71163-1 for Eureka | 711631 | $3.00Read more |
| 29 | Not Available | CARPET/BAREFLOOR BUTTON&G | 86683 | Not Available |
| 30 | Not Available | POWER BUTTON & GRAPHICS A | 86646 | Not Available |
| 31 | Not Available | SPRING - SWITCH - POWER | 85924 | Not Available |
| 32 | Not Available | SWITCH ASSEMBLY | 81142-1 | Not Available |
| 33 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | BRACKET-SWITCH | 85251-625N | Not Available |
| 35 | Not Available | PUSH ROD - BUCKLE | 82949-722N | Not Available |
| 36 | Not Available | LATCH - BUCKLE | 82948-119N | Not Available |
| 37 | Not Available | WIRING HARNESS ASSEMBLY - | 85714-11 | Not Available |
| 38 | Not Available | JUMPER ASSY-SUCTION MOTOR | 85246-119N | Not Available |
| 39 | Not Available | TOOL CADDY | 85247-625N | Not Available |
