Schematic and parts book for Electrolux EL8605A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

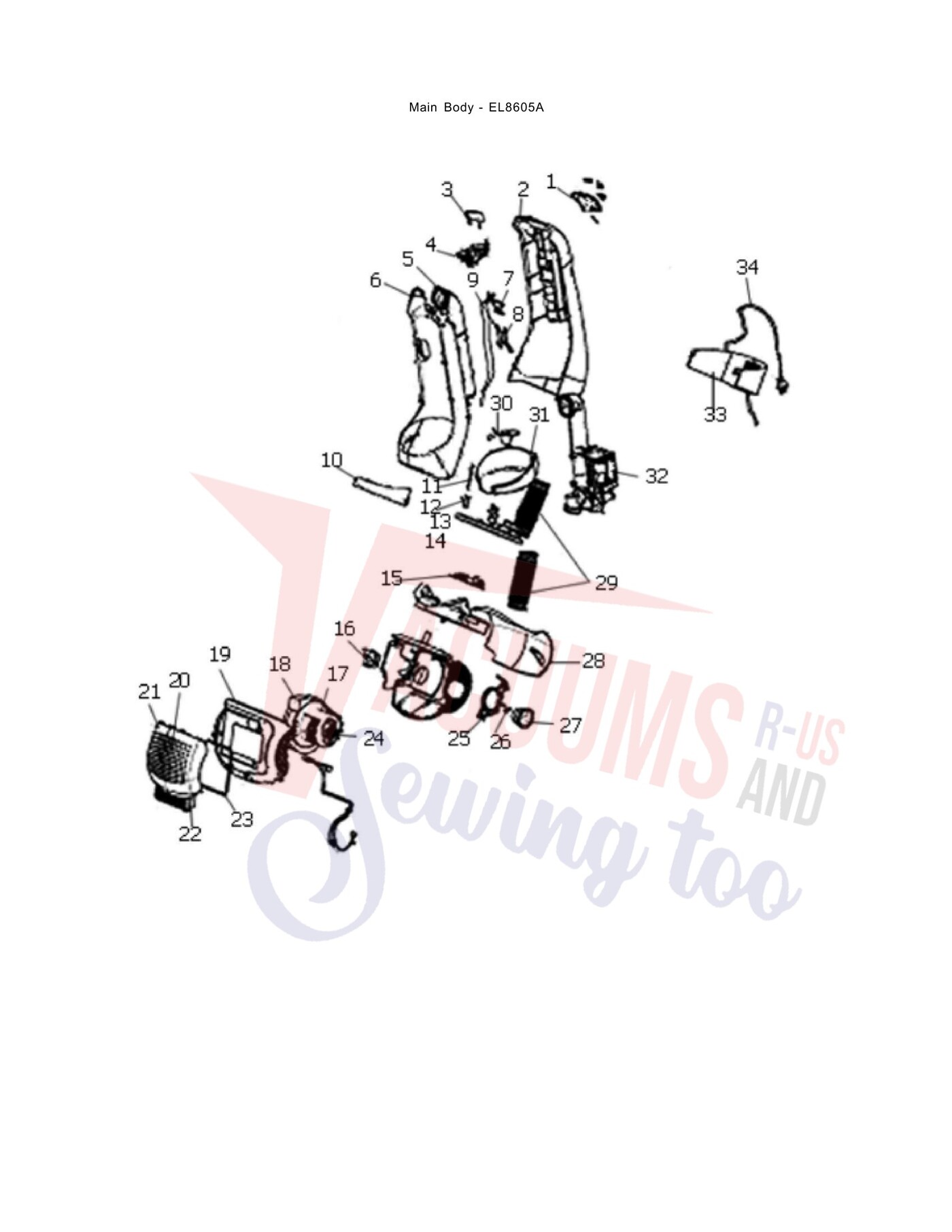

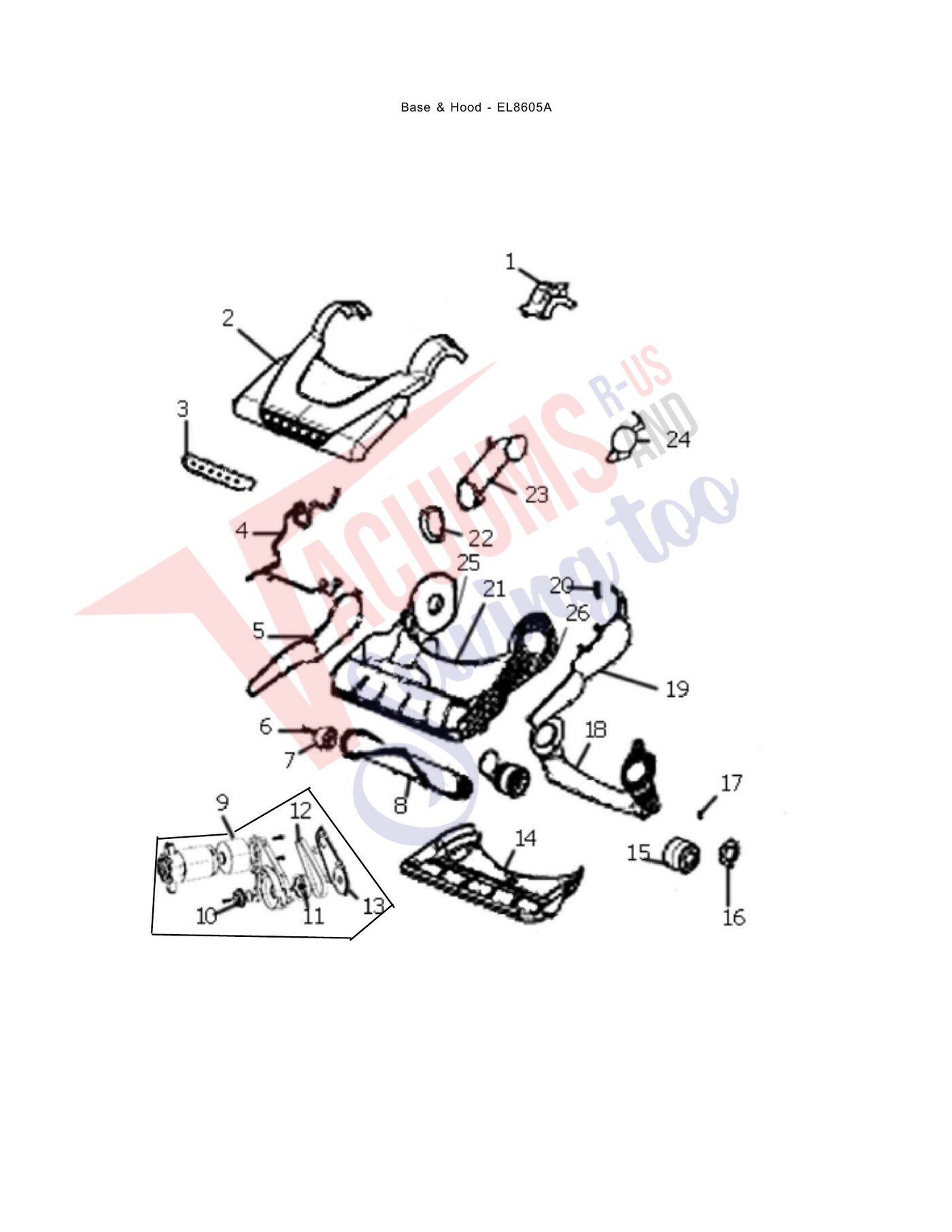

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SWITCH | 16143-1 | Not Available |
| 2 | Not Available | HOUSING | 82685-469P | Not Available |
| 3 | Not Available | BUCKLE | 82925-1 | Not Available |
| 4 | Not Available | MICROCONTROLLER | 83542 | Not Available |
| 5 | Not Available | TUBE - CUP | 83231-1 | Not Available |
| 6 | Not Available | HOUSING | 82686-469P | Not Available |
| 7 | Not Available | LATCH - | 82948-119N | Not Available |
| 8 | Not Available | PUSH ROD | 82949-722N | Not Available |
| 9 | Not Available | JUMPER | 83567 | Not Available |
| 10 | Not Available | N FACIA - | 83046-561 | Not Available |
| 11 | Not Available | PUSH ROD- | 82904-722N | Not Available |
| 12 | Not Available | LOCK- SWIVEL | 82903-119N | Not Available |
| 13 | Not Available | CAP- PUSH | 82905-722N | Not Available |
| 14 | Not Available | SPRING | 82906 | Not Available |
| 15 | Not Available | POWER | 83551 | Not Available |
| 16 | Not Available | PIN - BASE | 82887-119N | Not Available |
| 17 | Not Available | MOTOR | 16141-1 | Not Available |
| 19 | No Image | COVER, MOTOR EL8605 Part Number: 82681-469P for Eureka | 82681469P | $17.24Read more |
| 20 |  | FILTER, FOAM EXHAUST EL8602/EL8605 NIMBLE Part Number: 82891-119N for Eureka | 82891119N | $6.92Read more |
| 21 | Not Available | FILTER COVER | 83730-1 | Not Available |
| 22 | Not Available | FILTER PKG | EL029 | Not Available |
| 23 | Not Available | ELCTRLX | EL030 | Not Available |
| 24 | Not Available | BUSHING | 82872-700M | Not Available |
| 25 | Not Available | HANDLE | 16140-1 | Not Available |
| 26 | Not Available | SPRING | 82869 | Not Available |
| 27 | Not Available | PIN - BASE | 82886-119N | Not Available |
| 28 | Not Available | FACIA-MTR | 84399-1 | Not Available |
| 29 | Not Available | HOSE - MOTOR | 82958-119N | Not Available |
| 30 | Not Available | PLUG - VALVE | 82947-355N | Not Available |
| 31 | Not Available | FRONT HOUSING | 82955-469P | Not Available |
| 32 | Not Available | VALVE ASSEMBLY | 82927-1 | Not Available |
| 33 | Not Available | N FACIA - | 82908-561 | Not Available |
| 34 | Not Available | SUPPLY | 83698-1 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | CLAMP - | 82856-722N | Not Available |
| 2 | Not Available | HOOD ASSEMBLY | 16139-1 | Not Available |
| 3 | Not Available | HEADLIGHT | 83557 | Not Available |
| 4 | Not Available | JUMPER | 83565 | Not Available |
| 5 | Not Available | SIDE PANEL | 82865-625N | Not Available |
| 6 | Not Available | AXLE - WHEEL | 82861 | Not Available |
| 7 | Not Available | WHEEL- | 82858-1 | Not Available |
| 8 | Not Available | BRUSHROLL | 16136-1 | Not Available |
| 9 | Not Available | MOTOR | 16137-1 | Not Available |
| 10 | Not Available | SPLINE | 82835-119N | Not Available |
| 11 | Not Available | COG - DRIVE | 82844-119N | Not Available |
| 12 | Not Available | BELT - COGGED | 74924 | Not Available |
| 13 | No Image | Cover, Blk Motor Nimble Bagless Upright EL8602A-1 Part Number: 82840-119N for Eureka | 82840119N | $6.95Read more |
| 14 |  | BOTTOM PLATE, EL8605A Part Number: 82851-1 for Eureka | 828511 | $30.31Read more |
| 15 | Not Available | WHEEL - | 82876-1 | Not Available |
| 16 | Not Available | CAP - WHEEL | 83043-625N | Not Available |
| 17 |  | Push Nut, Wheel Retaining 8806/8807/8852/8853 10Pk Part Number: 53121-1 for Eureka | 531211 | $7.82Read more |
| 18 | Not Available | WHEEL CARRIAGE | 82879-1 | Not Available |
| 19 | Not Available | SIDE PANEL | 82864-625N | Not Available |
| 20 | Not Available | SPRING | 82869 | Not Available |
| 21 | Not Available | BASE ASSEMBLY | 16149-1 | Not Available |
| 22 | No Image | GASKET - TUBE BASE TO ADA Part Number: 83037-355N for Eureka | 83037355N | $4.71Read more |
| 23 | Not Available | TUBE - BASE | 82902-313N | Not Available |
| 24 | Not Available | HANDLE | 16140-1 | Not Available |
| 25 | Not Available | CAP - BASE | 82863-469P | Not Available |
| 26 | Not Available | CAP - BASE | 82862-469P | Not Available |
| # | Part image | Description | SKU | Price |

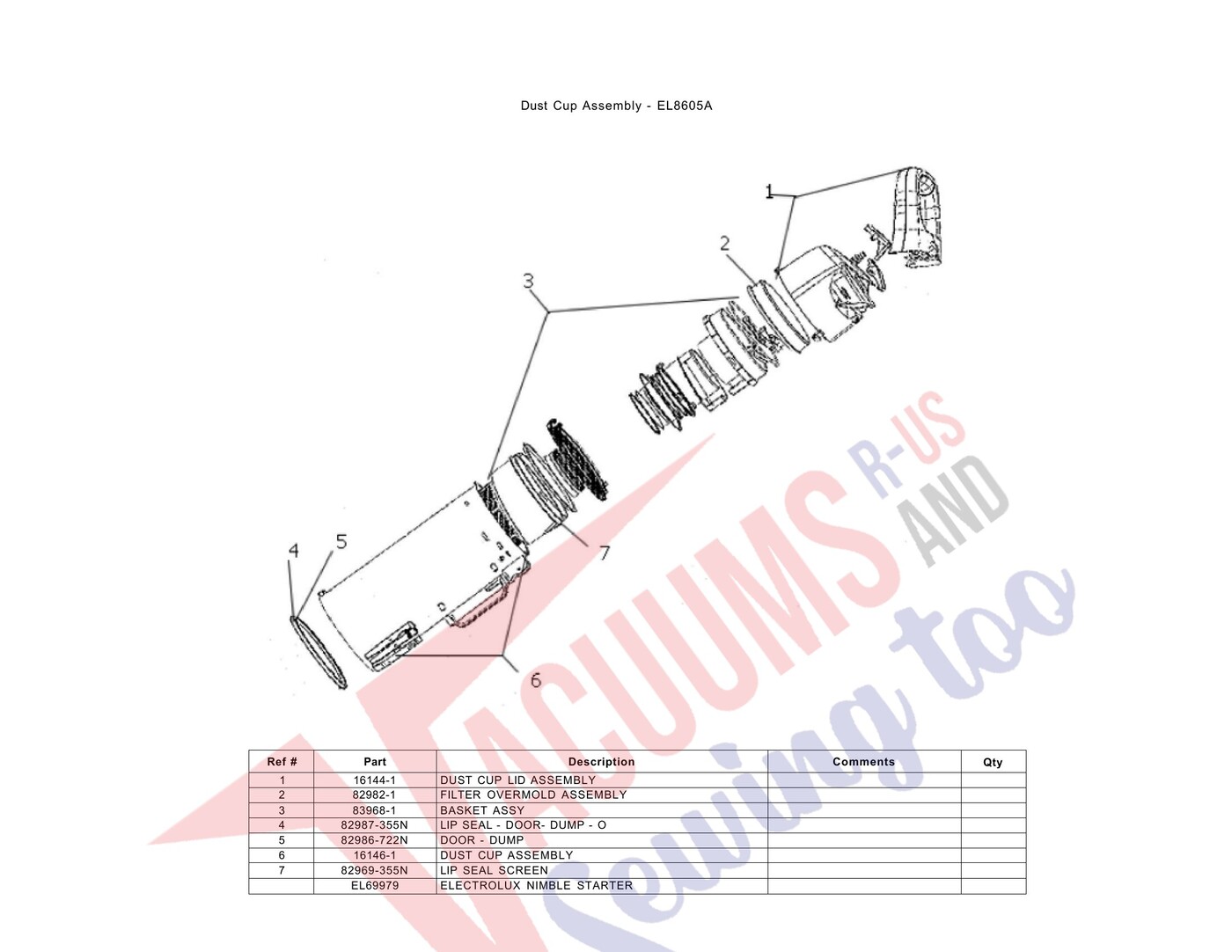

| 1 | Not Available | DUST CUP LID ASSEMBLY | 16144-1 | Not Available |
| 2 | Not Available | FILTER OVERMOLD ASSEMBLY | 82982-1 | Not Available |
| 3 | Not Available | BASKET ASSY | 83968-1 | Not Available |
| 4 | Not Available | LIP SEAL - DOOR- DUMP - O | 82987-355N | Not Available |
| 5 | Not Available | DOOR - DUMP | 82986-722N | Not Available |
| 6 | Not Available | DUST CUP ASSEMBLY | 16146-1 | Not Available |
| 7 | Not Available | LIP SEAL SCREEN | 82969-355N | Not Available |
| 7 | Not Available | ELECTROLUX NIMBLE STARTER | EL69979 | Not Available |
| # | Part image | Description | SKU | Price |

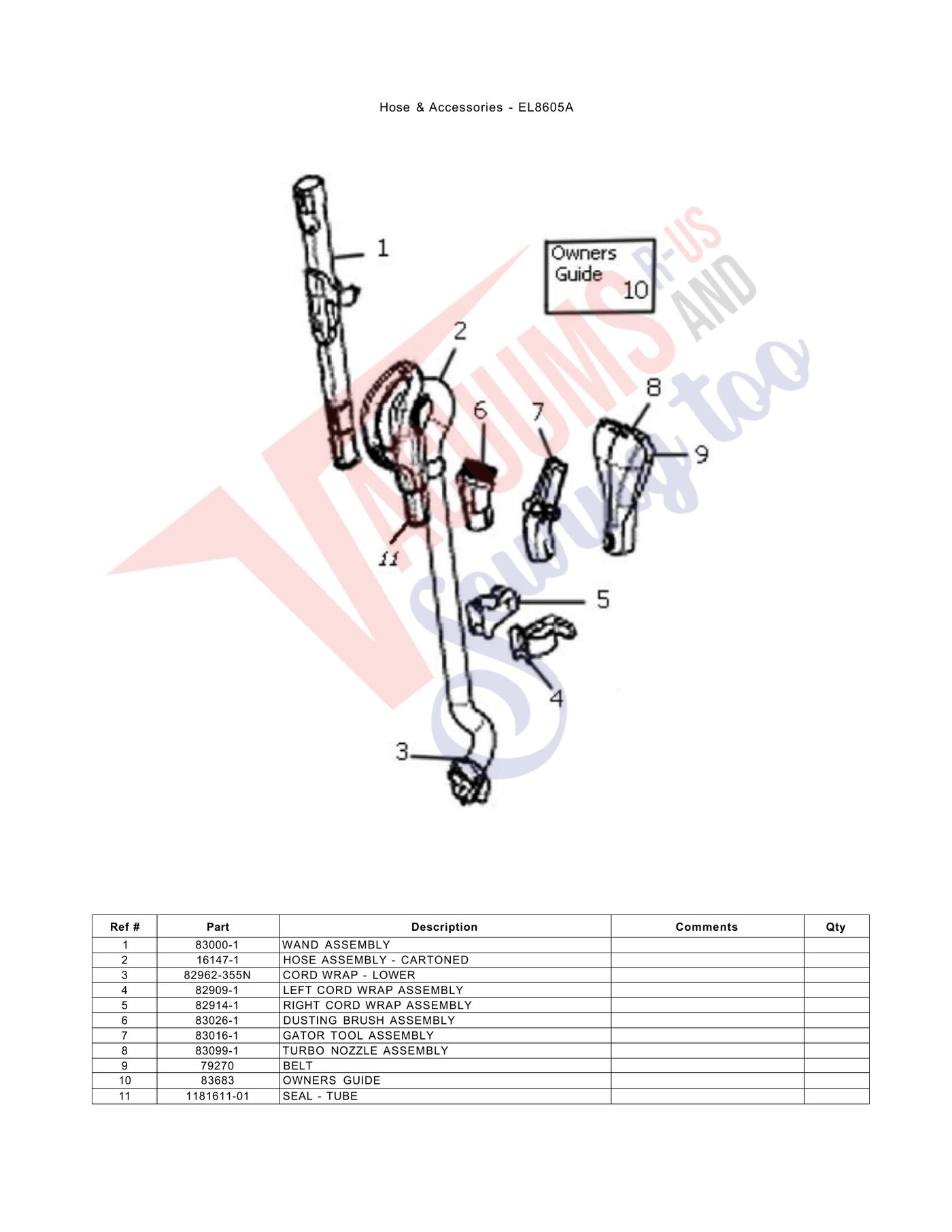

| 1 | Not Available | WAND ASSEMBLY | 83000-1 | Not Available |
| 2 | Not Available | HOSE ASSEMBLY - CARTONED | 16147-1 | Not Available |
| 3 | Not Available | CORD WRAP - LOWER | 82962-355N | Not Available |
| 4 | Not Available | LEFT CORD WRAP ASSEMBLY | 82909-1 | Not Available |
| 5 | Not Available | RIGHT CORD WRAP ASSEMBLY | 82914-1 | Not Available |
| 6 | Not Available | DUSTING BRUSH ASSEMBLY | 83026-1 | Not Available |
| 7 | Not Available | GATOR TOOL ASSEMBLY | 83016-1 | Not Available |
| 8 | Not Available | TURBO NOZZLE ASSEMBLY | 83099-1 | Not Available |
| 9 |  | Belt, Geared EL8025/EL8505 Part Number: 79270 for Eureka | 79270 | $23.57Read more |
| 10 | Not Available | OWNERS GUIDE | 83683 | Not Available |
| 11 | Not Available | SEAL - TUBE | 1181611-01 | Not Available |
