Schematic and parts book for Electrolux EL8505A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

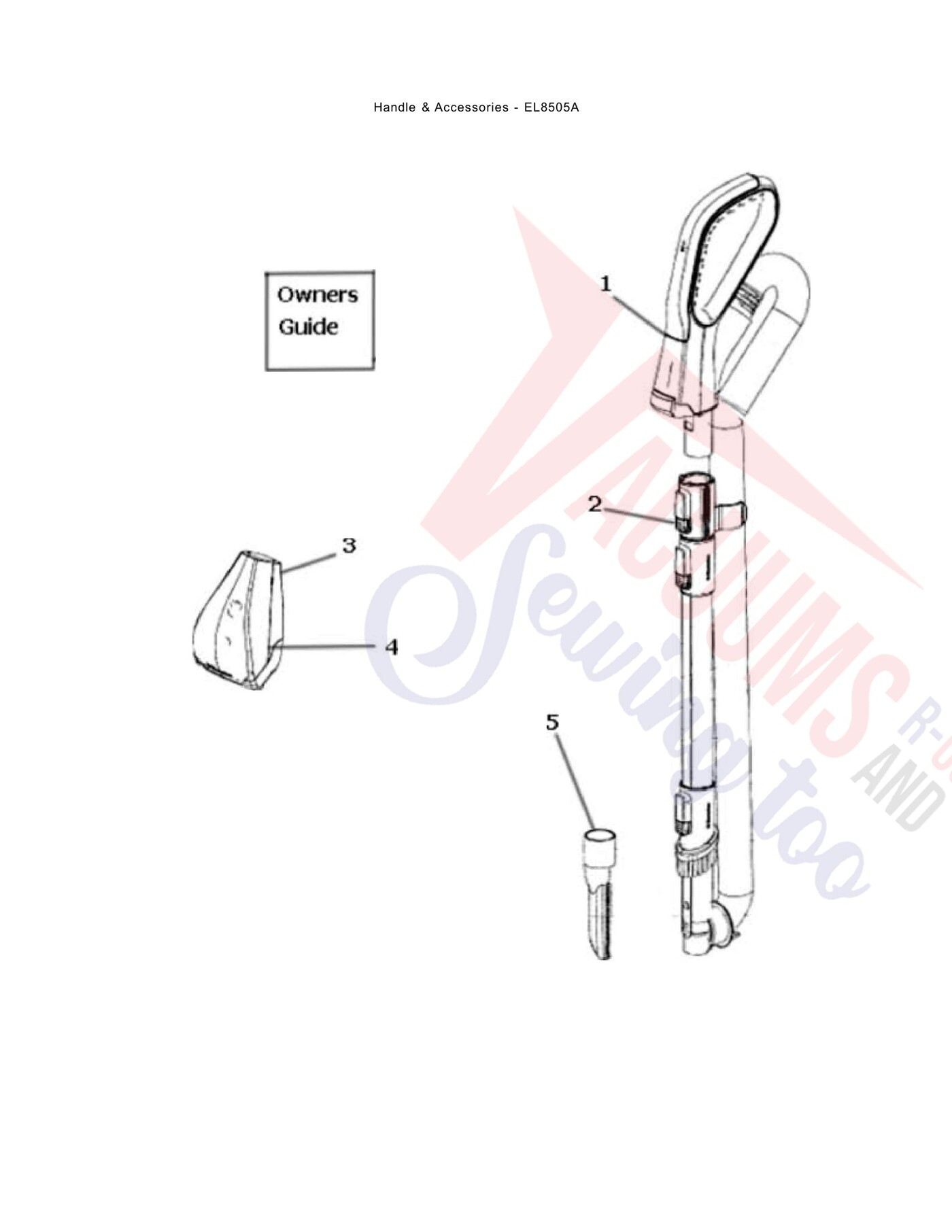

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE & HOSE ASSY - CART | 15890-2 | Not Available |
| 3 |  | TURBO NOZZLE, EL8505A Part Number: 79251-2 for Eureka | 792512 | $34.60Read more |
| 4 |  | Belt, Geared EL8025/EL8505 Part Number: 79270 for Eureka | 79270 | $23.57Read more |
| 5 | Not Available | TOOL - CREVICE | 78519-366N | Not Available |
| 6 | Not Available | OWNERS GUIDE | 79976 | Not Available |

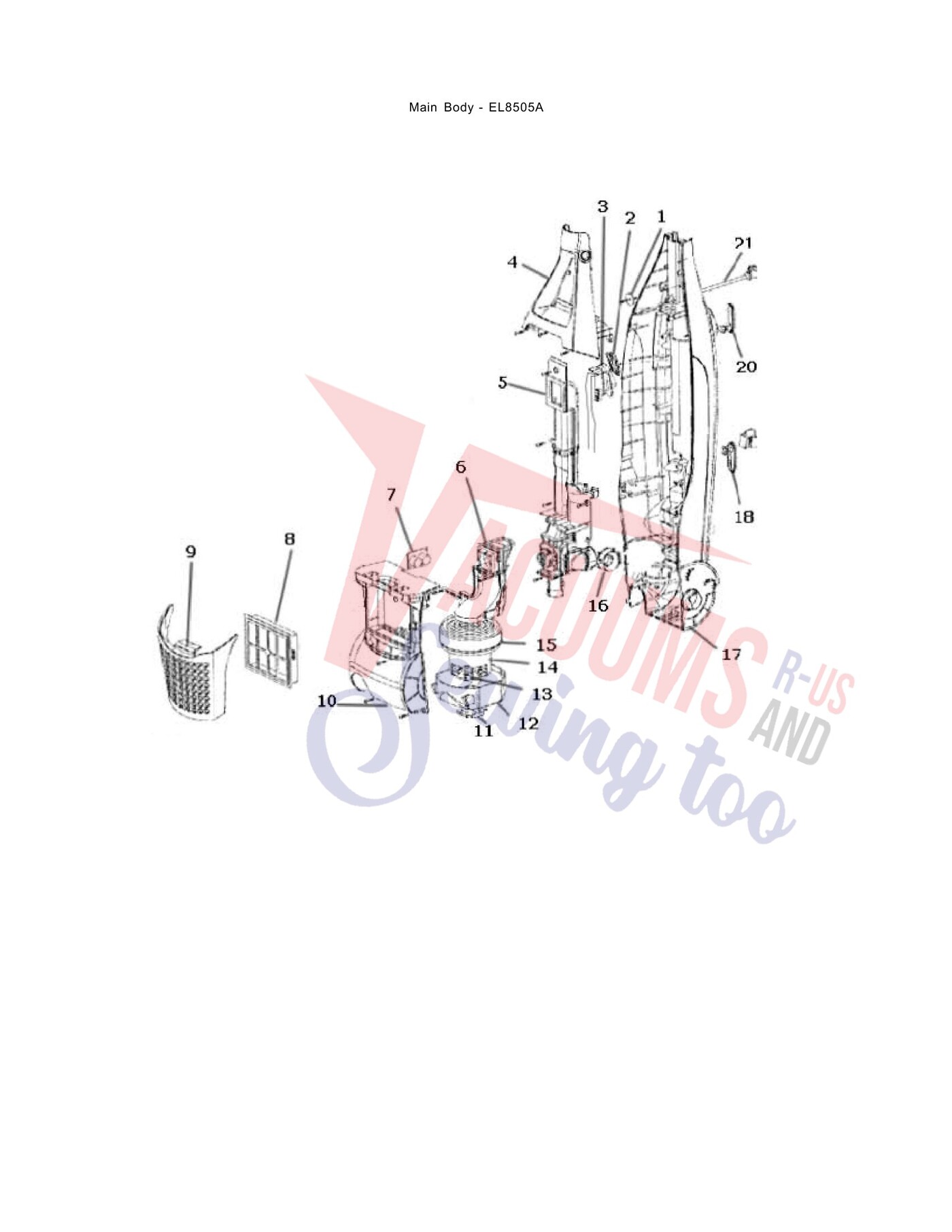

| # | Part image | Description | SKU | Price |
| 1 | Not Available | WASHER - FIBER | 74178 | Not Available |
| 2 | Not Available | SWITCH COVER & GRAPHICS A | 80345 | Not Available |
| 3 | Not Available | SWITCH HOUSING ASSEMBLY | 80376 | Not Available |
| 4 | Not Available | TOP COVER & BUCKLE ASSEMB | 80366-2 | Not Available |
| 5 | Not Available | VALVE ASSEMBLY | 79051-1 | Not Available |
| 6 | Not Available | AIR CHUTE ASSEMBLY | 79050 | Not Available |
| 7 | Not Available | PCB- PRESSURE SENSOR | 78899 | Not Available |
| 8 | Not Available | FILTER - "H" SERIES | 39938-4 | Not Available |
| 9 | No Image | COVER, FILTER EL8502 Part Number: 15895-2 for Eureka | 158952 | $16.17Read more |
| 10 | Not Available | MOTOR COVER ASSY - PACKAG | 15894-1 | Not Available |
| 11 | Not Available | GROMMET- MOTOR | 78901 | Not Available |
| 12 | Not Available | MOTOR SHROUD | 79465-119N | Not Available |
| 14 |  | MOTOR, UPRIGHT EL8502 Part Number: 15897-1 for Eureka | 158971 | $87.91Read more |
| 15 | Not Available | GASKET - MOTOR CAN | 79742 | Not Available |
| 16 | Not Available | COVER - SUCTION | 79741-119N | Not Available |
| 17 | Not Available | REAR HOUSING ASSY - PACKA | 15893-2 | Not Available |
| 18 | Not Available | QUICK CORD RELEASE ASSEMB | 79070-1 | Not Available |
| 19 | Not Available | LOWER HOSE HOOK | 79220-366N | Not Available |
| 20 | Not Available | QUICK CORD RELEASE ASSEMB | 79070-1 | Not Available |

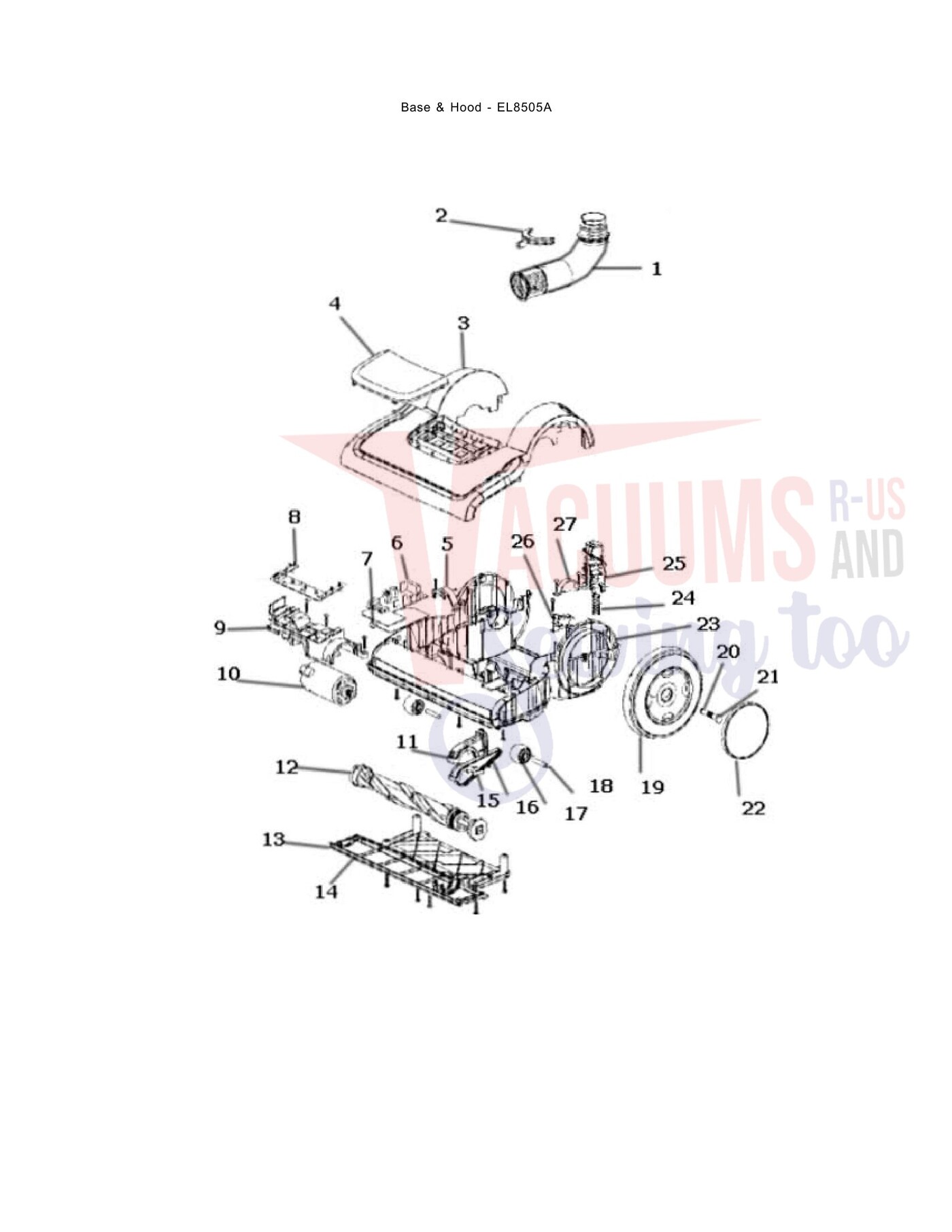

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BASE HOSE ASSEMBLY | 80375 | Not Available |
| 2 | Not Available | CLIP - BASE HOSE | 79084-119N | Not Available |
| 3 | Not Available | HOOD & FURNIT GUARD ASSY- | 15891-2 | Not Available |
| 4 | Not Available | DISPLAY PANEL ASSEMBLY | 80306 | Not Available |
| 5 | Not Available | CLAMP - BASE HOSE | 79926-119N | Not Available |
| 6 | Not Available | MAIN PC BOARD (US) | 78532A | Not Available |
| 7 | Not Available | FIBER BOARD (ELECTRONICS) | 80831 | Not Available |
| 8 | Not Available | PCB - DISPLAY | 80794 | Not Available |
| 9 | Not Available | COVER -BRUSHROLL MOTOR | 78533-366N | Not Available |
| 10 | Not Available | BRUSHROLL MOTOR & PULLEY | 15899-1 | Not Available |
| 11 | Not Available | CAP - BELT | 79094-366N | Not Available |
| 12 | Not Available | BRUSHROLL ASSY - CARTONED | 15898-1 | Not Available |
| 13 | Not Available | SOLEPLATE ASSEMBLY | 80350 | Not Available |
| 14 | Not Available | GASKET - SOLEPLATE | 79091 | Not Available |
| 15 | Not Available | FELT - SOLEPLATE | 81021 | Not Available |
| 16 |  | Belt, Serpentine SC9180 Part Number: 77133 for Eureka | 77133 | $14.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | FRONT WHEEL ASSEMBLY | 80349 | Not Available |
| 18 | No Image | AXLE - FRONT WHEEL Part Number: 79047 for Eureka | 79047 | $9.64Read more |
| 20 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | WHEEL, HUB EL8505 Part Number: 78541-577P for Eureka | 78541577P | $6.80Read more |
| 24 | Not Available | SPRING - HANDLE RELEASE | 79092 | Not Available |
| 25 | Not Available | HANDLE RELEASE ASSEMBLY | 80795-1 | Not Available |
| 26 | Not Available | MICRO SWITCH & BRACKET AS | 59397-8 | Not Available |
| 27 | Not Available | CLAMP | 61614 | Not Available |

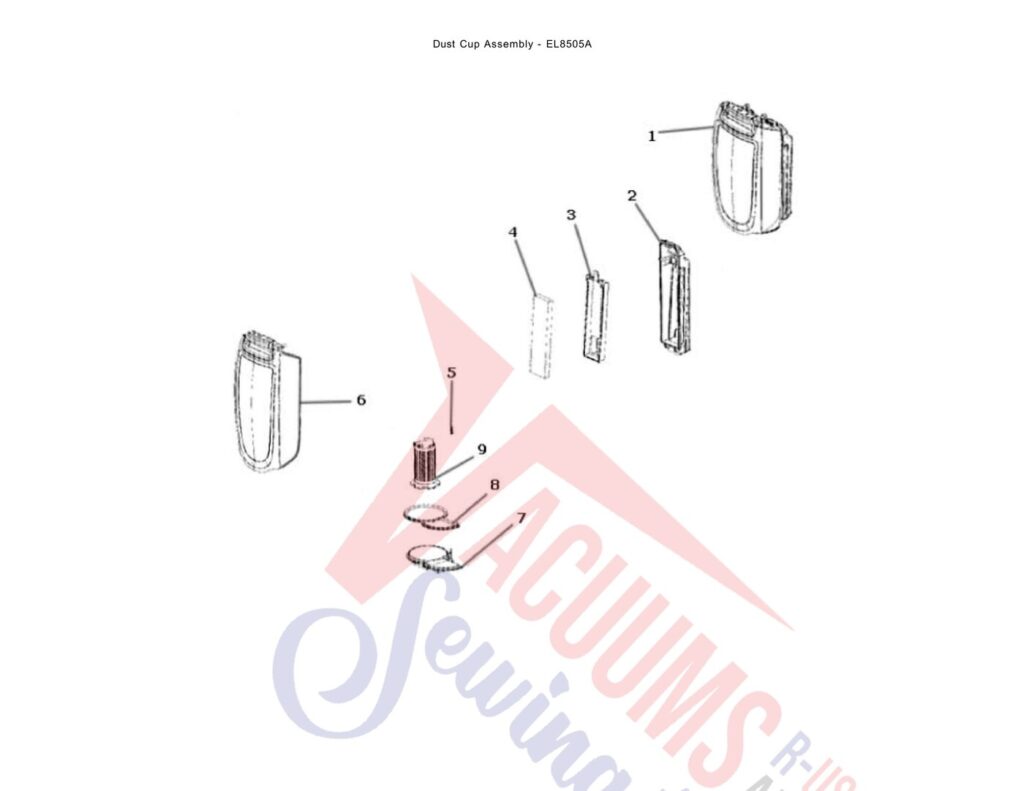

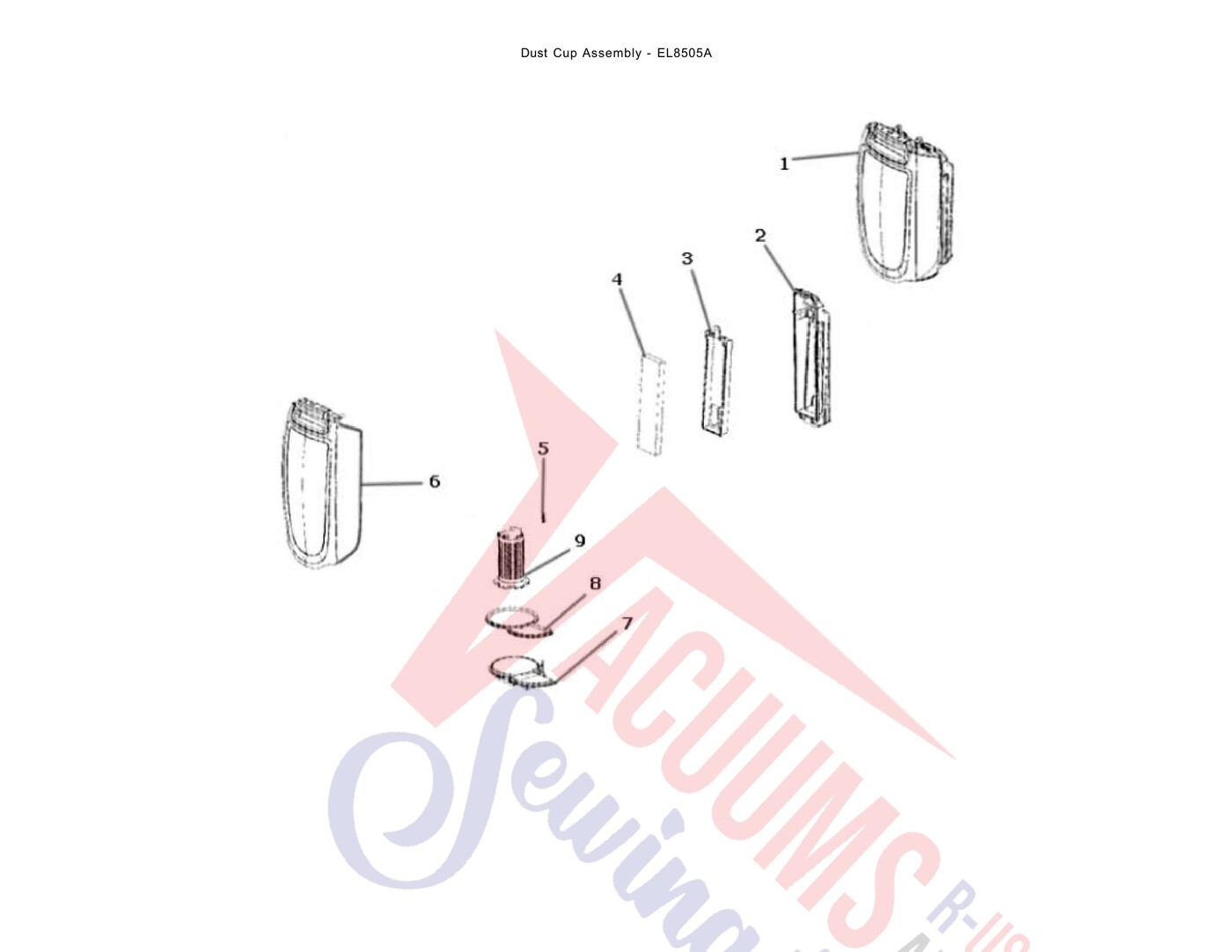

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CYCLONE ASSEMBLY | 79027-2 | Not Available |
| 2 | No Image | PRE MOTOR FILTER CVR EUR EL8505A Part Number: 80362-1 for Eureka | 803621 | $30.48Read more |
| 3 | Not Available | FILTER FRAME ASSEMBLY | 79941 | Not Available |
| 4 | Not Available | FILTER - FOAM | 79032 | Not Available |
| 5 | Not Available | SPRING - PACKAGED | 15896-1 | Not Available |
| 6 | Not Available | CYCLONE COVER ASSEMBLY | 80364-2 | Not Available |
| 7 | Not Available | LID - BOTTOM | 78544-366N | Not Available |
| 8 | Not Available | SEAL - BOTTOM LID | 78892-366N | Not Available |
| 9 | Not Available | SCREEN | 78547-489N | Not Available |
