Schematic and parts book for Electrolux EL7085ADX . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

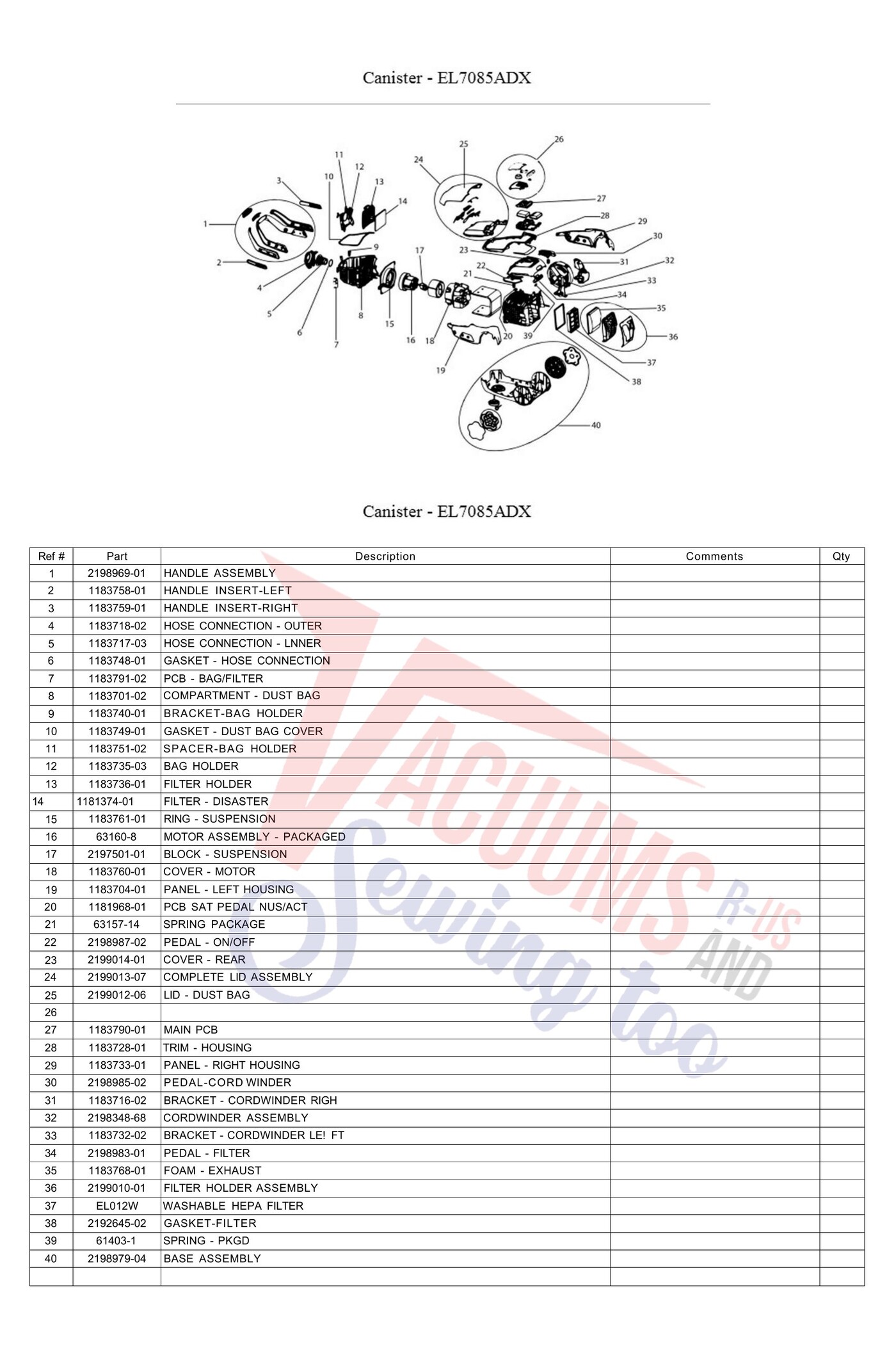

| 1 | Not Available | HANDLE ASSEMBLY | 2198969-01 | Not Available |
| 2 | Not Available | HANDLE INSERT-LEFT | 1183758-01 | Not Available |
| 3 | Not Available | HANDLE INSERT-RIGHT | 1183759-01 | Not Available |
| 4 | Not Available | HOSE CONNECTION - OUTER | 1183718-02 | Not Available |
| 5 | Not Available | HOSE CONNECTION - LNNER | 1183717-03 | Not Available |
| 6 | Not Available | GASKET - HOSE CONNECTION | 1183748-01 | Not Available |
| 7 | Not Available | PCB - BAG/FILTER | 1183791-02 | Not Available |
| 8 | Not Available | COMPARTMENT - DUST BAG | 1183701-02 | Not Available |
| 9 | Not Available | BRACKET-BAG HOLDER | 1183740-01 | Not Available |
| 10 | Not Available | GASKET - DUST BAG COVER | 1183749-01 | Not Available |
| 11 | Not Available | SPACER-BAG HOLDER | 1183751-02 | Not Available |
| 12 | Not Available | BAG HOLDER | 1183735-03 | Not Available |
| 13 | Not Available | FILTER HOLDER | 1183736-01 | Not Available |
| 14 | Not Available | FILTER - DISASTER | 1181374-01 | Not Available |
| 15 | Not Available | RING - SUSPENSION | 1183761-01 | Not Available |
| 16 | Not Available | MOTOR ASSEMBLY - PACKAGED | 63160-8 | Not Available |
| 17 | Not Available | BLOCK - SUSPENSION | 2197501-01 | Not Available |
| 18 | Not Available | COVER - MOTOR | 1183760-01 | Not Available |
| 19 | Not Available | PANEL - LEFT HOUSING | 1183704-01 | Not Available |
| 20 |  | PCB SAT PEDAL Part Number: 1181968-01 for Eureka | 118196801 | $4.71Read more |
| 21 | Not Available | SPRING PACKAGE | 63157-14 | Not Available |
| 22 | Not Available | PEDAL - ON/OFF | 2198987-02 | Not Available |
| 23 | Not Available | COVER - REAR | 2199014-01 | Not Available |
| 24 | Not Available | COMPLETE LID ASSEMBLY | 2199013-07 | Not Available |
| 25 | Not Available | LID - DUST BAG | 2199012-06 | Not Available |
| 27 | Not Available | MAIN PCB | 1183790-01 | Not Available |
| 28 | Not Available | TRIM - HOUSING | 1183728-01 | Not Available |
| 29 | Not Available | PANEL - RIGHT HOUSING | 1183733-01 | Not Available |
| 30 | Not Available | PEDAL-CORD WINDER | 2198985-02 | Not Available |
| 31 | Not Available | BRACKET - CORDWINDER RIGH | 1183716-02 | Not Available |
| 32 | Not Available | CORDWINDER ASSEMBLY | 2198348-68 | Not Available |
| 33 | Not Available | BRACKET - CORDWINDER LE! FT | 1183732-02 | Not Available |
| 34 | Not Available | PEDAL - FILTER | 2198983-01 | Not Available |
| 35 | Not Available | FOAM - EXHAUST | 1183768-01 | Not Available |
| 36 | Not Available | FILTER HOLDER ASSEMBLY | 2199010-01 | Not Available |
| 37 | Not Available | WASHABLE HEPA FILTER | EL012W | Not Available |
| 38 | Not Available | GASKET-FILTER | 2192645-02 | Not Available |
| 39 | Not Available | SPRING - PKGD | 61403-1 | Not Available |
| 40 | Not Available | BASE ASSEMBLY | 2198979-04 | Not Available |
| # | Part image | Description | SKU | Price |

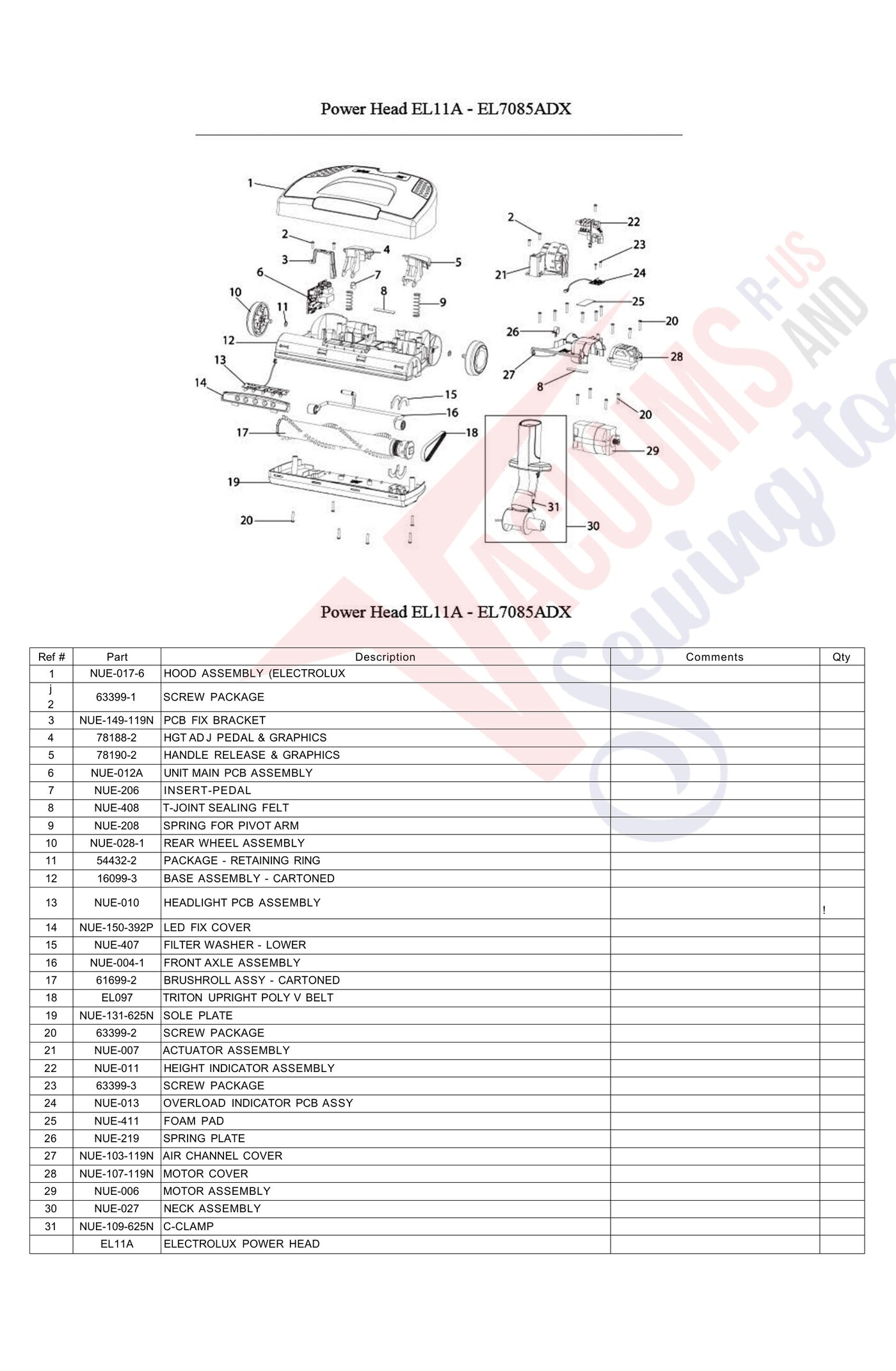

| 1 | Not Available | HOOD ASSEMBLY (ELECTROLUX | NUE-017-6 | Not Available |
| 2 | No Image | SCREW, EL4300A Part Number: 63399-1 for Eureka | 633991 | $2.20Read more |
| 3 | Not Available | PCB FIX BRACKET | NUE-149-119N | Not Available |
| 4 | Not Available | HGT AD J PEDAL & GRAPHICS | 78188-2 | Not Available |
| 5 | Not Available | HANDLE RELEASE & GRAPHICS | 78190-2 | Not Available |
| 6 | Not Available | UNIT MAIN PCB ASSEMBLY | NUE-012A | Not Available |
| 7 | Not Available | INSERT-PEDAL | NUE-206 | Not Available |
| 8 | Not Available | T-JOINT SEALING FELT | NUE-408 | Not Available |
| 9 | Not Available | SPRING FOR PIVOT ARM | NUE-208 | Not Available |
| 10 | Not Available | REAR WHEEL ASSEMBLY | NUE-028-1 | Not Available |
| 11 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | BASE ASSEMBLY - CARTONED | 16099-3 | Not Available |
| 13 | Not Available | HEADLIGHT PCB ASSEMBLY | NUE-010 | Not Available |
| 14 | Not Available | LED FIX COVER | NUE-150-392P | Not Available |
| 15 | Not Available | FILTER WASHER - LOWER | NUE-407 | Not Available |
| 16 | Not Available | FRONT AXLE ASSEMBLY | NUE-004-1 | Not Available |
| 17 | Not Available | BRUSHROLL ASSY - CARTONED | 61699-2 | Not Available |
| 18 | Not Available | TRITON UPRIGHT POLY V BELT | EL097 | Not Available |
| 19 | Not Available | SOLE PLATE | NUE-131-625N | Not Available |
| 20 | Not Available | SCREW PACKAGE | 63399-2 | Not Available |
| 21 | Not Available | ACTUATOR ASSEMBLY | NUE-007 | Not Available |
| 22 | Not Available | HEIGHT INDICATOR ASSEMBLY | NUE-011 | Not Available |
| 23 | Not Available | SCREW PACKAGE | 63399-3 | Not Available |
| 24 | Not Available | OVERLOAD INDICATOR PCB ASSY | NUE-013 | Not Available |
| 25 | Not Available | FOAM PAD | NUE-411 | Not Available |
| 26 | Not Available | SPRING PLATE | NUE-219 | Not Available |
| 27 | Not Available | AIR CHANNEL COVER | NUE-103-119N | Not Available |
| 28 | Not Available | MOTOR COVER | NUE-107-119N | Not Available |
| 29 | Not Available | MOTOR ASSEMBLY | NUE-006 | Not Available |
| 30 | Not Available | NECK ASSEMBLY | NUE-027 | Not Available |
| 31 | Not Available | C-CLAMP | NUE-109-625N | Not Available |
| 31 | Not Available | ELECTROLUX POWER HEAD | EL11A | Not Available |
| # | Part image | Description | SKU | Price |

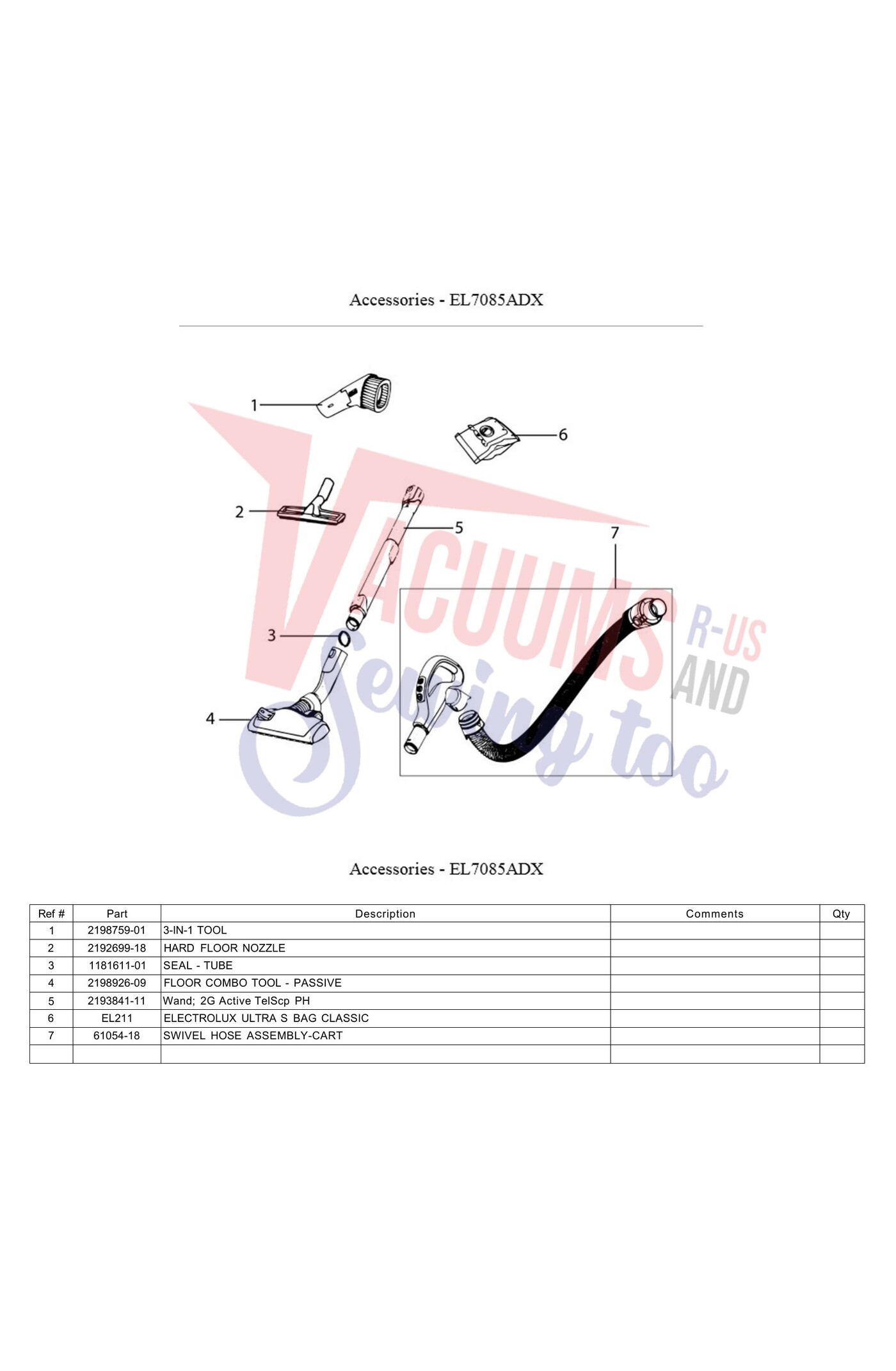

| 1 | Not Available | TOOL | 2198759-013-IN-1 | Not Available |
| 2 | Not Available | HARD FLOOR NOZZLE | 2192699-18 | Not Available |
| 3 | Not Available | SEAL - TUBE | 1181611-01 | Not Available |
| 4 | Not Available | FLOOR COMBO TOOL - PASSIVE | 2198926-09 | Not Available |
| 5 | Not Available | Wand; 2G Active TelScp PH | 2193841-11 | Not Available |
| 6 | Not Available | ELECTROLUX ULTRA S BAG CLASSIC | EL211 | Not Available |
| 7 | Not Available | SWIVEL HOSE ASSEMBLY-CART | 61054-18 | Not Available |
