Schematic and parts book for Electrolux EL7060A, EL7060 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

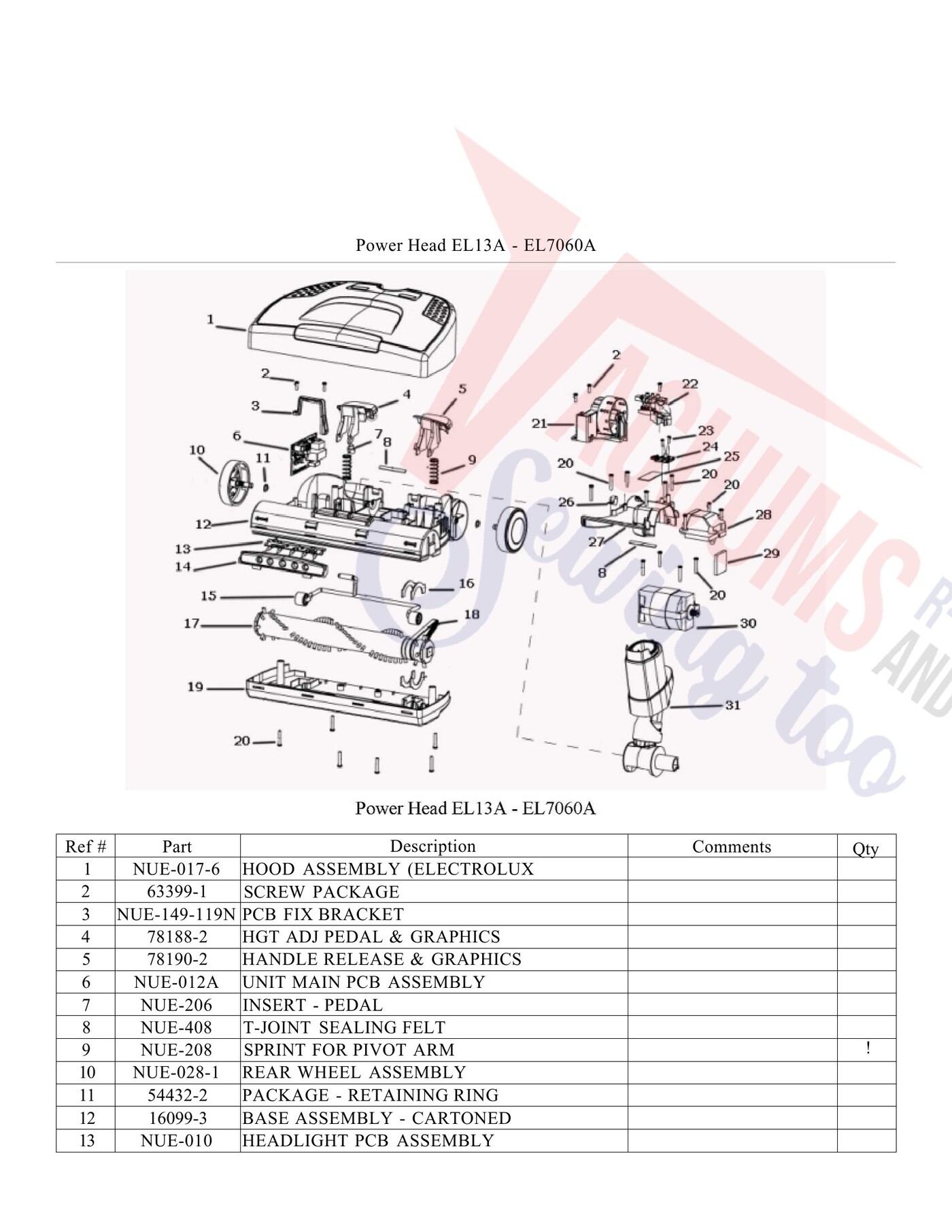

| # | Part image | Description | SKU | Price |
| XX | Not Available | C-CLAMP | NUE-109-625N | Not Available |
| 1 | Not Available | HOOD ASSEMBLY (ELECTROLUX | NUE-017-6 | Not Available |
| 2 | No Image | SCREW, EL4300A Part Number: 63399-1 for Eureka | 633991 | $2.20Read more |
| 3 | Not Available | PCB FIX BRACKET | NUE-149-119N | Not Available |
| 4 | Not Available | HGT ADJ PEDAL & GRAPHICS | 78188-2 | Not Available |
| 5 | Not Available | HANDLE RELEASE & GRAPHICS | 78190-2 | Not Available |
| 6 | Not Available | UNIT MAIN PCB ASSEMBLY | NUE-012A | Not Available |
| 7 | Not Available | INSERT - PEDAL | NUE-206 | Not Available |
| 8 | Not Available | T-JOINT SEALING FELT | NUE-408 | Not Available |
| 9 | Not Available | SPRINT FOR PIVOT ARM ! | NUE-208 | Not Available |
| 10 | Not Available | REAR WHEEL ASSEMBLY | NUE-028-1 | Not Available |
| 11 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | BASE ASSEMBLY - CARTONED | 16099-3 | Not Available |
| 13 | Not Available | HEADLIGHT PCB ASSEMBLY | NUE-010 | Not Available |
| 14 | Not Available | LED FIX COVER | NUE-150-392P | Not Available |
| 15 | Not Available | FRONT AXLE ASSEMBLY | NUE-004-1 | Not Available |
| 16 | Not Available | FILTER WASHER - LOWER | NUE-407 | Not Available |
| 17 | Not Available | BRUSHROLL ASSY - CARTONED | 61699-2 | Not Available |
| 18 | Not Available | TRITON UPRIGHT POLY V BELT | EL097 | Not Available |
| 19 | Not Available | SOLE PLATE | NUE-131-625N | Not Available |
| 20 | Not Available | SCREW PACKAGE | 63399-2 | Not Available |
| 21 | Not Available | ACTUATOR ASSEMBLY | NUE-007 | Not Available |
| 22 | Not Available | HEIGHT INDICATOR ASSEMBLY | NUE-011 | Not Available |
| 23 | Not Available | SCREW PACKAGE | 63399-3 | Not Available |
| 24 | Not Available | OVERLOAD INDICATOR PCB AS | NUE-013 | Not Available |
| 25 | Not Available | FOAM PAD | NUE-411 | Not Available |
| 26 | Not Available | SPRING PLATE | NUE-219 | Not Available |
| 27 | Not Available | AIR CHANNEL COVER | NUE-103-119N | Not Available |
| 28 | Not Available | MOTOR COVER | NUE-107-119N | Not Available |
| 29 | Not Available | VENT FOAM FOR MOTOR | NUE-413 | Not Available |
| 30 | Not Available | MOTOR ASSEMBLY | NUE-006 | Not Available |
| 31 |  | Electrolux or sanitaire angled power nozzle elbow PN PE7025A and NUE-003A Fits Electrolux models;... | NUE-003A | $76.99Read more |
| 31 |  | Available ReconditionedCertified Reconditioned Electrolux Beam or sanitaire angled power nozzle elbow PN PE7025A and NUE... More Product Details | WP12462 | $76.99Add to cart |

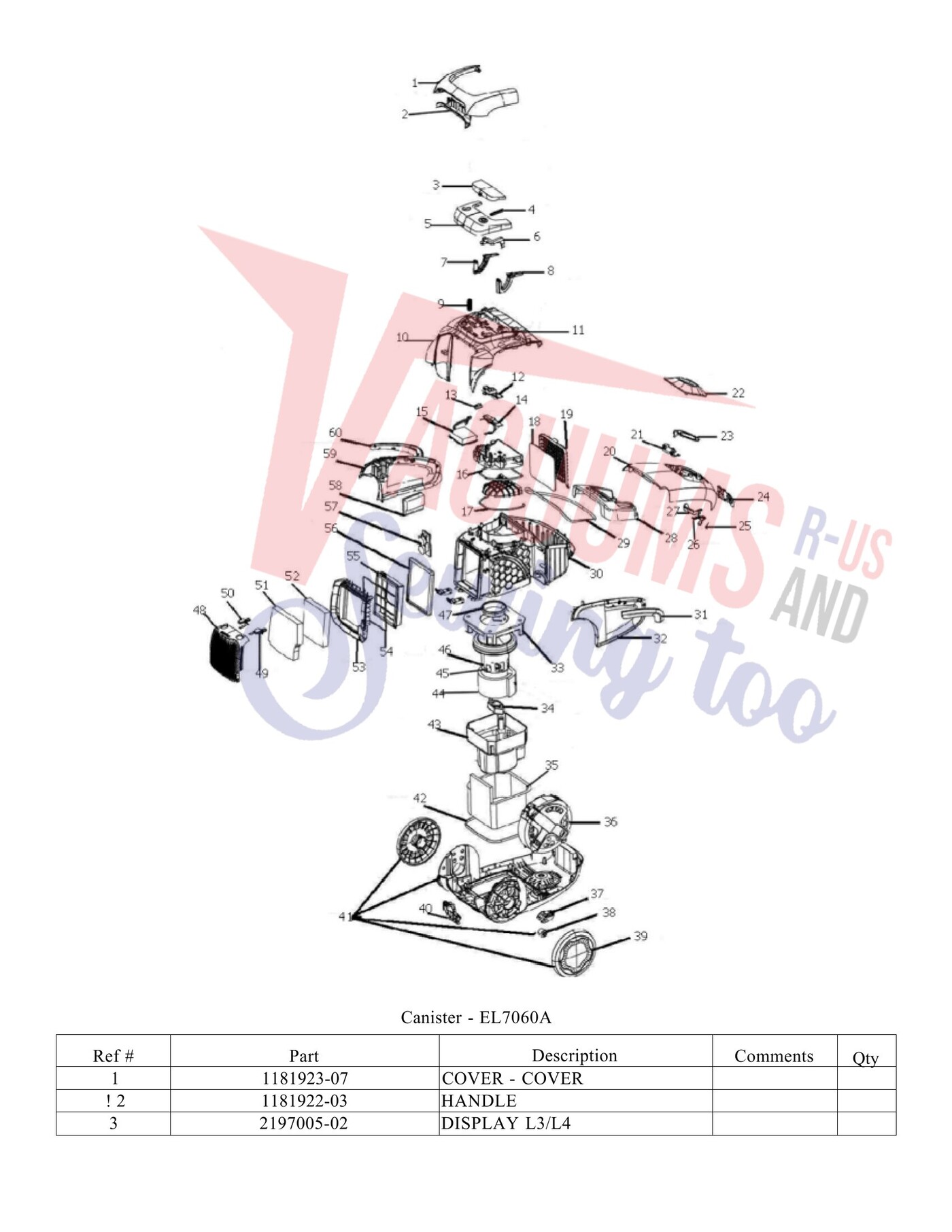

| # | Part image | Description | SKU | Price |
| 1 | Not Available | COVER - COVER | 1181923-07 | Not Available |
| 2 | Not Available | HANDLE | 1181922-03 | Not Available |
| 3 | Not Available | DISPLAY L3/L4 | 2197005-02 | Not Available |
| 4 | Not Available | SHAFT - PEDAL | 1181965-01 | Not Available |
| 5 | Not Available | PEDALSET COMPLETE | 2197091-03 | Not Available |
| 7 | Not Available | HINGE - REARCOVER LEFT | 1181961-07 | Not Available |
| 8 | Not Available | HINGE - REARCOVER RIGHT | 1181962-07 | Not Available |
| 9 | Not Available | SPRING PACKAGE | 63157-14 | Not Available |
| 10 | Not Available | COVER - REAR | 2194092-05 | Not Available |
| 11 | Not Available | SPRING PACKAGE | 63157 | Not Available |
| 12 | Not Available | PCB DISPLAY L4 | 1181974-03 | Not Available |
| 13 | Not Available | PCB SAT PEDAL ACT | 2197055-02 | Not Available |
| 14 | Not Available | PCB DISPLAY L4 | 1181974-03 | Not Available |
| 15 | Not Available | PCB POWER MODULE ONE INT | 1181868-01 | Not Available |
| 16 | Not Available | SEAL | 1181955-01 | Not Available |
| 17 | Not Available | SEAL | 1181954-01 | Not Available |
| 18 | Not Available | MOTOR FILTER ASSEMBLY | 2197012-01 | Not Available |
| 19 | Not Available | HOLDER - DISASTER FILTER | 1181926-04 | Not Available |
| 20 | Not Available | COVER - DUSTBAG | 2197016-21 | Not Available |
| 21 | Not Available | CONNECTOR - CONTACT | 1181952-01 | Not Available |
| 22 | Not Available | HOSE CONNECTOR | 1181940-01 | Not Available |
| 23 | Not Available | POWER OUTLET L3 | 1181959-03 | Not Available |
| 24 | Not Available | CATCH - FRONT LID | 1181912-03 | Not Available |
| 25 | Not Available | SPRING PACKAGE | 63147 | Not Available |
| 26 | Not Available | SAFETY - DEVIVR | 1130914-03 | Not Available |
| 27 | Not Available | LID - FRONT | 1181943-07 | Not Available |
| 28 | Not Available | HOLDER - DUSTBAG | 1181905-01 | Not Available |
| 29 | Not Available | DUST BAG GASKET | 1096847-03 | Not Available |
| 30 | Not Available | DUSTBAG - CONTAINER | 1181901-01 | Not Available |
| 31 | Not Available | FRAME - RIGHT SIDE | 2194097-01 | Not Available |
| 32 | Not Available | COVER - RIGHT SIDE | 1181929-01 | Not Available |
| 33 | Not Available | RING - SUSPENSION ! | 1181916-01 | Not Available |
| 35 | Not Available | COVER - LEFT SIDE | 1181918-01 | Not Available |
| 36 | Not Available | CORD REEL ASSEMBLY | 2198345-66 | Not Available |
| 37 | Not Available | HOLDER - FRONT WHEEL | 1096042-07 | Not Available |
| 38 | Not Available | FRONT WHEEL POM/TF V2 | 6680981-64 | Not Available |
| 39 | Not Available | WHEEL - REAR | 1181988-01 | Not Available |
| 40 | Not Available | RECESS - CABLE | 1181960-08 | Not Available |
| 41 | Not Available | BOTTOM ASSEMBLY | 2197019-08 | Not Available |
| 42 | Not Available | SEALING - MOTORHOUSE | 1181938-01 | Not Available |
| 43 | Not Available | COVER - MOTOR | 1181903-01 | Not Available |
| 44 | Not Available | SOUND FOAM (MOTOR) | 1129020-01 | Not Available |
| 45 | Not Available | TCO/MOTOR WIRE ASSEMBLY | 1130969-07 | Not Available |
| 46 | Not Available | MOTOR ASSY - PACKAGED | 63160 | Not Available |
| 47 | Not Available | BELLOW | 1181917-01 | Not Available |
| 48 | Not Available | COVER - GRILL | 1181935-08 | Not Available |
| 49 | Not Available | BUTTON - GRILL COVER RIGH < /td> | 1181987-07 | Not Available |
| 50 | Not Available | BUTTON - GRILL COVER LEFT | 1181986-07 | Not Available |
| 51 | Not Available | SOUND ABSORBER - FILTER G | 1181953-01 | Not Available |
| 52 | Not Available | SOUND ABSORBER - FILTER G | 1181919-01 | Not Available |
| 53 | Not Available | FRAME - FILTER GRILL | 1181911-03 | Not Available |
| 54 | Not Available | SEAL - FILTER | 2192645-03 | Not Available |
| 55 | Not Available | WASHABLE HEP A FILTER | EL012W | Not Available |
| 56 | Not Available | SEALING - GRILLCOVER | 1181939-01 | Not Available |
| 57 | No Image | PCB, SAT DB/FI L4 Canister EL7060/EL7061/EL7066 Part Number: 1181971-02 for Eureka | 118197102 | $29.28Read more |
| 58 | Not Available | PCB POWER SUPPLY | 1181870-03 | Not Available |
| 59 | Not Available | COVER - LEFT SIDE | 1181928-01 | Not Available |
| 60 | Not Available | FRAME - LEFT SIDE | 2194096-01 | Not Available |

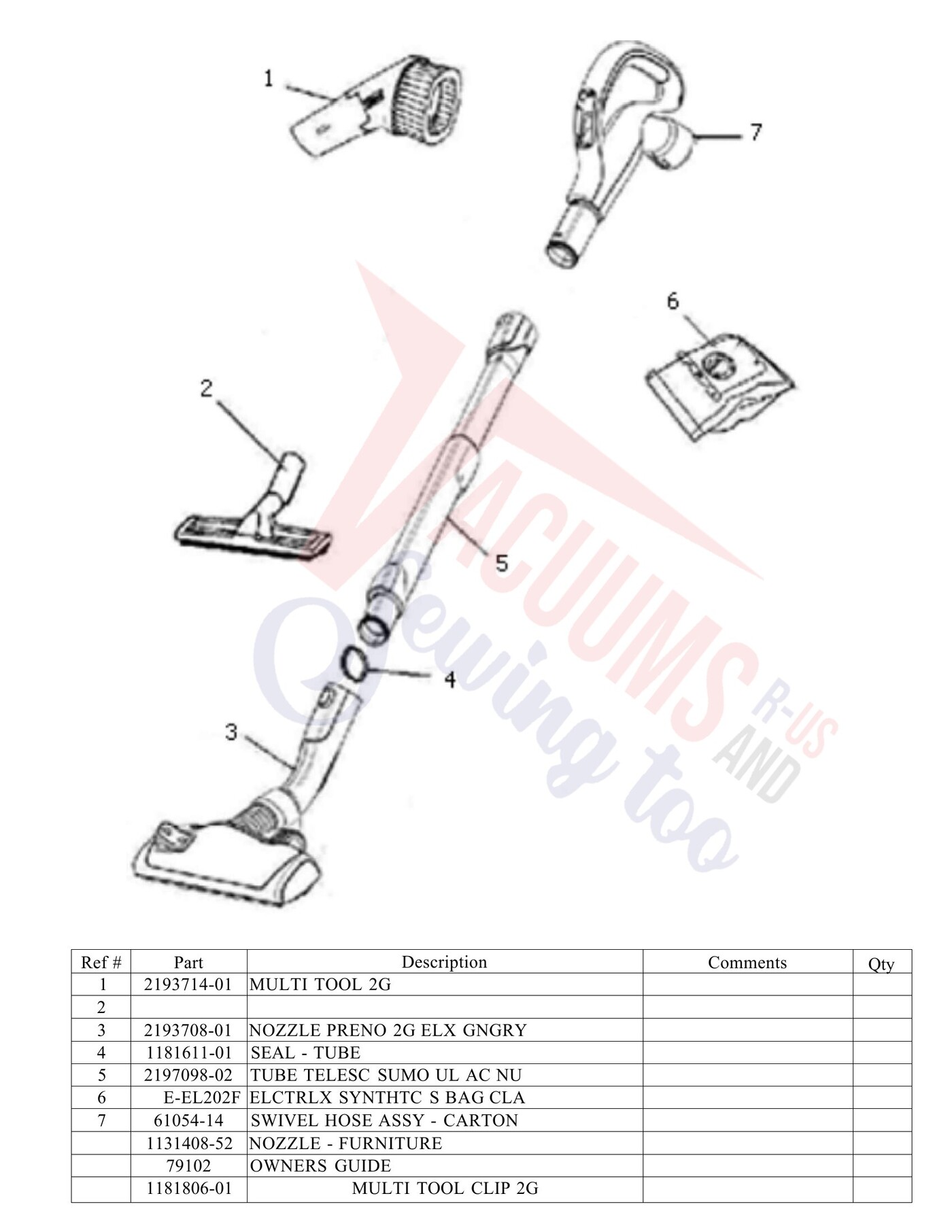

| # | Part image | Description | SKU | Price |
| 1 | Not Available | MULTI TOOL 2G | 2193714-01 | Not Available |
| 3 | Not Available | NOZZLE PRENO 2G ELX GNGRY | 2193708-01 | Not Available |
| 4 | Not Available | SEAL - TUBE | 1181611-01 | Not Available |
| 5 | Not Available | TUBE TELESC SUMO UL AC NU | 2197098-02 | Not Available |
| 6 | Not Available | ELCTRLX SYNTHTC S BAG CLA | E-EL202F | Not Available |
| 7 | Not Available | SWIVEL HOSE ASSY - CARTON | 61054-14 | Not Available |
