Schematic and parts book for Electrolux EL7024A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

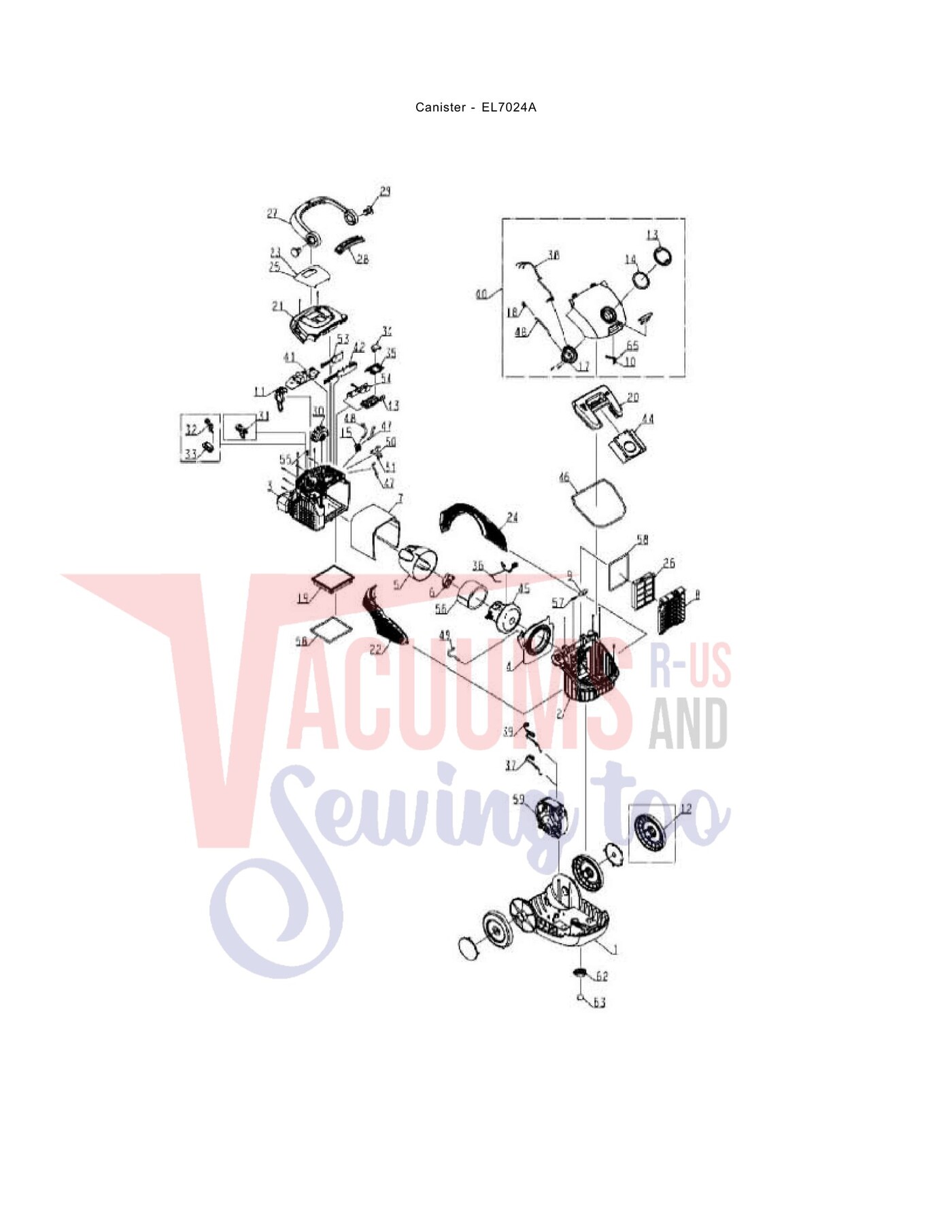

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BOTTOM PART & REAR WHEEL | 1130978-08 | Not Available |
| 2 | Not Available | DUST CONTAINER | 1130901-07 | Not Available |
| 3 | Not Available | MOTOR HOUSING | 1130902-01 | Not Available |
| 4 | Not Available | SEALING - MOTOR | 1130903-02 | Not Available |
| 5 | Not Available | MOTOR COVER - HOUSING | 1130904-01 | Not Available |
| 6 | Not Available | SUSPENSION - REAR DOM | 1130909-01 | Not Available |
| 7 | Not Available | ABSORBENT - MOTORHOUSE | 1130910-01 | Not Available |
| 8 | Not Available | HOLDER - FILTER | 1130911-01 | Not Available |
| 9 | Not Available | NO FILTER SAFETY DEV | 1130912-02 | Not Available |
| 10 | Not Available | NO BAG SAFETY DEVICE | 1130914-02 | Not Available |
| 11 | Not Available | BRACKET - NOZZLE PARK | 1130916-02 | Not Available |
| 12 | Not Available | REAR WHEEL | 1130608-05 | Not Available |
| 13 | Not Available | COVER - HOSE CONNECT | 1130919-01 | Not Available |
| 14 | Not Available | RING - HOSE CONNECTION | 2192742-02 | Not Available |
| 15 | Not Available | GROMMET | 1130923-01 | Not Available |
| 17 | Not Available | SLEEVE - HOSE CONNECTION | 1130927-02 | Not Available |
| 18 | Not Available | GROMMET - FRONT COVER | 2193226-01 | Not Available |
| 19 | Not Available | FILTER - PERMANENT F2 | 1130929-01 | Not Available |
| 20 | Not Available | HOLDER - BAG | 1130930-01 | Not Available |
| 21 | Not Available | COVER - REAR SATINE CAYEN | 1130934-28 | Not Available |
| 22 | Not Available | DIFFUSOR - COMPLETE OUTLE | 1130935-03 | Not Available |
| 24 | Not Available | DIFFUSOR - COMPLETE OUTLE | 1130937-03 | Not Available |
| 25 | Not Available | DISPLAY - PRINTED LEVEL | 1130938-02 | Not Available |
| 26 | Not Available | FILTER - HEPA H12 NONWASH | 1130939-01 | Not Available |
| 27 | Not Available | HANDLE | 1130940-02 | Not Available |
| 28 | Not Available | GRIP - HANDLE | 1130941-01 | Not Available |
| 29 | Not Available | PIN - HANDLE AL SILVER (P | 1130942-03 | Not Available |
| 33 | No Image | PEDAL, CORD RELEASE EL7020 Part Number: 1130946-01 for Eureka | 113094601 | $4.73Read more |
| 34 | Not Available | LIGHT CONDUCTOR | 1130949-02 | Not Available |
| 35 | Not Available | REFLECTOR | 1130950-04 | Not Available |
| 36 | Not Available | CABLE - MOTOR TERMO UL | 1130969-03 | Not Available |
| 38 | Not Available | CABLE - POWER OUTLET | 1130958-07 | Not Available |
| 40 | No Image | DOOR, BAG COVER EL7024A Part Number: 2192886-69 for Eureka | 219288669 | $177.04Read more |
| 41 | Not Available | SUMO BOARD | 1180136-56 | Not Available |
| 42 | Not Available | MODULE - AUTSUMO UL | 1180113-52 | Not Available |
| 43 |  | New Electrolux Oxygen 3 Canister Vacuum model EL7001A Module PN 1180110-06 | 1180110-06 | $55.00Read more |
| 45 | Not Available | MOTOR ASSY - PACKAGED | 63160 | Not Available |
| 46 | Not Available | SEALING | 115857-05 | Not Available |
| 47 | Not Available | HOSE - COOLING 100 MM EPD | 117990-15 | Not Available |
| 48 | Not Available | HOSE - COOLING 115 MM EPD | 117990-12 | Not Available |
| 49 | Not Available | HOSE - COOLING 135 MM EPD | 117990-16 | Not Available |
| 50 | Not Available | HOSE - COOLING 80 MM EPDM | 117990-14 | Not Available |
| 51 | Not Available | HOSE - COOLING 65 MM EPDM | 117990-13 | Not Available |
| 54 | No Image | MODULE, PCB BAG/FILTER UL EL7020 Part Number: 1180111-52 for Eureka | 118011152 | $36.66Read more |
| 55 | Not Available | SPRING - PKGD 10 in package. | 61403-1 | Not Available |
| 57 | Not Available | SPRING PACKAGE 10 in package. | 63158 | Not Available |
| 58 | Not Available | SEAL | 1130289-01 | Not Available |
| 59 | Not Available | CORD WINDER CPL UL RIGHT | 1128341-41 | Not Available |
| 62 | Not Available | WHEEL SUPPORT | 1096042-03 | Not Available |
| 63 | Not Available | FRONT WHEEL CPL. | E1129038-01 | Not Available |
| 65 | Not Available | SPRING PACKAGE 10 in package. | 63147 | Not Available |

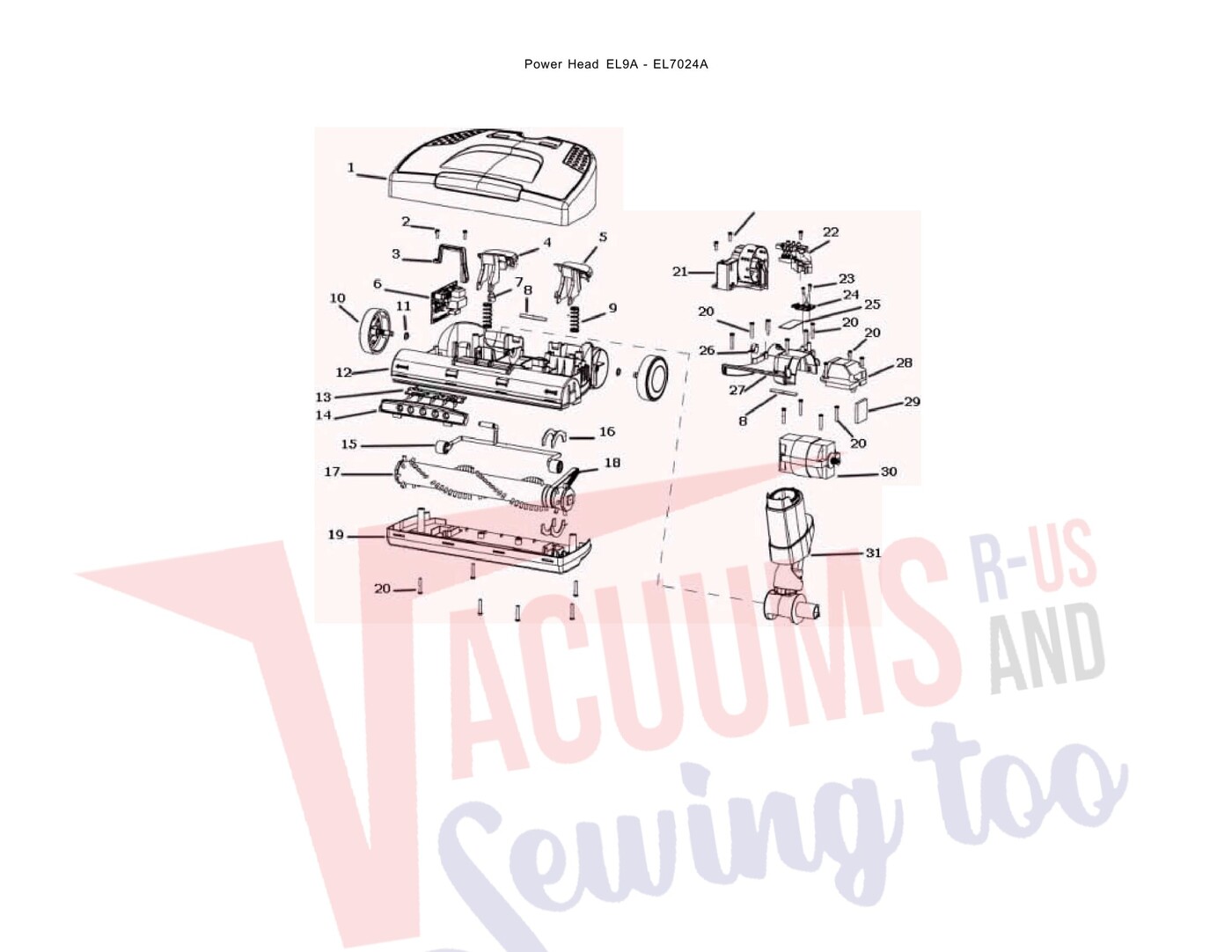

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOOD ASSEMBLY | NUE-017-4 | Not Available |
| 2 | No Image | SCREW, EL4300A Part Number: 63399-1 for Eureka | 633991 | $2.20Read more |
| 3 | Not Available | PCB FIX | NUE-149-119N | Not Available |
| 4 | Not Available | PEDAL-LEFT | 78190 | Not Available |
| 5 | Not Available | PEDAL-RIGHT | 78188 | Not Available |
| 6 | Not Available | UNIT MAIN | NUE-012A | Not Available |
| 7 | Not Available | INSERT - | NUE-206 | Not Available |
| 8 | Not Available | T-JOINT | NUE-408 | Not Available |
| 9 | Not Available | SPRINT | NUE-208 | Not Available |
| 10 | Not Available | REAR WHEEL | NUE-014-1 | Not Available |
| 11 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | BASE | NUE-101-366N | Not Available |
| 13 | Not Available | HEADLIGHT | NUE-010 | Not Available |
| 14 | Not Available | LED FIX | NUE-150-392P | Not Available |
| 15 | Not Available | FRONT AXLE | NUE-004 | Not Available |
| 16 | Not Available | FILTER WASHER | NUE-407 | Not Available |
| 17 | Not Available | BRUSH ROLL | NUE-005 | Not Available |
| 18 | Not Available | POLY V5 | NUE-401 | Not Available |
| 19 | Not Available | SOLE PLATE | NUE-131-366N | Not Available |
| 20 | Not Available | SCREW | 63399-2 | Not Available |
| 21 | Not Available | ACTUATOR | NUE-007 | Not Available |
| 22 | Not Available | HEIGHT | NUE-011 | Not Available |
| 23 | Not Available | SCREW | 63399-3 | Not Available |
| 24 | Not Available | OVERLOAD | NUE-013 | Not Available |
| 25 | Not Available | FOAM PAD | NUE-411 | Not Available |
| 26 | Not Available | SPRING | NUE-219 | Not Available |
| 27 | Not Available | AIR CHANNEL | NUE-103-119N | Not Available |
| 28 | Not Available | MOTOR | NUE-107-119N | Not Available |
| 29 | Not Available | VENT FOAM | NUE-413 | Not Available |
| 30 | Not Available | MOTOR | NUE-006 | Not Available |
| 31 |  | Electrolux or sanitaire angled power nozzle elbow PN PE7025A and NUE-003A Fits Electrolux models;... | NUE-003A | $76.99Read more |
| 31 |  | Available ReconditionedCertified Reconditioned Electrolux Beam or sanitaire angled power nozzle elbow PN PE7025A and NUE... More Product Details | WP12462 | $76.99Add to cart |
| 31 | Not Available | C-CLAMP | NUE-109-366N | Not Available |

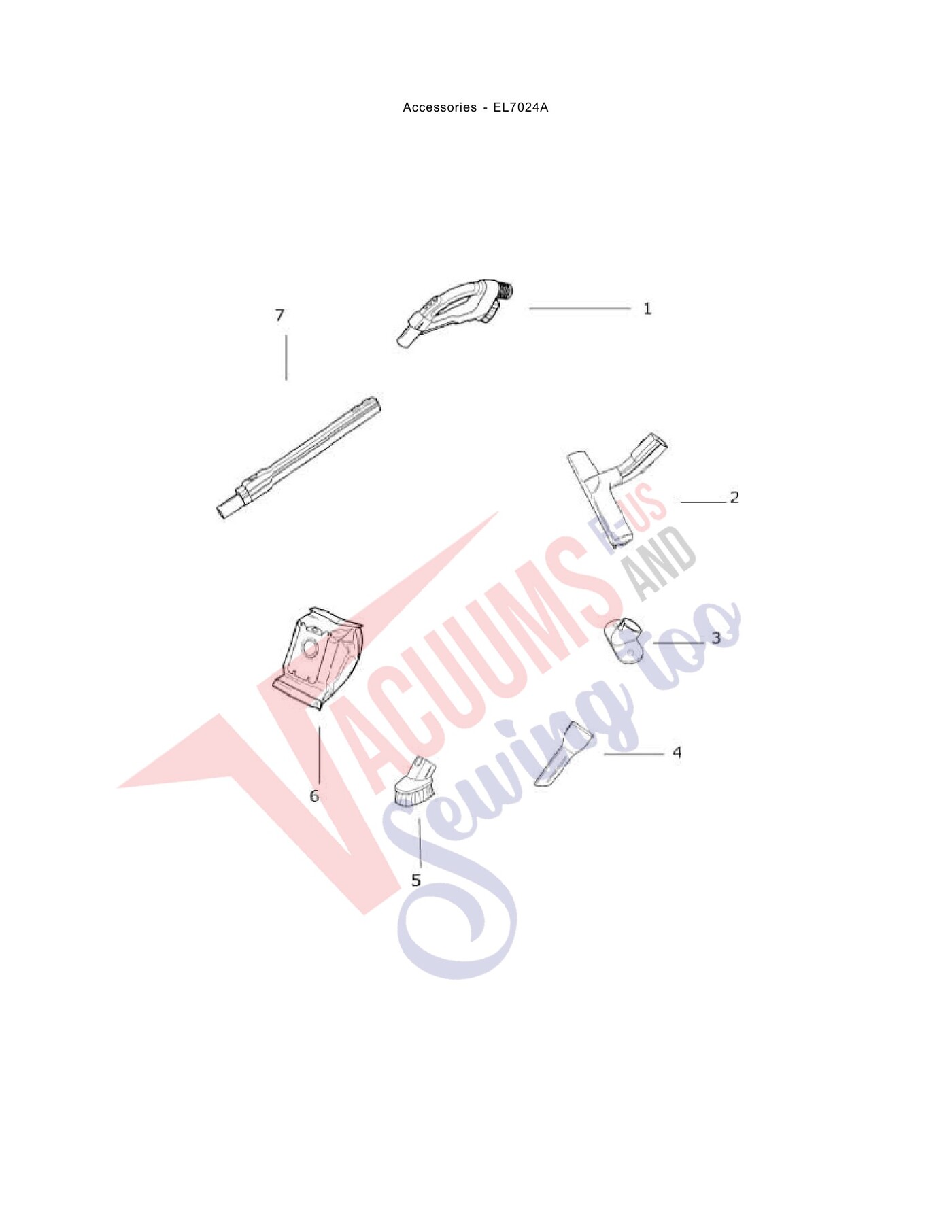

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SWIVEL HOSE ASSY - CARTON | 61054-5 | Not Available |
| 2 | Not Available | FLOOR & WALL BRUSH ASSEMB Not available. | 75973-1 | Not Available |
| 3 | Not Available | NOZZLE - FURNITURE | 75985 | Not Available |
| 4 | Not Available | NOZZLE - CREVICE | 76250 | Not Available |
| 5 | Not Available | NOZZLE - DUSTING BRUSH | 75986 | Not Available |
| 6 | Not Available | Dust Bag | SF119262-74 | Not Available |
| 6 | Not Available | Dust Bag | 15812 | Not Available |
| 6 | Not Available | Dust Bage | 15821 | Not Available |
| 7 | Not Available | TLSCPC WAND ASSY (SUMO | 75979A-3 | Not Available |
| 7 | Not Available | Owners Guide | 75975A | Not Available |
| 7 | Not Available | POWERBRUSH- PACKAGED | EL8AS | Not Available |
| 7 | Not Available | Sumo Adapter | 045027-355N | Not Available |
