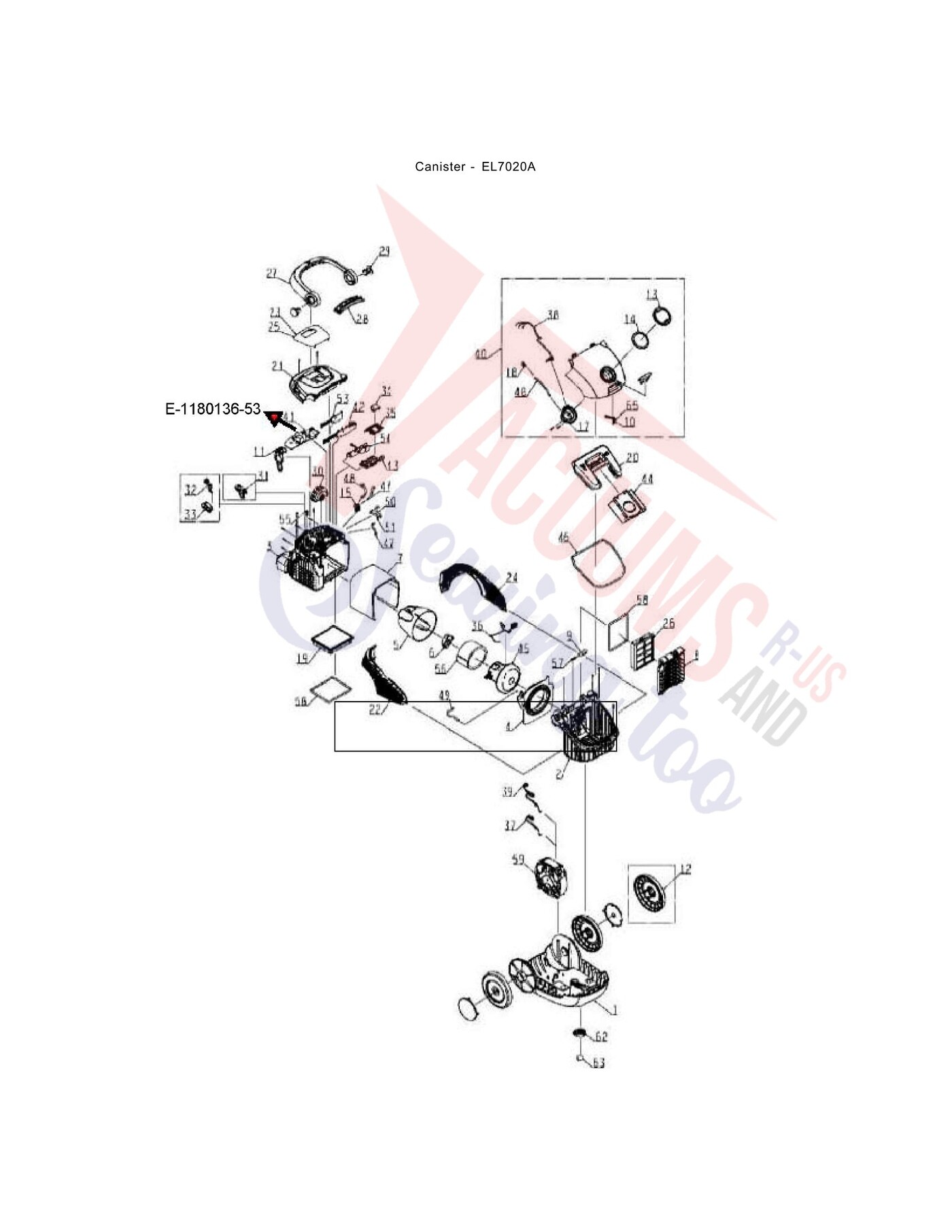

Schematic and parts book for Electrolux EL7020A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | BOTTOM PART | 1130900-01 | Not Available |
| 2 |  | Dirt Cup, Gray EL7020A Part Number: 1130901-02 for Eureka | 113090102 | $62.74Read more |
| 3 | Not Available | MOTOR HOUSING | 1130902-01 | Not Available |
| 4 | Not Available | SEALING - MOTOR | 1130903-02 | Not Available |
| 5 | Not Available | MOTOR COVER - HOUSING | 1130904-01 | Not Available |
| 6 | Not Available | SUSPENSION - REAR DOM | 1130909-01 | Not Available |
| 7 | Not Available | ABSORBENT - MOTORHOUSE | 1130910-01 | Not Available |
| 8 | Not Available | HOLDER - FILTER | 1130911-01 | Not Available |
| 9 | Not Available | NO FILTER SAFETY DEV | 1130912-01 | Not Available |
| 10 | Not Available | NO BAG SAFETY DEVICE | 1130914-01 | Not Available |
| 11 | Not Available | BRACKET - NOZZLE PARK | 1130916-01 | Not Available |
| 13 | Not Available | COVER - HOSE CONNECT | 1130919-01 | Not Available |
| 14 | Not Available | RING - HOSE CONNECTION | 1130920-01 | Not Available |
| 15 | Not Available | GROMMET | 1130923-01 | Not Available |
| 17 | Not Available | SLEEVE - HOSE CONNECTION | 1130927-01 | Not Available |
| 18 | Not Available | GROMMET - FRONT COVER | 1130928-01 | Not Available |
| 19 | Not Available | FILTER - PERMANENT F2 | 1130929-01 | Not Available |
| 20 | Not Available | HOLDER - BAG | 1130930-01 | Not Available |
| 21 | Not Available | COVER - REAR SATINE CAYEN | 1130934-09 | Not Available |
| 22 | Not Available | DIFFUSOR - COMPLETE OUTLE | 1130935-02 | Not Available |
| 24 | Not Available | DIFFUSOR - COMPLETE OUTLE | 1130937-02 | Not Available |
| 25 | No Image | DISPLAY, LEVEL 4 EL7020A Part Number: 1130938-03 for Eureka | 113093803 | $18.77Read more |
| 26 | Not Available | FILTER - O2 NON WASH | 1130939-01 | Not Available |
| 27 | No Image | HANDLE, EL7020 Part Number: 1130940-01 for Eureka | 113094001 | $87.89Read more |
| 28 | Not Available | GRIP - HANDLE | 1130941-01 | Not Available |
| 29 | Not Available | HANDLE PIN PACKAGE 10 in package. | 63159 | Not Available |
| 33 | No Image | PEDAL, CORD RELEASE EL7020 Part Number: 1130946-01 for Eureka | 113094601 | $4.73Read more |
| 34 | Not Available | LIGHT CONDUCTOR | 1130949-02 | Not Available |
| 35 | Not Available | REFLECTOR | 1130950-02 | Not Available |
| 36 | Not Available | CABLE - MOTOR TERMO UL | 1130969-01 | Not Available |
| 38 | Not Available | CABLE - POWER OUTLET | 1130958-01 | Not Available |
| 40 | Not Available | COVER & GRAPHICS CPL | 1130967-16 | Not Available |
| 44 | Not Available | S BAG CLASSIC | EL200B | Not Available |
| 45 | Not Available | MOTOR ASSY - PA 3KAGED | 63160 | Not Available |
| 46 | Not Available | SEALING | 115857-05 | Not Available |
| 47 | Not Available | HOSE - COOLING 100 MM EPD | 117990-15 | Not Available |
| 48 | Not Available | HOSE - COOLING 115 MM EPD | 117990-12 | Not Available |
| 49 | Not Available | HOSE - COOLING 135 MM EPD | 117990-16 | Not Available |
| 50 | Not Available | HOSE - COOLING 80 MM EPDM | 117990-14 | Not Available |
| 51 | Not Available | HOSE - COOLING 65 MM EPDM | 117990-13 | Not Available |
| 55 | Not Available | SPRING PACKAGE 10 in package. | 63157 | Not Available |
| 57 | Not Available | SPRING PACKAGE 10 in package. | 63158 | Not Available |
| 58 | Not Available | SEAL | 1130289-01 | Not Available |
| 59 | Not Available | CORD WINDER CPL UL RIGHT | 1128341-41 | Not Available |
| 60 | No Image | WHEEL, REAR EL6988 EL6989 Part Number: 1130608-03 for Eureka | 113060803 | $31.25Read more |
| 61 | No Image | COVER, REAR WHEEL EL6988 Part Number: 1130614-03 for Eureka | 113061403 | $21.60Read more |
| 62 | Not Available | HOLDER - WHEEL | 1096042-03 | Not Available |
| 63 | Not Available | FRONT WHEEL CPL. | 1129038-01 | Not Available |
| 65 | Not Available | SPRING PACKAGE 10 in package. | 63147 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | BELT - COGGED | 75614 | Not Available |
| 2 | Not Available | WASHER PACKAGE | 63153 | Not Available |
| 3 | Not Available | LIGHT BULB | 61682 | Not Available |
| 4 | Not Available | LIGHT SOCKET | 61727 | Not Available |
| 5 | Not Available | 740-1 MOTOR ASSEMBLY - CARTONED | 61 | Not Available |
| 6 | Not Available | SCREW PACKAGE | 63155 | Not Available |
| 7 | Not Available | WIRE SPLICE 5 | 58313 | Not Available |

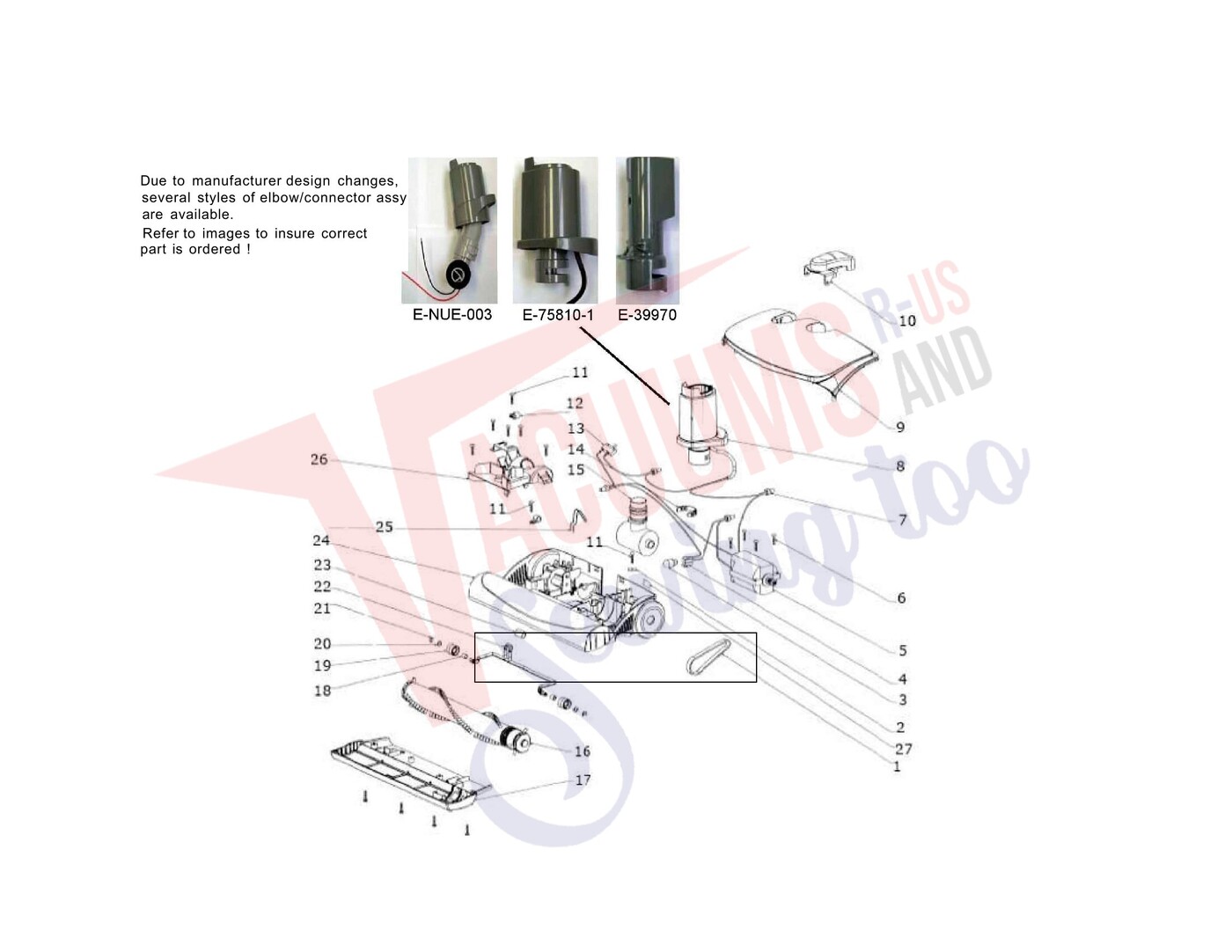

| 8 | Not Available | Elbow (Refer to images on previous page) | 75810-1 | Not Available |
| 9 | Not Available | 730-2 HOOD ASSEMBLY - PACKAGED | 61 | Not Available |
| 10 | Not Available | PEDAL ASSEMBLY | 61728 | Not Available |
| 11 | Not Available | SCREW PACKAGE | 63155 | Not Available |
| 12 | Not Available | CLAMP CABLE | 58430 | Not Available |
| 13 | Not Available | SWITCH - RESET | 74594 | Not Available |
| 14 | Not Available | C-CLAMP PACKAGE | 63154 | Not Available |
| 15 | Not Available | T-JOINT ASSEMBLY | 39973-2 | Not Available |
| 16 | Not Available | BRUSHROLL ASSY - CARTONED | 61699-1 | Not Available |
| 17 | Not Available | SOLE PLATE ASSEMBLY 10 per package. | 61753 | Not Available |
| 19 | Not Available | FRONT WHEEL | 61750 | Not Available |
| 20 | Not Available | WASHER PACKAGE | 63153 | Not Available |
| 21 | Not Available | E-RING PACKAGE | 61752 | Not Available |
| 22 | Not Available | FRONT AXLE | 61749 | Not Available |
| 23 | Not Available | 747 CAM BEARING | 61 | Not Available |
| 24 | Not Available | 746-3 BASE ASSEMBLY - PACKAGED | 61 | Not Available |
| 25 | Not Available | SPRING | 61748 | Not Available |
| 26 | Not Available | AIR DUCT COVER ASSEMBLY | 61734 | Not Available |
| 28 | Not Available | POWERHEAD ASSY (BETA-SUMO Powerhead Assy. complete. | 75922-3 | Not Available |
| # | Part image | Description | SKU | Price |

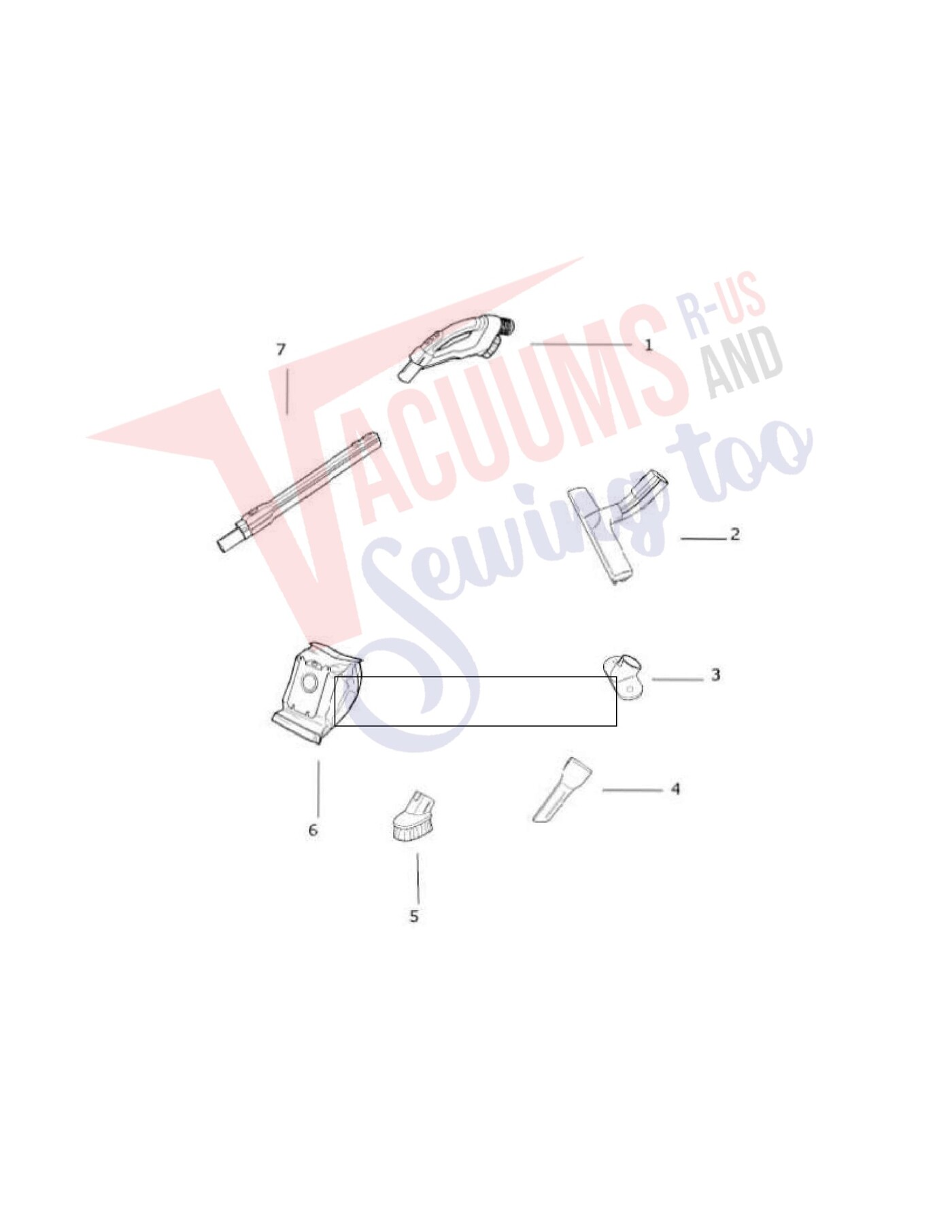

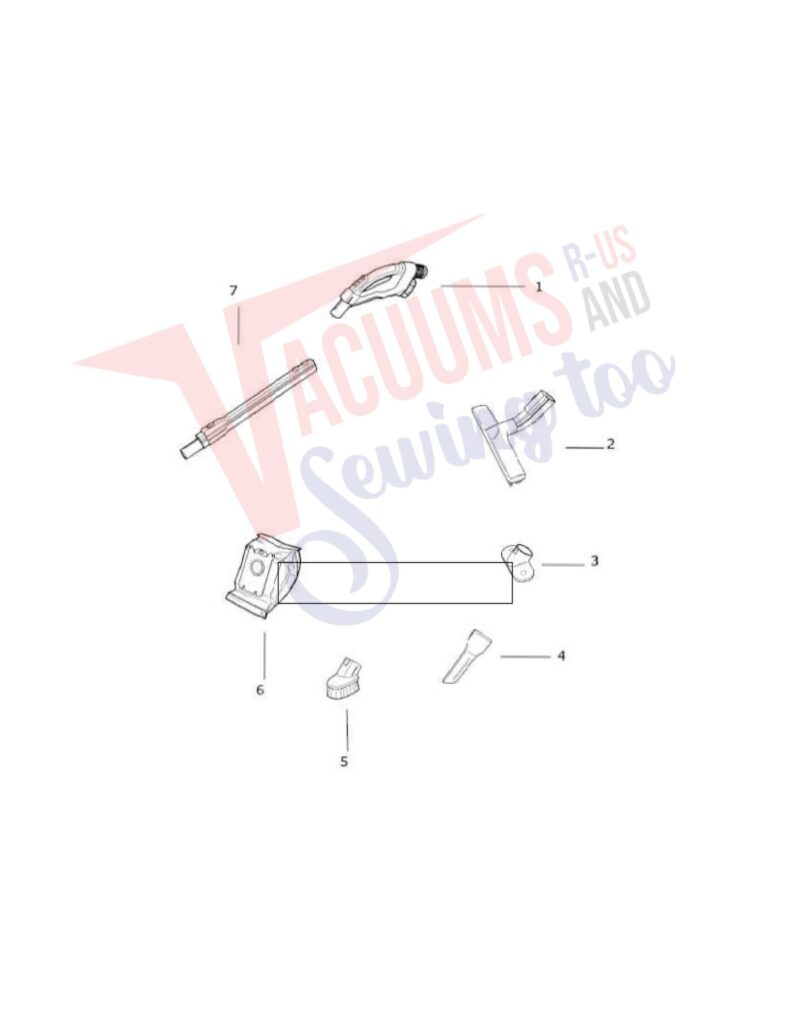

| 1 | Not Available | Hose Assembly | 61054-3 | Not Available |
| 2 | Not Available | FLOOR & WALL BRUSH ASSEMB | 75973-1 | Not Available |
| 3 | Not Available | NOZZLE - FURNITURE | 75985 | Not Available |
| 4 | Not Available | NOZZLE - CREVICE | 1131407-01 | Not Available |
| 5 | Not Available | NOZZLE - DUSTING BRUSH | 1131406-01 | Not Available |
| 6 | Not Available | S BAG CLASSIC | EL200B | Not Available |
| 7 | Not Available | TLSCPC WAND ASSY (SUMO 12 | 75979-1 | Not Available |
