Schematic and parts book for Electrolux EL6988A, EL6989A Oxygen. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

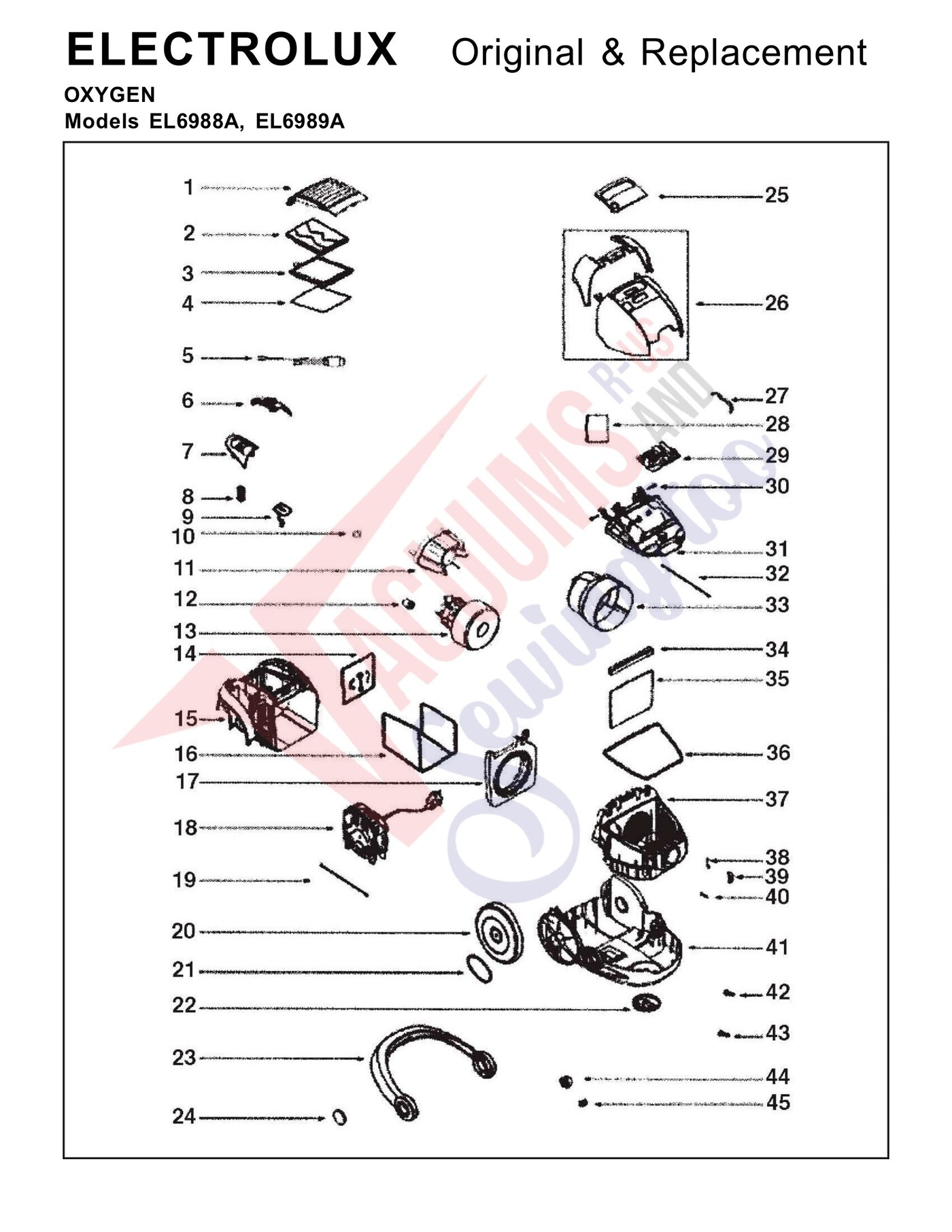

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Filter Lid | E-1130602-28 | Not Available |
| 2 | Not Available | Filter Lid Absorbent | E-1130617-01 | Not Available |
| 3 | Not Available | HEPA Exhaust Filter HF1 | E-EL012W | Not Available |
| 3 | Not Available | HEPA Exhaust Filter HF1 DvC | ER-1881 | Not Available |
| 3 | Not Available | HEPA Exhaust Filter HF1 ENv | ER-1831 | Not Available |
| 4 | Not Available | Seal | E-1130289-01 | Not Available |
| 5 | Not Available | Power Outlet Complete | E-1130274-05 | Not Available |
| 6 | Not Available | On/Off Pedal | E-1050823-26 | Not Available |
| 7 | Not Available | Cord Winder Pedal | E-1050892-13 | Not Available |
| 8 | Not Available | Spring | E-61403 | Not Available |
| 9 | Not Available | Slider | E-1050826-03 | Not Available |
| 10 | Not Available | Sealing Washer | E-61890 | Not Available |
| 11 | Not Available | Motor Adaptor | E-1050899-02 | Not Available |
| 12 | Not Available | Motor Support | E-1050808-01 | Not Available |
| 13 | Not Available | Motor Ass'y | E-60650-2 | Not Available |
| 14 | Not Available | Motor Housing Absorbent | E-1050868-01 | Not Available |
| 15 | Not Available | Motor Housing | E-1050889-04 | Not Available |
| 16 | Not Available | Motor Housing Absorbent | E-1050869-01 | Not Available |
| 17 | Not Available | Motor Seal | E-1130270-01 | Not Available |
| 18 | Not Available | Cord Winder | E-1128341-17 | Not Available |
| 19 | Not Available | Wire Black | E-1130256-02 | Not Available |
| 20 | Not Available | Rear Wheel | E-1130506 | Not Available |
| 21 | Not Available | Rear Wheel Cap | E-1130614-05 | Not Available |
| 22 | Not Available | Front Wheel Ass'y | E-1130205-07 | Not Available |
| 23 | Not Available | Handle Complete | E-1130610-03 | Not Available |
| 24 | Not Available | Handle Cap | E-1130609-04 | Not Available |
| 25 | Not Available | Display | E-1050887-39 | Not Available |
| 26 | Not Available | Complete Cover EL6988A | E-1130341-16 | Not Available |
| 26 | Not Available | Complete Cover EL6989A | E-1130341-17 | Not Available |
| 27 | Not Available | Cooling Hose | E-117250-06 | Not Available |
| 28 | Not Available | PCB Small Seal | E-1130249-01 | Not Available |
| 29 | Not Available | PCB With Switch EL6989A | E-1128899-01 | Not Available |
| 29 | Not Available | PCB With Switch EL6988A | E-1128898-01 | Not Available |
| 30 | Not Available | Shaft | E-61409 | Not Available |
| 31 | Not Available | Front Inner Cover | E-1130340-05 | Not Available |
| 32 | Not Available | Motor Wire Red | E-1130247-12 | Not Available |
| 33 | Not Available | Motor Hood | E-1130250-03 | Not Available |
| 34 | Not Available | Motor Filter Holder | E-1130272-01 | Not Available |
| 35 | Not Available | Motor Filter | E-1130535-01 | Not Available |
| 36 | Not Available | Lid Seal | E-117979-05 | Not Available |
| 37 | Not Available | Dust Bag Module | E-1050803-03 | Not Available |
| 38 | Not Available | Flap Spring | E-61415 | Not Available |
| 39 | Not Available | Lid Lock | E-1050819-01 | Not Available |
| 40 | Not Available | Cord Winder Cooling Tube | E-1050873-02 | Not Available |
| 41 | Not Available | Bottom Housing With Wheels | E-1130620-02 | Not Available |
| 42 | Not Available | Screw | E-62109-1 | Not Available |
| 43 | Not Available | Screw | E-62109-2 | Not Available |
| 44 | Not Available | Handle Bushing | E-1050812-01 | Not Available |
| 45 | Not Available | Lock | E-61418 | Not Available |

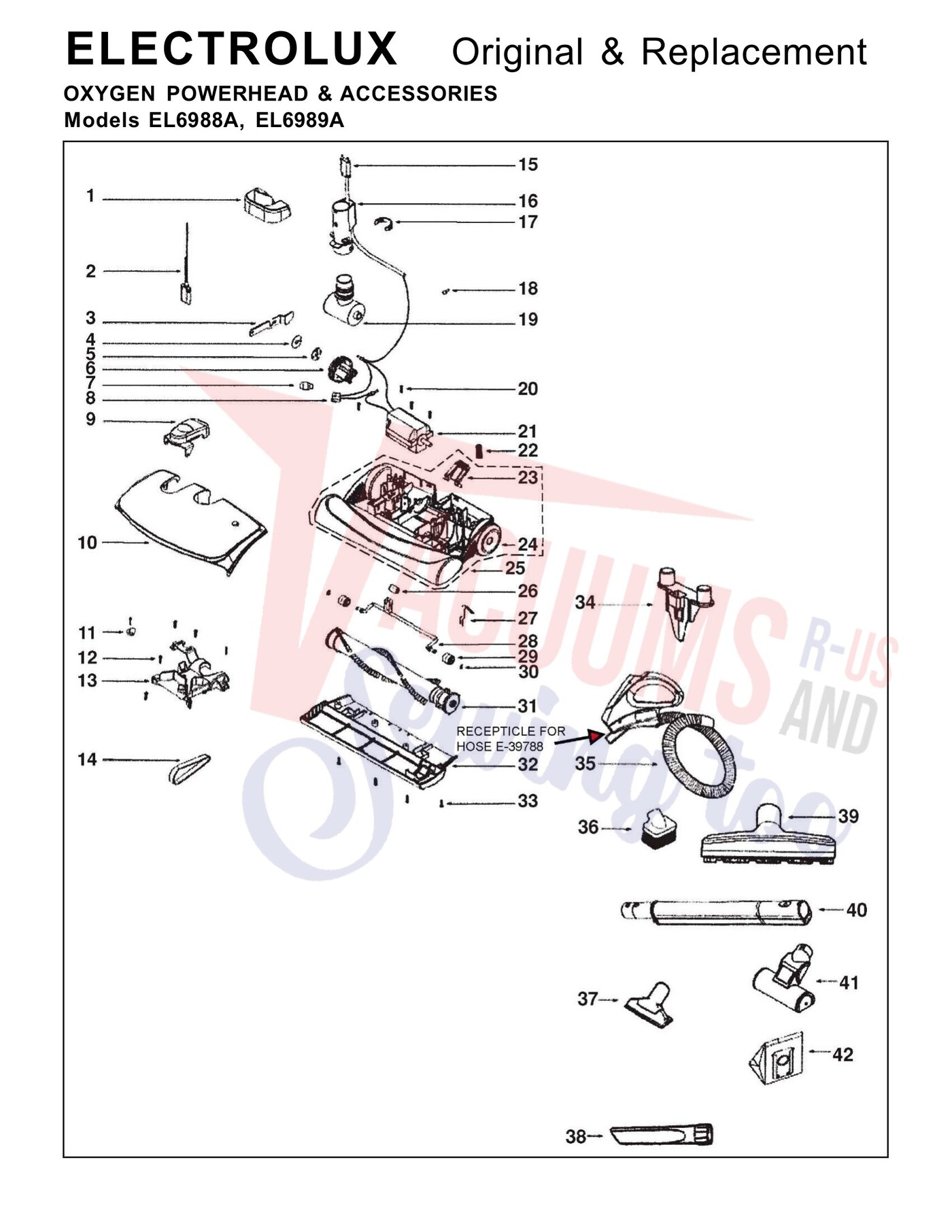

| # | Part image | Description | SKU | Price |
| XX | Not Available | Reset Switch | E-74594 | Not Available |
| 1 | Not Available | Quick Release Pedal | E-39967 | Not Available |
| 2 | Not Available | Female Wand Receptacle With Leads | E-61722 | Not Available |
| 3 | Not Available | Pivot Arm | E-61723 | Not Available |
| 4 | Not Available | Cam Disk | E-61724 | Not Available |
| 5 | Not Available | Cam Lock Ass'y | E-61725 | Not Available |
| 6 | Not Available | Height Adjustment Knob | E-61726 | Not Available |
| 7 | Not Available | Light Bulb | E-61682 | Not Available |
| 8 | Not Available | Light Socket | E-61727 | Not Available |
| 9 | Not Available | Pedal Ass'y | E-61728 | Not Available |
| 10 | Not Available | Hood Ass'y | E-61730-1 | Not Available |
| 11 | Not Available | Clip | E-61731 | Not Available |
| 12 | Not Available | Screw | E-61733 | Not Available |
| 13 | Not Available | Air Duct Cover Ass'y | E-61734 | Not Available |
| 14 |  | Eureka Geared Belt for EL6983 Vacuum - 75614 | E75614 | $6.59Read more |
| 15 | Not Available | Power Cord | E-61735 | Not Available |
| 16 | Not Available | Coupling | E-39970 | Not Available |
| 17 | Not Available | C-Clamp | E-39971 | Not Available |
| 18 | Not Available | Wire Nut (Order E-EL200B) | SS-3270 | Not Available |
| 19 | Not Available | Pivot Elbow | E-39973 | Not Available |
| 20 | Not Available | Screw | E-61733 | Not Available |
| 21 | Not Available | Motor Envirocare 4 Pk | E-61740-1 | Not Available |
| 22 | Not Available | Spring | E-61742 | Not Available |
| 23 | Not Available | Foot Pedal | E-61743 | Not Available |
| 24 | Not Available | Rear Wheel | E-61744 | Not Available |
| 25 | Not Available | Base Ass'y (Incl. 23 24) | E-61746-2 | Not Available |
| 26 | Not Available | Cam Bearing | E-61747 | Not Available |
| 27 | Not Available | Spring | E-61748 | Not Available |
| 28 | Not Available | Front Axle | E-61749 | Not Available |
| 29 | Not Available | Front Wheel | E-61750 | Not Available |
| 30 | Not Available | E-Ring | E-61752 | Not Available |
| 31 | Not Available | Brushroll | E-61699-1 | Not Available |
| 32 | Not Available | Sole Plate | E-61753 | Not Available |
| 33 | Not Available | Screw | E-61733 | Not Available |
| 34 | Not Available | Tool Caddy | E-72040A | Not Available |
| 35 | Not Available | Hose Ass'y | E-61977-2 | Not Available |
| 36 | Not Available | Dusting Brush | E-54505-4 | Not Available |
| 37 | Not Available | Upholstery Nozzle Ass'y | E-22713-10 | Not Available |
| 38 | Not Available | Crevice Tool | E-27237-355N | Not Available |
| 39 | Not Available | Deluxe 14" Floor Tool | E-39632-1 | Not Available |
| 40 | Not Available | Direct Connect Wand Ass'y 17 1/2" | E-39422-3 | Not Available |
| 41 | Not Available | Turbo Nozzle Ass'y | E-28612A-3 | Not Available |
| 42 | Not Available | Style S Bag Clinic Micron 4 Pk | NLA | Not Available |
| 42 |  | DVC Replacement HEPA Vacuum bags for Electrolux Style S & OX Harmony Canister 5pk | 836301000711 | $10.82Add to cart |
| 42 | Not Available | Style S Bag Micro Filtration | EXR-1445 | Not Available |
