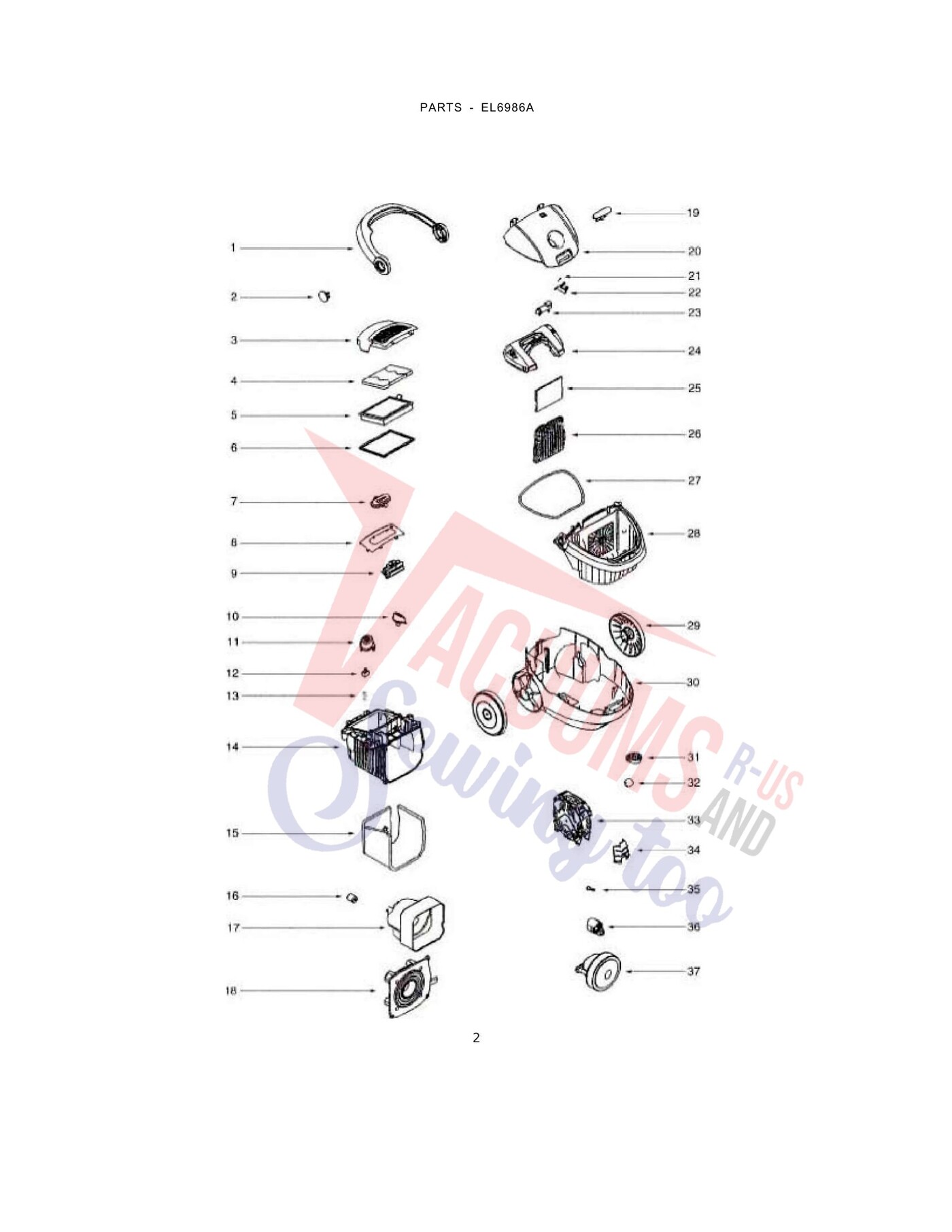

Schematic and parts book for Electrolux EL6986A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE CPL. | 1130550-01 | Not Available |
| 2 | Not Available | PIN - HANDLE | 1130511-09 | Not Available |
| 3 | Not Available | LID - FILTER | 1130509-00 | Not Available |
| 4 | Not Available | ABSORBENT - FILTER LID | 1130529-01 | Not Available |
| 5 | Not Available | FILTER - HEPA H12 NONWASH | 1130939-01 | Not Available |
| 6 | Not Available | GASKET - FILTER | 2192645-02 | Not Available |
| 7 | Not Available | SLIDER | 1130512-02 | Not Available |
| 8 | Not Available | CONTROL PANEL | 2192971-50 | Not Available |
| 9 | Not Available | PCB | 1131175-51 | Not Available |
| 10 | Not Available | PEDAL - ON/OFF | 1130514-39 | Not Available |
| 11 | Not Available | PEDAL - CORD WINDER | 1130513-16 | Not Available |
| 12 | Not Available | SWITCH - POWER | 1050326-03 | Not Available |
| 13 | Not Available | SPRING - PKGD Pkg of | 61403-1 | Not Available |
| 14 | Not Available | HOUSING - MOTOR | 1130502-03 | Not Available |
| 15 | Not Available | ABSORBENT | 1130521-01 | Not Available |
| 16 | Not Available | SUPPORT - MOTOR | 1050808-01 | Not Available |
| 17 | Not Available | HOOD - MOTOR | 1130517-02 | Not Available |
| 18 | Not Available | SEAL - MOTOR | 1130516-01 | Not Available |
| 19 | Not Available | LID - CATCH | 1130527-34 | Not Available |
| 20 | Not Available | LID - FRONT | 2193186-02 | Not Available |
| 21 | Not Available | FLAP SPRING - PKGD Pkg of | 61415-1 | Not Available |
| 22 | Not Available | DEVICE - SAFETY | 1130523-02 | Not Available |
| 23 | Not Available | INDICATOR CPL. | 117966-02 | Not Available |
| 24 | Not Available | HOLDER - DUST BAG | 1130522-02 | Not Available |
| 25 | Not Available | FILTER - MOTOR | 1130535-01 | Not Available |
| 26 | Not Available | HOLDER - MOTOR FILTER | 1130538-01 | Not Available |
| 27 | Not Available | SEAL | 115857-04 | Not Available |
| 28 | Not Available | DUST BAG CONTAINER | 1130500-07 | Not Available |
| 29 | Not Available | WHEEL - REAR | 1130506-05 | Not Available |
| 30 | Not Available | BOTTOM PART CPL. | 2191360-76 | Not Available |
| 31 | Not Available | WHEEL SUPPORT | 1096042-03 | Not Available |
| 32 | Not Available | FRONT WHEEL CPL. | 1129038-01 | Not Available |
| 33 | Not Available | CORDWINDER CPL. | 2198341-03 | Not Available |
| 34 | Not Available | AREA - CABLE RECESS | 1130526-22 | Not Available |
| 35 | Not Available | ELECTROLUX SCREW PACKAGE | 62109-2 | Not Available |
| 36 | Not Available | SUSPENSION - REAR DOM | 1130909-01 | Not Available |
| 37 | Not Available | MOTOR ASSY - PACKAGED | 63160 | Not Available |
| # | Part image | Description | SKU | Price |

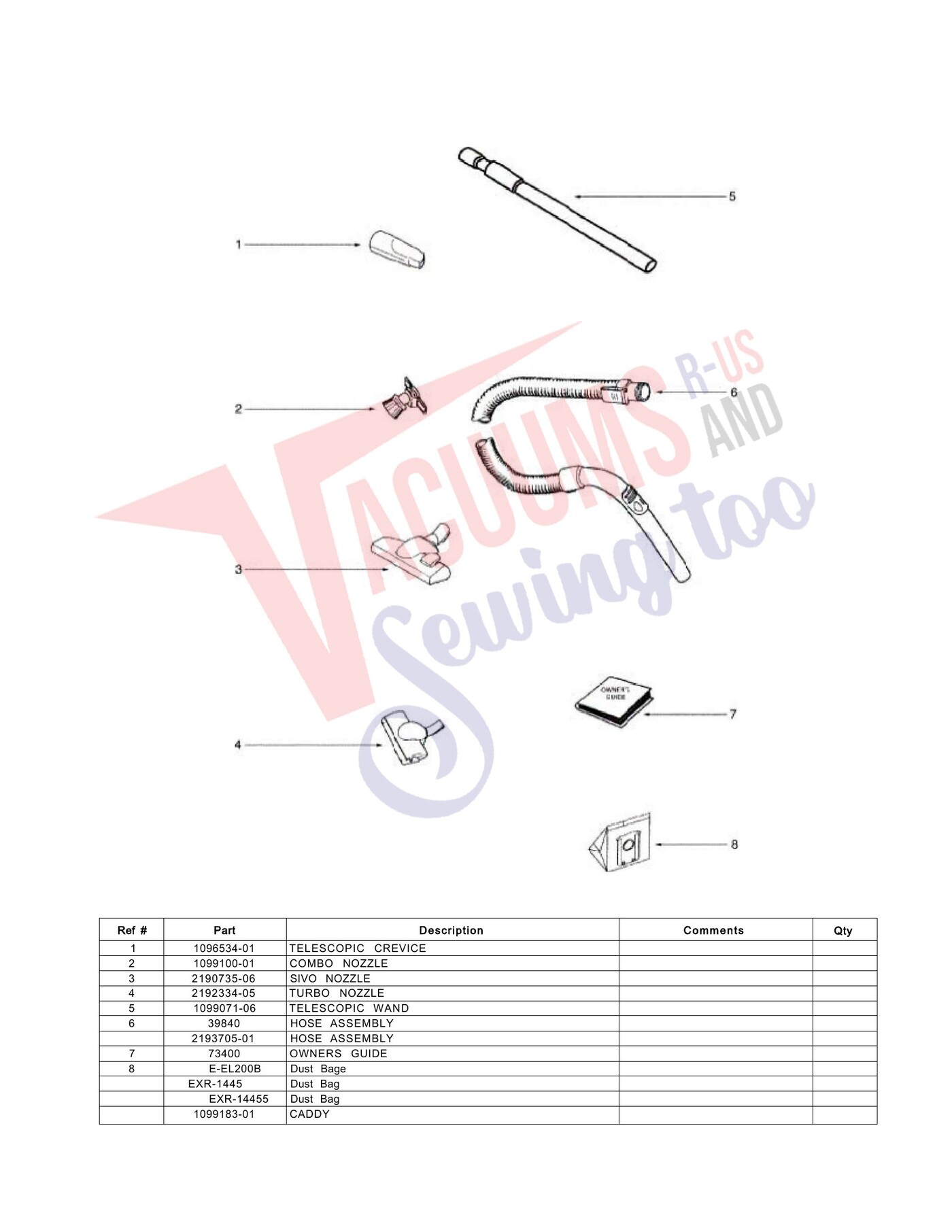

| 1 | Not Available | TELESCOPIC CREVICE | 1096534-01 | Not Available |
| 2 | Not Available | COMBO NOZZLE | 1099100-01 | Not Available |
| 3 | Not Available | SIVO NOZZLE | 2190735-06 | Not Available |
| 4 | Not Available | TURBO NOZZLE | 2192334-05 | Not Available |
| 5 | Not Available | TELESCOPIC WAND | 1099071-06 | Not Available |
| 6 | No Image | Bowden cable holder, TW050-W43-U | 39840 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | HOSE ASSEMBLY | 2193705-01 | Not Available |
| 7 | Not Available | OWNERS GUIDE | 73400 | Not Available |
| 7 | Not Available | Dust Bag | EXR-1445 | Not Available |
| 7 |  | DVC Replacement HEPA Vacuum bags for Electrolux Style S & OX Harmony Canister 5pk | 836301000711 | $10.82Add to cart |
| 7 | Not Available | CADDY | 1099183-01 | Not Available |
