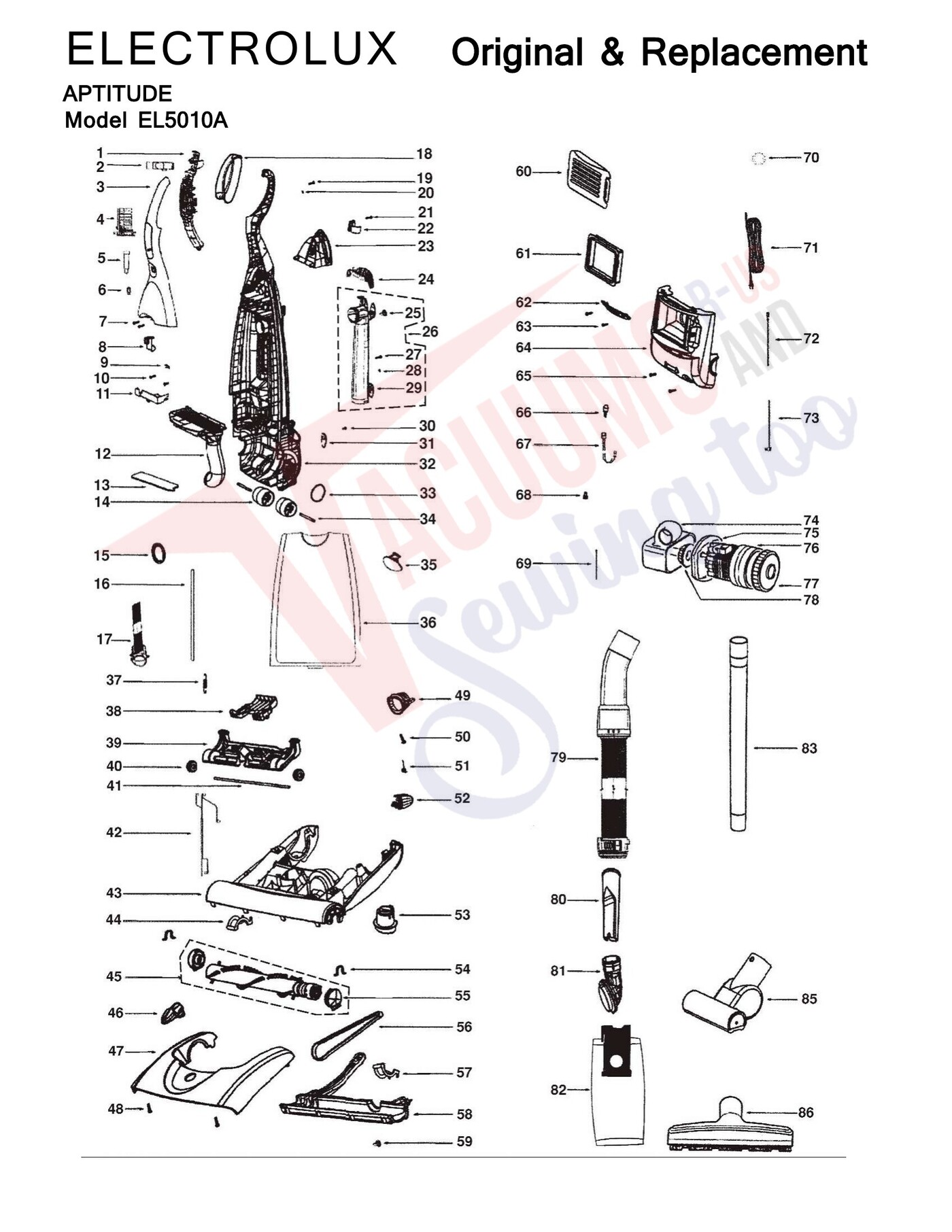

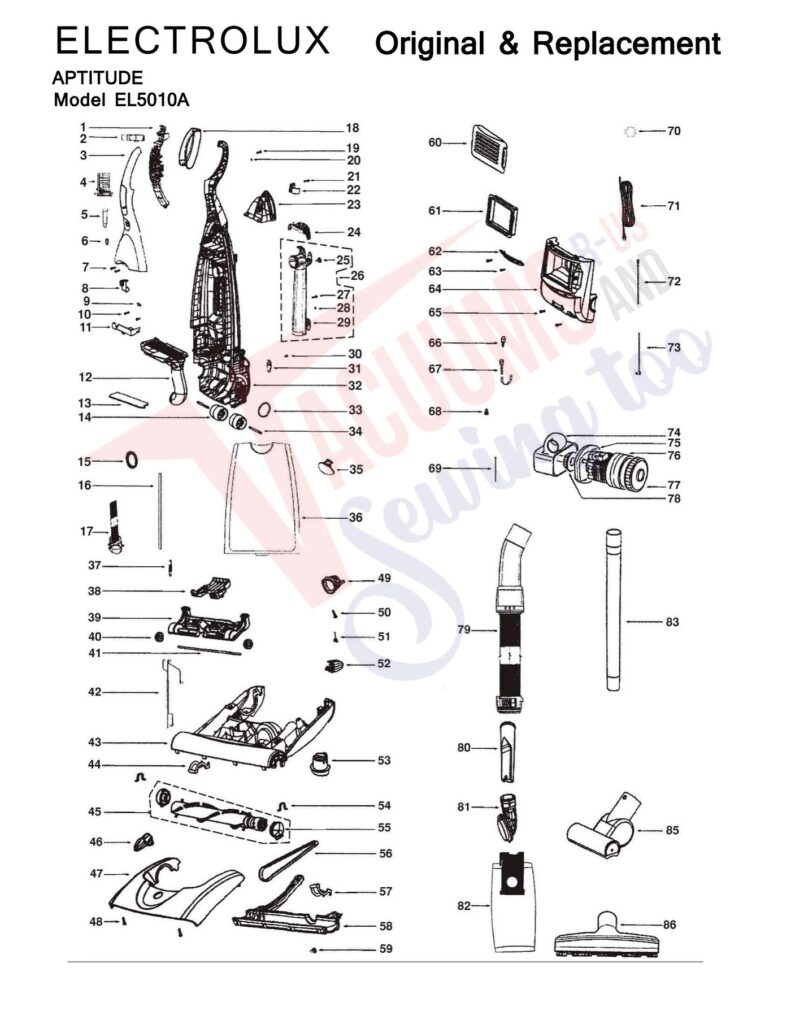

Schematic and parts book for Electrolux EL5010A Aptitude. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Switch/Electronic Ass'y | E-61038-2 | Not Available |
| 2 | Not Available | Potentiometer Slider Pin | E-59667-7 | Not Available |
| 3 | Not Available | Front Handle | E-15551-398P | Not Available |
| 4 | Not Available | Speed Control Module | E-39327 | Not Available |
| 5 | Not Available | Neon Lamp | E-59668-2 | Not Available |
| 6 | Not Available | Rocker Switch | E-39178 | Not Available |
| 7 | Not Available | Screw | E-60856 | Not Available |
| 8 | Not Available | Blanking Plug | E-39216-355N | Not Available |
| 9 | Not Available | Cable Clamp | E-39214 | Not Available |
| 10 | Not Available | Screw | E-60856 | Not Available |
| 11 | Not Available | Switch Holder | E-39179-119N | Not Available |
| 12 | Not Available | Bulkhead | E-28197-4SV | Not Available |
| 13 | Not Available | Secondary Filter | E-39180 | Not Available |
| 14 | Not Available | Rear Wheel | E-39878-1 | Not Available |
| 15 | Not Available | Exhaust Chamber Seal | E-39171 | Not Available |
| 16 | Not Available | Lower Hose | E-59669-3 | Not Available |
| 17 | Not Available | Bent End Cup Ass'y | E-39187SV | Not Available |
| 18 | Not Available | Hand Grip | E-39170-355N | Not Available |
| 19 | Not Available | Screw | E-60856 | Not Available |
| 20 | Not Available | Washer | E-61025 | Not Available |
| 21 | Not Available | Screw | E-53238-40 | Not Available |
| 22 | Not Available | Tool Clip | E-39189-355N | Not Available |
| 23 | Not Available | Carry Handle Ass'y | E-39162-4 | Not Available |
| 24 | Not Available | Grip - Carry Handle | E-28196-355N | Not Available |
| 25 | Not Available | 1/4 Turn Fastener | E-60598-4 | Not Available |
| 26 | Not Available | Rear Air Tube Ass'y | E-28212A-2 | Not Available |
| 27 | Not Available | Screw | E-60856 | Not Available |
| 28 | Not Available | Washer | E-60810 | Not Available |
| 29 | Not Available | Cord Hook | E-59675-119N | Not Available |
| 30 | Not Available | Rivet | E-59680 | Not Available |
| 31 | Not Available | Hose Retainer | E-39196-355N | Not Available |
| 32 | Not Available | Body Assembly | E-60949-8 | Not Available |
| 33 | Not Available | Ring - Journal | E-59830-316N | Not Available |
| 34 | Not Available | Rear Wheel Axle | E-59657 | Not Available |
| 35 | Not Available | Front Cover Latch | E-39331A-2 | Not Available |
| 36 | Not Available | Front Cover W/Seal | E-60808-10 | Not Available |
| 37 | Not Available | Spring | E-61027 | Not Available |
| 38 | Not Available | Lever Arm | E-28187-119N | Not Available |
| 39 | Not Available | Wheel Carriage | E-15489-119N | Not Available |
| 40 | Not Available | Front Wheel | E-39168 | Not Available |
| 41 | Not Available | Axle | E-39253A | Not Available |
| 42 | Not Available | Wire Harness | E-28446-1 | Not Available |
| 43 | Not Available | Base Ass'y | E-60988-2 | Not Available |
| 44 | Not Available | Felt Gasket | E-59951 | Not Available |
| 45 | Not Available | Brushroll Ass'y 14" | E-60989-2 | Not Available |
| 46 | Not Available | Height Adjustment Knob | E-39151A-355N | Not Available |
| 47 | Not Available | Hood & Graphics Ass'y | E-60986-5 | Not Available |
| 48 | Not Available | Screw | E-60856 | Not Available |
| 49 | Not Available | Hose Adapter | E-39267-316N | Not Available |
| 50 | Not Available | Screw | E-60856 | Not Available |
| 51 | Not Available | Body Release Spring | E-39198 | Not Available |
| 52 | Not Available | Body Release Pedal | E-39197B-355N | Not Available |
| 53 | Not Available | Height Adjustment Actuator | E-39255-355N | Not Available |
| 54 | Not Available | End Cap Spacer | E-59792 | Not Available |
| 55 | Not Available | Bristled End Caps | E-39193-3 | Not Available |
| 56 | Not Available | Belt 2 Pk | E-60440 | Not Available |
| 57 | Not Available | Felt Gasket | E-59951 | Not Available |
| 58 | Not Available | Sole Plate & Gasket Ass'y | E-28443-4SV | Not Available |
| 59 | Not Available | 1/4 Turn Fastener | E-60598-4 | Not Available |
| 60 | Not Available | Grill Exhaust & Graphics | E-39865-392P | Not Available |
| 61 | Not Available | Washable HEPA Filter | E-EL012W | Not Available |
| 61 | Not Available | HEPA Filter Washable DvC | ER-1881 | Not Available |
| 61 | Not Available | HEPA Filter Washable ENv | ER-1831 | Not Available |
| 62 | Not Available | Headlight Lens | E-28293-313N | Not Available |
| 63 | Not Available | Screw | E-54669-2 | Not Available |
| 64 | Not Available | Motor Cover Ass'y | E-60987-4 | Not Available |
| 65 | Not Available | Screw | E-60856 | Not Available |
| 66 | Not Available | Headlight Lamp | E-57940-1 | Not Available |
| 66 | Not Available | Headlight lamp | HR-3500 | Not Available |
| 67 | Not Available | Headlight Ass'y | E-38828B-2 | Not Available |
| 68 | Not Available | Wire Nut | SS-3270 | Not Available |
| 69 | Not Available | Cable Tie | SS-8017 | Not Available |
| 70 | Not Available | On-Sert | E-70910 | Not Available |
| 71 | Not Available | Cord | E-39584-12 | Not Available |
| 72 | Not Available | Lead Ass'y | E-59847-5 | Not Available |
| 73 | Not Available | Lead Ass'y | E-59847-3 | Not Available |
| 74 | Not Available | Exhaust Chamber | E-28226-4 | Not Available |
| 75 | Not Available | Sealing Sheet | E-28253 | Not Available |
| 76 | Not Available | Motor Ass'y | E-60948-3 | Not Available |
| 77 | Not Available | Suspension Ring | E-15572 | Not Available |
| 78 | Not Available | Suspension Block | E-59692A | Not Available |
| 79 | Not Available | Transparent Hose Ass'y | E-60470-2 | Not Available |
| 80 | Not Available | Crevice Tool | E-28251-355N | Not Available |
| 81 | Not Available | Combination Brush Bristled | E-60990-3 | Not Available |
| 82 | Not Available | Paper Bag Style DX 3 Pk | E-61525 | Not Available |
| 82 |  | The Electrolux/Eureka Type DX Replacement Micro-Lined Bags fit Eureka: 6230 Series and Electrolux... | 836301002081 | $12.71Add to cart |
| 82 | Not Available | Paper Bag ENv 5 Pk | EXR-1443 | Not Available |
| 83 | Not Available | Extension Tube | E-71119-1 | Not Available |
| 85 | Not Available | Turbo Nozzle Ass'y | E-28612A | Not Available |
| 86 | Not Available | Deluxe 14" Floor Tool | E-39632-1 | Not Available |
