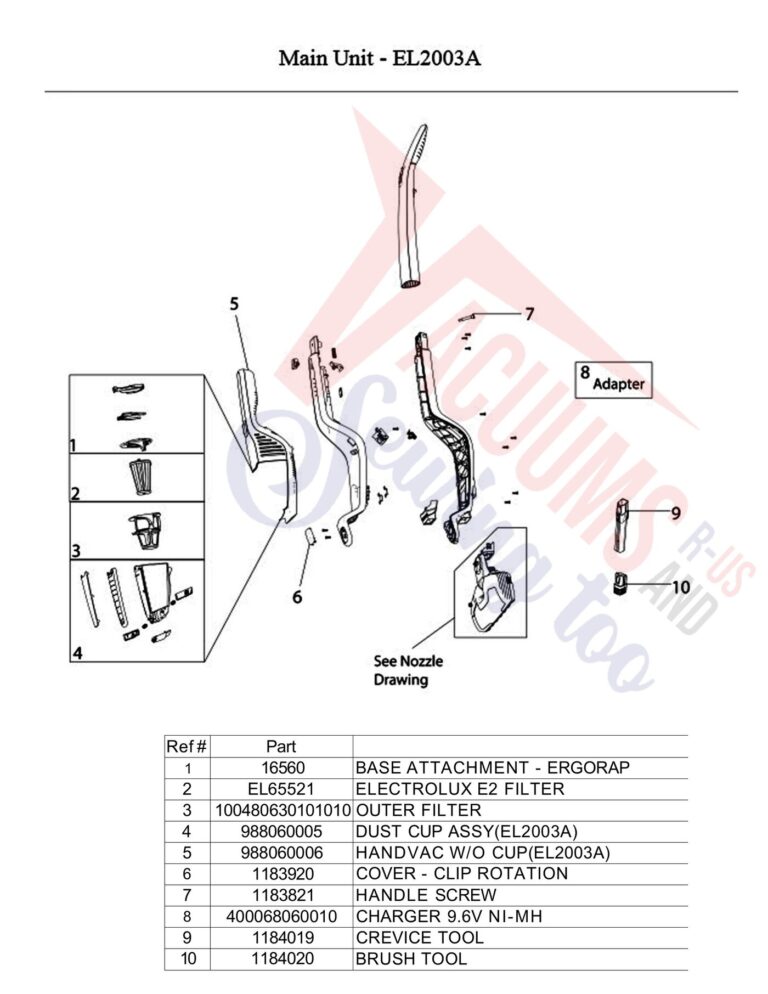

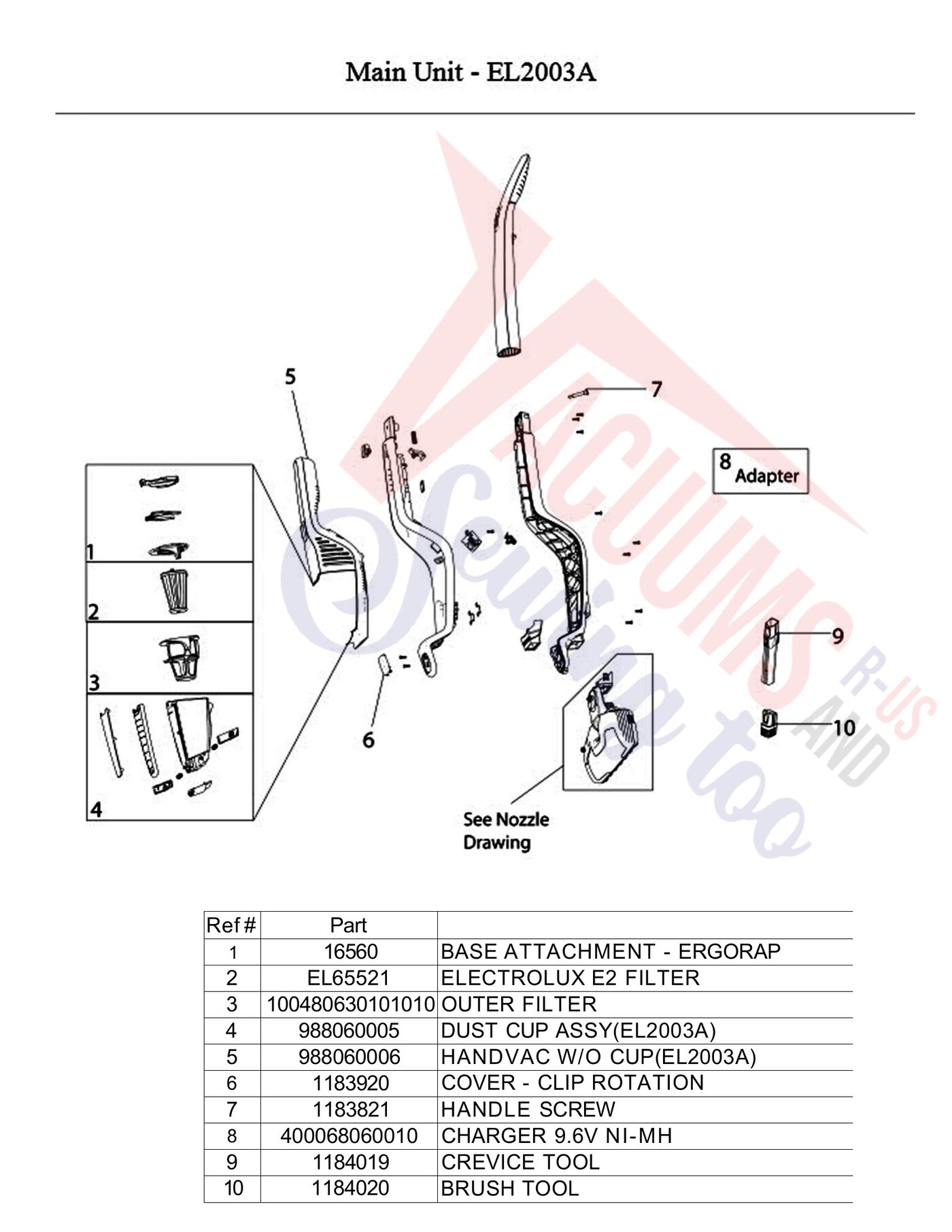

Schematic and parts book for Electrolux EL2003A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | BASE ATTACHMENT - ERGORAP | 16560 | Not Available |
| 2 |  | Filter, Electrolux Ergorapido E2 2Pk Part Number: EL65521A for Eureka | EL65521A | $31.16Read more |
| 3 | Not Available | OUTER FILTER | 100480630101010 | Not Available |
| 4 | Not Available | DUST CUP ASSY(EL2003A) | 988060005 | Not Available |
| 5 | Not Available | HANDVAC W/O CUP(EL2003A) | 988060006 | Not Available |
| 6 | Not Available | COVER - CLIP ROTATION | 1183920 | Not Available |
| 7 | Not Available | HANDLE SCREW | 1183821 | Not Available |
| 8 | Not Available | CHARGER 9.6V NI-MH | 400068060010 | Not Available |
| 9 | Not Available | CREVICE TOOL | 1184019 | Not Available |
| 10 | Not Available | BRUSH TOOL | 1184020 | Not Available |

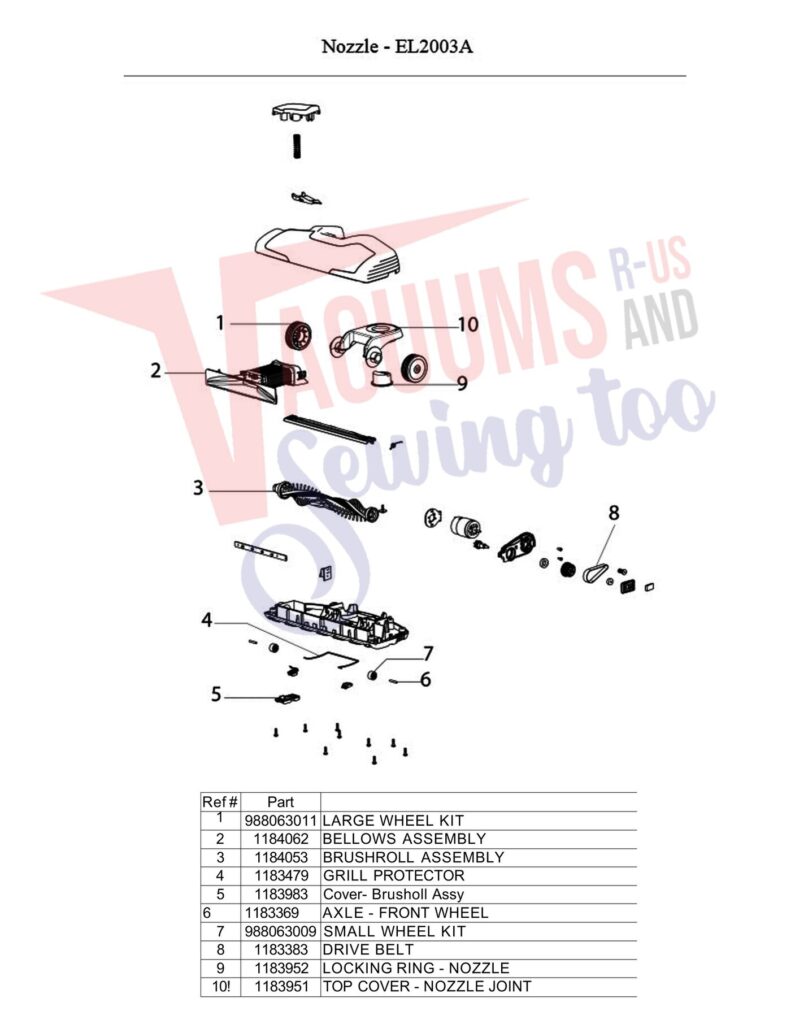

| # | Part image | Description | SKU | Price |
| 1 | Not Available | LARGE WHEEL KIT | 988063011 | Not Available |
| 2 | Not Available | BELLOWS ASSEMBLY | 1184062 | Not Available |
| 3 | Not Available | BRUSHROLL ASSEMBLY | 1184053 | Not Available |
| 4 | Not Available | GRILL PROTECTOR | 1183479 | Not Available |
| 5 | Not Available | Cover- Brusholl Assy | 1183983 | Not Available |
| 6 | Not Available | AXLE - FRONT WHEEL | 1183369 | Not Available |
| 7 | Not Available | SMALL WHEEL KIT | 988063009 | Not Available |
| 8 | Not Available | DRIVE BELT | 1183383 | Not Available |
| 9 | Not Available | LOCKING RING - NOZZLE | 1183952 | Not Available |
Report errors on this page HERE
