Schematic and parts book for Electrolux EL029 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

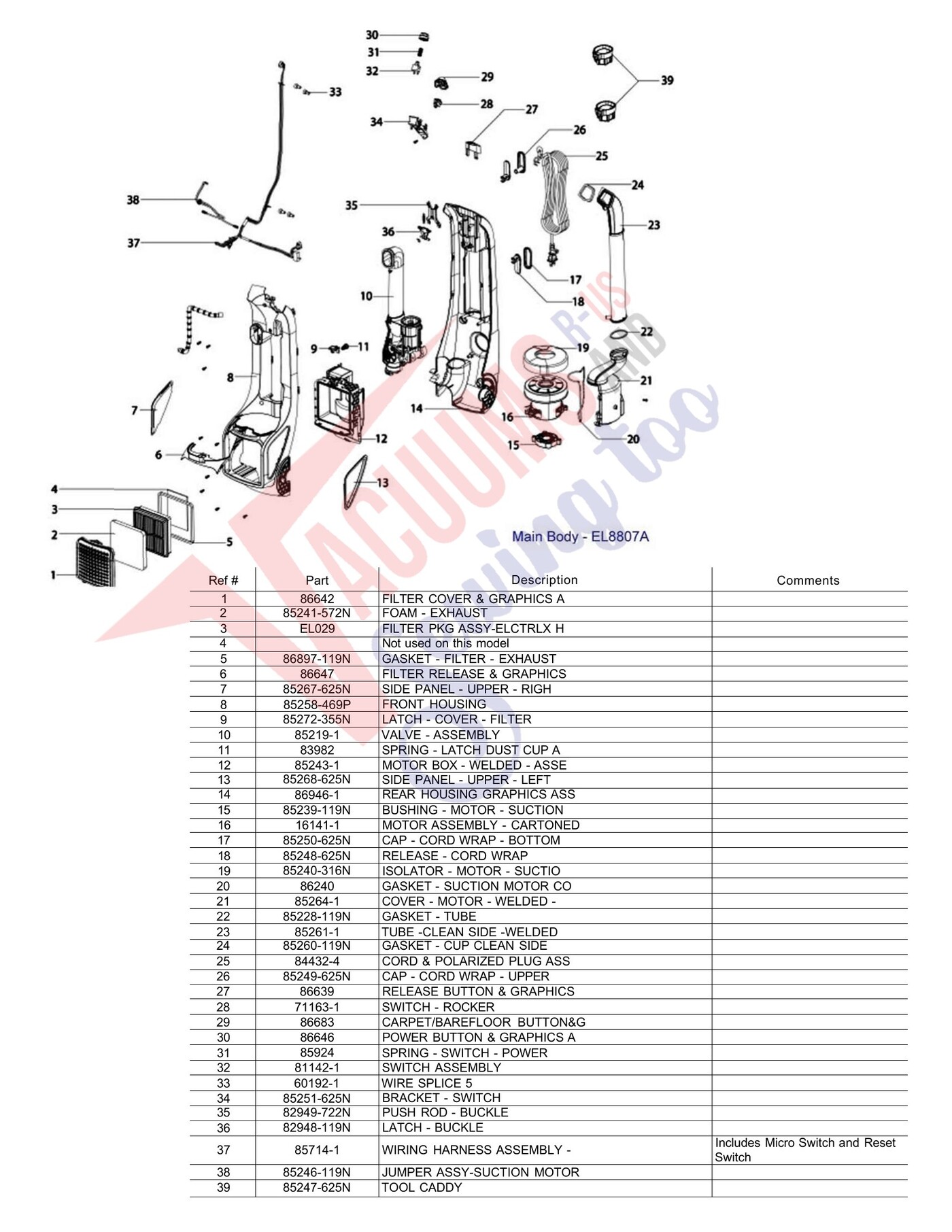

| 1 | Not Available | FILTER COVER | 86642 | Not Available |
| 2 | Not Available | FOAM - EXHAUST | 85241-572N | Not Available |
| 3 | Not Available | FILTER PKG ASSY-ELCTRLX | EL029 | Not Available |
| 5 | Not Available | GASKET - FILTER | 86897-119N | Not Available |
| 6 | Not Available | FILTER RELEASE | 86647 | Not Available |
| 7 | Not Available | SIDE PANEL - | 85267-625N | Not Available |
| 8 | Not Available | FRONT HOUSING | 85258-469P | Not Available |
| 9 | Not Available | LATCH - COVER | 85272-355N | Not Available |
| 10 | Not Available | VALVE - ASSEMBLY | 85219-1 | Not Available |
| 11 | Not Available | SPRING - LATCH | 83982 | Not Available |
| 12 | Not Available | MOTOR BOX - | 85243-1 | Not Available |
| 13 | Not Available | SIDE PANEL - | 85268-625N | Not Available |
| 14 | Not Available | REAR HOUSING | 86946-1 | Not Available |
| 15 | Not Available | BUSHING - MOTOR | 85239-119N | Not Available |
| 16 | Not Available | MOTOR ASSEMBLY | 16141-1 | Not Available |
| 17 | Not Available | CAP - CORD WRAP | 85250-625N | Not Available |
| 18 | Not Available | RELEASE - CORD | 85248-625N | Not Available |
| 19 | Not Available | ISOLATOR - MOTOR | 85240-316N | Not Available |
| 20 | Not Available | GASKET - SUCTION | 86240 | Not Available |
| 21 | Not Available | COVER - MOTOR | 85264-1 | Not Available |
| 22 | Not Available | GASKET - TUBE | 85228-119N | Not Available |
| 23 | Not Available | TUBE -CLEAN | 85261-1 | Not Available |
| 24 | Not Available | GASKET - CUP | 85260-119N | Not Available |
| 25 | Not Available | CORD & POLARIZED | 84432-4 | Not Available |
| 26 | Not Available | CAP - CORD WRAP | 85249-625N | Not Available |
| 27 | Not Available | RELEASE BUTTON | 86639 | Not Available |
| 28 | No Image | SWITCH, ROCKER BRUSHROLL ON/OFF Part Number: 71163-1 for Eureka | 711631 | $3.00Read more |
| 29 | Not Available | CARPET/BAREFLOOR | 86683 | Not Available |
| 30 | Not Available | POWER BUTTON | 86646 | Not Available |
| 31 | Not Available | SPRING - SWITCH | 85924 | Not Available |
| 32 | Not Available | SWITCH ASSEMBLY | 81142-1 | Not Available |
| 33 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | BRACKET - SWITCH | 85251-625N | Not Available |
| 35 | Not Available | PUSH ROD - BUCKLE | 82949-722N | Not Available |
| 36 | Not Available | LATCH - BUCKLE | 82948-119N | Not Available |
| 37 | Not Available | WIRING HARNESS | 85714-1 | Not Available |
| 38 | Not Available | JUMPER ASSY-SUCTION | 85246-119N | Not Available |
| 39 | Not Available | TOOL CADDY | 85247-625N | Not Available |
| # | Part image | Description | SKU | Price |

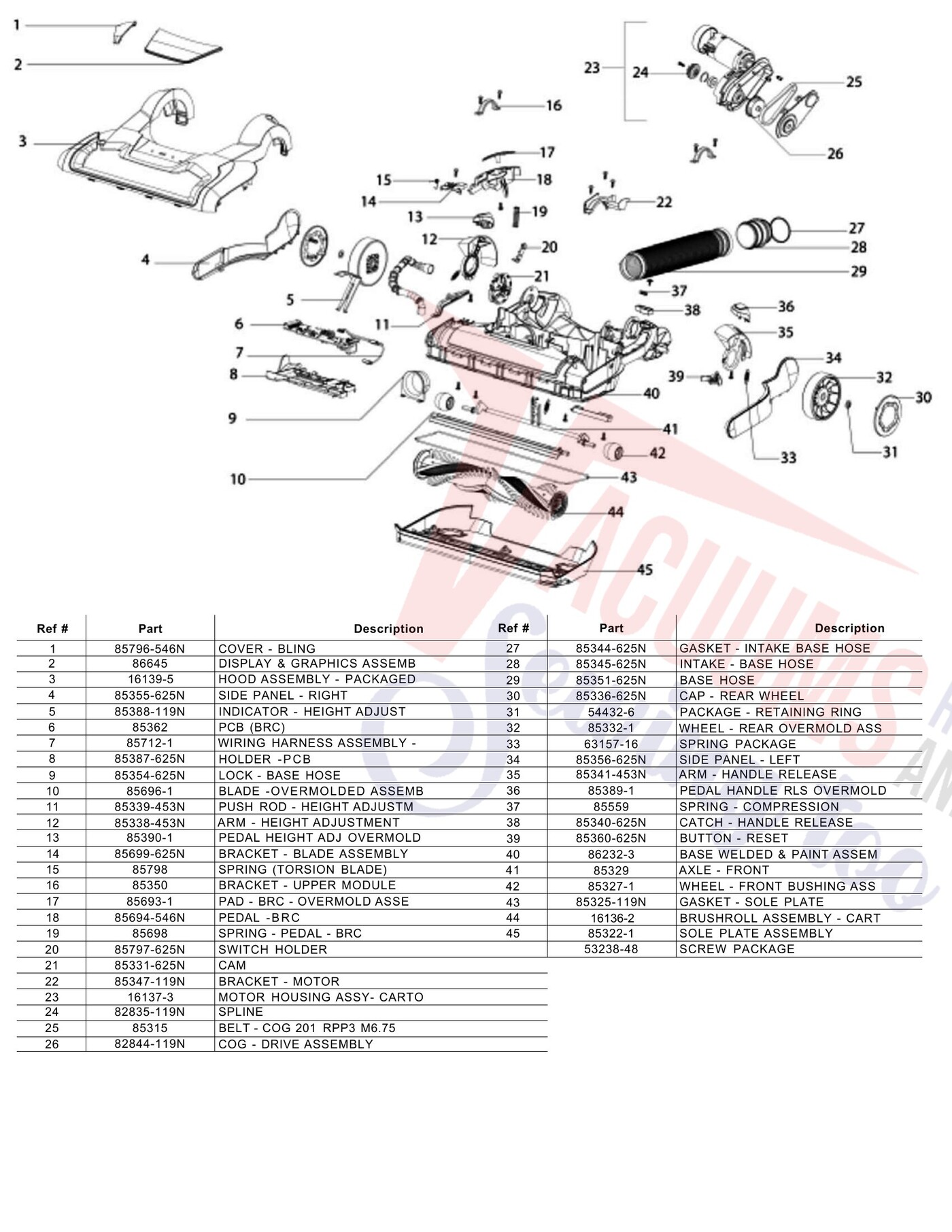

| 1 | Not Available | COVER - BLING | 85796-546N | Not Available |
| 2 | Not Available | DISPLAY & GRAPHICS ASSEMB | 86645 | Not Available |
| 3 | Not Available | HOOD ASSEMBLY - PACKAGED | 16139-5 | Not Available |
| 4 | Not Available | SIDE PANEL - RIGHT | 85355-625N | Not Available |
| 5 | Not Available | INDICATOR - HEIGHT ADJUST | 85388-119N | Not Available |
| 6 | Not Available | PCB (BRC) | 85362 | Not Available |
| 7 | Not Available | WIRING HARNESS ASSEMBLY - | 85712-1 | Not Available |
| 8 | Not Available | HOLDER -PCB | 85387-625N | Not Available |
| 9 | Not Available | LOCK - BASE HOSE | 85354-625N | Not Available |
| 10 | Not Available | BLADE -OVERMOLDED ASSEMB | 85696-1 | Not Available |
| 11 | Not Available | PUSH ROD - HEIGHT ADJUSTM | 85339-453N | Not Available |
| 12 | Not Available | ARM - HEIGHT ADJUSTMENT | 85338-453N | Not Available |
| 13 | Not Available | PEDAL HEIGHT ADJ OVERMOLD | 85390-1 | Not Available |
| 14 | Not Available | BRACKET - BLADE ASSEMBLY | 85699-625N | Not Available |
| 15 | Not Available | SPRING (TORSION BLADE) | 85798 | Not Available |
| 16 | Not Available | BRACKET - UPPER MODULE | 85350 | Not Available |
| 17 | Not Available | PAD - BRC - OVERMOLD ASSE | 85693-1 | Not Available |
| 18 | No Image | PEDAL-BRC, EL8802A Part Number: 85694-546N for Eureka | 85694546N | $7.83Read more |
| 19 | Not Available | SPRING - PEDAL - BRC | 85698 | Not Available |
| 20 | Not Available | SWITCH HOLDER | 85797-625N | Not Available |
| 21 | Not Available | CAM | 85331-625N | Not Available |
| 22 | Not Available | BRACKET - MOTOR | 85347-119N | Not Available |
| 23 | Not Available | MOTOR HOUSING ASSY- CARTO | 16137-3 | Not Available |
| 24 | Not Available | SPLINE | 82835-119N | Not Available |
| 25 | Not Available | BELT - COG 201 RPP3 M6.75 | 85315 | Not Available |
| 26 | Not Available | COG - DRIVE ASSEMBLY | 82844-119N | Not Available |
| 27 | Not Available | GASKET - INTAKE BASE HOSE | 85344-625N | Not Available |
| 28 | Not Available | INTAKE - BASE HOSE | 85345-625N | Not Available |
| 29 | Not Available | BASE HOSE | 85351-625N | Not Available |
| 30 | Not Available | CAP - REAR WHEEL | 85336-625N | Not Available |
| 31 | Not Available | PACKAGE - RETAINING RING | 54432-6 | Not Available |
| 32 | Not Available | WHEEL - REAR OVERMOLD ASS | 85332-1 | Not Available |
| 33 | Not Available | SPRING PACKAGE | 63157-16 | Not Available |
| 34 | Not Available | SIDE PANEL - LEFT | 85356-625N | Not Available |
| 35 | Not Available | ARM - HANDLE RELEASE | 85341-453N | Not Available |
| 36 | Not Available | PEDAL HANDLE RLS OVERMOLD | 85389-1 | Not Available |
| 37 | Not Available | SPRING - COMPRESSION | 85559 | Not Available |
| 38 | Not Available | CATCH - HANDLE RELEASE | 85340-625N | Not Available |
| 39 | Not Available | BUTTON - RESET | 85360-625N | Not Available |
| 40 | Not Available | BASE WELDED & PAINT ASSEM | 86232-3 | Not Available |
| 41 | Not Available | AXLE - FRONT | 85329 | Not Available |
| 42 | Not Available | WHEEL - FRONT BUSHING ASS | 85327-1 | Not Available |
| 43 | Not Available | GASKET - SOLE PLATE | 85325-119N | Not Available |
| 44 | Not Available | BRUSHROLL ASSEMBLY - CART | 16136-2 | Not Available |
| 45 | Not Available | SOLE PLATE ASSEMBLY | 85322-1 | Not Available |
| 45 | Not Available | SCREW PACKAGE | 53238-48 | Not Available |
| # | Part image | Description | SKU | Price |

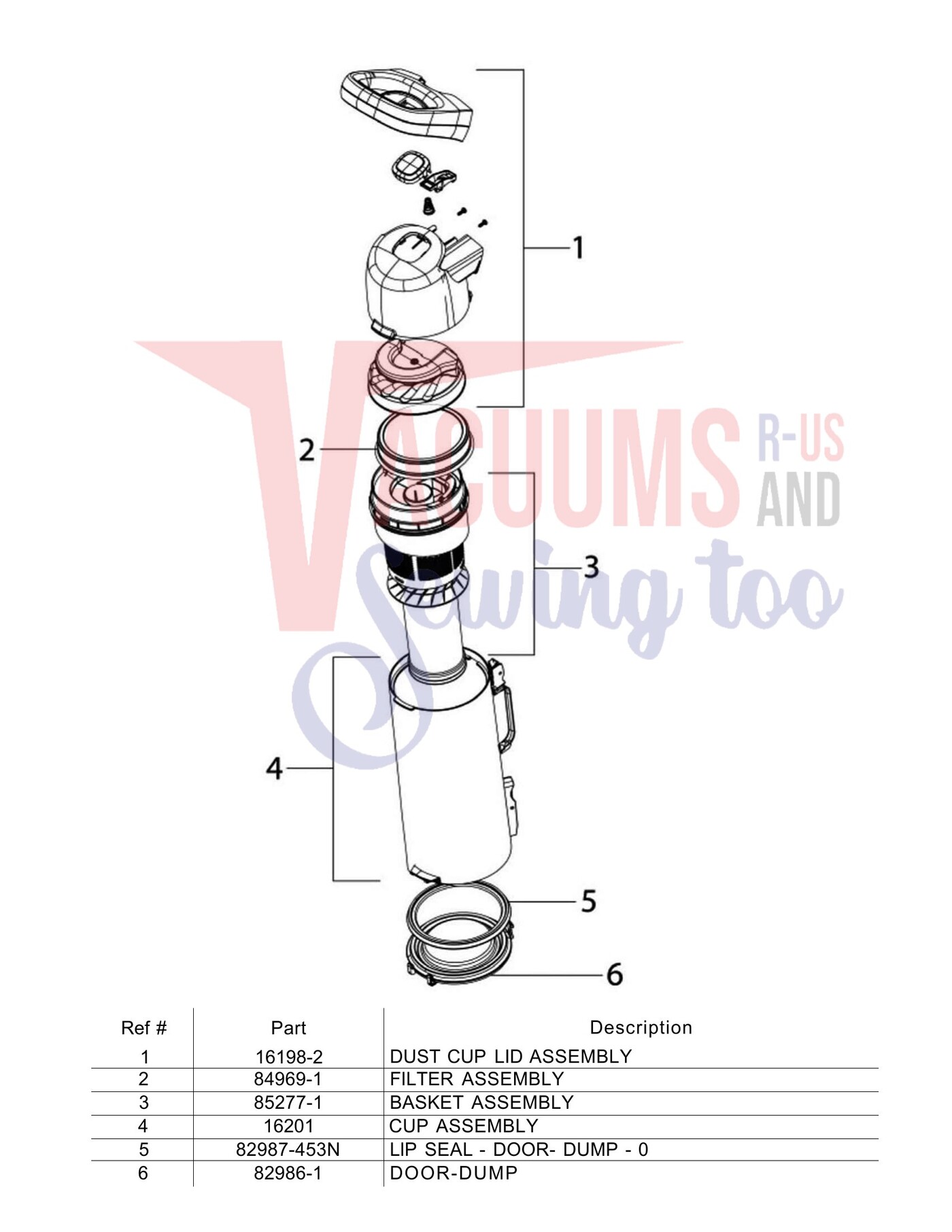

| 1 | Not Available | DUST CUP LID ASSEMBLY | 16198-2 | Not Available |
| 2 | Not Available | FILTER ASSEMBLY | 84969-1 | Not Available |
| 3 | Not Available | BASKET ASSEMBLY | 85277-1 | Not Available |
| 4 | Not Available | CUP ASSEMBLY | 16201 | Not Available |
| 5 | Not Available | LIP SEAL - DOOR- DUMP - | 82987-453N | Not Available |
| 6 | Not Available | DOOR-DUMP | 82986-1 | Not Available |
| # | Part image | Description | SKU | Price |

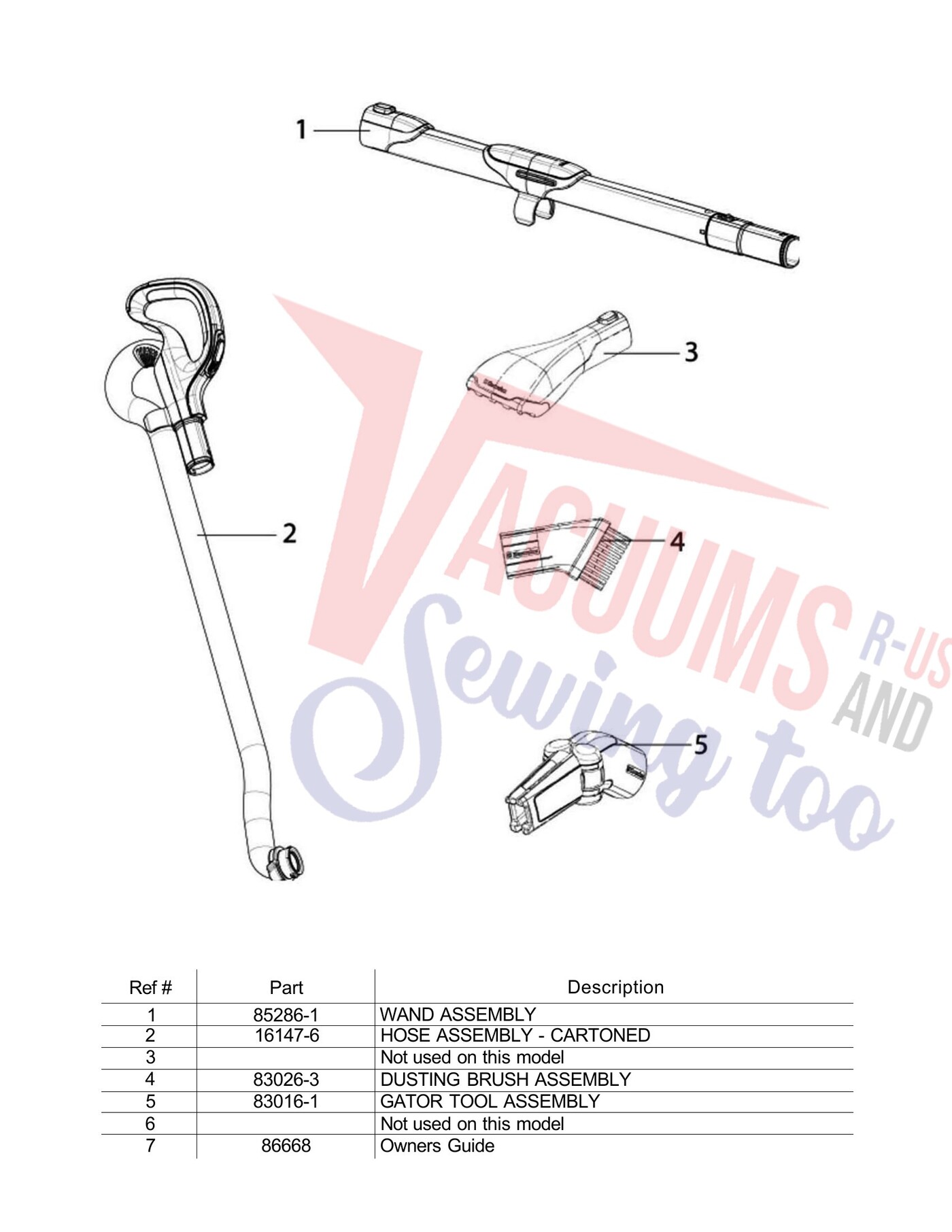

| 1 | Not Available | WAND ASSEMBLY | 85286-1 | Not Available |
| 2 | No Image | HOSE, EL8807A PRECISION Part Number: 16147-6 for Eureka | 161476 | $57.46Read more |
| 4 | Not Available | DUSTING BRUSH ASSEMBLY | 83026-3 | Not Available |
| 5 | Not Available | GATOR TOOL ASSEMBLY | 83016-1 | Not Available |
| 7 | Not Available | Owners Guide | 86668 | Not Available |
