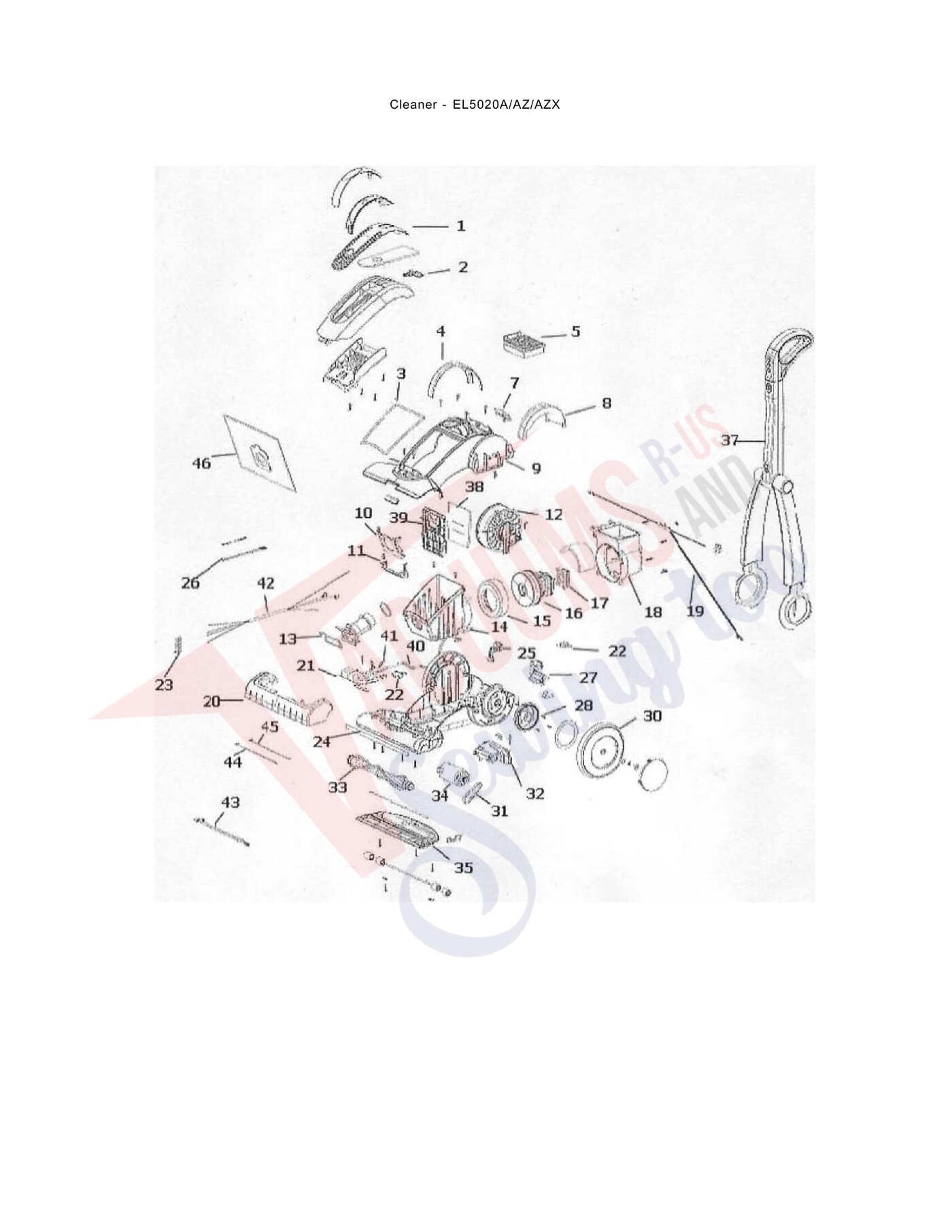

Schematic and parts book for Electrolux 5020A, EL5020A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE | 63307 | Not Available |
| 2 | Not Available | LATCH ASSEMBLY | 63309 | Not Available |
| 3 | Not Available | GASKET | 77974 | Not Available |
| 4 | Not Available | RIGHT FENDER | 63311 | Not Available |
| 5 | Not Available | HEPA FILTER | 76415 | Not Available |
| 6 |  | SCREW, 10 PK STAR DRIVE Part Number: 63310 for Eureka | 63310 | $6.66Read more |
| 7 | Not Available | REAR PANEL | 77390 | Not Available |
| 8 | Not Available | LEFT FENDER | 63312 | Not Available |
| 9 | Not Available | UPPER HOUSING | 63313 | Not Available |
| 10 | Not Available | ADAPTER | 76380-333N | Not Available |
| 11 | Not Available | BRACKET | 76381-366N | Not Available |
| 12 | Not Available | CORD REEL | 63315 | Not Available |
| 13 | Not Available | BASE ADPTR | 63314 | Not Available |
| 14 | Not Available | CHAMBER | 76379-366N | Not Available |
| 15 | Not Available | GASKET | 76376-316N | Not Available |
| 16 | No Image | MOTOR, EL5035 Part Number: 63182 for Eureka | 63182 | $62.56Read more |
| 17 | Not Available | MOUNT - | 74885-316N | Not Available |
| 18 | Not Available | MOTOR SHROUD | 63316 | Not Available |
| 19 | Not Available | REAR DISPLAY | 63330 | Not Available |
| 20 | Not Available | FURNITURE | 63327 | Not Available |
| 21 | Not Available | MAIN CONTROL | 63331 | Not Available |
| 22 | No Image | MICRO SWITCH, EL5020 Part Number: 28019A-8 for Eureka | 28019A8 | $6.25Read more |
| 23 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | BASE ASSEMBLY | 63319 | Not Available |
| 25 | Not Available | CORD REEL | 77394B | Not Available |
| 26 | Not Available | THERMOSTAT | 59213-9 | Not Available |
| 27 | Not Available | HANDLE | 63329 | Not Available |
| 28 | Not Available | RETAINER | 76461-316N | Not Available |
| 29 | Not Available | SCREW PACKAGE | 53238-4 | Not Available |
| 30 | No Image | WHEEL, REAR EL5020 Part Number: 63321 for Eureka | 63321 | $29.36Read more |
| 31 | Not Available | BELT-COGGED | 76392-1 | Not Available |
| 32 | Not Available | BRUSHROLL | 63308 | Not Available |
| 33 | Not Available | BRUSHROLL | 63322 | Not Available |
| 34 | Not Available | BRUSHROLL | 63323 | Not Available |
| 35 | Not Available | SOLEPLATE | 63325 | Not Available |
| 36 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $6.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | Not Available | HANDLE | 63326 | Not Available |
| 38 |  | Filter,:( Foam Premotor EL5020 Intensity Upr Part Number: 77932 for Eureka | 77932 | $2.95Read more |
| 39 | Not Available | FILTER FRAME | 76418-366N | Not Available |
| 40 | Not Available | TUBE-SENSOR | 75969-5 | Not Available |
| 41 | Not Available | TUBE - SENSOR | 75969-6 | Not Available |
| 42 | Not Available | JUMPER | 77473A | Not Available |
| 43 | Not Available | LEAD & TRMNL | 75755A | Not Available |
| 44 | Not Available | LEAD & TERMINAL | 75757 | Not Available |
| 45 | Not Available | LEAD & TERMINAL | 75757-1 | Not Available |
| 46 | Not Available | UPR DUST | EL206 | Not Available |
| 110 | Not Available | DEG (120V) | EL096 | Not Available |
