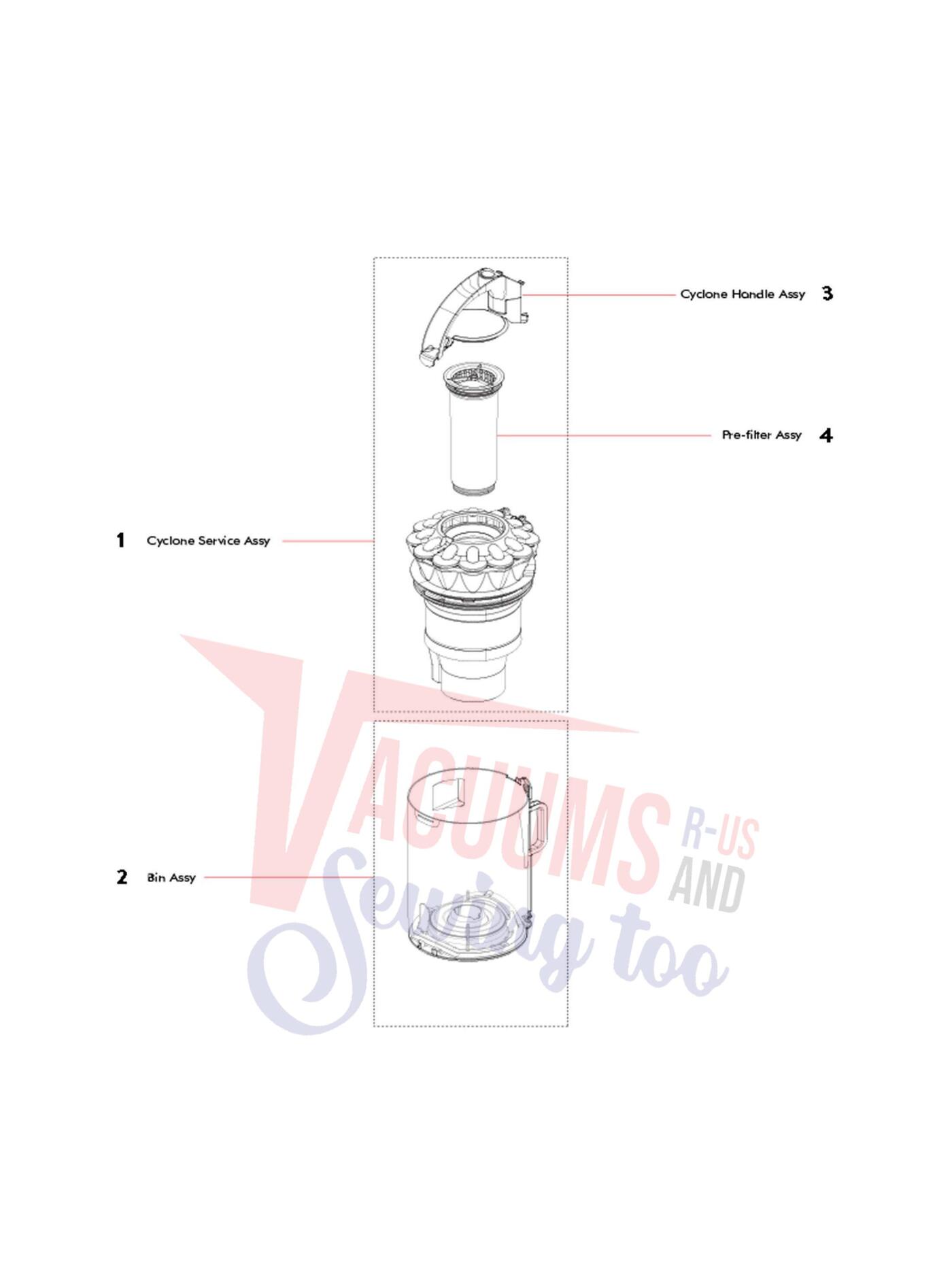

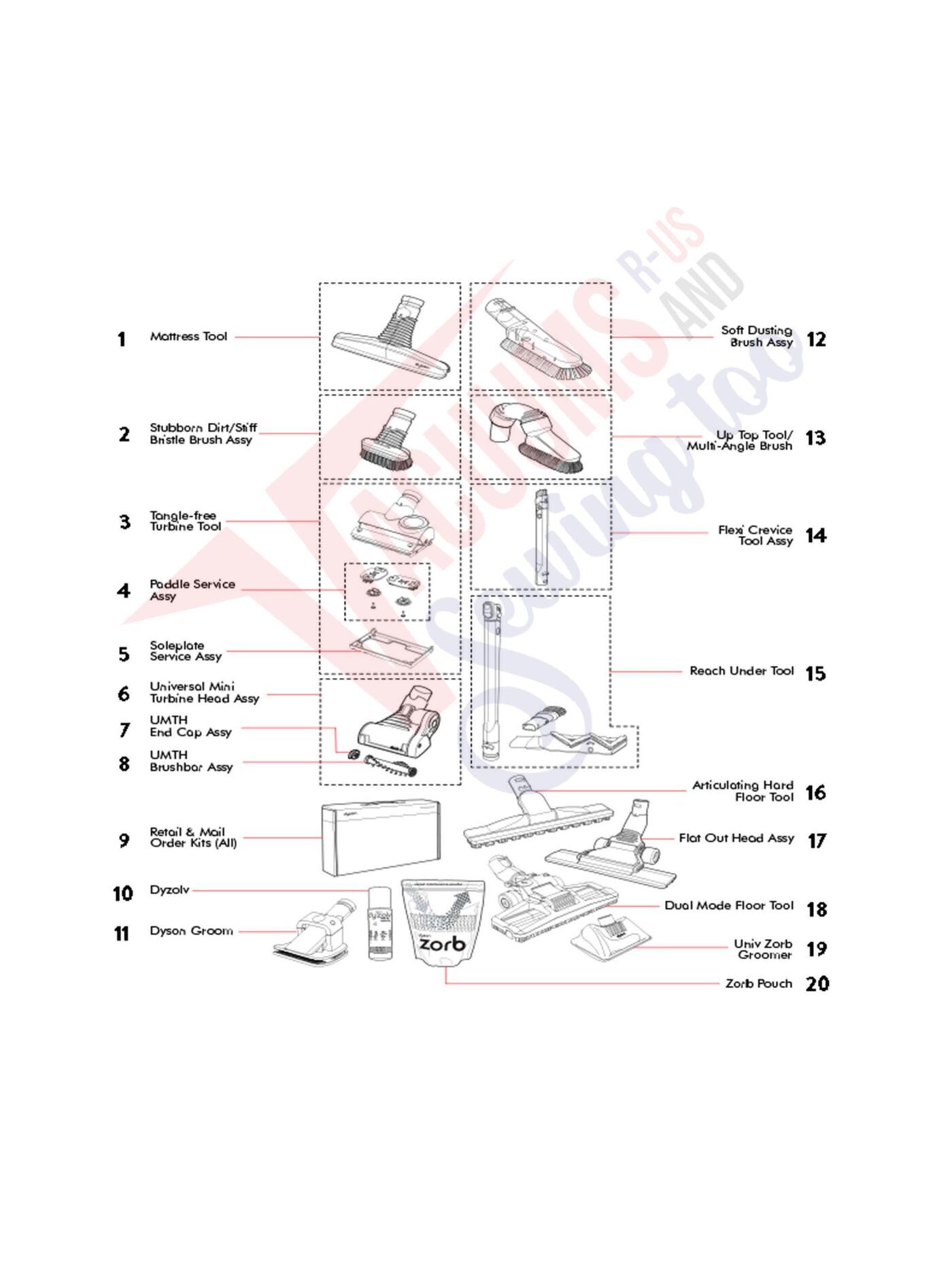

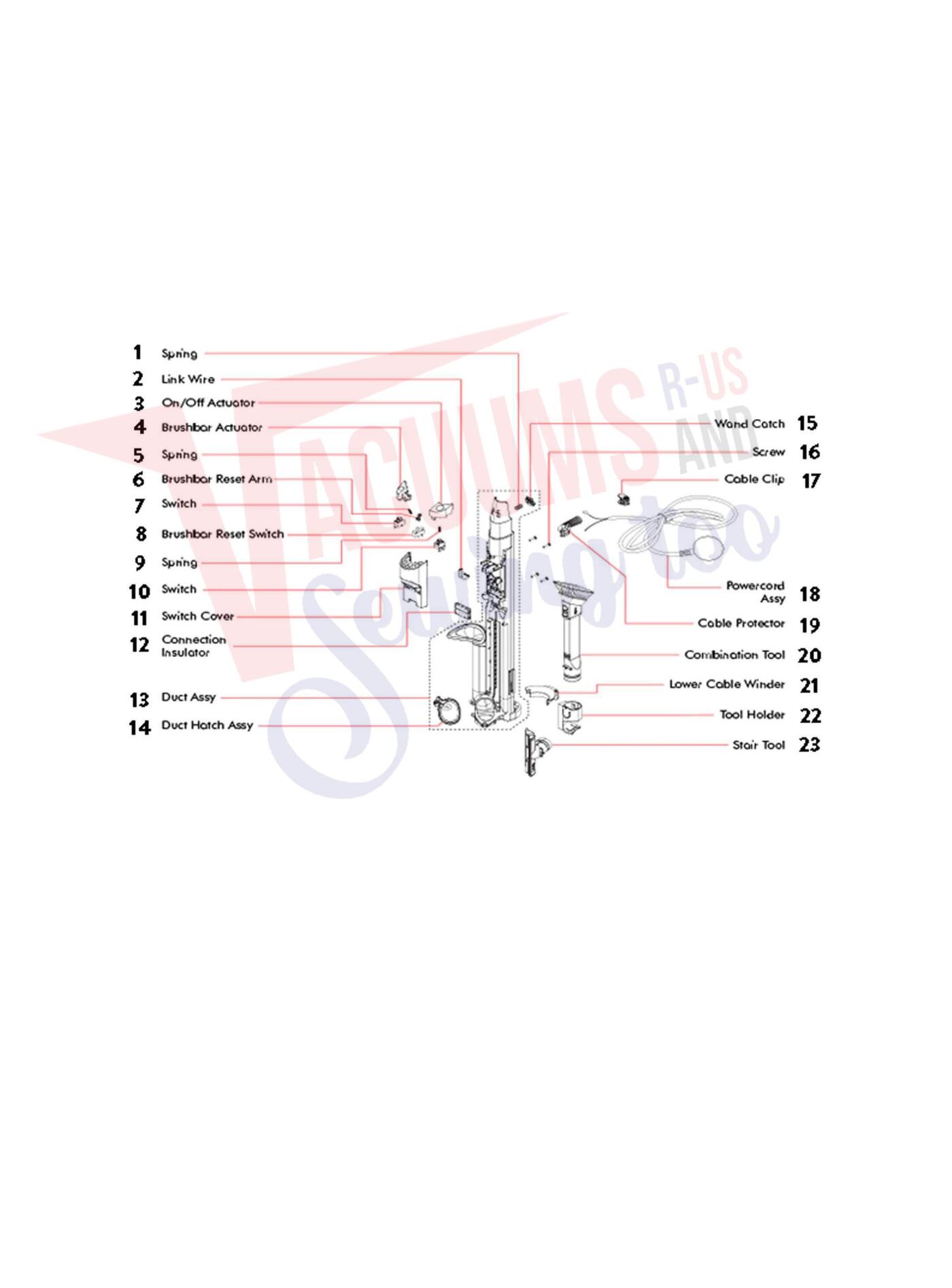

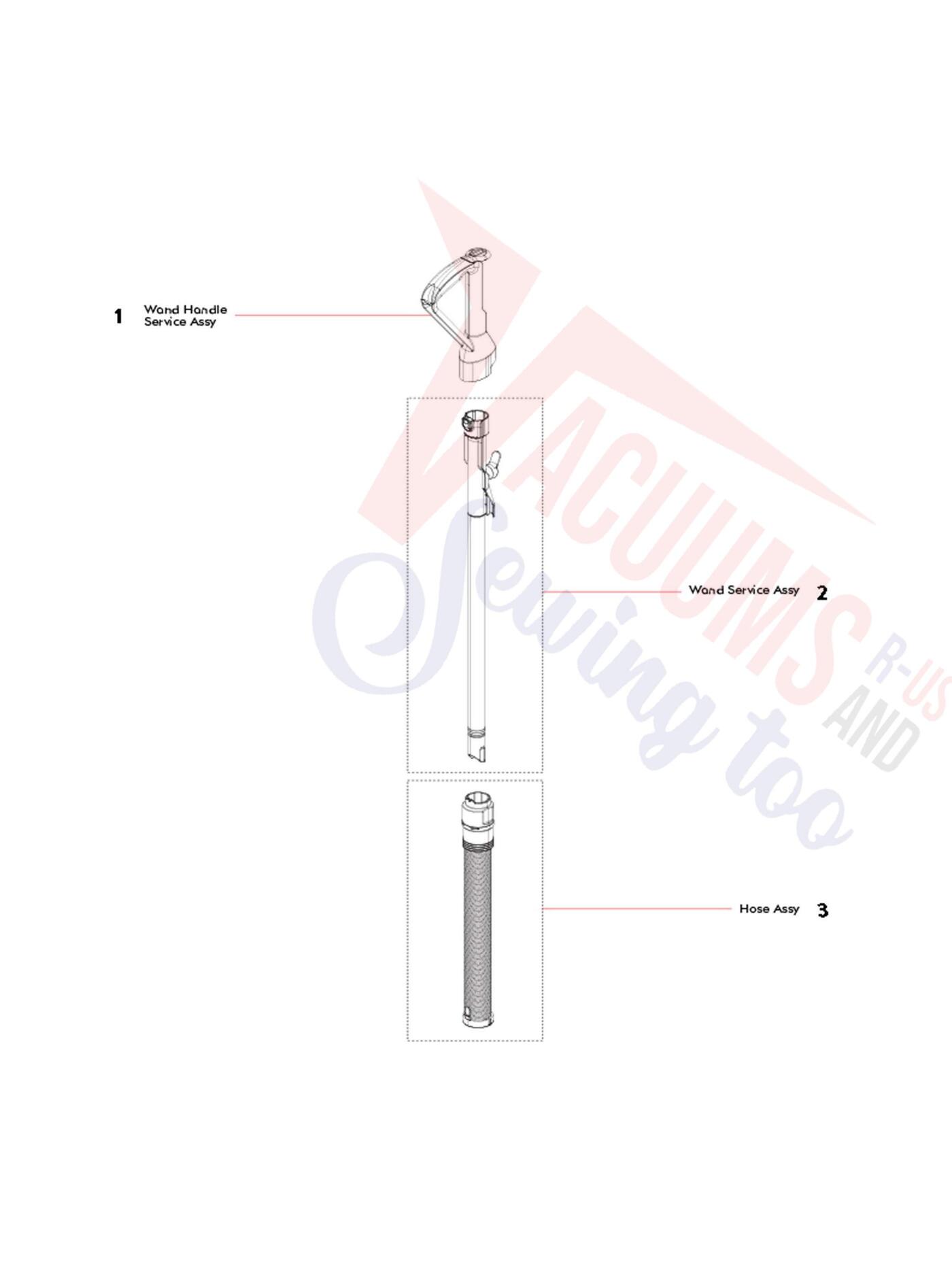

Schematic and parts book for Dyson UP30 Ball Animal 3. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HEREPlease note! Dyson has chosen not to release a schematic or parts list for the Dyson UP30. We have attempted to piece schematics and parts list together from previous models in an attempt to cross reference as many compatible parts as possible. This Schematic is our best attempt and to our knowledge is accurate. However, as the manufacturer has chosen not to release official documentation we can not be positive this diagram is 100% accurate.In particular the UP30 has a very different head and head connection than any other Dysons and to our knowledge the head is non repairable so references to the head's connection and the head itself have been removed.Also note that the motor is physically the same size between UP20 and UP30 and can be interchanged however Dyson reports higher air watts in the UP30. However, to our knowledge they don't sell either motors regardless.
