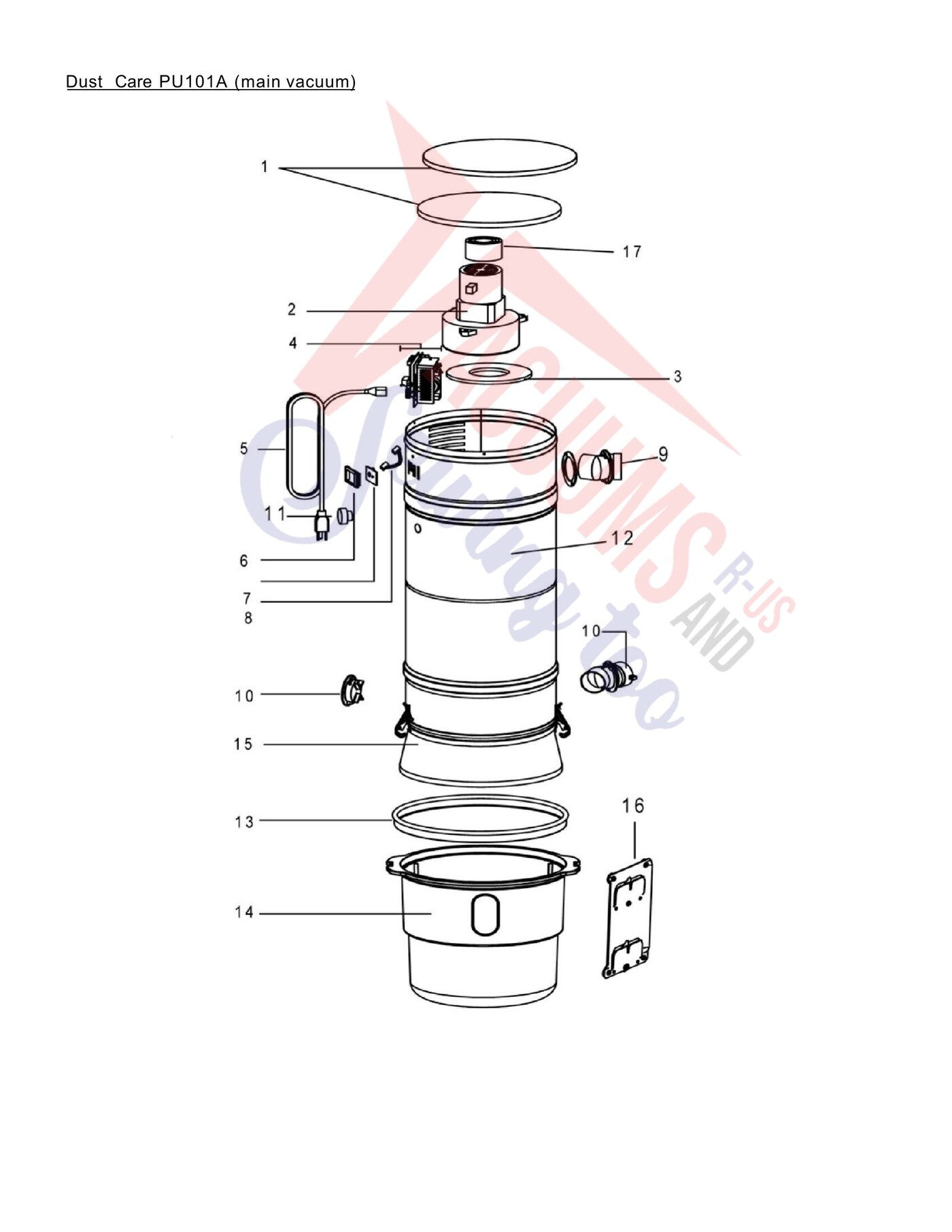

Schematic and parts book for Dust Care PU101A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Motor Spring | 145133 | Not Available |
| 1 | Not Available | Lid Black | 115209 | Not Available |
| 3 | Not Available | Motor Gasket | 145507 | Not Available |
| 4 | Not Available | CTRL Mod:ECS | 100615 | Not Available |
| 5 | No Image | CORD, MAIN POWER DCC-4P DCC4P Part Number: 100346 for Dust Care | 100346 | $27.30Read more |
| 6 | Not Available | Cover | 115077SUI | Not Available |
| 7 |  | NO LONGER AVAILABLE CONTROL MODULE SUI BOARD, SC325A,C Part Number: 100601 for Built-In | 100601 | $13.88Read more |
| 8 | Not Available | Wire Harness | 100602 | Not Available |
| 9 | Not Available | Intake Kit: | 105209 | Not Available |
| 11 | Not Available | Pressure | 155329 | Not Available |
| 12 | Not Available | UPCYL: | 125477 | Not Available |
| 13 | No Image | CAN GASKET, SMALL DIA Part Number: 195001 for Built-In | 195001 | $10.36Read more |
| 14 |  | Dirt Container-Beam 189C Central Vac
Fits 189S For: beam | 120312 | $59.02Read more |
| 15 | No Image | CLOTH BAG, LUX 3650B BEAM 2089 BU185 185 11" FILTR Part Number: 110362 for Built-In | 110362 | $70.47Read more |
| 16 | Not Available | Wall Mounting | 145330 | Not Available |
| 17 | Not Available | Motor Support | 145136 | Not Available |
