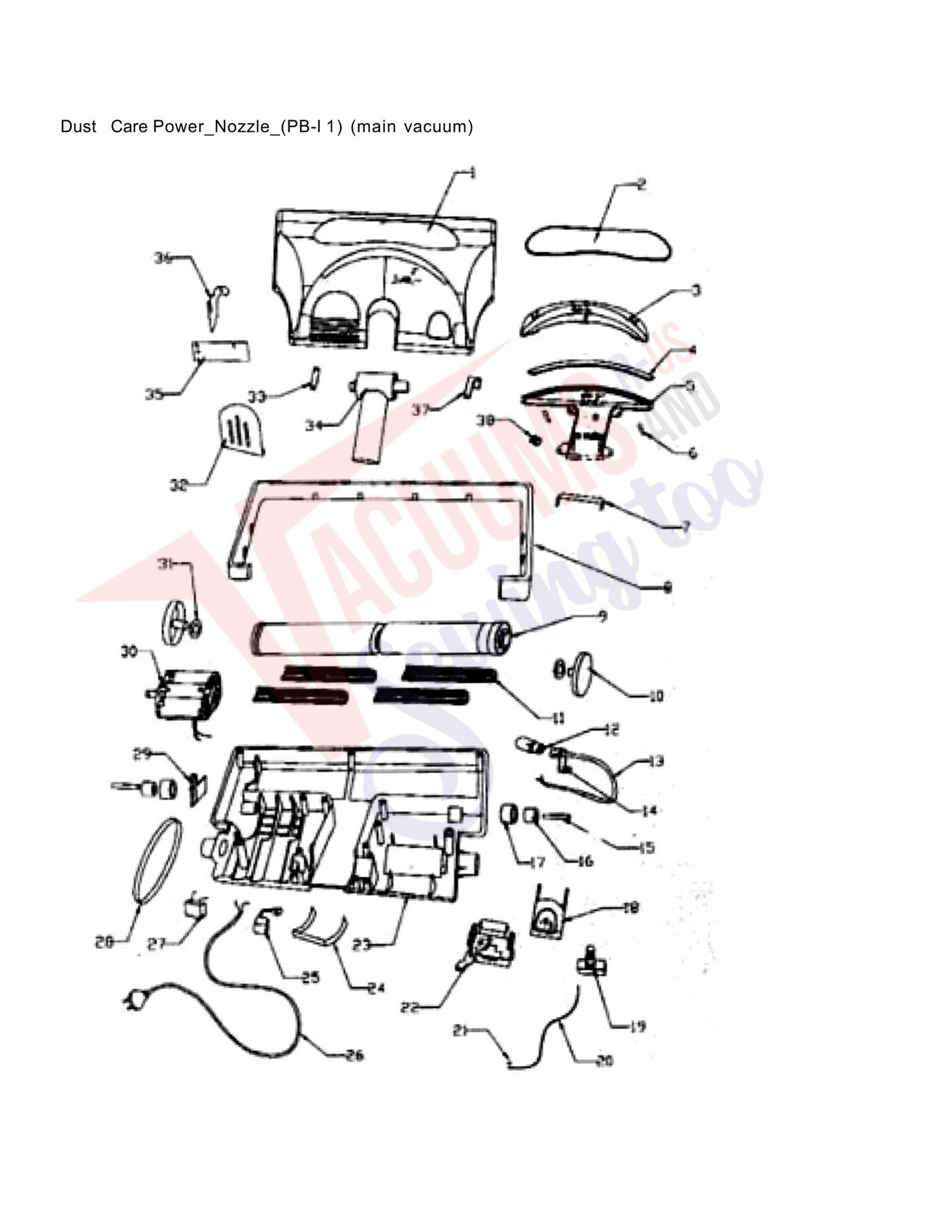

Schematic and parts book for Dust Care PB11-1-1 Power Nozzle. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Cord Clip for Wand | DC-3250 | Not Available |
| XX | Not Available | Fuse | FA-3609 | Not Available |
| 1 | Not Available | Upper Cover | PB11-1-1 | Not Available |
| 2 | Not Available | Transparent Window | PB11-1-2 | Not Available |
| 3 | Not Available | Lamp Cover | PB11-1-3 | Not Available |
| 4 | Not Available | Dust Block | PB11-1-4 | Not Available |
| 5 | Not Available | Air Collect Cover | PB11-1-5 | Not Available |
| 6 | Not Available | Upper Felt for Air Collect Cover | PB11-1-6 | Not Available |
| 7 | Not Available | Lower Felt for Air Collect Cover | PB11-1-7 | Not Available |
| 8 | Not Available | PVC Protection Ring | PB11-1-8 | Not Available |
| 9 | Not Available | Metal Brush Roll Geared Belt Type New Style | FA-2003 | Not Available |
| 9 | Not Available | PB11-1-9 Metal Brush Roll Flat Belt Type Old Style | DC-20431 | Not Available |
| 10 | Not Available | PB11-1-10 Big Wheel | DC-PB11-1-10 | Not Available |
| 11 | Not Available | PB11-1-11 Brush Strip Set | DC-2200 | Not Available |
| 12 | Not Available | Bulb 12V 10W | PB11-1-12 | Not Available |
| 13 | Not Available | Bulb Holder 1 | PB11-1-13 | Not Available |
| 14 | Not Available | Bulb Holder 2 | PB11-1-14 | Not Available |
| 15 | Not Available | Small Wheel Shaft | PB11-1-15 | Not Available |
| 16 | Not Available | Small Wheel Protector Cover | PB11-1-16 | Not Available |
| 17 | Not Available | Small Wheel | PB11-1-17 | Not Available |
| 18 | Not Available | Switch Pedal | PB11-1-18 | Not Available |
| 19 | Not Available | PB11-1-19 Switch | FA-3405 | Not Available |
| 20 | Not Available | Internal Wire | PB11-1-20 | Not Available |
| 21 | Not Available | Clip | PB11-1-21 | Not Available |
| 22 | Not Available | Switch Pedal Stand | PB11-1-22 | Not Available |
| 23 | Not Available | PB11-1-23 Lower Housing | FA-5730-33 | Not Available |
| 24 | Not Available | Bend Tube Protector | PB11-1-24 | Not Available |
| 25 | Not Available | Power Cord Protector | PB11-1-25 | Not Available |
| 26 | Not Available | PB11-1-26 Power Cord | FA-3096 | Not Available |
| 27 | Not Available | PB11-1-27 Reset Switch / Circuit Breaker | DC-3410 | Not Available |
| 28 | Not Available | PB11-1-28 Belt - Geared Late Style | DC-1075 | Not Available |
| 28 | Not Available | Belt - Flat Old Style | DC-1033 | Not Available |
| 29 | Not Available | Belt Baffle | PB11-1-29 | Not Available |
| 30 | Not Available | PB11-1-30 Motor - Geared Shaft Late Style | FA-6051 | Not Available |
| 30 | Not Available | Motor - Flat Shaft Old Style | ROR-6050 | Not Available |
| 31 | Not Available | Big Wheel Felt | PB11-1-31 | Not Available |
| 32 | Not Available | Glistened Mask | PB11-1-32 | Not Available |
| 33 | Not Available | Bend Tube Plate | PB11-1-33 | Not Available |
| 34 | Not Available | PB11-1-34 Elbow | C-3581134 | Not Available |
| 35 | Not Available | Anti-Dust Cloth | PB11-1-35 | Not Available |
| 36 | Not Available | Upper Cover Felt | PB11-1-36 | Not Available |
| 37 | Not Available | Bend Tube Plate ( B ) | PB11-1-37 | Not Available |
| 38 | Not Available | Shock Absorber Ring | PB11-1-38 | Not Available |
