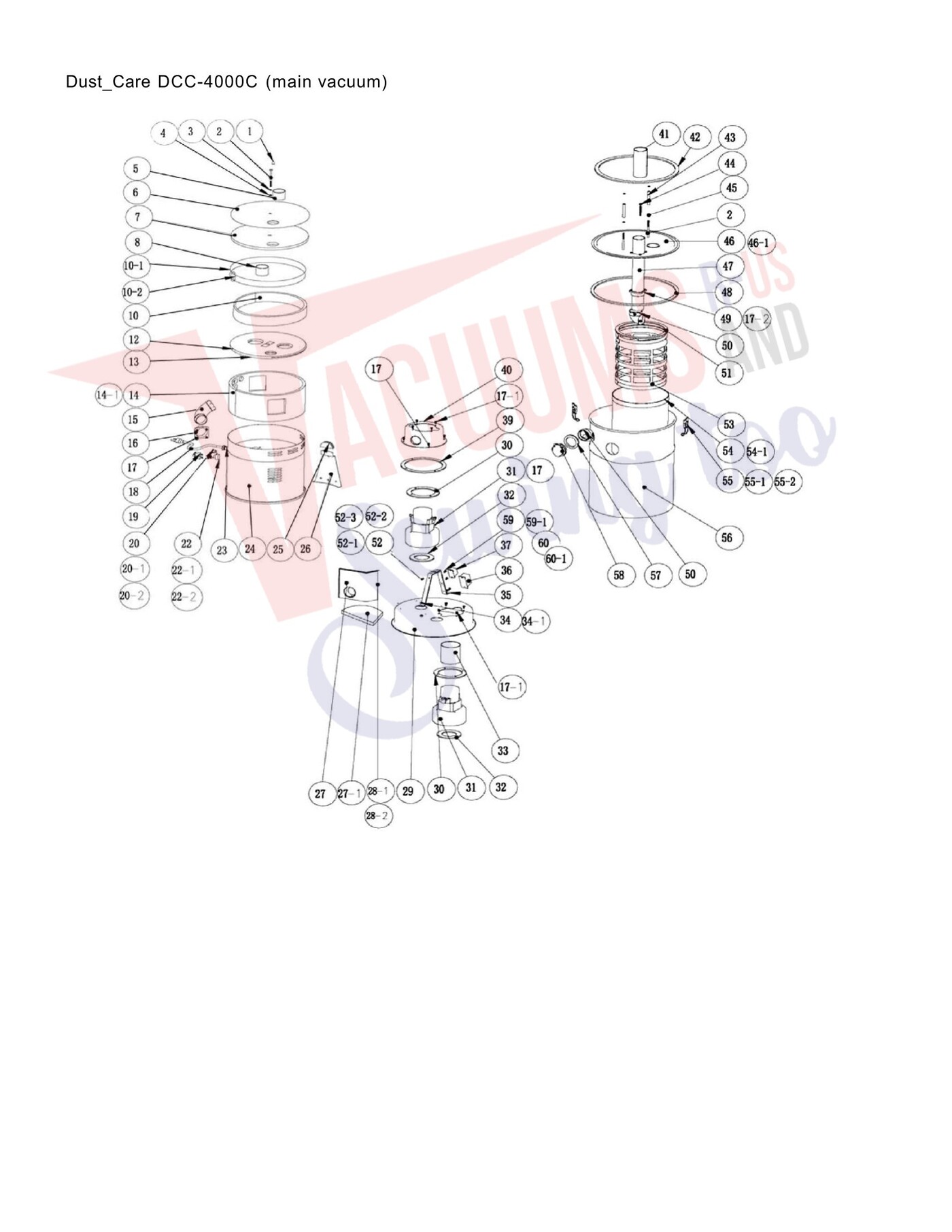

Schematic and parts book for Dust Care DCC-4000C . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Bolt Cover | 3000C-1-1 | Not Available |
| 2 |  | DC-3000C SCREW BOLT Part Number: 3000C-1-2 for Dust Care | 3000C12 | $0.76Read more |
| 3 | Not Available | Lock Washer | 3000C-1-3 | Not Available |
| 4 | Not Available | Washer | 3000C-1-4 | Not Available |
| 5 | Not Available | Connection Tube | 3000C-1-5 | Not Available |
| 6 | Not Available | Top Cover | 3000C-1-6 | Not Available |
| 7 | Not Available | Cover Sponge | 3000C-1-7 | Not Available |
| 8 | Not Available | Supporting Tube | 3000C-1-8 | Not Available |
| 10 | Not Available | Upper Cavity Sponge | 3000C-1-10 | Not Available |
| 12 | Not Available | Upper Cover Muffler Board | 3000C-1-12 | Not Available |
| 13 | Not Available | Upper Cover Sponge | 3000C-1-13 | Not Available |
| 14 | Not Available | Canister Muffler Sponge | 3000C-1-14 | Not Available |
| 14 | Not Available | Canister Muffler Exhaust Sponge | 3000C-1-14-1 | Not Available |
| 15 | Not Available | Elbow | 3000C-1-15 | Not Available |
| 16 | Not Available | Connection Vent | 3000C-1-16 | Not Available |
| 17 | Not Available | Screw | 3000C-1-17 | Not Available |
| 18 |  | CORD, DCC3000C Part Number: 3000C-1-18 for Dust Care | 3000C118 | $10.96Read more |
| 19 | Not Available | Overloading Open Circuit | 3000C-1-19 | Not Available |
| 20 | Not Available | Connecting End | 3000C-1-202-2 | Not Available |
| 22 | Not Available | Button Switch | 3000C-1-22 | Not Available |
| 23 | Not Available | Power Supply Cord Clasp | 3000C-1-23 | Not Available |
| 24 | Not Available | Canister | 3000C-1-24 | Not Available |
| 25 | Not Available | Rubber Guard | 3000C-1-25 | Not Available |
| 26 |  | DC-3000C WALL MOUNTING BRACKET Part Number: 3000C-1-26 for Dust Care | 3000C126 | $29.53Read more |
| 27 | Not Available | Muffler Board | 3000C-1-27 | Not Available |
| 27 | Not Available | Foam | 3000C-1-27-1 | Not Available |
| 28 | Not Available | Muffler Board Sponge | 3000C-1-28 | Not Available |
| 29 | Not Available | Motor Support Cavity | 3000C-1-29 | Not Available |
| 30 | Not Available | Motor Upper Rubber Seal Gasket | 3000C-1-30 | Not Available |
| 31 |  | Motor, 5.7" 240 Volt B/B 2 Stage Peripheral Bypass Part Number: 116354-00 for Lamb | 11635400 | $235.80Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Gasket, Lower DDC-3000C Central Vac Motor Part Number: 3000C-1-32 for Dust Care | 3000C132 | $8.25Read more |
| 33 | Not Available | Upper Motor Venting Pipe | 3000C-1-33 | Not Available |
| 34 | Not Available | Bolt | 3000C-1-34 | Not Available |
| 35 | Not Available | Power Supply Control Support | 3000C-1-35 | Not Available |
| 36 | Not Available | Transformer | 17-0000-05 | Not Available |
| 37 | Not Available | Power Supply Relay | 3000C-1-37 | Not Available |
| 39 | Not Available | Upper Motor Seal Gasket | 3000C-1-39 | Not Available |
| 40 | Not Available | Upper Motor Support Cavity | 3000C-1-40 | Not Available |
| 41 | Not Available | Suction Muffler Sponge | 3000C-1-41 | Not Available |
| 42 | Not Available | Top Cover Seal Ring | 3000C-1-42 | Not Available |
| 43 | Not Available | Support Tube | 3000C-1-43 | Not Available |
| 44 | Not Available | Screw | 3000C-1-44 | Not Available |
| 45 | Not Available | O Seal Ring | 3000C-1-45 | Not Available |
| 46 | Not Available | Dust Canister Cover | 3000C-1-46 | Not Available |
| 46 | Not Available | Motor Separate Net | 3000C-1-46-1 | Not Available |
| 47 | Not Available | Upper Suction Pipe | 3000C-1-47 | Not Available |
| 48 | Not Available | Dust Canister Cover | 3000C-1-48 | Not Available |
| 49 | Not Available | Upper Suction Pipe Fixer | 3000C-1-49 | Not Available |
| 50 | Not Available | Right Angle Connector | 3000C-1-50 | Not Available |
| 51 | Not Available | Filter Support Seal Ring | 3000C-1-51 | Not Available |
| 52 | Not Available | Filter Support Fixer and Washer | 3000C-1-52 | Not Available |
| 53 | Not Available | Filter Support | 3000C-1-53 | Not Available |
| 54 | Not Available | Filter Bag | 3000C-1-54 | Not Available |
| 54 | Not Available | Outer Filter Bag | 3000C-1-54-1 | Not Available |
| 55 | Not Available | Metal Latch Assembly | 3000C-1-55 | Not Available |
| 56 | Not Available | Dust Canister | 3000C-1-56 | Not Available |
| 57 | Not Available | Valve Seal Ring | 3000C-1-57 | Not Available |
| 58 |  | Intake Fitting, DC-3000C On Tank Part Number: 3000C-1-58 for Dust Care | 3000C158 | $20.05Add to cart Special order: ships in 2 to 4 weeks |
| 59 | Not Available | Screws and Washers | 3000C-1-59 | Not Available |
| 60 | Not Available | Screws and Washers | 3000C-1-59 | Not Available |
