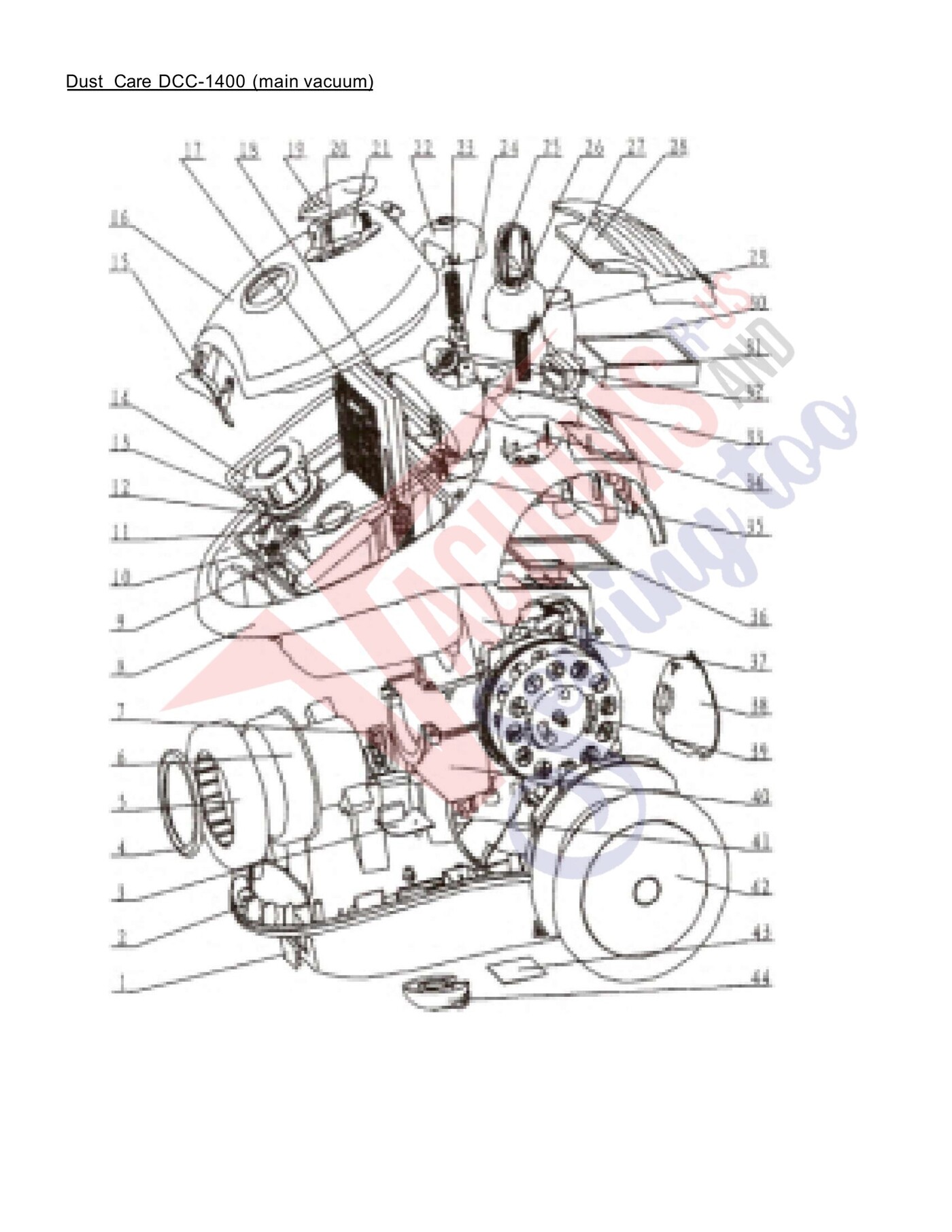

Schematic and parts book for Dust Care DCC-1400 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Decorate Slice | 4801-1-1 | Not Available |
| 2 | Not Available | Lower Body | 4801-1-2 | Not Available |
| 3 | Not Available | Circuit Board | 17-7812-05 | Not Available |
| 4 | Not Available | Motor Housing PVC | 4801-1-4 | Not Available |
| 5 | Not Available | Motor Ring | 4801-1-5 | Not Available |
| 6 | Not Available | Motor | 17-8500-02 | Not Available |
| 7 | Not Available | Motor Fastening Block | 4801-1-7 | Not Available |
| 8 | Not Available | Middle Body | 4801-1-8 | Not Available |
| 9 | Not Available | Hose Coupling | 17-7813-02 | Not Available |
| 10 | Not Available | Protect Spring | 4801-1-10 | Not Available |
| 11 | Not Available | Top Plate | 17-7814-01 | Not Available |
| 12 | Not Available | Dusting Bag | 4801-1-12 | Not Available |
| 13 | Not Available | Suction Down Ring | 4801-1-13 | Not Available |
| 14 | Not Available | Suction Plate | 4801-1-14 | Not Available |
| 15 | Not Available | Lid Latch | 17-7808-02 | Not Available |
| 16 | Not Available | Front Cover | 17-7815-07 | Not Available |
| 17 | Not Available | Filter Cover | 17-7816-04 | Not Available |
| 18 | Not Available | Primary Filter | 17-2342-04 | Not Available |
| 19 | Not Available | Air Flow Indicator Top Plate | 4801-1-19 | Not Available |
| 20 | Not Available | Air Flow Indicator Ring | 4801-1-20 | Not Available |
| 21 | Not Available | Air Flow Indicator | 4801-1-21 | Not Available |
| 22 | Not Available | Switch Button | 17-9212-02 | Not Available |
| 23 | Not Available | Switch Spring | 4801-1-23 | Not Available |
| 24 | Not Available | Switch | 4801-1-24 | Not Available |
| 25 | Not Available | Sofa Nozzle | 4801-1-25 | Not Available |
| 26 | Not Available | Cord Reel Button | 4801-1-26 | Not Available |
| 27 | Not Available | Cord Reel Spring | 4801-1-27 | Not Available |
| 28 | Not Available | Air Outlet Plate | 4801-1-28 | Not Available |
| 29 | Not Available | Crevice Nozzle | 4801-1-29 | Not Available |
| 30 | Not Available | HEPA Filter | 4801-1-30 | Not Available |
| 31 | Not Available | Brush Nozzle | 4801-1-31 | Not Available |
| 32 | Not Available | Speed Control Button | 4801-1-32 | Not Available |
| 33 | Not Available | Switch Plate | 4801-1-33 | Not Available |
| 34 | Not Available | Speed Control Plate | 4801-1-34 | Not Available |
| 35 | Not Available | Hose Protect Ring | 4801-1-35 | Not Available |
| 39 | Not Available | Cord Reel | 4801-1-39 | Not Available |
| 42 | Not Available | Rear Wheel | 4801-1-42 | Not Available |
| 44 | Not Available | Front Wheel | 4801-1-44 | Not Available |
