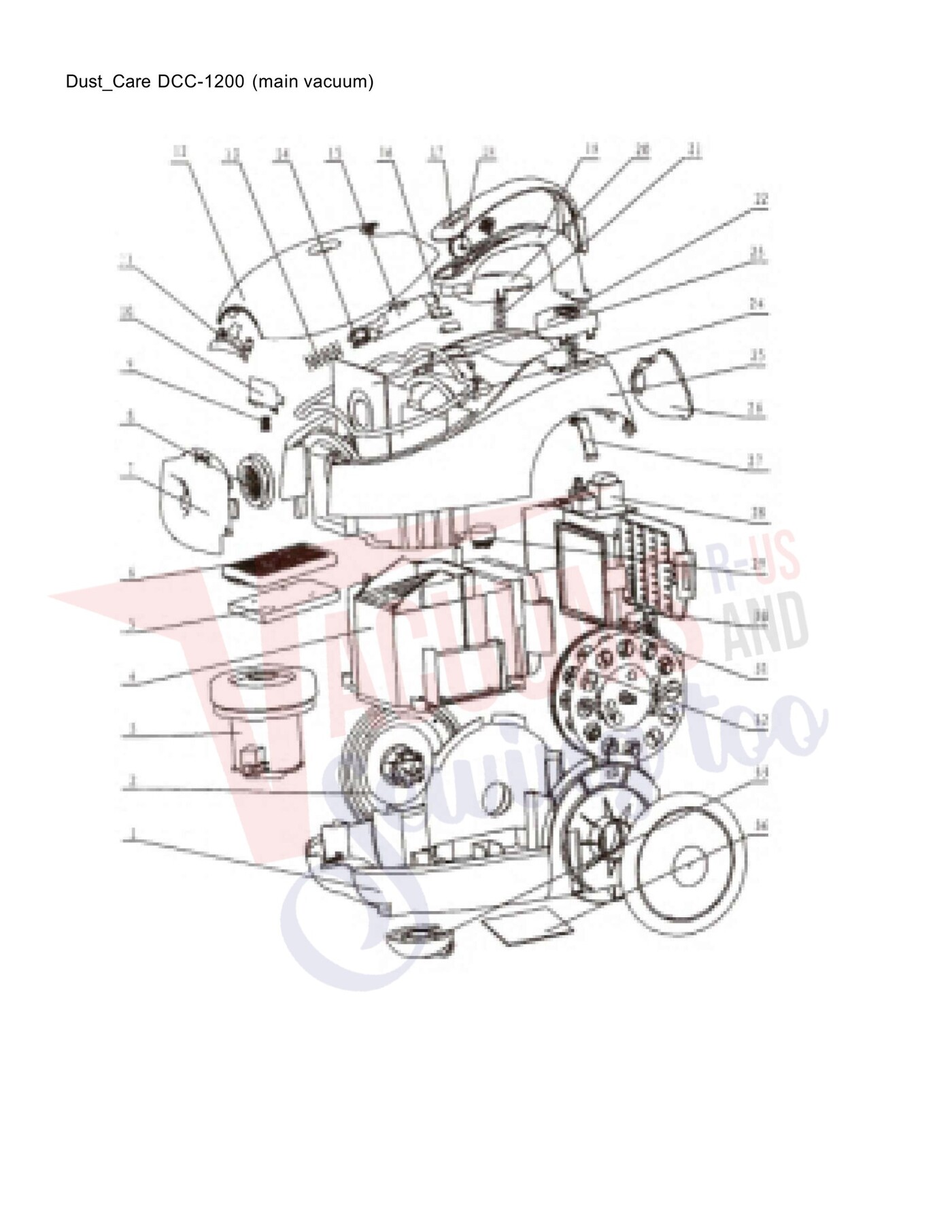

Schematic and parts book for Dust Care dcc-1200 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Lower Body | 3801-1-1 | Not Available |
| 2 | No Image | BIG REAR WHEEL DCC-1200 Part Number: 3801-1-2 for Dust Care | 380112 | $4.69Read more |
| 3 | Not Available | Motor | 3801-1-3 | Not Available |
| 4 | Not Available | Motor Top Housing | 3801-1-4 | Not Available |
| 5 |  | FRONT FILTER DCC-1200 Part Number: 3801-1-5 for Dust Care | 380115 | $3.79Read more |
| 6 | Not Available | Filter Cover | 3801-1-6 | Not Available |
| 7 | Not Available | Block Up Suction | 3801-1-7 | Not Available |
| 8 | Not Available | Suction Ring | 3801-1-8 | Not Available |
| 9 | Not Available | Suction Ring Gasket | 3801-1-9 | Not Available |
| 10 | No Image | Spring, Dust Bag Lock Block DCC1200 Part Number: 3801-1-10 for Dust Care | 3801110 | $4.26Read more |
| 11 | Not Available | Dust Bag Lock Block | 3801-1-11 | Not Available |
| 12 | Not Available | Front Cover Lock Block | 3801-1-12 | Not Available |
| 13 | Not Available | Front Cover | 3801-1-13 | Not Available |
| 14 | Not Available | Air Flow Indicator Ring | 3801-1-14 | Not Available |
| 15 | Not Available | Air Flow Indicator | 3801-1-15 | Not Available |
| 16 | Not Available | Air Flow Indicator Top Plate | 3801-1-16 | Not Available |
| 17 | Not Available | Block Up Wind Block | 3801-1-17 | Not Available |
| 18 | No Image | HANDLE HIGHER COVER DCC1200 Part Number: 3801-1-18 for Dust Care | 3801118 | $3.18Read more |
| 19 |  | SPEED CONTOL BUTTON DCC-1200 Part Number: 3801-1-19 for Dust Care | 3801119 | $2.26Read more |
| 20 | No Image | HANDLE LOWER COVER DCC1200 Part Number: 3801-1-20 for Dust Care | 3801120 | $6.43Read more |
| 21 | Not Available | Switch Button | 3801-1-21 | Not Available |
| 22 | Not Available | Switch Spring | 3801-1-22 | Not Available |
| 23 |  | BUTTON, CORD REEL DCC1200 Part Number: 3801-1-23 for Dust Care | 3801123 | $3.94Read more |
| 24 | Not Available | Dusting Bag | 3801-1-24 | Not Available |
| 25 | Not Available | Hose Coupling | 3801-1-25 | Not Available |
| 26 | Not Available | Middle Body | 3801-1-26 | Not Available |
| 27 | Not Available | Turn Out Line Ring | 3801-1-27 | Not Available |
| 28 | Not Available | Middle Body Peg Hook | 3801-1-28 | Not Available |
| 29 | Not Available | Circuit Board | 3801-1-29 | Not Available |
| 30 | Not Available | Protect Top Plate Groupware | 3801-1-30 | Not Available |
| 31 | Not Available | Air Inlet Plate | 3801-1-31 | Not Available |
| 32 |  | Filter, 3.75"x 3.75" HEPA W/Frame DCC1200 Part Number: 3801-1-32 for Dust Care | 3801132 | $12.33Read more |
| 33 | Not Available | Cord Reel Assembly | 3801-1-33 | Not Available |
| 34 | No Image | SMALL FRONT WHEEL DCC-1200 Part Number: 3801-1-34 for Dust Care | 3801134 | $3.26Read more |
| 35 | Not Available | Label | 3801-1-35 | Not Available |
